STANDARD TOOL

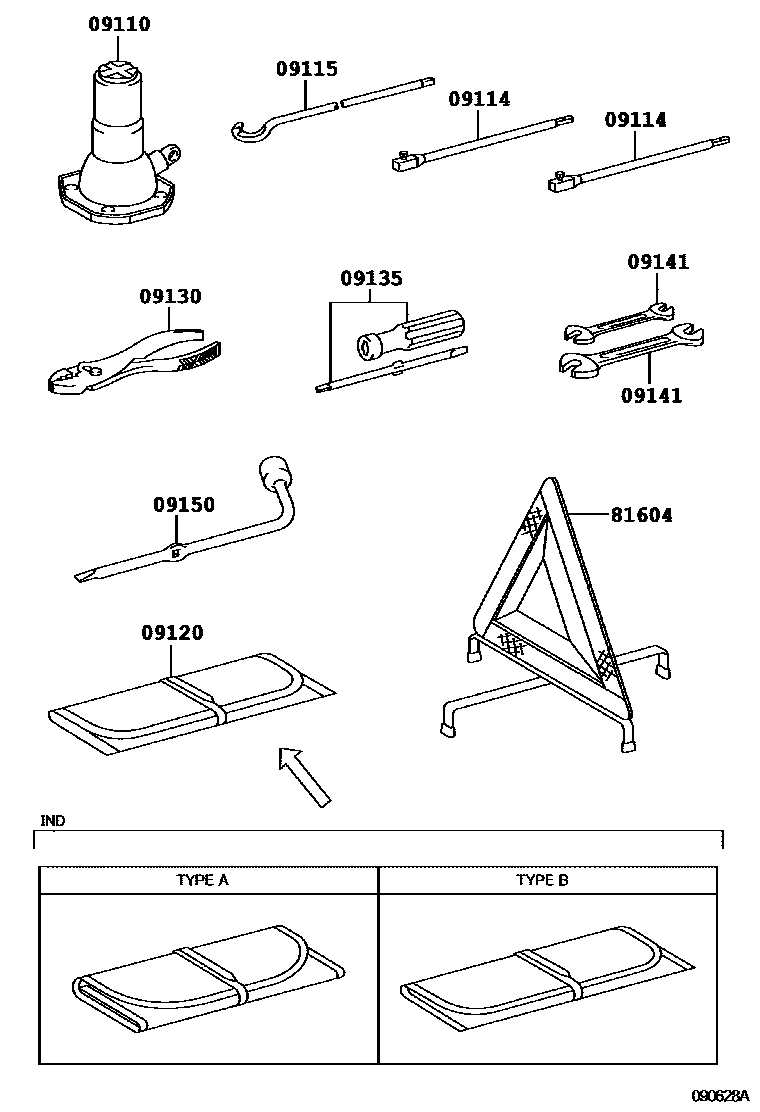

Parts diagram
09110JACK ASSY
main09111-0K030i201107-201510
main09111-0K071i201110-201611
main09111-0K170i201503-201603
09114EXTENSION SUB-ASSY, JACK HANDLE
main09114-0K010i201110-201601
main09114-0K020i201107-201510
main09114-0K050i201202-201603
main09114-0K081i201201-201310
sub09114-0K140
main09114-0K110i201202-201611
main09114-0K140i201310-201603
09115ROD SUB-ASSY, JACK HANDLE
main09115-0K010i¥0201110-201601
main09115-0K020i201107-201510
main09115-0K050i201202-201603
main09115-0K110i201201-201310
sub09115-0K160
main09115-0K130i201202-201611
main09115-0K160i201310-201603
09120BAG, TOOL
main09120-0K010i201110-201306
sub09120-0K160
main09120-0K020i201107-201510
main09120-0K060i201202-201603
main09120-0K090i201201-201310
TYPE A:REFER ILLUST.
main09120-0K100i201202-201611
main09120-0K160i201306-201601
sub09120-0K240¥1,180
main09120-0K220i201310-201603
TYPE B:REFER ILLUST.
09130PLIERS
main09130-0K010i201201-201310
main09130-0K020i201202-201611
main90089-99010i¥440201107-201603
09135DRIVER, SCREW
main09135-0K010i201201-201310
sub09135-0K060
main09135-0K020i201202-201611
main09135-0K060i201310-201603
main90089-99009i¥500201107-201603
09141SPANNER
main09141-0K010i201201-201310
8 X 10
sub09141-0K130
main09141-0K020i201201-201310
12 X 14
main09141-0K030i¥530201110-201601
8 X 10
main09141-0K040i¥800201110-201601
12 X 14
main09141-0K060i201202-201611
8 X 10
main09141-0K070i201202-201611
12 X 14
main09141-0K130i201310-201603
8 X 10
main90089-99006i¥440201107-201603
8 X 10
main90089-99007i¥260201107-201603
12 X 14
09150WRENCH, HUB NUT BOX
main09150-0K010i¥1,300201110-201601
main09150-0K020i201107-201510
main09150-0K050i201202-201603
main09150-0K080i201201-201309
sub09150-0K100
main09150-0K090i201202-201611
main09150-0K100i201310-201603
81604REFLECTOR SET, TRIANGLE
main81604-0D020i201201-201603

9 parts on this diagram · 1 diagram in section
