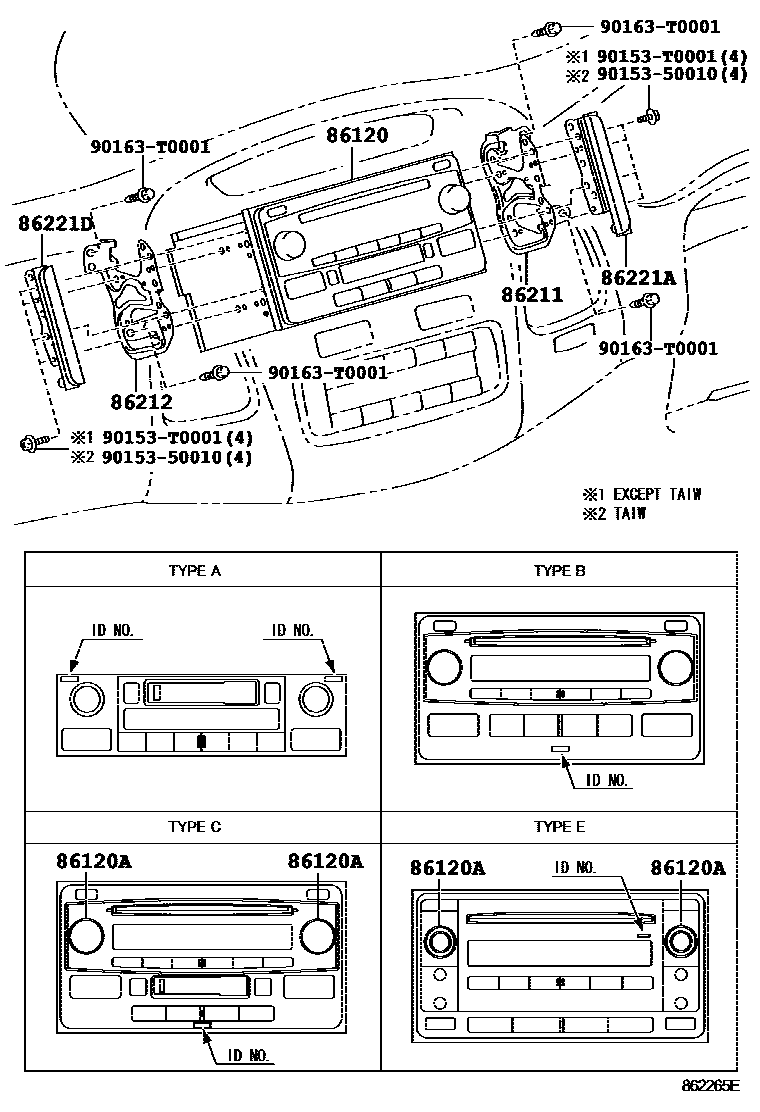

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1CONDENSER & NOISE FILTER

86120RECEIVER ASSY, RADIO

main86120-0D310iTGN4#..TAIW200707

PIONEER,ID=P2819,TYPE B:REFER ILLUST.

main86120-0K050supersedes 86120-0K050iKUN40,TGN40..GL..IND200502-200812

PANASONIC,ID=57807,TYPE C:REFER ILLUST.

main86120-0K410supersedes 86120-0K410iKUN40,TGN40..DLX..IND200812

FUJITSU TEN,ID=12881,TYPE E:REFER ILLUST.

86120AKNOB, RADIO RECEIVER SWITCH

main90011-25131×2iKUN40,TGN40..GL..IND200502-200811

TYPE C:REFER ILLUST.

main90011-25165×2iTGN40..STD..VN200809-201009

AUDIO-AM/FM CD 4SPEAKER,TYPE E:REFER ILLUST.

86211BRACKET, RADIO, NO.1

main86211-0K020iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN4#..GCC,IDN,IND,PHL,TH,VN200808

86212BRACKET, RADIO, NO.2

main86212-0K020iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN4#..GCC,IDN,IND,PHL,TH,VN200808

86221APANEL, RADIO RECEIVER

main86221-02020iTGN40..DLX..MA200408-200809

AUDIO-AM/FM CASSETTE 6SPEAKER

86221DPANEL, RADIO RECEIVER

main86221-02010iTGN40..DLX..MA200408-200809

AUDIO-AM/FM CASSETTE 6SPEAKER

9015350010

main90153-50010

90153T0001

main90153-T0001

90163T0001

main90163-T0001

9 parts on this diagram · 2 diagrams in section
