METER

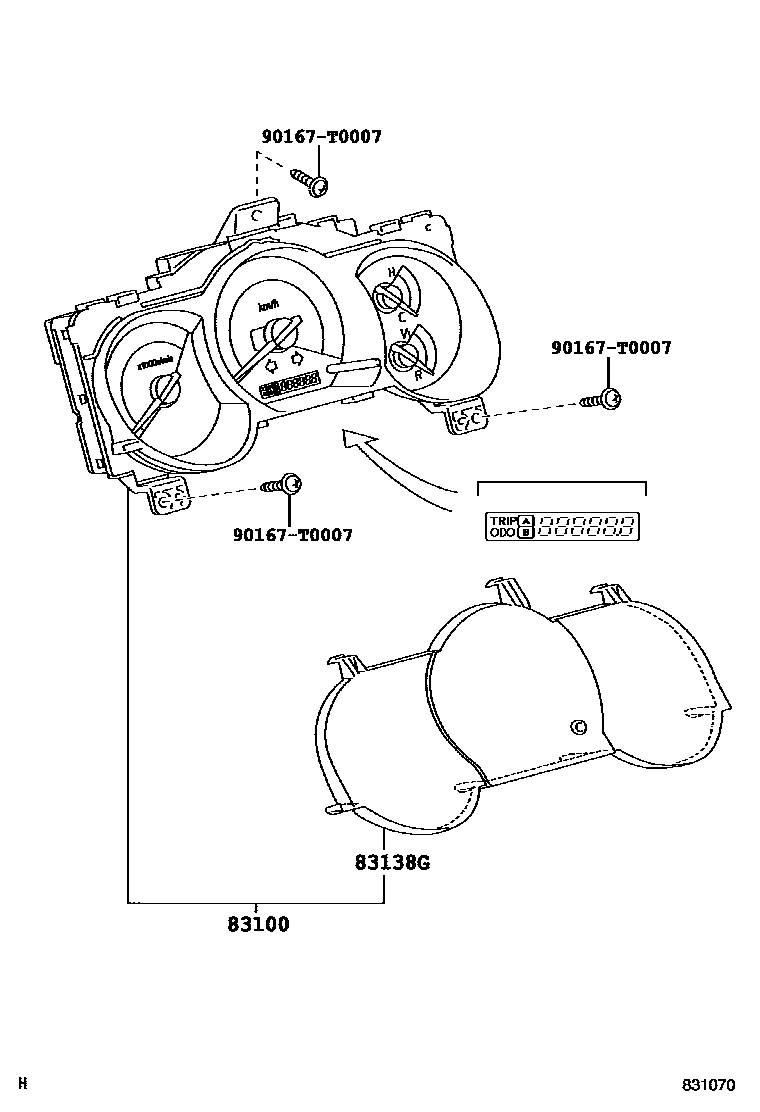

Parts diagram
83100METER ASSY, COMBINATION
main83800-0K660i200501-200507
sub83800-0K661
main83800-0K661i200508-200810
sub83800-0K662
main83800-0K662i200810
main83800-0K670i200501-200507
sub83800-0K671
main83800-0K671i200508-200809
main83800-0K680i200502-200812
main83800-0K681i200812
main83800-0K690i200502-200812
POWER DOOR LOCK-WITH
main83800-0K700i200502-200812
main83800-0K710i200502-200812
POWER DOOR LOCK-WITH
main83800-0K781i200707-200909
sub83800-0K782
main83800-0K782i200910-201111
main83800-0K790i200707-200909
ANTI-THEFT SYSTEM-SECURITY HORN
sub83800-0K791
main83800-0K791i200910-201111
ANTI-THEFT SYSTEM-SECURITY HORN
main83800-0K800i200707-200909
MULTI INFORMATION DISPLAY-WITH
sub83800-0K801
main83800-0K801i200910-201111
MULTI INFORMATION DISPLAY-WITH
main83800-0KB90i200501-200810
sub83800-0KB91
main83800-0KB91i200810-200908
sub83800-0KB92
main83800-0KB92i200909
main83800-0KC00i200501-200709
main83800-0KC01i200709-200809
main83800-0KC10i200501-200908
sub83800-0KC11
main83800-0KC11i200909
main83800-0KC20i200505-200709
main83800-0KC21i200709-200809
main83800-0KC30i200501-200507
sub83800-0KC31
main83800-0KC31i200508-200810
sub83800-0KC32
main83800-0KC32i200810
main83800-0KC41i200411-200507
sub83800-0KC42
main83800-0KC42i200508-200808
main83800-0KC50i200501-200507
sub83800-0KC51
main83800-0KC51i200508-200809
sub83800-0KY40
main83800-0KC61i200411-200507
sub83800-0KC62
main83800-0KC62i200508-201107
main83800-0KC90i200408-200708
sub83800-0KC91
main83800-0KC91i200708-200811
sub83800-0KC92
main83800-0KC92i200812-201107
main83800-0KD00i200408-200708
main83800-0KD02i200708-200811
sub83800-0KD03
main83800-0KD03i200812-201107
main83800-0KD10i200408-201107
main83800-0KD20i200408-200708
main83800-0KD21i200708-200808
main83800-0KD30i200507-200508
sub83800-0KD31
main83800-0KD31i200508-200607
sub83800-0KD32
main83800-0KD32i200608-201107
main83800-0KD40i200507-200508
sub83800-0KD41
main83800-0KD41i200508-200607
sub83800-0KD42
main83800-0KD42i200608-201107
main83800-0KD50i200408-200507
sub83800-0KD51
main83800-0KD51i200508-200811
sub83800-0KD52
main83800-0KD52i200812-201107
main83800-0KD60i200408-200507
sub83800-0KD61
main83800-0KD61i200508-200811
sub83800-0KD62
main83800-0KD62i200812-201107
main83800-0KD70i200408-200507
sub83800-0KD71
main83800-0KD71i200508-201107
main83800-0KD80i200408-200507
sub83800-0KD81
main83800-0KD81i200508-201107
main83800-0KD90i200412-200507
sub83800-0KD91
main83800-0KD91i200508-200708
main83800-0KK60i200608-200709
main83800-0KK61i200709-200810
sub83800-0KK62
main83800-0KK62i200810
main83800-0KM70i200708-201107
main83800-0KM80i200708-201107
main83800-0KY40i200809
main83800-0KY50i200812
main83800-0KY60i200812
main83800-0KY70i200812
POWER DOOR LOCK-WITH
main83800-0KY80i200812
POWER DOOR LOCK-WITH
main83800-F0010i200808-201107
main83800-F0380i200908-201107
main83800-F0390i200908-201107
main83800-F0660i201008-201107
main83800-FA570i201111-201410
main83800-FA571i201410
main83800-FA580i201111-201410
ANTI-THEFT SYSTEM-SECURITY HORN
main83800-FA581i201410
ANTI-THEFT SYSTEM-SECURITY HORN
main83800-FA590i201111-201410
MULTI INFORMATION DISPLAY-WITH
main83800-FA591i201410
MULTI INFORMATION DISPLAY-WITH
83138GGLASS, COMBINATION METER
main83852-0K680i200812
POWER DOOR LOCK-WITH
main83852-0K680i200502-200812
main83852-0KC00i200408-200809
main83852-0KC30i200408-200809
main83852-8C002i200707
main83852-8C003i200707
MULTI INFORMATION DISPLAY-WITH
90167T0007
main90167-T0007

3 parts on this diagram · 2 diagrams in section
