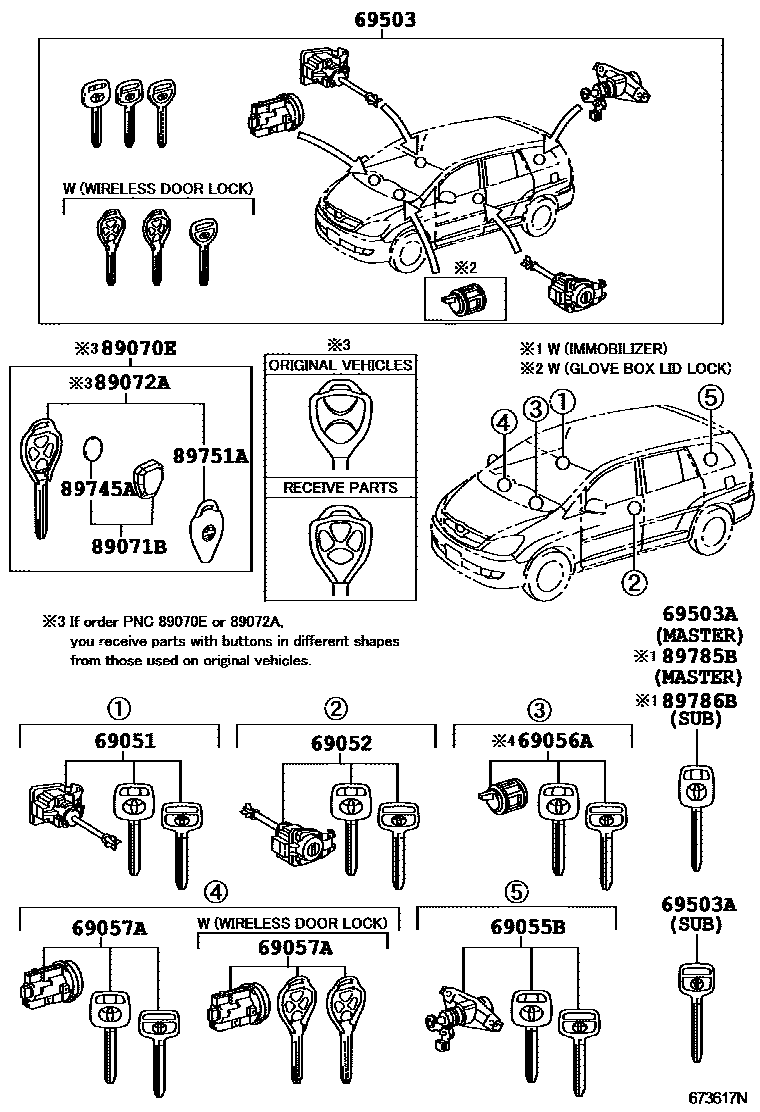

LOCK CYLINDER SET
69052CYLINDER & KEY SET, DOOR LOCK, LH
69055BCYLINDER & KEY SET, BACK DOOR LOCK
main69055-0K010iTGN40..5F..VN;KUN40..GL..HDCR..PHL;TGN40..IDN,IND,MA,PHL,TH;KUN40..(DLX,GL)..DCR..PHL;KUN40,TGN41..GCC,IDN,IND,TH200408-201009
69056ACYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK
ANTI-THEFT SYSTEM-IMMOBILIZER
SINGAPORE SPEC
SAUDI ARABIA SPEC
main69057-0K010iTGN40..DLX..(IDN,PHL);KUN40..(DLX,LO,STD)..(IDN,PHL);TGN40..(LO,STD)..(IDN,PHL,TH,VN)200408-201009
WIRELESS DOOR LOCK-WITH
ANTI-THEFT SYSTEM-IMMOBILIZER&WIRELESS DOOR LOCK-WITH
SAUDI ARABIA SPEC&WIRELESS DOOR LOCK-WITH
WIRELESS DOOR LOCK-WITH
ANTI-THEFT SYSTEM-IMMOBILIZER&WIRELESS DOOR LOCK-WITH
ANTI-THEFT SYSTEM-SECURITY HORN
ANTI-THEFT SYSTEM-SECURITY HORN&WIRELESS DOOR LOCK-WITH
WIRELESS DOOR LOCK-WITH
ANTI-THEFT SYSTEM-SECURITY HORN&WIRELESS DOOR LOCK-WITH(W/SET IN SECURITY SYSTEM)
MULTI INFORMATION DISPLAY-WITH
ANTI-THEFT SYSTEM-IMMOBILIZER
ANTI-THEFT SYSTEM-IMMOBILIZER
WIRELESS DOOR LOCK-WITH
MULTI INFORMATION DISPLAY-WITH
69503CYLINDER SET, LOCK
sub69005-0K101
WIRELESS DOOR LOCK-WITH
SAUDI ARABIA SPEC
ANTI-THEFT SYSTEM-IMMOBILIZER
SINGAPORE SPEC
ANTI-THEFT SYSTEM-IMMOBILIZER
sub69005-0K132
ANTI-THEFT SYSTEM-IMMOBILIZER&WIRELESS DOOR LOCK-WITH
SAUDI ARABIA SPEC&WIRELESS DOOR LOCK-WITH
sub69005-0K212
ANTI-THEFT SYSTEM-SECURITY HORN
WIRELESS DOOR LOCK-WITH
REFER TO PNC 89780
W/O(*WDL)
REFER TO PNC 89780
ANTI-THEFT SYSTEM-SECURITY HORN&WIRELESS DOOR LOCK-WITH(W/SET IN SECURITY SYSTEM)
sub69005-0K271
ANTI-THEFT SYSTEM-SECURITY HORN&WIRELESS DOOR LOCK-WITH(W/SET IN SECURITY SYSTEM)
MULTI INFORMATION DISPLAY-WITH
sub69005-0K291
sub69005-0K301
ANTI-THEFT SYSTEM-IMMOBILIZER
WIRELESS DOOR LOCK-WITH
ANTI-THEFT SYSTEM-IMMOBILIZER&WIRELESS DOOR LOCK-WITH
ANTI-THEFT SYSTEM-SECURITY HORN&WIRELESS DOOR LOCK-WITH
WIRELESS DOOR LOCK-WITH
W/O(*WDL)
ANTI-THEFT SYSTEM-IMMOBILIZER
WIRELESS DOOR LOCK-WITH
69503AKEY, BLANK
main90999-00186iTGN41..GCC;KUN40..DLX..DCR..PHL;TGN40..4FC..DLX..(IDN,PHL,TAIW);KUN40,TGN41..(DLX,STD)..(IDN,TAIW);TGN40..5F..(DLX,STD)..(IDN,PHL,TAIW,TH,VN)200408-201008
MASTER KEY
SUB KEY
SUB KEY,ANTI-THEFT SYSTEM-SECURITY HORN
SUB KEY,ANTI-THEFT SYSTEM-SECURITY HORN&WIRELESS DOOR LOCK-WITH
main90999-00199iTGN41..GCC;KUN40..DLX..DCR..PHL;TGN40..4FC..DLX..(IDN,PHL,TAIW);KUN40,TGN41..(DLX,STD)..(IDN,TAIW);TGN40..5F..(DLX,STD)..(IDN,PHL,TAIW,TH,VN)200408-201008
MASTER KEY,W(*68)
89070ETRANSMITTER ASSY, DOOR CONTROL
sub89070-02352
ANTI-THEFT SYSTEM-SECURITY HORN
sub89070-0K500
ANTI-THEFT SYSTEM-IMMOBILIZER&WIRELESS DOOR LOCK-WITH
sub89070-0K151
ANTI-THEFT SYSTEM-IMMOBILIZER&WIRELESS DOOR LOCK-WITH
sub89070-0K330
MULTI INFORMATION DISPLAY-WITH
ANTI-THEFT SYSTEM-IMMOBILIZER&WIRELESS DOOR LOCK-WITH
sub89070-0K331
ANTI-THEFT SYSTEM-IMMOBILIZER&WIRELESS DOOR LOCK-WITH
sub89070-0K451
sub89070-0K485
sub89070-0K501
MULTI INFORMATION DISPLAY-WITH
ANTI-THEFT SYSTEM-SECURITY HORN
JORDAN SPEC&WIRELESS DOOR LOCK-WITH
ANTI-THEFT SYSTEM-IMMOBILIZER&WIRELESS DOOR LOCK-WITH
sub89070-0K671
MULTI INFORMATION DISPLAY-WITH
89071BMODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
ANTI-THEFT SYSTEM-SECURITY HORN
SAUDI ARABIA SPEC&WIRELESS DOOR LOCK-WITH
WIRELESS DOOR LOCK-WITH
SINGAPORE SPEC
ANTI-THEFT SYSTEM-SECURITY HORN
sub89071-71042
ANTI-THEFT SYSTEM-SECURITY HORN&WIRELESS DOOR LOCK-WITH
sub89071-71042
WIRELESS DOOR LOCK-WITH
sub89071-71051
ANTI-THEFT SYSTEM-IMMOBILIZER&WIRELESS DOOR LOCK-WITH
sub89071-71051
ANTI-THEFT SYSTEM-IMMOBILIZER&WIRELESS DOOR LOCK-WITH
sub89071-71052
sub89071-71052
POWER DOOR LOCK-WITH&WIRELESS DOOR LOCK-WITH
sub89071-71052
89072AHOUSING SET, DOOR CONTROL TRANSMITTER
SINGAPORE SPEC
ANTI-THEFT SYSTEM-SECURITY HORN
sub89072-0K280
MULTI INFORMATION DISPLAY-WITH
SAUDI ARABIA SPEC&WIRELESS DOOR LOCK-WITH
WIRELESS DOOR LOCK-WITH
ANTI-THEFT SYSTEM-IMMOBILIZER&WIRELESS DOOR LOCK-WITH
WIRELESS DOOR LOCK-WITH
JORDAN SPEC&WIRELESS DOOR LOCK-WITH
WIRELESS DOOR LOCK-WITH
WIRELESS DOOR LOCK-WITH
ANTI-THEFT SYSTEM-IMMOBILIZER&WIRELESS DOOR LOCK-WITH
MULTI INFORMATION DISPLAY-WITH
ANTI-THEFT SYSTEM-SECURITY HORN
ANTI-THEFT SYSTEM-SECURITY HORN
WIRELESS DOOR LOCK-WITH
ANTI-THEFT SYSTEM-IMMOBILIZER&WIRELESS DOOR LOCK-WITH
sub89072-0K341
MULTI INFORMATION DISPLAY-WITH
WIRELESS DOOR LOCK-WITH
SAUDI ARABIA SPEC&WIRELESS DOOR LOCK-WITH
ANTI-THEFT SYSTEM-IMMOBILIZER&WIRELESS DOOR LOCK-WITH
WIRELESS DOOR LOCK-WITH
SINGAPORE SPEC
ANTI-THEFT SYSTEM-SECURITY HORN
89745ABATTERY, TRANSMITTER
SAUDI ARABIA SPEC&WIRELESS DOOR LOCK-WITH
SINGAPORE SPEC
ANTI-THEFT SYSTEM-IMMOBILIZER&WIRELESS DOOR LOCK-WITH
WIRELESS DOOR LOCK-WITH
main89745-71010iTGN40..DLX..TH;TGN40..5F..GL..VN;KUN40,TGN4#..GL..(IDN,IND,PHL,TAIW,TH)200408-200910
ANTI-THEFT SYSTEM-SECURITY HORN
ANTI-THEFT SYSTEM-SECURITY HORN&WIRELESS DOOR LOCK-WITH
POWER DOOR LOCK-WITH&WIRELESS DOOR LOCK-WITH
89751ACOVER, TRANSMITTER HOUSING
ANTI-THEFT SYSTEM-IMMOBILIZER&WIRELESS DOOR LOCK-WITH
ANTI-THEFT SYSTEM-SECURITY HORN
WIRELESS DOOR LOCK-WITH
POWER DOOR LOCK-WITH&WIRELESS DOOR LOCK-WITH
ANTI-THEFT SYSTEM-IMMOBILIZER&WIRELESS DOOR LOCK-WITH
sub89751-0K071
ANTI-THEFT SYSTEM-SECURITY HORN
SINGAPORE SPEC
WIRELESS DOOR LOCK-WITH
SAUDI ARABIA SPEC&WIRELESS DOOR LOCK-WITH
ANTI-THEFT SYSTEM-SECURITY HORN
WIRELESS DOOR LOCK-WITH
SAUDI ARABIA SPEC&WIRELESS DOOR LOCK-WITH
SINGAPORE SPEC
ANTI-THEFT SYSTEM-SECURITY HORN
ANTI-THEFT SYSTEM-IMMOBILIZER&WIRELESS DOOR LOCK-WITH
POWER DOOR LOCK-WITH&WIRELESS DOOR LOCK-WITH
ANTI-THEFT SYSTEM-IMMOBILIZER&WIRELESS DOOR LOCK-WITH
WIRELESS DOOR LOCK-WITH
ANTI-THEFT SYSTEM-SECURITY HORN&WIRELESS DOOR LOCK-WITH
89785BTRANSMITTER, TRANSPONDER KEY MASTER
NO MARK
SAUDI ARABIA SPEC
ANTI-THEFT SYSTEM-IMMOBILIZER
SINGAPORE SPEC
ANTI-THEFT SYSTEM-IMMOBILIZER,NO MARK
ANTI-THEFT SYSTEM-IMMOBILIZER
MARK G
ANTI-THEFT SYSTEM-IMMOBILIZER,MARK G
ANTI-THEFT SYSTEM-IMMOBILIZER
89786BTRANSMITTER, TRANSPONDER KEY SUB
BLANK KEY,ANTI-THEFT SYSTEM-IMMOBILIZER
BLANK KEY
BLANK KEY,MULTI INFORMATION DISPLAY-WITH
BLANK KEY,ANTI-THEFT SYSTEM-IMMOBILIZER&WIRELESS DOOR LOCK-WITH
BLANK KEY,ANTI-THEFT SYSTEM-IMMOBILIZER,NO MARK
BLANK KEY,NO MARK
BLANK KEY,SAUDI ARABIA SPEC
BLANK KEY,SAUDI ARABIA SPEC&WIRELESS DOOR LOCK-WITH
BLANK KEY,WIRELESS DOOR LOCK-WITH
BLANK KEY,MARK G
BLANK KEY
BLANK KEY,ANTI-THEFT SYSTEM-IMMOBILIZER,MARK G
BLANK KEY,WIRELESS DOOR LOCK-WITH
BLANK KEY,ANTI-THEFT SYSTEM-IMMOBILIZER
BLANK KEY,ANTI-THEFT SYSTEM-IMMOBILIZER&WIRELESS DOOR LOCK-WITH
BLANK KEY
BLANK KEY,ANTI-THEFT SYSTEM-IMMOBILIZER
14 parts on this diagram · 4 diagrams in section
