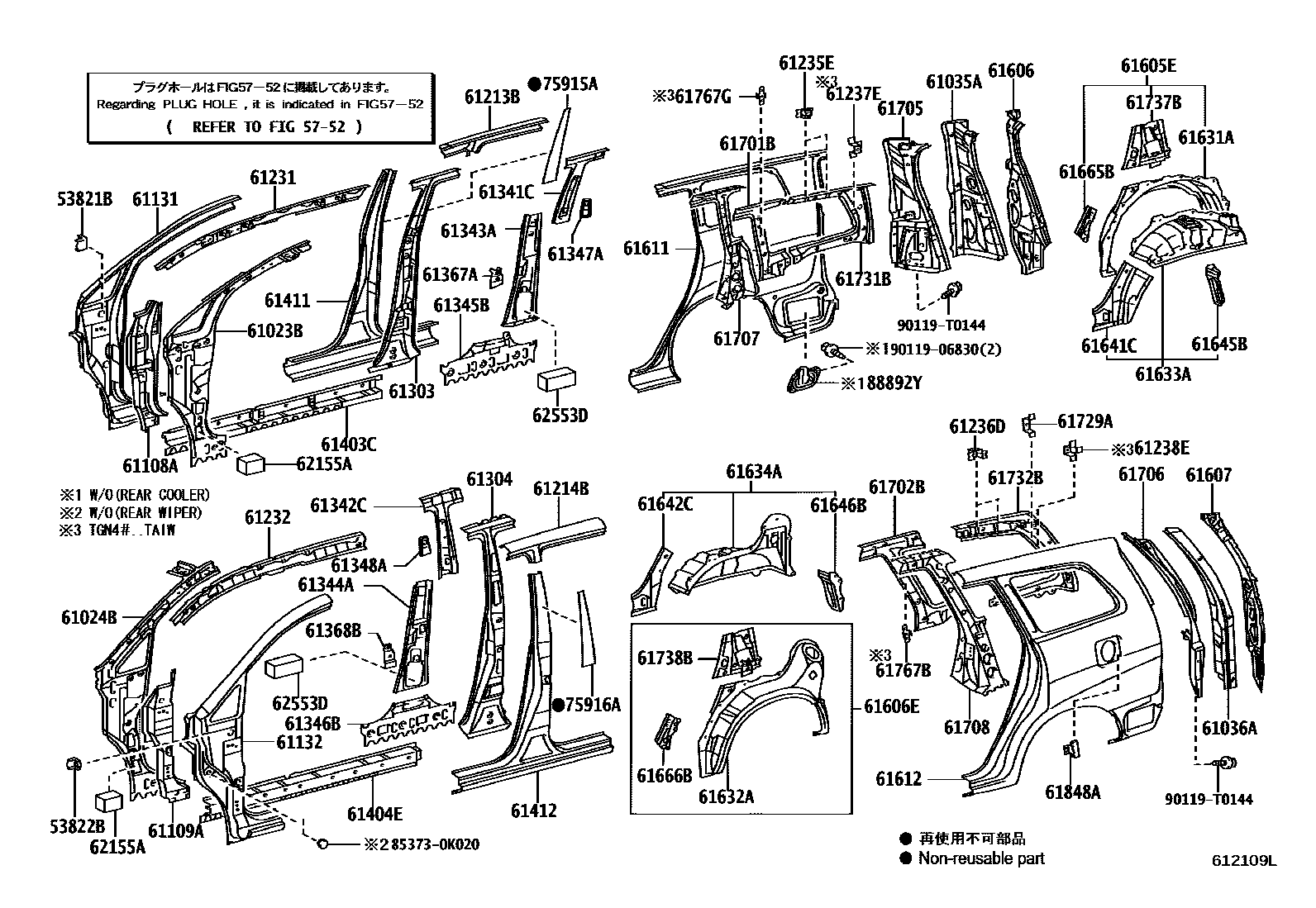

SIDE MEMBER

0001 1 0002 1 0003 1 0004 1

53821BBRACKET, FRONT FENDER, REAR RH

main53821-16010iTGN40..5F..(DLX,GL,STD);KUN40,TGN41..WG..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408

53822BBRACKET, FRONT FENDER, REAR LH

main53821-16010iTGN40..5F..(DLX,GL,STD);KUN40,TGN41..WG..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408

5752

61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH

main61023-0K050iKUN40,TGN40..IND200408-201606

main61023-0K070iTGN40..VN200601-201202

main61023-0K160iKUN40,TGN40..IND201002-201201

61024BPILLAR SUB-ASSY, FRONT BODY, INNER LH

main61024-0K050iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN4#..GCC,IDN,PHL,TH200408-201606

main61024-0K070iKUN40,TGN40..IND200502-201201

main61024-0K080iTGN40..VN200601-201202

61035AREINFORCEMENT SUB-ASSY, BACK DOOR OPENING, RH

main61035-0K010iTGN40..5F..(DLX,GL,STD);KUN40,TGN41..WG..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408

61036AREINFORCEMENT SUB-ASSY, BACK DOOR OPENING, LH

main61036-0K010iTGN40..5F..(DLX,GL,STD);KUN40,TGN41..WG..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408

61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH

main61108-0K020iTGN40..5F..(DLX,GL,STD);KUN40,TGN41..WG..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408-200901

main61108-0K040iKUN40,TGN40..IND200902

61109AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH

main61109-0K020iTGN40..5F..(DLX,GL,STD);KUN40,TGN41..WG..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-0K050iTGN40..DLX..MA200408

main61131-0K060iTGN40..4FC..DLX..IDN;KUN40..(DLX,STD)..IDN;TGN40..5F..(DLX,STD)..(IDN,TH)200408-201107

main61131-0K070iKUN40,TGN40..IND200502-200812

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61132-0K050iTGN41..GL..(IDN,TAIW);TGN40..RHD..4FC..(DLX,GL);KUN40,TGN40..GL..(PHL,TAIW);KUN40..(DLX,GL,STD)..(IDN,TH);TGN40..5F..(DLX,GL,STD)..(IDN,MA,TH)200408

main61132-0K060iTGN41..GCC;TGN40..5F..GL..VN;KUN40,TGN4#..(DLX,STD)..(PHL,TAIW,VN)200501

main61132-0K070iKUN40,TGN40..IND200502-200812

61213BRAIL, ROOF SIDE, OUTER NO.2 RH

main61213-0K020iTGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH);TGN40..5F..(DLX,GL,STD)..(IDN,MA,PHL,TAIW,TH,VN);KUN40,TGN41..(DLX,GL,STD)..(GCC,IDN,PHL,TAIW,TH)200408

main61213-0K030iKUN40,TGN40..IND200502-200812

61214BRAIL, ROOF SIDE, OUTER NO.2 LH

main61214-0K020iTGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH);TGN40..5F..(DLX,GL,STD)..(IDN,MA,PHL,TAIW,TH,VN);KUN40,TGN41..(DLX,GL,STD)..(GCC,IDN,PHL,TAIW,TH)200408

main61214-0K030iKUN40,TGN40..IND200502-200812

61231RAIL, ROOF SIDE, INNER RH

main61210-0K030iTGN40..5F..(DLX,GL,STD);KUN40,TGN41..WG..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408-201606

61232RAIL, ROOF SIDE, INNER LH

main61220-0K030iTGN40..5F..(DLX,GL,STD);KUN40,TGN41..WG..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408-201606

61235EBRACKET, ASSIST GRIP, NO.1

main61235-0K030iTGN40..5F..VN;KUN40,TGN4#..GCC,IDN,IND,MA,PHL,TH200408-200812

61236DBRACKET, ASSIST GRIP, NO.2

main61235-0K030iTGN40..5F..VN;KUN40,TGN4#..GCC,IDN,IND,MA,PHL,TH200408-200812

61237EBRACKET, ASSIST GRIP, NO.1

main61237-0K010iTGN4#..TAIW200707

61238EBRACKET, ASSIST GRIP, NO.2

main61238-0K010iTGN4#..TAIW200707

61303REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER RH

main61303-0K040iTGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH);TGN40..5F..(DLX,GL,STD)..(IDN,MA,PHL,TAIW,TH,VN);KUN40,TGN41..(DLX,GL,STD)..(GCC,IDN,PHL,TAIW,TH)200408

main61303-0K050iKUN40,TGN40..IND200502-200812

61304REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER LH

main61304-0K040iTGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH);TGN40..5F..(DLX,GL,STD)..(IDN,MA,PHL,TAIW,TH,VN);KUN40,TGN41..(DLX,GL,STD)..(GCC,IDN,PHL,TAIW,TH)200408

main61304-0K050iKUN40,TGN40..IND200502-200812

61341CPILLAR, CENTER BODY, INNER UPPER RH

main61341-0K020iTGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH);TGN40..5F..(DLX,GL,STD)..(IDN,MA,PHL,TAIW,TH,VN);KUN40,TGN41..(DLX,GL,STD)..(GCC,IDN,PHL,TAIW,TH)200408-201606

61342CPILLAR, CENTER BODY, INNER UPPER LH

main61342-0K020iTGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH);TGN40..5F..(DLX,GL,STD)..(IDN,MA,PHL,TAIW,TH,VN);KUN40,TGN41..(DLX,GL,STD)..(GCC,IDN,PHL,TAIW,TH)200408-201606

61343APILLAR, CENTER BODY, INNER RH

main61343-0K020iTGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH);TGN40..5F..(DLX,GL,STD)..(IDN,MA,PHL,TAIW,TH,VN);KUN40,TGN41..(DLX,GL,STD)..(GCC,IDN,PHL,TAIW,TH)200408-201606

main61343-0K050iKUN40,TGN40..IND201002-201201

main61343-0K904iKUN40,TGN40..IND200502-200812

61344APILLAR, CENTER BODY, INNER LH

main61344-0K020iKUN40,TGN40..IND200408-201606

main61344-0K050iKUN40,TGN40..IND201002-201201

main61344-0K904iKUN40,TGN40..IND200502-200812

61345BPILLAR, CENTER BODY, INNER LOWER RH

main61345-0K040iKUN40,TGN4#..GCC,PHL,TH,VN200411-201202

main61345-0K050iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN40..IDN,IND200408-201606

61346BPILLAR, CENTER BODY, INNER LOWER LH

main61346-0K040iKUN40,TGN4#..GCC,PHL,TH,VN200411-201202

main61346-0K050iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN40..IDN,IND200408-201606

61347AREINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, RH

main61347-0K030iTGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH);TGN40..5F..(DLX,GL,STD)..(IDN,MA,PHL,TAIW,TH,VN);KUN40,TGN41..(DLX,GL,STD)..(GCC,IDN,PHL,TAIW,TH)200408

61348AREINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LH

main61348-0K030iTGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH);TGN40..5F..(DLX,GL,STD)..(IDN,MA,PHL,TAIW,TH,VN);KUN40,TGN41..(DLX,GL,STD)..(GCC,IDN,PHL,TAIW,TH)200408

61367AREINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LOWER RH

main61367-0K030iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN4#..GCC,IDN,IND,PHL,TH,VN200408-201606

61368BREINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LOWER LH

main61368-0K030iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN4#..GCC,IDN,IND,PHL,TH,VN200408-201606

61403CREINFORCE SUB-ASSY, ROCKER, OUTER RH

main61403-0K020iKUN40,TGN4#..GCC,PHL,TH,VN200411-200809

main61403-0K030iTGN40..4FC..MA;KUN40,TGN40..IDN;TGN40..5F..DLX..MA200408-201110

main61403-0K040iKUN40,TGN40..IND200502-200812

61404EREINFORCE SUB-ASSY, ROCKER, OUTER LH

main61404-0K030iKUN40,TGN4#..GCC,PHL,TH,VN200411-200809

main61404-0K040iTGN40..4FC..(DLX,GL)..(IDN,MA,TAIW);KUN40,TGN41..(DLX,GL,STD)..(IDN,TAIW);TGN40..5F..(DLX,GL,STD)..(IDN,MA,TAIW)200408-201110

main61404-0K050iKUN40,TGN40..IND200502-200812

61411PANEL, ROCKER, OUTER RH

main61411-0K020iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN4#..GCC,IDN,PHL,TH,VN200408

main61411-0K030iKUN40,TGN40..IND200502-200812

61412PANEL, ROCKER, OUTER LH

main61412-0K020iTGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH);TGN40..5F..(DLX,GL,STD)..(IDN,MA,PHL,TAIW,TH,VN);KUN40,TGN41..(DLX,GL,STD)..(GCC,IDN,PHL,TAIW,TH)200408

main61412-0K030iKUN40,TGN40..IND200502-200812

61605EPANEL, QUARTER, RH

main61605-0K020iKUN40,TGN4#..GCC,TH200411-201107

main61605-0K060iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN40..IDN,IND,PHL,VN200408-201202

61606FRAME SUB-ASSY, BACK DOOR OPENING SIDE, RH

main61705-0K030iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN4#..GCC,IDN,PHL,TH,VN200408

main61705-0K040iKUN40,TGN40..IND200502-200812

61606EPANEL, QUARTER, LH

main61606-0K020iTGN4#..GCC,TH200411-201107

main61606-0K050iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN40..IDN,PHL,VN200408-201202

main61606-0K060iKUN40,TGN40..IND200502-201201

61607FRAME SUB-ASSY, BACK DOOR OPENING SIDE, LH

main61706-0K030iTGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH);TGN40..5F..(DLX,GL,STD)..(IDN,MA,PHL,TAIW,TH,VN);KUN40,TGN41..(DLX,GL,STD)..(GCC,IDN,PHL,TAIW,TH)200408

main61706-0K040iKUN40,TGN40..IND200502-200812

61611PANEL, QUARTER, RH

main61611-0K040iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN4#..GCC,IDN,PHL,TH,VN200408-201606

main61611-0K050iKUN40,TGN40..IND200502-200812

61612PANEL, QUARTER, LH

main61612-0K040iTGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH);TGN40..5F..(DLX,GL,STD)..(IDN,MA,PHL,TAIW,TH,VN);KUN40,TGN41..(DLX,GL,STD)..(GCC,IDN,PHL,TAIW,TH)200408-201606

main61612-0K050iKUN40,TGN40..IND200502-201004

main61612-0K100iKUN40,TGN40..IND201004

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-0K010iKUN40,TGN4#..GCC,TH200411-201107

main61631-0K040iTGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW);TGN40..5F..(DLX,GL,STD)..(IDN,IND,MA,PHL,TAIW,VN);KUN40,TGN41..WG..(DLX,GL,STD)..(IDN,IND,PHL,TAIW)200408-201202

61632APANEL, QUARTER WHEEL HOUSE, OUTER LH

main61632-0K010iTGN4#..GCC,TH200411-201107

main61632-0K902iKUN40,TGN40..IDN200408-200809

main61632-0K904iTGN40..STD..IND200502-200812

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61607-0K010iKUN40,TGN4#..GCC,TH200411-201107

main61607-0K020iTGN4#..TAIW200707

main61607-0K050iKUN40,TGN40..IND200502-200812

main61607-0K060iKUN40,TGN4#..IDN,MA,PHL,VN200408-200809

61634APANEL, QUARTER WHEEL HOUSE, INNER LH

main61608-0K010iKUN40,TGN4#..GCC,TH200411-201107

main61608-0K020iTGN4#..TAIW200707

main61608-0K050iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN40..IDN,PHL,VN200408-200809

main61608-0K060iKUN40,TGN40..IND200502-200812

61641CGUSSET, QUARTER WHEEL HOUSE, FRONT RH

main61641-0K010iKUN40,TGN4#..GCC,TH200411-201107

main61641-0K040iTGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW);TGN40..5F..(DLX,GL,STD)..(IDN,IND,MA,PHL,TAIW,VN);KUN40,TGN41..WG..(DLX,GL,STD)..(IDN,IND,PHL,TAIW)200408

61642CGUSSET, QUARTER WHEEL HOUSE, FRONT LH

main61642-0K010iKUN40,TGN4#..GCC,TH200411-201107

main61642-0K040iTGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW);TGN40..5F..(DLX,GL,STD)..(IDN,IND,MA,PHL,TAIW,VN);KUN40,TGN41..WG..(DLX,GL,STD)..(IDN,IND,PHL,TAIW)200408

61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH

main61645-0K010iTGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH);TGN40..5F..(DLX,GL,STD)..(IDN,MA,PHL,TAIW,TH,VN);KUN40,TGN41..(DLX,GL,STD)..(GCC,IDN,PHL,TAIW,TH)200408

main61645-0K020iKUN40,TGN40..IND200502-200812

61646BGUSSET, QUARTER WHEEL HOUSE, REAR LH

main61646-0K010iTGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH);TGN40..5F..(DLX,GL,STD)..(IDN,MA,PHL,TAIW,TH,VN);KUN40,TGN41..(DLX,GL,STD)..(GCC,IDN,PHL,TAIW,TH)200408

main61646-0K020iKUN40,TGN40..IND200502-200812

61665BREINFORCE, SEAT BELT ANCHORAGE TO QUARTER WHEEL HOUSE, RH

main61665-0K020iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN4#..GCC,IDN,IND,PHL,TH,VN200408

61666BREINFORCE, SEAT BELT ANCHORAGE TO QUARTER WHEEL HOUSE, LH

main61666-0K010iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN4#..GCC,IDN,IND,PHL,TH,VN200408

61701BPANEL SUB-ASSY, ROOF SIDE, INNER UPPER RH

main61701-0K010iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN4#..GCC,IDN,IND,PHL,TH,VN200408

61702BPANEL SUB-ASSY, ROOF SIDE, INNER UPPER LH

main61702-0K010iTGN40..5F..(DLX,GL,STD);KUN40,TGN41..WG..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408

61705PANEL SUB-ASSY, ROOF SIDE, INNER RH

main61705-0K010iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN4#..GCC,IDN,PHL,TH,VN200408-200901

main61705-0K020iTGN4#..TAIW200707

main61705-0K080iKUN40,TGN40..IND200902

61706PANEL SUB-ASSY, ROOF SIDE, INNER LH

main61706-0K010iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN4#..GCC,IDN,PHL,TH,VN200408-201001

main61706-0K060iTGN4#..TAIW200707

main61706-0K090iKUN40,TGN40..IND201002

61707PANEL SUB-ASSY, QUARTER, INNER RH

main61707-0K010iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN4#..GCC,IDN,IND,PHL,TH,VN200408-200812

main61707-0K901iTGN4#..TAIW200707

61708PANEL SUB-ASSY, QUARTER, INNER LH

main61708-0K010iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN4#..GCC,IDN,IND,PHL,TH,VN200408-200812

main61708-0K901iTGN4#..TAIW200707

61729ABRACKET, ROOF SIDE RAIL, LH

main61729-0K010iTGN41..GL..GCC;KUN40,TGN40..DLX..IND200808

WIRELESS DOOR LOCK-WITH

main61729-0K010iTGN4#..GL..TAIW200707

ANTI-THEFT SYSTEM-SECURITY HORN

61731BPANEL, ROOF SIDE, INNER RH

main61731-0K020iTGN40..5F..VN;KUN40,TGN4#..GCC,IDN,IND,MA,PHL,TH200408-200901

main61731-0K040iTGN4#..TAIW200707

main61731-0K060iKUN40,TGN40..IND200902

61732BPANEL, ROOF SIDE, INNER LH

main61732-0K020iTGN41..IDN;TGN40..STD..IND;TGN40..DLX..PHL200408-200710

sub61732-0K050

main61732-0K040iTGN4#..TAIW200707

main61732-0K050iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN4#..GCC,IDN,PHL,TH,VN200710-201001

main61732-0K070iKUN40,TGN40..IND201002

61737BPANEL, ROOF SIDE, INNER LOWER RH

main61503-0K030iTGN40..5F..(DLX,GL,STD);KUN40,TGN41..WG..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408

61738BPANEL, ROOF SIDE, INNER LOWER LH

main61504-0K030iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN4#..GCC,IDN,IND,PHL,TH,VN200408

61767BREINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER LH

main61767-44010iTGN4#..TAIW200707

61767GRETAINER, SEAT BELT ANCHOR, NO.2

main61767-44010iTGN4#..TAIW200707

61848ARETAINER, QUARTER PANEL, LH

main61848-0K010iTGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH);TGN40..5F..(DLX,GL,STD)..(IDN,MA,PHL,TAIW,TH,VN);KUN40,TGN41..(DLX,GL,STD)..(GCC,IDN,PHL,TAIW,TH)200408

main61848-0K030iKUN40,TGN40..IND200502-200812

62155APAD, COWL SIDE LOWER SILENCER

main62155-0K020iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN4#..GCC,IDN,IND,TH,VN200408-201009

main62155-0K060iKUN40,TGN40..PHL201009

62553DPAD, PILLAR, NO.3

main62557-0K020iKUN40,TGN40..PHL200408-201009

main62557-0K070iKUN40,TGN40..PHL201009

75915ATAPE, BLACK OUT CENTER PILLAR, RH

main75915-0K010iTGN41..GL;TGN40..GL..TAIW;TGN41..DLX..GCC;KUN40,TGN40..(DLX,GL)..(IDN,TH)200408

75916ATAPE, BLACK OUT CENTER PILLAR, LH

main75916-0K010iTGN40..4FC..GL..MA;KUN40..GL..(IND,PHL);TGN40..DLX..(IDN,TH);TGN40..GL..(IDN,IND,PHL,TH,VN);KUN40,TGN41..(DLX,GL)..(GCC,IDN)200408

88892YCOVER, COOLER, NO.3

main88891-0K040iTGN41..STD200408-201107

main88891-0K050iKUN40,TGN40..(DLX,STD)..IND200502-201204

main88891-0K060iTGN40..STD..VN200601-201204

853730K020HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main85373-0K020

9011906830

main90119-06830

90119T0144

main90119-T0144

73 parts on this diagram · 4 diagrams in section
