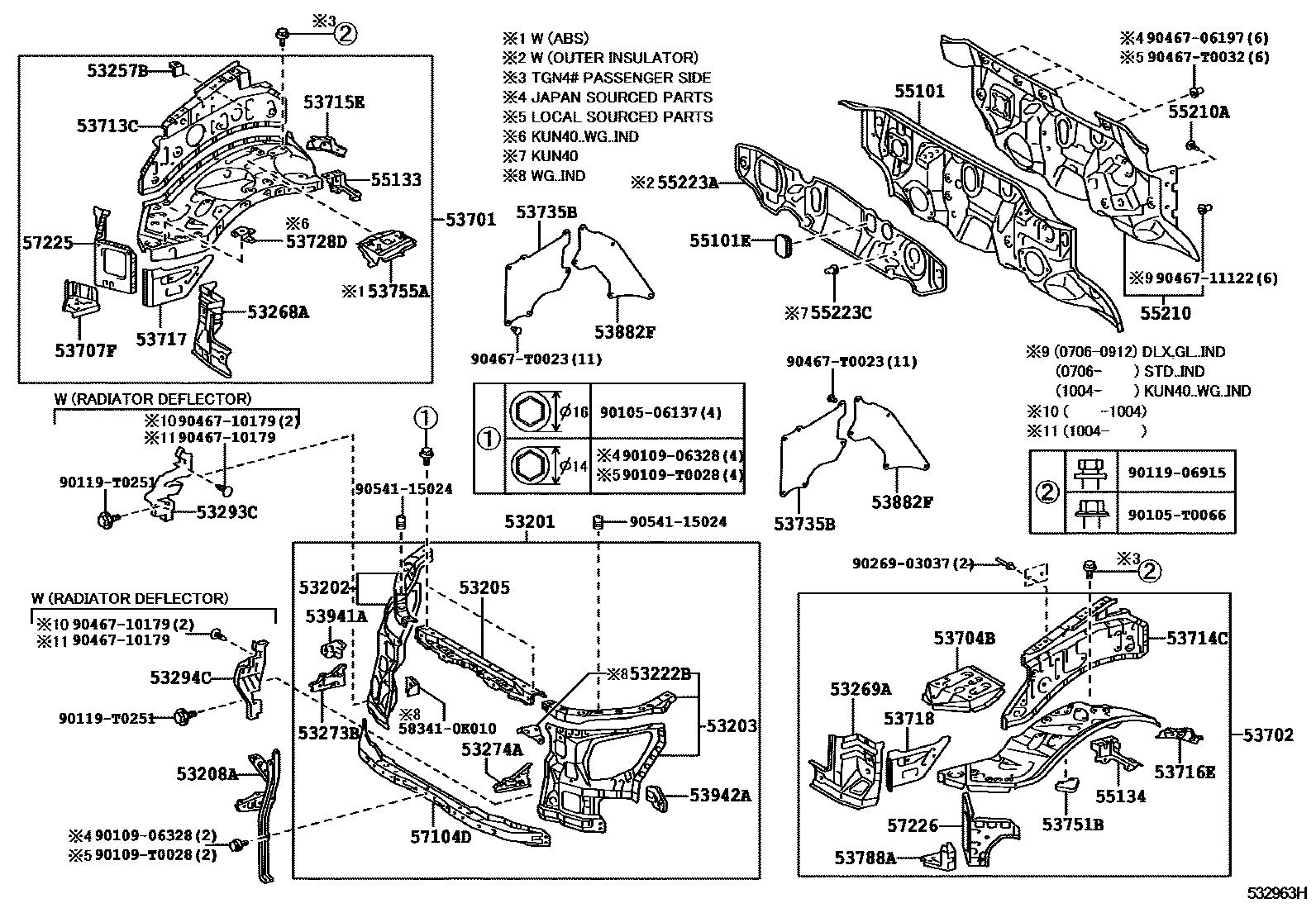

FRONT FENDER APRON & DASH PANEL

53201SUPPORT SUB-ASSY, RADIATOR

main53201-0K020iKUN40,TGN40..TH200411-200808

main53201-0K030iTGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW);KUN40,TGN41..(DLX,GL,STD)..(IDN,PHL,TAIW);TGN40..5F..(DLX,GL,STD)..(IDN,MA,PHL,TAIW,VN)200408-201606

main53201-0K040iKUN40,TGN40..IND200502-200812

main53201-0K060iTGN41..GCC200507-200808

main53201-0K070iTGN40..TH200808-201107

main53201-0K080iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN40..IDN,PHL,VN200808

main53201-0K090iKUN40..INDWG200812

main53201-0K100iTGN41..GCC200808-201107

main53201-0K180iKUN40,TGN40..WG..IND201004

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-0K020iTGN4#..GCC,TH200808-201107

main53202-0K030iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN40..IDN,PHL,VN200808-201010

main53202-0K040iKUN40,TGN40..IND200812-201004

main53202-0K100iKUN40,TGN40..WG..IND201004

main53202-0K130iKUN40,TGN40..IDN,MA,PHL,VN201010

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-0K020iKUN40,TGN4#..GCC,TH200411-200808

main53203-0K030iTGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW);KUN40,TGN41..(DLX,GL,STD)..(IDN,PHL,TAIW);TGN40..5F..(DLX,GL,STD)..(IDN,MA,PHL,TAIW,VN)200408

main53203-0K040iKUN40..INDWG200812

main53203-0K050iKUN40,TGN40..WG..IND201004

main53203-0K100iKUN40,TGN40..IDN,MA,PHL,VN201010

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-0K010iKUN40,TGN40..IND200808-201004

main53205-0K040iTGN41..GCC200808-201107

main53205-0K050iKUN40,TGN40..WG..IND201004

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53208-0K020iTGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH);KUN40,TGN41..(DLX,GL,STD)..(IDN,PHL,TAIW,TH);TGN40..5F..(DLX,GL,STD)..(IDN,MA,PHL,TAIW,TH,VN)200408-201606

main53208-0K030iKUN40..INDWG200812

main53208-0K050iTGN41..GCC200808-201107

main53208-0K060iKUN40,TGN40..WG..IND201004

53222BBRACE, RADIATOR SUPPORT APRON, LH

main53222-0K010iKUN40,TGN40..WG..IND201004

53257BBRACKET, RADIATOR SUPPORT TO FRONT FENDER

main53257-35030iTGN40..5F..(DLX,GL,STD);KUN40,TGN41..WG..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408

53268AREINFORCEMENT, RADIATOR MOUNTING, RH

main53268-0K010iTGN40..5F..(DLX,GL,STD);KUN40,TGN41..WG..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408

main53268-0K020iKUN40,TGN40..IND201106-201204

53269AREINFORCEMENT, RADIATOR MOUNTING, LH

main53269-0K010iKUN40,TGN40..IND200808-201106

main53269-0K020iKUN40,TGN40..IND201106

53273BBRACKET, RADIATOR SUPPORT TO FRONT FENDER, RH

main53273-0K020iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN4#..GCC,IDN,PHL,TH,VN200808

main53273-0K030iKUN40,TGN40..IND200812-201004

main53273-0K040iKUN40,TGN40..WG..IND201004

53274AREINFORCEMENT, RADIATOR SUPPORT, LH

main53274-0K020iTGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH);TGN40..5F..(DLX,GL,STD)..(IDN,MA,PHL,TAIW,TH,VN);KUN40,TGN41..(DLX,GL,STD)..(GCC,IDN,PHL,TAIW,TH)200408

main53274-0K030iKUN40,TGN40..IND200502-200812

53293CDEFLECTOR, RADIATOR SIDE, RH

main53293-0K020iKUN40,TGN40..IND200812

main53293-0K040iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN4#..GCC,IDN,PHL,TH,VN200808

53294CDEFLECTOR, RADIATOR SIDE, LH

main53294-0K020iKUN40,TGN40..IND200812

main53294-0K040iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN4#..GCC,IDN,PHL,TH,VN200808

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-0K070iKUN40..TH200411-200601

main53701-0K071iKUN40..TH200602-200808

main53701-0K080iKUN40..GL..IDN200408-200601

main53701-0K081iKUN40..GL..IDN200602-200808

main53701-0K090iTGN40..TH200411-200601

main53701-0K091supersedes 53701-0K120iTGN40..4FC..TH200602-200808

main53701-0K100iTGN40..GL..VN200408-200602

main53701-0K101iTGN40..DLX..IDN200808-201107

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

main53701-0K110iKUN40..GL..PHL;KUN40..(DLX,STD)..(IDN,PHL)200408-200601

main53701-0K111iKUN40..(DLX,LO,STD)..IDN200808-201107

main53701-0K121iTGN41..GCC;TGN40..STD..TH200808-201107

main53701-0K130iTGN40..GL..PHL;TGN40..(DLX,STD)..(IDN,MA,PHL)200408-200601

main53701-0K131iTGN41..TAIW;TGN40..GL..(PHL,TAIW);TGN40..4FC..DLX..(IDN,MA,PHL,TAIW);TGN40..5F..(DLX,STD)..(IDN,MA,PHL,TAIW,VN)200602-201606

main53701-0K140iKUN40..IND200502-200603

main53701-0K141iKUN40..INDWG200812-201204

main53701-0K150iTGN40..IND200502-200603

main53701-0K151iTGN40..IND200812-201204

main53701-0K250iKUN40..WG..IND201004-201204

main53701-0K270iTGN40..MA201012-201110

main53701-0K280iKUN40..PHL201012-201204

main53701-0K290iTGN40..PHL,VN201012-201204

main53701-0K160iTGN40..GL..IND200502-200603

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

main53701-0K161iTGN40..GL..IND200604-200812

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

main53701-0K170iKUN40..GL..IND200502-200603

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

main53701-0K171iKUN40..INDWG..GL200812-201204

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

main53701-0K260iKUN40..WG..GL..IND201004-201204

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-0K050iTGN41..GCC;TGN40..STD..TH200808-201107

sub53702-0K051

main53702-0K060iTGN41..TAIW;KUN40..STD..PHL;TGN40..DLX..(IDN,MA);KUN40..(DLX,STD)..IDN;TGN40..5F..STD..(IDN,PHL,VN)200408-201104

main53702-0K061iTGN40..MA;KUN40,TGN40..STD..(PHL,VN)201107-201204

main53702-0K070iKUN40,TGN40..4FC..TH200411-200808

sub53702-0K071

sub44590-0K011

sub90182-T0018

main53702-0K080iTGN40..GL..PHL;KUN40..(DLX,GL)..PHL200709-200809

sub44590-0K011

sub90182-T0018

main53702-0K081iKUN40,TGN40..(DLX,GL)..(PHL,VN)201107-201204

sub53702-0K071

main53702-0K090iKUN40,TGN40..IND200502-200812

main53702-0K120iTGN40..IND201006-201204

53704BSUPPORT SUB-ASSY, BATTERY, LH

main53704-0K010iTGN40..5F..(DLX,GL,STD);KUN40,TGN41..WG..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408

main53704-0K030iKUN40,TGN40..IND200812

53707FGUSSET SUB-ASSY, FRONT FENDER APRON, LOWER RH

main53707-0K010iTGN40..5F..(DLX,GL,STD);KUN40,TGN41..WG..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408

53713CEXTENSION, FRONT FENDER APRON, FRONT RH

main53713-0K020iKUN40,TGN4#..GCC,TH200411-200808

main53713-0K030iTGN40..IND200808-201001

main53713-0K050iTGN40..IND;KUN40..INDWG201002-201204

53714CEXTENSION, FRONT FENDER APRON, FRONT LH

main53714-0K020iTGN4#..GCC,TH200808-201107

main53714-0K030iKUN40,TGN40..IND200808-201002

main53714-0K040iKUN40,TGN40..IND201002-201204

53715EEXTENSION, FRONT FENDER APRON, REAR RH

main53715-0K010iTGN40..DLX..IDN201009-201012

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

main53715-0K020iKUN40,TGN40..IND200502-200812

main53715-0K040iTGN40..VN201009-201204

PLANT TMV

53716EEXTENSION, FRONT FENDER APRON, REAR LH

main53716-0K010iTGN4#..GCC,TH200808-201107

main53716-0K020iKUN40,TGN40..IND200812-201204

main53716-0K040iTGN40..VN201009-201204

53717PLATE, FENDER APRON, RH

main53717-0K010iTGN40..5F..(DLX,GL,STD);KUN40,TGN41..WG..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408

53718PLATE, FENDER APRON, LH

main53718-0K010iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN4#..GCC,IDN,IND,PHL,TH,VN200808

53728DBRACKET, FENDER APRON, RH

main53728-0K010iKUN40..WG..IND201004

53735BSEAL, FRONT FENDER APRON, UPPER

main53735-0K010×2iKUN40,TGN40..IND,PHL,VN200809-201204

main53735-0K030×2iTGN40..4FC..(DLX,GL)..(IDN,MA,TAIW,TH);TGN40..5F..(DLX,GL,STD)..(IDN,MA,TAIW,TH);KUN40,TGN41..(DLX,GL,STD)..(GCC,IDN,TAIW,TH)200408

53751BBRACKET, CHARCOAL CANISTER MOUNTING

main53751-0K010iTGN40..5F..(DLX,GL,STD);KUN40,TGN41..WG..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408

53755AREINFORCEMENT, BRAKE ACTUATOR MOUNTING, NO.1

main53755-0K010iTGN40..4FC..MA;TGN40..DLX..TH;TGN40..5F..DLX..MA;KUN40,TGN40..GL..(IDN,TH)200808-201110

53788AGUSSET, FRONT FENDER APRON, LOWER LH

main53708-0K010iTGN40..5F..(DLX,GL,STD);KUN40,TGN41..WG..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408

53882FSEAL, FRONT FENDER

main53885-0K010×2iKUN40..IND,PHL;TGN40..4FC..PHL;TGN40..5F..(IND,PHL,VN)200501-200812

main53885-0K030×2iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN4#..GCC,IDN,TH200808-201110

53941ABRACKET, FRONT END PANEL, NO.1 RH

main53941-0K020iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN4#..GCC,IDN,PHL,TH,VN200808

main53941-0K030iKUN40,TGN40..IND200502-200812

53942ABRACKET, FRONT END PANEL, NO.1 LH

main53942-0K010iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN4#..GCC,IDN,PHL,TH,VN200808

main53942-0K020iKUN40,TGN40..IND200812

55101PANEL SUB-ASSY, DASH

main55101-0K050iTGN40..5F..DLX..MA;KUN40,TGN40..5F..(DLX,GL,STD)..(IDN,TH)200808-201110

main55101-0K060iKUN40,TGN40..RHD..4FC200808-201110

main55101-0K070iTGN40..IND200812-201006

main55101-0K080iKUN40,TGN4#..LHD..5F200501-201606

main55101-0K090iKUN40,TGN4#..4FC..(GCC,PHL,TAIW)200501-201606

sub55101-0K200

main55101-0K150iKUN40,TGN40..LO200908-201107

main55101-0K180iTGN40..IND201006

55101EGROMMET, DASH PANEL, NO.2

main87128-0K010iKUN40,TGN40..IND,VN200809

main87128-0K060iTGN40..MA200809-201109

main87128-0K070iKUN40,TGN4#..IDN,TH200408-200808

main87128-0K090iKUN40,TGN40..PHL200809

main87128-0K130iTGN4#..TAIW200707

55133PLATE, FRONT FENDER APRON SET, LOWER RH

main55133-0K010iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN4#..GCC,IDN,IND,PHL,TH,VN200808-201204

55134PLATE, FRONT FENDER APRON SET, LOWER LH

main55134-0K010iTGN40..5F..(DLX,GL,STD);KUN40,TGN41..WG..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408

55210INSULATOR ASSY, DASH PANEL

main55210-0K050iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN40..(DLX,GL,STD)..(IDN,TH)200808-201110

main55210-0K060iKUN40,TGN4#..GCC,PHL,VN200808

main55210-0K070iTGN40..IND;KUN40..INDWG..(DLX,GL)200912

main55210-0K120iTGN4#..TAIW200707

main55210-0K130iKUN40..STD..IND200812

sub55210-0K140

55210ACLIP

main90467-T0004-A0×2iTGN40..5F..(DLX,GL,STD);KUN40,TGN41..WG..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408-201606

IVORY

main90467-T0004-E1×2iKUN40,TGN4#..GCC,IDN,TH200808-200809

SAND BEIGE

55223AINSULATOR, DASH PANEL, OUTER

main55223-0K010iKUN40..RHD200408-200812

main55223-0K020iTGN40..TAIW;KUN40,TGN41..PHL,TAIW200501

55223CCLIP

main90467-06197iKUN40..RHD200607-200810

(J)

main90467-T0032iKUN40..RHD200808

57104DMEMBER SUB-ASSY, FRONT CROSS

main57161-0K010iTGN40..5F..(DLX,GL,STD);KUN40,TGN41..WG..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408

main57161-0K030iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN4#..GCC,IDN,PHL,TH,VN200808

main57161-0K050iKUN40,TGN40..IND200812

57225BRACE, FRONT MOUNTING BRACKET, RH

main57225-0K010iTGN40..5F..(DLX,GL,STD);KUN40,TGN41..WG..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408

57226BRACE, FRONT MOUNTING BRACKET, LH

main57226-0K010iTGN40..4FC..(DLX,GL)..(IDN,TAIW,TH);TGN40..5F..(DLX,GL,STD)..(IDN,IND,TAIW,TH);KUN40,TGN41..WG..(DLX,GL,STD)..(GCC,IDN,IND,TAIW,TH)200408-201606

583410K010CAP, REAR SHOCK ABSORBER

main58341-0K010

9010506137

main90105-06137

90105T0066

main90105-T0066

9010906328

main90109-06328

90109T0028

main90109-T0028

9011906915

main90119-06915

90119T0251

main90119-T0251

9026903037

main90269-03037

9046706197

main90467-06197

9046710179

main90467-10179

9046711122

main90467-11122

90467T0023

main90467-T0023

90467T0032

main90467-T0032

9054115024

main90541-15024

56 parts on this diagram · 1 diagram in section
