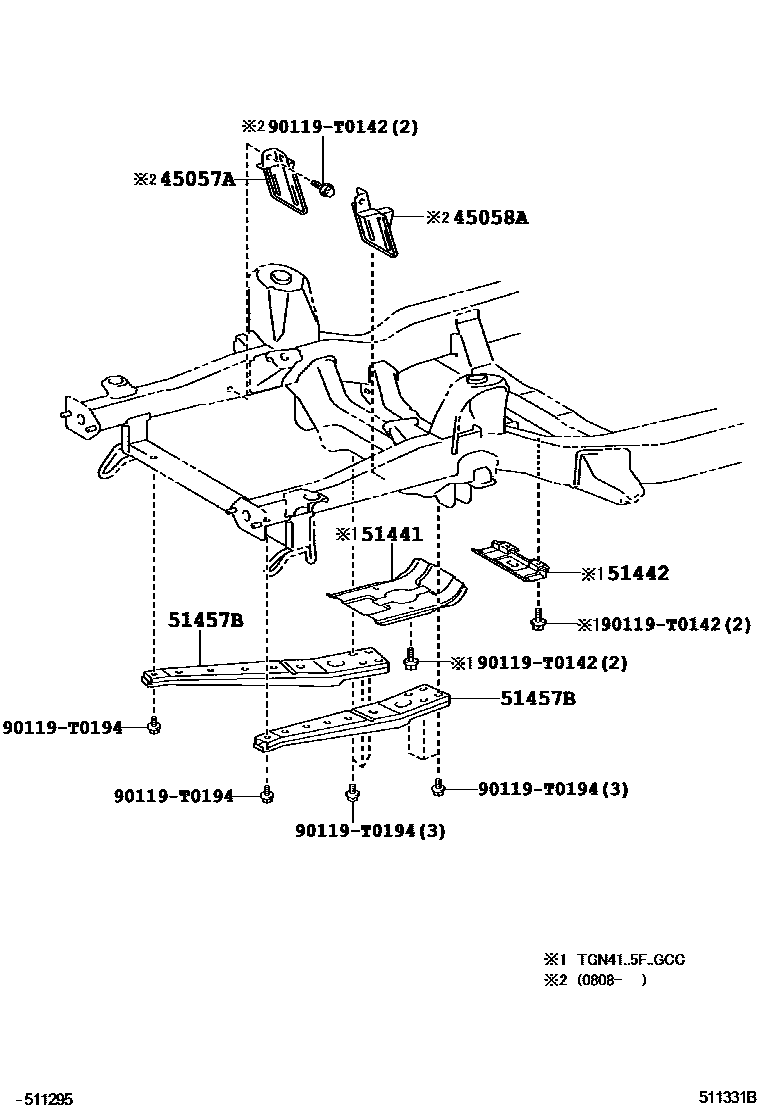

SUSPENSION CROSSMEMBER & UNDER COVER

45057APROTECTOR SUB-ASSY, RACK BOOT, NO.1 RH

main45057-0K010iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN40..IDN,IND,PHL200808

45058APROTECTOR SUB-ASSY, RACK BOOT, NO.1 LH

main45058-0K010iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN40..IDN,IND,PHL200808

51441COVER, ENGINE UNDER, NO.1

main51441-0K020iTGN41..5F..GCC200507-200808

51442COVER, ENGINE UNDER, NO.2

main51442-0K030iTGN41..5F..GCC200507-200808

51457BBRACE, FRONT SIDE MEMBER TO FRONT SUSPENSION CROSSMEMBER

main51405-0K010×2iTGN40..5F..(DLX,GL,STD);KUN40,TGN41..WG..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408

90119T0142

main90119-T0142

90119T0194

main90119-T0194

7 parts on this diagram · 1 diagram in section
