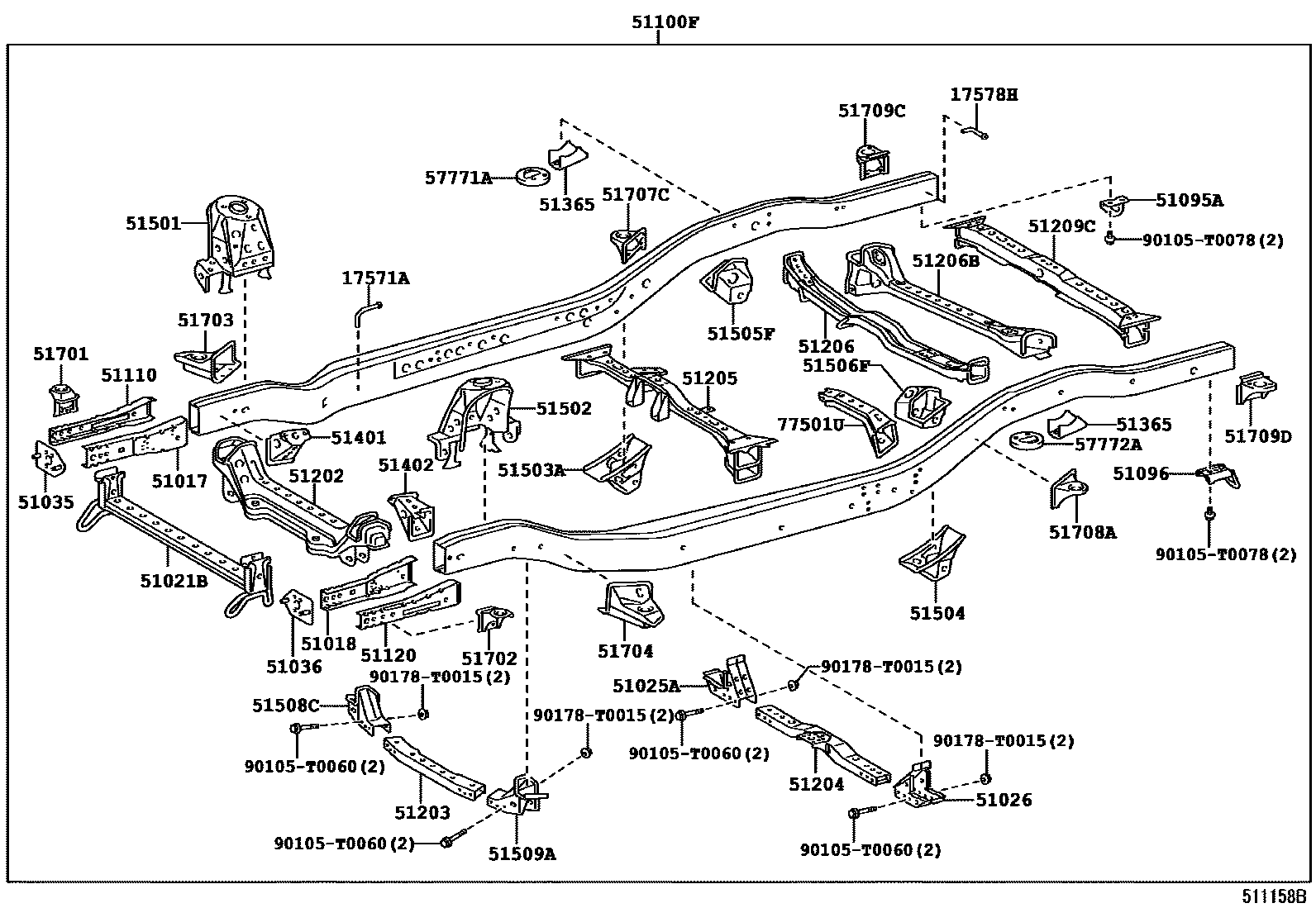

FRAME

17571ABRACKET, EXHAUST PIPE SUPPORT, NO.9

main17571-0L010i1TRFE..TGN40..5F..(DLX,GL,STD);2KDFTV,2TRFE..KUN40,TGN41..WG..(DLX,GL,STD);1TRFE..TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408-201204

17578HBRACKET, EXHAUST PIPE SUPPORT, NO.10

main17505-0L010i1TRFE..TGN40..5F..(DLX,GL,STD);2KDFTV,2TRFE..KUN40,TGN41..WG..(DLX,GL,STD);1TRFE..TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408-201204

51017REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 RH

main51017-0K030iTGN40..5F..(DLX,GL,STD);KUN40,TGN41..WG..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408-201204

51018REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 LH

main51018-0K030iTGN40..5F..(DLX,GL,STD);KUN40,TGN41..WG..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408-201204

51021BCROSSMEMBER SUB-ASSY, FRAME AUXILIARY

main51021-0K010iTGN40..5F..(DLX,GL,STD);KUN40,TGN41..WG..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408-201204

51025ABRACKET SUB-ASSY, FRAME NO.3 CROSSMEMBER, RH

main51025-0K010iTGN40..5F..(DLX,GL,STD);KUN40,TGN41..WG..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408-201204

sub51025-0K030

51026BRACKET SUB-ASSY, FRAME NO.3 CROSSMEMBER, LH

main51026-0K010iTGN40..5F..(DLX,GL,STD);KUN40,TGN41..WG..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408-201204

sub51026-0K030

51035PLATE SUB-ASSY, FRAME SIDE RAIL, RH

main51035-0K010iTGN40..5F..(DLX,GL,STD);KUN40,TGN41..WG..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)¥1,510200408-201204

51036PLATE SUB-ASSY, FRAME SIDE RAIL, LH

main51036-0K010iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN4#..GCC,IDN,IND,PHL,TH,VN¥1,510200408-201204

51095AHOOK SUB-ASSY, TRANSPORT, REAR RH

main51095-0K010iTGN41..TAIW200408-201204

51096HOOK SUB-ASSY, TRANSPORT, REAR LH

main51096-0K010iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN4#..GCC,IDN,IND,PHL,TH,VN200408-201204

51100FFRAME SUB-ASSY

main51001-0K240iTGN4#..4FC200408-200502

sub51001-0K241

main51001-0K241iTGN4#..4FC200502-200506

sub51001-0K242

main51001-0K242iTGN4#..4FC..(IDN,MA,PHL,TH)200507-200711

sub51001-0K243

main51001-0K243iTGN40..4FC..(IDN,MA,PHL,TH,VN)200712-201112

sub51001-0K244

main51001-0K244iTGN40..4FC..(PHL,VN)201112-201204

main51001-0K250iTGN40..5F200408-200502

sub51001-0K251

main51001-0K251iTGN40..5F200502-200711

sub51001-0K252

main51001-0K252iTGN40..5F..(PHL,VN)200712-201204

main51001-0K261iTGN41..5F..GCC200507-200711

sub51001-0K262

main51001-0K262iTGN41..5F..GCC200712-201107

sub51001-0K263

main51001-0K270iKUN40..HDCR200408-200502

sub51001-0K271

main51001-0K271iKUN40..HDCR200502-200506

sub51001-0K272

main51001-0K272iKUN40..HDCR200507-200711

sub51001-0K273

main51001-0K273iKUN40..HDCR200712-201112

sub51001-0K274

main51001-0K274iKUN40..HDCR201112-201204

main51001-0K280iKUN40..DCR200408-200502

sub51001-0K281

main51001-0K281iKUN40..DCR200502-200711

sub51001-0K282

main51001-0K282iKUN40..RHD..DCR200712-201204

main51001-0K540iTGN41..4FC..TAIW200707-200711

sub51001-0K541

main51001-0K541iTGN4#..4FC..TAIW200712

main51001-0K570iTGN41..STD200707-200711

sub51001-0K571

main51001-0K571iTGN41..STD200712-201111

main51001-0K682iTGN41..4FC..GCC200507-200711

sub51001-0K683

main51001-0K683iTGN41..4FC..GCC200712-201107

sub51001-0K684

main51001-0KJ30iTGN40..STD..TAIW201111

main51001-0KL30iTGN40..5F..(PHL,VN)201112-201204

main51001-0KL40iKUN40..DCR..PHL201112-201204

51110EXTENSION ASSY, SIDE RAIL, RH

main51110-0K030iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN4#..GCC,IDN,IND,PHL,TH,VN200408-201204

51120EXTENSION ASSY, SIDE RAIL, LH

main51120-0K030iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN4#..GCC,IDN,IND,PHL,TH,VN200408-201204

51202CROSSMEMBER SUB-ASSY, FRAME, NO.1

main51201-0K010iTGN40..5F..(DLX,GL,STD);KUN40,TGN41..WG..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408-201204

51203CROSSMEMBER SUB-ASSY, FRAME, NO.2

main51202-0K010iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN4#..GCC,IDN,IND,PHL,TH,VN200408-201204

51204CROSSMEMBER SUB-ASSY, FRAME, NO.3

main51203-0K010iKUN40,TGN4#..4FC..(DLX,GL)..(GCC,IDN,MA,PHL,TAIW,TH)200408-201204

main51203-0K030iKUN40,TGN41..WG..5F..(DLX,GL,STD)200408-201204

main51203-0K040iTGN40..5F..(DLX,GL,STD)200408-201204

51205CROSSMEMBER SUB-ASSY, FRAME, NO.4

main51204-0K080iKUN40,TGN4#200408-200502

sub51204-0K081

main51204-0K081iKUN40,TGN40..5F..(IND,TH,VN)200502-201201

main51204-0K090iKUN40,TGN4#..4FC..(GCC,IDN,MA,PHL,TH,VN)200507-201202

51206CROSSMEMBER SUB-ASSY, FRAME, NO.5

main51205-0K040iTGN40..5F..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH);KUN40,TGN41..WG..(DLX,GL,STD)..(IDN,IND,PHL,TAIW,TH)200408-201204

main51205-0K060iTGN41..GCC200507-201107

51206BCROSSMEMBER SUB-ASSY, FRAME, NO.6

main51206-0K010iTGN40..5F..(DLX,GL,STD);KUN40,TGN41..WG..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408-201204

51209CCROSSMEMBER SUB-ASSY, FRAME, REAR

main51209-0K020iTGN40..5F..(DLX,GL,STD);KUN40,TGN41..WG..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408-201204

51365STOPPER, REAR BUMPER

main57081-0K010iTGN40..5F..(DLX,GL,STD);KUN40,TGN41..WG..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408-201204

51401BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH

main51401-0K010iTGN41;TGN40..5F..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408-201204

main51401-0K020iKUN40200408-201204

sub51401-0K050

51402BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH

main51402-0K010iTGN41;TGN40..5F..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408-201204

main51402-0K020iKUN40200408-201204

sub51402-0K050

51501SUPPORT SUB-ASSY, SUSPENSION ARM, RH

main51501-0K010iTGN40..5F..(DLX,GL,STD);KUN40,TGN41..WG..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408-201204

51502SUPPORT SUB-ASSY, SUSPENSION ARM, LH

main51502-0K010iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN4#..GCC,IDN,IND,PHL,TH,VN200408-201204

51503ABRACKET SUB-ASSY, LOWER CONTROL LINK SUPPORT, RH

main51503-0K010iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN4#..GCC,IDN,IND,PHL,TH,VN200408-201204

51504BRACKET SUB-ASSY, LOWER CONTROL LINK SUPPORT, LH

main51504-0K010iTGN40..5F..(DLX,GL,STD);KUN40,TGN41..WG..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408-201204

51505FSUPPORT SUB-ASSY, UPPER CONTROL ARM, RH

main51505-0K010iTGN40..5F..(DLX,GL,STD);KUN40,TGN41..WG..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408-201204

51506FSUPPORT SUB-ASSY, UPPER CONTROL ARM, LH

main51506-0K010iTGN40..5F..(DLX,GL,STD);KUN40,TGN41..WG..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408-201204

51508CBRACKET SUB-ASSY, LOWER CONTROL LINK, RH

main51508-0K010iTGN40..5F..(DLX,GL,STD);KUN40,TGN41..WG..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408-201204

51509ABRACKET SUB-ASSY, LOWER ARM, LH

main51509-0K010iTGN40..5F..(DLX,GL,STD);KUN40,TGN41..WG..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408-201204

51701BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH

main51701-0K020iTGN40..5F..(DLX,GL,STD);KUN40,TGN41..WG..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)¥1,820200408-201204

sub51701-KK010¥1,330

51702BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH

main51701-0K020iTGN40..5F..(DLX,GL,STD);KUN40,TGN41..WG..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)¥1,820200408-201204

sub51701-KK010¥1,330

51703BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH

main51703-0K010iTGN40..5F..(DLX,GL,STD);KUN40,TGN41..WG..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408-201204

51704BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH

main51704-0K010iTGN40..5F..(DLX,GL,STD);KUN40,TGN41..WG..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408-201204

51707CBRACKET SUB-ASSY, CAB MOUNTING, NO.4 RH

main51707-0K010iTGN40..5F..(DLX,GL,STD);KUN40,TGN41..WG..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408-201204

51708ABRACKET SUB-ASSY, CAB MOUNTING, NO.4 LH

main51708-0K010iTGN40..5F..(DLX,GL,STD);KUN40,TGN41..WG..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408-201204

51709CBRACKET SUB-ASSY, CAB MOUNTING, NO.5 RH

main51709-0K010iTGN40..5F..(DLX,GL,STD);KUN40,TGN41..WG..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408-201204

51709DBRACKET SUB-ASSY, CAB MOUNTING, NO.5 LH

main51709-0K010iTGN40..5F..(DLX,GL,STD);KUN40,TGN41..WG..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408-201204

57771APLATE, REAR SPRING, RH

main57771-0K010iTGN40..5F..(DLX,GL,STD);KUN40,TGN41..WG..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408-201204

sub57771-KK010

57772APLATE, REAR SPRING, LH

main57771-0K010iTGN40..5F..(DLX,GL,STD);KUN40,TGN41..WG..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408-201204

sub57771-KK010

77501UBRACKET SUB-ASSY, FUEL TANK

main77501-0K010iTGN40..5F..(DLX,GL,STD);KUN40,TGN41..WG..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408-201204

90105T0060

main90105-T0060

90105T0078

main90105-T0078¥150

90178T0015

main90178-T0015

46 parts on this diagram · 1 diagram in section
