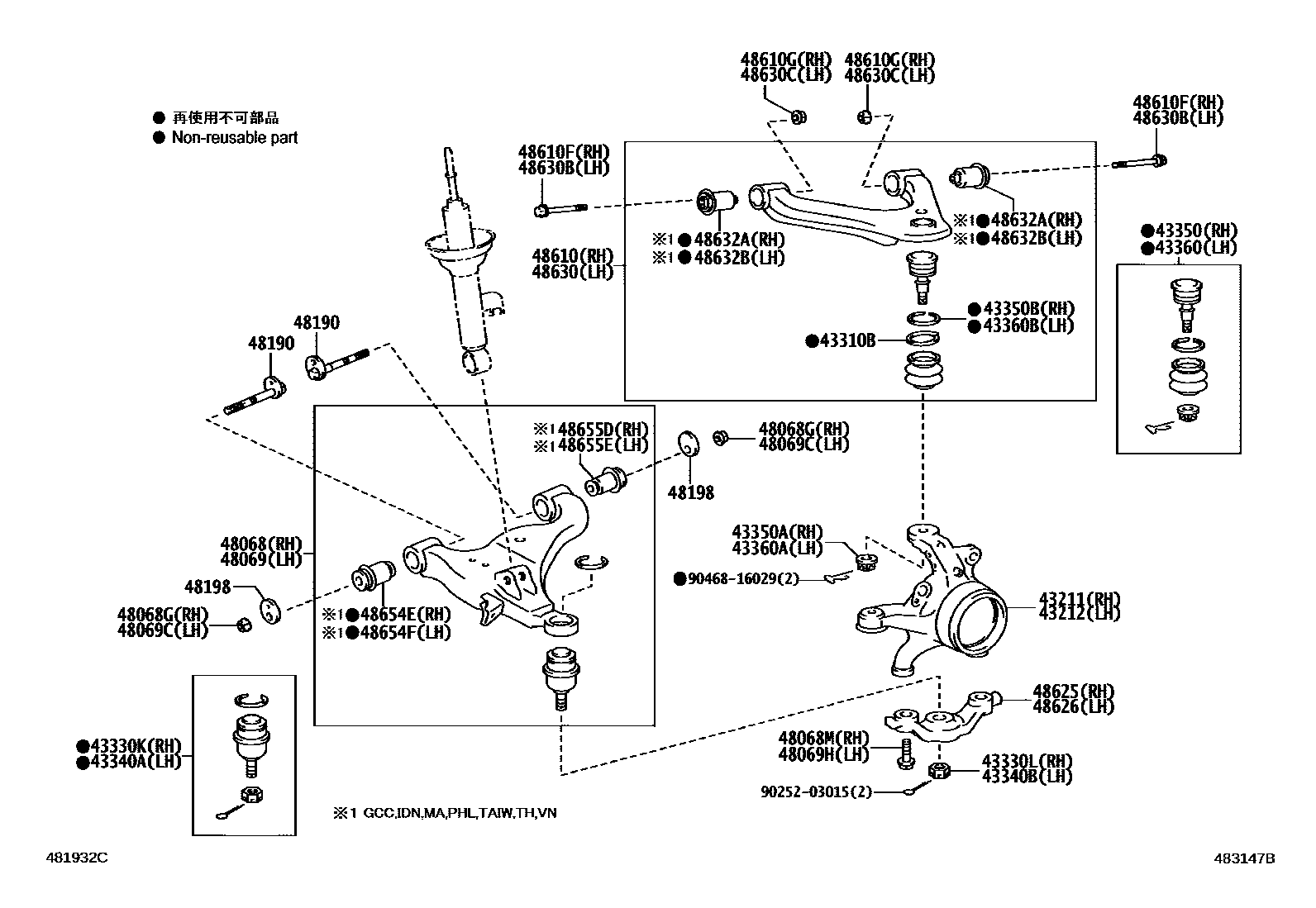

FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-0K010iKUN40..(DLX,STD)..DCR..IDN200502-201204

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

main43211-0K010iTGN40..DLX..TH;KUN40,TGN40..GL..(IDN,TH)200408-201107

main43211-0K010iTGN41..GL..TAIW200707-200910

SRS AIR BAG-WITH(DRIVER & PASSENGER)

main43211-0K020iTGN4#..GCC,IND;KUN40..GL..IND;TGN40..DLX..IDN;TGN40..RHD..(LO,STD);KUN40..RHD..(DLX,LO,STD)200408-201204

main43211-0K070iKUN40,TGN40..GL..PHL200609-200709

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

main43211-0K070iTGN40..DLX..PHL;TGN40..GL..(MA,VN)200608-201204

main43211-0K080iKUN40,TGN40..(DLX,GL)..PHL200608-201204

43212KNUCKLE, STEERING, LH

main43212-0K010iTGN41..GCC;TGN40..DLX..TAIW;KUN40,TGN40..WG..GL..(IND,TAIW)200502-201204

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

main43212-0K010iTGN40..DLX..TH;KUN40,TGN40..GL..(IDN,TH)200408-201107

main43212-0K010iTGN41..GL..TAIW200707-200910

SRS AIR BAG-WITH(DRIVER & PASSENGER)

main43212-0K020iTGN4#..GCC,IND;KUN40..GL..IND;TGN40..DLX..IDN;TGN40..RHD..(LO,STD);KUN40..RHD..(DLX,LO,STD)200408-201204

main43212-0K070iTGN40..DLX..PHL;TGN40..GL..(MA,VN)200608-201204

main43212-0K070iKUN40,TGN40..GL..PHL200609-200709

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

main43212-0K080iKUN40,TGN40..(DLX,GL)..PHL200608-201204

43310BRING, SET (FOR DUST COVER)

main90580-10001iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN4#..GCC,IDN,IND,PHL,TH,VN200808

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-09500iKUN40,TGN40..IND200502-200812

main43330-09510iTGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH);TGN40..5F..(DLX,GL,STD)..(IDN,MA,PHL,TAIW,TH,VN);KUN40,TGN41..(DLX,GL,STD)..(GCC,IDN,PHL,TAIW,TH)200408

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-T0003iTGN40..5F..(DLX,GL,STD);KUN40,TGN41..WG..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43330-09500iKUN40,TGN40..IND200502-200812

main43330-09510iTGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH);TGN40..5F..(DLX,GL,STD)..(IDN,MA,PHL,TAIW,TH,VN);KUN40,TGN41..(DLX,GL,STD)..(GCC,IDN,PHL,TAIW,TH)200408

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-T0003iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN4#..GCC,IDN,IND,PHL,TH,VN200408

43350JOINT ASSY, FRONT UPPER BALL, RH

main43310-09015iTGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH);TGN40..5F..(DLX,GL,STD)..(IDN,MA,PHL,TAIW,TH,VN);KUN40,TGN41..(DLX,GL,STD)..(GCC,IDN,PHL,TAIW,TH)200408

sub43310-09017

main43310-09040iKUN40,TGN40..IND200502-200812

43350ANUT (FOR FRONT UPPER BALL JOINT RH)

main90171-T0001iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN4#..GCC,IDN,IND,PHL,TH,VN200408

43350BRING, SNAP (FOR FRONT UPPER BALL JOINT RH)

main90520-T0029iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN4#..GCC,IDN,IND,PHL,TH,VN200808

43360JOINT ASSY, FRONT UPPER BALL, LH

main43310-09015iTGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH);TGN40..5F..(DLX,GL,STD)..(IDN,MA,PHL,TAIW,TH,VN);KUN40,TGN41..(DLX,GL,STD)..(GCC,IDN,PHL,TAIW,TH)200408

sub43310-09017

main43310-09040iKUN40,TGN40..IND200502-200812

43360ANUT (FOR FRONT UPPER BALL JOINT LH)

main90171-T0001iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN4#..GCC,IDN,IND,PHL,TH,VN200408

43360BRING, SNAP (FOR FRONT UPPER BALL JOINT LH)

main90520-T0029iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN4#..GCC,IDN,IND,PHL,TH,VN200808

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-0K010iTGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH);TGN40..5F..(DLX,GL,STD)..(IDN,MA,PHL,TAIW,TH,VN);KUN40,TGN41..(DLX,GL,STD)..(GCC,IDN,PHL,TAIW,TH)200408

main48068-0K030iKUN40,TGN40..IND200502-200812

48068GNUT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90178-T0073iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN4#..GCC,IDN,IND,PHL,TH,VN200408

48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main90105-16053iTGN40..5F..(DLX,GL,STD);KUN40,TGN41..WG..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-0K010iTGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH);TGN40..5F..(DLX,GL,STD)..(IDN,MA,PHL,TAIW,TH,VN);KUN40,TGN41..(DLX,GL,STD)..(GCC,IDN,PHL,TAIW,TH)200408

main48069-0K030iKUN40,TGN40..IND200502-200812

48069CNUT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90178-T0073iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN4#..GCC,IDN,IND,PHL,TH,VN200408

48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main90105-16053iTGN40..5F..(DLX,GL,STD);KUN40,TGN41..WG..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408-201202

48190CAM ASSY, CAMBER ADJUST

main48190-0K020iTGN40..5F..(DLX,GL,STD);KUN40,TGN41..WG..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408

48198CAM, CAMBER ADJUST, NO.2

main48198-0K020iTGN40..5F..(DLX,GL,STD);KUN40,TGN41..WG..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408

48610ARM ASSY, FRONT SUSPENSION UPPER, RH

main48610-0K010iKUN40,TGN40..MA,PHL,VN200501

main48610-0K020iKUN40,TGN4#..GCC,IDN,TH200408-201107

main48610-0K030iKUN40,TGN40..IND200502-200812

48610FBOLT(FOR FRONT SUSPENSION UPPER ARM RH)

main90119-T0348iTGN40..5F..(DLX,GL,STD);KUN40,TGN41..WG..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408

48610GNUT(FOR FRONT SUSPENSION UPPER ARM RH)

main90178-T0047iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN4#..GCC,IDN,IND,PHL,TH,VN200408

48625ATTACHMENT, FRONT LOWER BALL JOINT, RH

main48625-0K011iTGN40..5F..(DLX,GL,STD);KUN40,TGN41..WG..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408

sub48625-0K050

48626ATTACHMENT, FRONT LOWER BALL JOINT, LH

main48626-0K011iTGN40..5F..(DLX,GL,STD);KUN40,TGN41..WG..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408

sub48626-0K050

48630ARM ASSY, FRONT SUSPENSION, UPPER LH

main48630-0K010iTGN40..5F..VN;KUN40,TGN4#..MA,PHL,TAIW200501

main48630-0K020iKUN40,TGN4#..GCC,IDN,TH200408-201107

main48630-0K030iKUN40,TGN40..IND200502-200812

48630BBOLT(FOR FRONT SUSPENSION UPPER ARM LH)

main90119-T0348iTGN40..5F..(DLX,GL,STD);KUN40,TGN41..WG..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408

48630CNUT(FOR FRONT SUSPENSION UPPER ARM LH)

main90178-T0047iTGN40..5F..(DLX,GL,STD);KUN40,TGN41..WG..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408

48632ABUSH, FRONT SUSPENSION UPPER ARM, RH

main48632-0K010iTGN40..5F..VN;KUN40,TGN4#..MA,PHL,TAIW200501-201606

main48632-0K020iKUN40,TGN4#..GCC,IDN,TH200408-201107

sub48632-0K130

48632BBUSH, FRONT SUSPENSION UPPER ARM, LH

main48632-0K010iTGN40..5F..VN;KUN40,TGN4#..MA,PHL,TAIW200501-201606

main48632-0K020iKUN40,TGN4#..GCC,IDN,TH200408-201107

sub48632-0K130

48654EBUSH, FRONT LOWER ARM, NO.1 RH

main48654-0K010iTGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH);TGN40..5F..(DLX,GL,STD)..(IDN,MA,PHL,TAIW,TH,VN);KUN40,TGN41..(DLX,GL,STD)..(GCC,IDN,PHL,TAIW,TH)200408-201606

48654FBUSH, FRONT LOWER ARM, NO.1 LH

main48654-0K010iTGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH);TGN40..5F..(DLX,GL,STD)..(IDN,MA,PHL,TAIW,TH,VN);KUN40,TGN41..(DLX,GL,STD)..(GCC,IDN,PHL,TAIW,TH)200408-201606

48655DBUSH, FRONT LOWER ARM, NO.2 RH

main48655-0K010iTGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH);TGN40..5F..(DLX,GL,STD)..(IDN,MA,PHL,TAIW,TH,VN);KUN40,TGN41..(DLX,GL,STD)..(GCC,IDN,PHL,TAIW,TH)200408-201606

48655EBUSH, FRONT LOWER ARM, NO.2 LH

main48655-0K010iTGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH);TGN40..5F..(DLX,GL,STD)..(IDN,MA,PHL,TAIW,TH,VN);KUN40,TGN41..(DLX,GL,STD)..(GCC,IDN,PHL,TAIW,TH)200408-201606

9025203015

main90252-03015

9046816029

main90468-16029

37 parts on this diagram · 1 diagram in section
