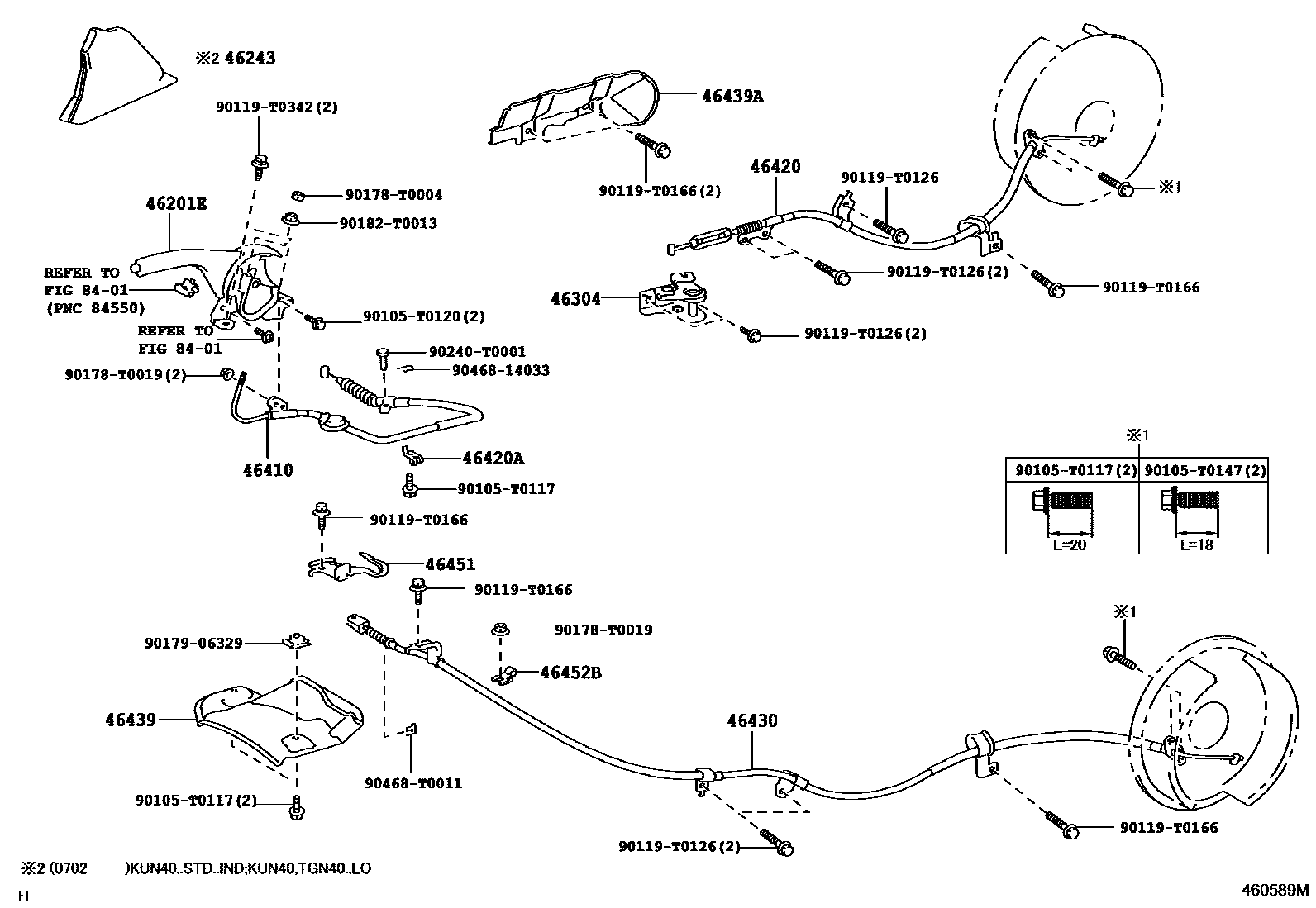

PARKING BRAKE & CABLE

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-0K020-A0iTGN41..GL;TGN40..IND,MA;TGN41..DLX..GCC;TGN40..LHD..5F..GL;KUN40..WG..(IND,TH);KUN40..(DLX,GL)..IDN;KUN40,TGN40..4FC..GL..PHL;KUN40..(DLX,GL)..DCR..PHL;TGN40..(DLX,200408-201111

IVORY,TRIM0#

main46201-0K020-B0iKUN40,TGN40..DLX..PHL;KUN40,TGN40..5F..STD..(IDN,PHL,TH,VN)200408-201202

GRAY,TRIM1#

main46201-0K020-B2iTGN40..TAIW201111-201606

DK.GRAY,TRIM1#

main46201-0K020-E0iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN40..GL..PHL;KUN40,TGN4#..GCC,IDN,TH,VN200808-201202

GREGE,TRIM4#

main46201-0K050-E0iKUN40,TGN40..IND200904-201201

GREGE,TRIM4#

46243COVER, PARKING BRAKE LEVER

main46243-0K010-A0iKUN40..STD..IND200702-200812

IVORY,TRIM0#

main46243-0K010-E0iKUN40,TGN40..LO;KUN40..STD..IND200812-201201

GREGE,TRIM4#

46304EQUALIZER SUB-ASSY, PARKING BRAKE

main46304-0K010iKUN40,TGN40..IND,PHL,VN200408-201107

main46304-0K030iTGN40..MA200505-201110

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-0K020iTGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH);TGN40..5F..(DLX,GL,STD)..(IDN,MA,PHL,TAIW,TH,VN);KUN40,TGN41..(DLX,GL,STD)..(GCC,IDN,PHL,TAIW,TH)200408

main46410-0K030iKUN40,TGN40..IND200502-200812

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-0K060iTGN41..GCC200507-200610

sub46420-0K061

main46420-0K061iTGN41..GCC200611-201111

main46420-0K070iKUN40..WG..GL..IND200408-201202

main46420-0K070iKUN40..IND201111-201201

TYPE B:REFER 47-06

main46420-0K080iKUN40..IND201111-201201

TYPE A:REFER 47-06

main46420-0K080iTGN40..(DLX,GL)..IND200502-201111

main46420-0K110iTGN41..IDN;TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH);TGN40..5F..(DLX,GL,STD)..(IDN,MA,PHL,TAIW,TH,VN)200611-201606

main46420-0K120iTGN40..IND200611-201201

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main90949-01799iTGN40..5F..(DLX,GL,STD);KUN40,TGN41..WG..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-0K060iTGN41..GCC200507-201111

main46430-0K070iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN40..IDN,PHL,TH,VN200408-201606

main46430-0K070iKUN40..IND201111-201201

TYPE B:REFER 47-06

main46430-0K080iKUN40..IND201111-201201

TYPE A:REFER 47-06

main46430-0K080iTGN40..IND200502-201201

46439INSULATOR, PARKING BRAKE CABLE HEAT

main46439-0K010iTGN40..5F..VN;KUN40,TGN40..IND,MA,PHL200501-201110

main46439-0K030iKUN40,TGN4#..GCC,IDN,TH200408-201107

46439AINSULATOR, PARKING BRAKE CABLE HEAT, NO.2

main46439-0K020iKUN40,TGN40..IND,MA,PHL,VN200501-201202

main46439-0K040iTGN40..4FC..(DLX,GL)..(IDN,TAIW,TH);TGN40..5F..(DLX,GL,STD)..(IDN,TAIW,TH);KUN40,TGN41..(DLX,GL,STD)..(GCC,IDN,TAIW,TH)200408-201107

46451BRACKET, CABLE SUPPORT

main46451-0K010iKUN40,TGN4#..GCC,IDN,TH200408-200612

sub46451-0K040

main46451-0K040iTGN4#..DLX..(GCC,TH);TGN40..4FC..(MA,PHL,TAIW);KUN40,TGN41..WG..(IND,PHL,TAIW);TGN40..5F..(IND,MA,PHL,TAIW,TH,VN)200501-201110

46452BBRACKET, CABLE SUPPORT, NO.2

main46452-0K010iTGN40..5F..(DLX,GL,STD);KUN40,TGN41..WG..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408-201204

8401

90105T0117

main90105-T0117

90105T0120

main90105-T0120

90105T0147

main90105-T0147

90119T0126

main90119-T0126

90119T0166

main90119-T0166

90119T0342

main90119-T0342

90178T0004

main90178-T0004

90178T0019

main90178-T0019

9017906329

main90179-06329

90182T0013

main90182-T0013

90240T0001

main90240-T0001

9046814033

main90468-14033

90468T0011

main90468-T0011

25 parts on this diagram · 1 diagram in section
