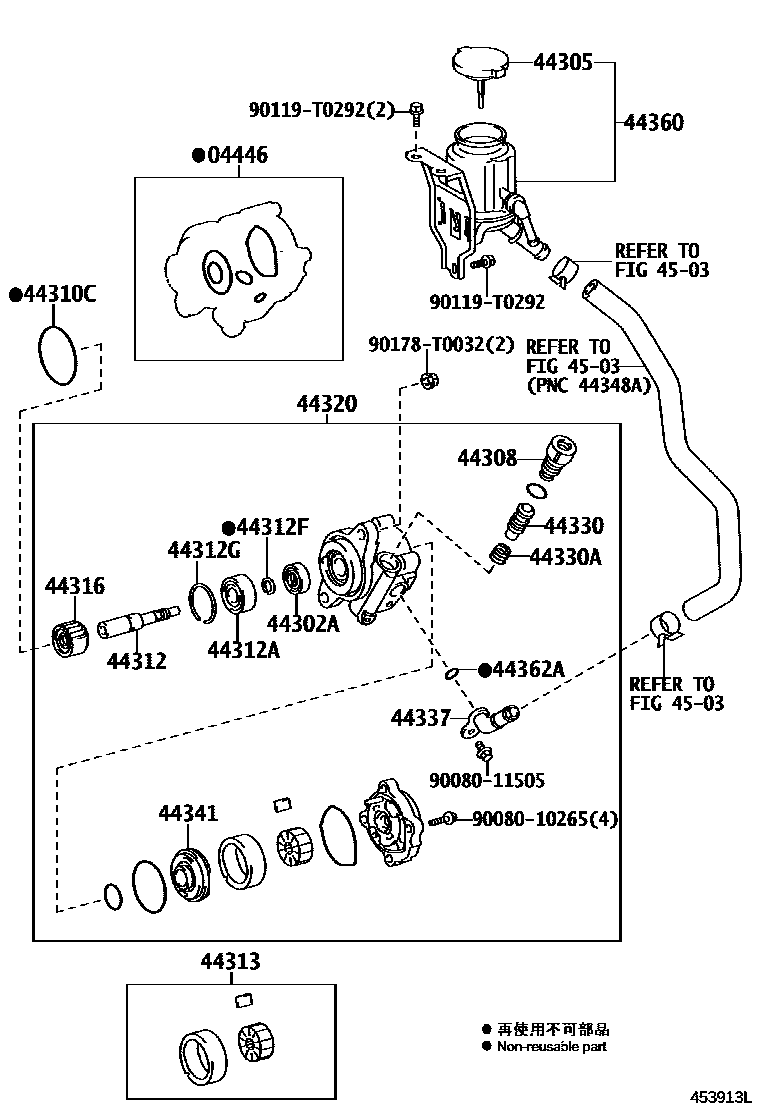

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0005 1 0006 1

04446GASKET KIT, POWER STEERING PUMP

main04446-02090iTGN4#..TAIW200707

main04446-06060iTGN40..(DLX,GL)..IND;TGN4#..GCC,IDN,MA,PHL,TH,VN200408-200803

main04446-06110iTGN40..4FC..MA;TGN40..5F..DLX..MA;TGN4#..GCC,IDN,IND,PHL,TH,VN200808-201202

main04446-0B040iKUN40..DLX,GL;KUN40..STD..(IDN,PHL)200408-200804

main04446-0K010iKUN40..DLX,GL,LO;KUN40..STD..(IDN,PHL)200808-201202

44302ASEAL, OIL, NO.1(FOR VANE PUMP HOUSING)

main90316-T0001iKUN40..DLX,GL;KUN40..STD..(IDN,PHL)200408-200812

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-0K020iKUN40..DLX,GL;KUN40..STD..(IDN,PHL)200408-200709

main44305-0K040iKUN40..DLX,GL;KUN40..STD..(IDN,PHL)200710-200812

STEERING-POWER STEERING

main44305-0K041iKUN40..STD..IND201103-201204

STEERING-POWER STEERING

sub44305-0K042

main44305-22040iTGN40..(DLX,GL)..IND;TGN4#..GCC,IDN,MA,PHL,TAIW,TH,VN200408-200801

main44305-22060iTGN41;TGN40..5F..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200802-201204

main44305-22061iTGN40201205

44308UNION SUB-ASSY, PRESSURE PORT

main44308-0K010iTGN40..4FC..MA;TGN40..5F..DLX..MA;TGN4#..GCC,IDN,IND,PHL,TH,VN200808

main44308-0K020iKUN40..DLX,GL;KUN40..STD..(IDN,PHL)200408-200812

main44308-0K080iTGN4#..TAIW200707

44310CRING, O(FOR VANE PUMP)

main90301-T0014iKUN40..DLX,GL;KUN40..STD..(IDN,PHL)200408-200812

44312SHAFT, VANE PUMP

main44312-0K010iKUN40..DLX,GL,LO;KUN40..STD..(IDN,PHL)200808

44312ABEARING(FOR VANE PUMP SHAFT)

main90363-T0005iKUN40..DLX,GL;KUN40..STD..(IDN,PHL)200408-200812

44312FRING, SNAP, NO.1(FOR VANE PUMP SHAFT BEARING)

main90520-T0001iKUN40..DLX,GL;KUN40..STD..(IDN,PHL)200408-200812

44312GRING, SNAP, NO.2(FOR VANE PUMP SHAFT BEARING)

main90520-T0002iKUN40..DLX,GL;KUN40..STD..(IDN,PHL)200408-200812

44313ROTOR, VANE PUMP

main44313-09010iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40..STD..(IDN,PHL);TGN40..IDN,IND,PHL,TH,VN;KUN40,TGN41..(DLX,GL,LO)..(GCC,IDN,IND,PHL)200808

main44313-09050iTGN4#..TAIW200707

44316GEAR, VANE PUMP

main44316-0K010iKUN40..DLX,GL;KUN40..STD..(IDN,PHL)200408-200812

44320PUMP ASSY, VANE

main44310-0K010iTGN40..STD..VN;TGN4#..GCC,IDN,MA,PHL,TH;TGN40..5F..(DLX,GL)..(IND,VN)200408-200812

main44310-0K020iKUN40..DLX,GL;KUN40..STD..(IDN,PHL)200408-200812

main44310-0K070iTGN4#..TAIW200707

44330VALVE ASSY, FLOW CONTROL

main44330-0K130iTGN40..STD..VN;TGN40..IDN,MA,PHL,TH;KUN40..STD..(IDN,PHL);TGN40..5F..(DLX,GL)..(IND,VN);KUN40,TGN41..(DLX,GL)..(GCC,IDN,IND,PHL,TH)200408-200812

MARK A

main44330-0K140iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40..STD..(IDN,PHL);TGN40..IDN,IND,PHL,TH,VN;KUN40,TGN41..(DLX,GL,LO)..(GCC,IDN,IND,PHL)200808

MARK B

main44330-0K150iTGN40..STD..VN;TGN40..IDN,MA,PHL,TH;KUN40..STD..(IDN,PHL);TGN40..5F..(DLX,GL)..(IND,VN);KUN40,TGN41..(DLX,GL)..(GCC,IDN,IND,PHL,TH)200408-200812

MARK C

main44330-0K160iTGN40..STD..VN;TGN40..IDN,MA,PHL,TH;KUN40..STD..(IDN,PHL);TGN40..5F..(DLX,GL)..(IND,VN);KUN40,TGN41..(DLX,GL)..(GCC,IDN,IND,PHL,TH)200408-200812

MARK D

main44330-0K170iTGN40..STD..VN;TGN40..IDN,MA,PHL,TH;KUN40..STD..(IDN,PHL);TGN40..5F..(DLX,GL)..(IND,VN);KUN40,TGN41..(DLX,GL)..(GCC,IDN,IND,PHL,TH)200408-200812

MARK E

main44330-0K180iTGN40..STD..VN;TGN40..IDN,MA,PHL,TH;KUN40..STD..(IDN,PHL);TGN40..5F..(DLX,GL)..(IND,VN);KUN40,TGN41..(DLX,GL)..(GCC,IDN,IND,PHL,TH)200408-200812

MARK F

main44330-0K190iTGN4#..TAIW200707

MARK A

main44330-0K200iTGN4#..TAIW200707

MARK B

main44330-0K210iTGN4#..TAIW200707

MARK C

main44330-0K220iTGN4#..TAIW200707

MARK D

main44330-0K230iTGN4#..TAIW200707

MARK E

main44330-0K240iTGN4#..TAIW200707

MARK F

44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)

main90080-50328iTGN4#..TAIW200707

main90501-T0001iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40..STD..(IDN,PHL);TGN40..IDN,IND,PHL,TH,VN;KUN40,TGN41..(DLX,GL,LO)..(GCC,IDN,IND,PHL)200808

44337UNION, POWER STEERING SUCTION PORT

main44337-06060iKUN40..DLX,GL;KUN40..STD..(IDN,PHL)200408-200812

44341PLATE, VANE PUMP SIDE, FRONT

main44341-06010iTGN40..STD..VN;TGN40..IDN,MA,PHL,TH;KUN40..STD..(IDN,PHL);TGN40..5F..(DLX,GL)..(IND,VN);KUN40,TGN41..(DLX,GL)..(GCC,IDN,IND,PHL,TH)200408-200812

main44341-06020iTGN4#..TAIW200707

44360RESERVOIR ASSY, VANE PUMP OIL

main44360-0K010iKUN40..DLX,GL;KUN40..STD..(IDN,PHL)200408-200812

sub44360-0K011

main44360-0K040iKUN40..WG..(DLX,GL)..IND201004

STEERING-POWER STEERING

sub44360-0K041

44362ARING, O(FOR VANE PUMP OIL RESERVOIR)

main90080-30093iTGN40..STD..VN;TGN40..IDN,MA,PHL,TH;KUN40..STD..(IDN,PHL);TGN40..5F..(DLX,GL)..(IND,VN);KUN40,TGN41..(DLX,GL)..(GCC,IDN,IND,PHL,TH)200408-200812

4503

9008010265

main90080-10265

9008011505

main90080-11505

90119T0292

main90119-T0292

90178T0032

main90178-T0032

23 parts on this diagram · 3 diagrams in section
