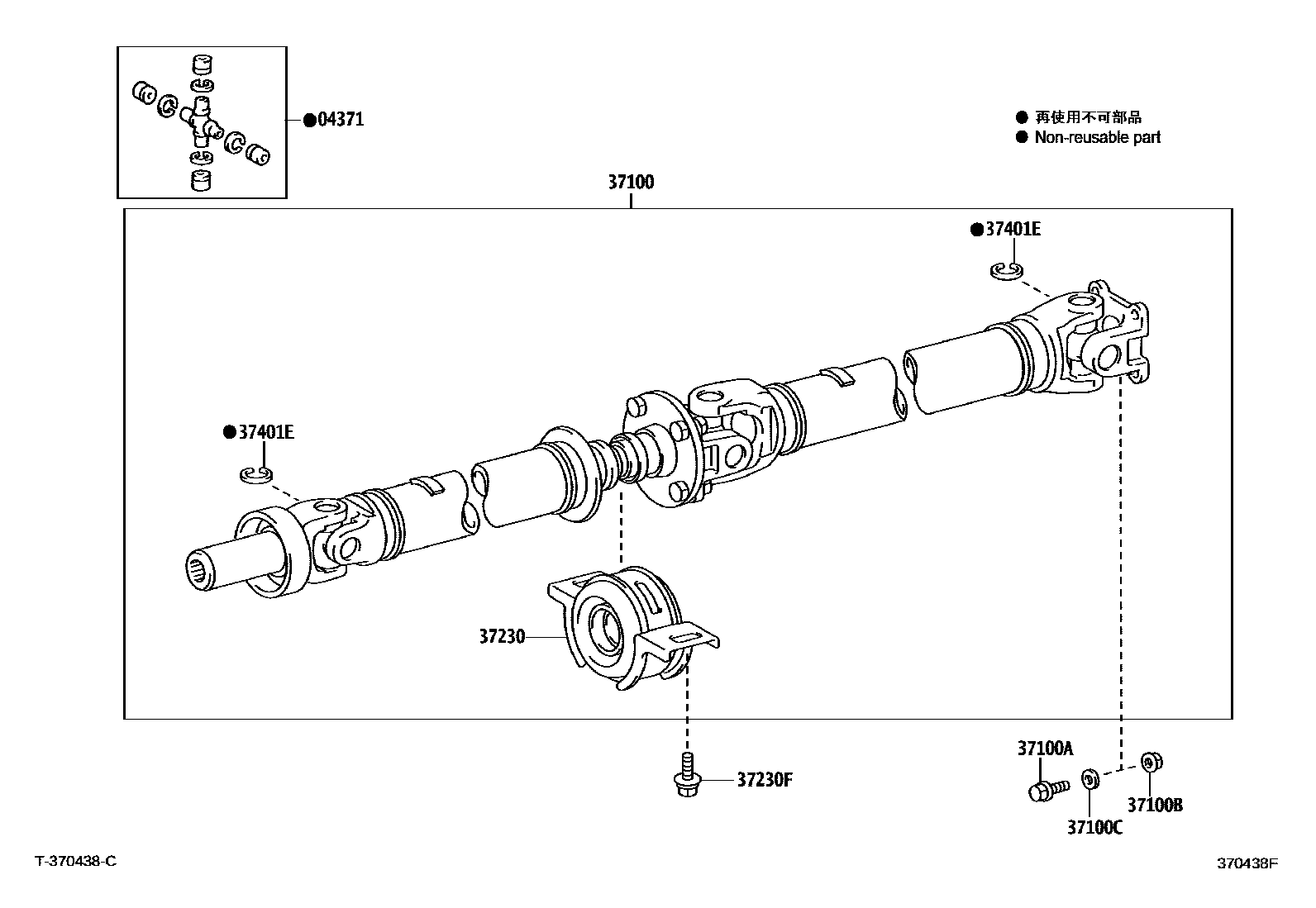

PROPELLER SHAFT & UNIVERSAL JOINT

04371SPIDER KIT, UNIVERSAL JOINT(FOR PROPELLER SHAFT)

main04371-0K050×3iTGN41..LHD200408-200805

main04371-0K060×3iTGN4#..GCC,TAIW200806-201509

main04371-0K110×3iTGN40201510-201606

37100SHAFT ASSY, PROPELLER W/CENTER BEARING

main37100-0K100iTGN40..4FC..(IDN,TH)200408-200808

main37100-0K101iTGN40..4FC..(IDN,TH)200808-200809

main37100-0K102iTGN40..4FC..(IDN,TH)200810-201107

main37100-0K110iTGN40..5F..(IDN,TH)200408-200808

main37100-0K111iTGN40..5F..(IDN,TH)200808-200809

main37100-0K112iTGN40..5F..(IDN,TH)200810-201107

main37100-0K120iTGN41..IDN200412-200708

sub37100-0K121

main37100-0K130iTGN41..5F..DLX200507-200709

main37100-0K131iTGN41..5F200709-200805

main37100-0K132iTGN41..5F..GCC200808-201107

main37100-0K140iKUN40..RHD..HDCR200408-200808

main37100-0K141iKUN40..HDCR..IDN200808-200809

main37100-0K142iKUN40..HDCR..IDN200810-201107

main37100-0K150iKUN40..DCR..IDN200408-200808

main37100-0K151iKUN40..DCR..IDN200808-200809

main37100-0K152iKUN40..DCR..IDN200810-201107

main37100-0K160iTGN40..IND200502-200812

main37100-0K161iTGN40..IND200812

main37100-0K170iKUN40..IND200502-200812

main37100-0K171iKUN40..IND200812

main37100-0K540iTGN40..4FC..(MA,PHL)200501-200809

main37100-0K541iTGN40..4FC..(MA,PHL,VN)200809

main37100-0K550iTGN40..5F..(MA,PHL,VN)200501-200809

main37100-0K551iTGN40..5F..(MA,PHL,VN)200809

main37100-0K560iKUN40..HDCR..PHL200501-200809

main37100-0K561iKUN40..HDCR..PHL200809

main37100-0K570iKUN40..DCR..PHL200501-200809

main37100-0K571iKUN40..DCR..PHL200809

main37100-0K580iTGN41..4FC..DLX..GCC200507-200709

main37100-0K581iTGN41..4FC200709-200805

main37100-0K582iTGN41..4FC200806-201111

37100ABOLT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)

main90105-T0084×4iTGN40..5F..(DLX,GL,STD);KUN40,TGN41..WG..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408

37100BNUT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)

main90178-T0024×4iTGN40..5F..(DLX,GL,STD);KUN40,TGN41..WG..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408

37100CWASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)

main90201-T0003×4iTGN40..5F..(DLX,GL,STD);KUN40,TGN41..WG..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408

sub90201-11013

37230BEARING ASSY, CENTER SUPPORT, NO.1

main37230-0K020iKUN40,TGN40200408-200411

main37230-0K021iTGN40..5F..(DLX,GL,STD);KUN40,TGN41..WG..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200411

37230FBOLT, NO.1 (FOR CENTER SUPPORT BEARING)

main90119-T0148×2iTGN40..5F..(DLX,GL,STD);KUN40,TGN41..WG..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408

37401ERING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARING)

main90520-T0007×8iTGN40..5F..(DLX,GL,STD);KUN40,TGN41..WG..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408

T=2.19,MARK F

main90520-T0008×8iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN4#..GCC,IDN,IND,PHL,TH,VN200808

T=2.21,MARK G

main90520-T0009×8iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN4#..GCC,IDN,IND,PHL,TH,VN200808

T=2.23,MARK H

main90520-T0010×8iTGN40..5F..(DLX,GL,STD);KUN40,TGN41..WG..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408

T=2.25,MARK J

main90520-T0011×8iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN4#..GCC,IDN,IND,PHL,TH,VN200808

T=2.27,MARK K

main90520-T0012×8iTGN40..5F..(DLX,GL,STD);KUN40,TGN41..WG..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408

T=2.29,MARK 1

main90520-T0013×8iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN4#..GCC,IDN,IND,PHL,TH,VN200808

T=2.31,MARK 2

main90520-T0014×8iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN4#..GCC,IDN,IND,PHL,TH,VN200808

T=2.33,MARK 3

main90520-T0015×8iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN4#..GCC,IDN,IND,PHL,TH,VN200808

T=2.35,MARK 4

main90520-T0016×8iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN4#..GCC,IDN,IND,PHL,TH,VN200808

T=2.37,MARK 5

main90520-T0017×8iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN4#..GCC,IDN,IND,PHL,TH,VN200808

T=2.39,MARK 6

main90520-T0018×8iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN4#..GCC,IDN,IND,PHL,TH,VN200808

T=2.41,MARK 7

main90520-T0019×8iTGN40..5F..(DLX,GL,STD);KUN40,TGN41..WG..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408

T=2.43,MARK 8

main90520-T0020×8iTGN40..5F..(DLX,GL,STD);KUN40,TGN41..WG..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408

T=2.45,MARK N

main90520-T0021×8iTGN40..5F..(DLX,GL,STD);KUN40,TGN41..WG..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408

T=2.47,MARK 10

main90520-T0022×8iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN4#..GCC,IDN,IND,PHL,TH,VN200808

T=2.49,MARK A

main90520-T0023×8iTGN40..5F..(DLX,GL,STD);KUN40,TGN41..WG..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408

T=2.51,MARK B

main90520-T0024×8iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN4#..GCC,IDN,IND,PHL,TH,VN200808

T=2.53,MARK C

main90520-T0025×8iTGN40..5F..(DLX,GL,STD);KUN40,TGN41..WG..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408

T=2.55,MARK D

main90520-T0026×8iTGN40..5F..(DLX,GL,STD);KUN40,TGN41..WG..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408

T=2.57,MARK E

8 parts on this diagram · 1 diagram in section
