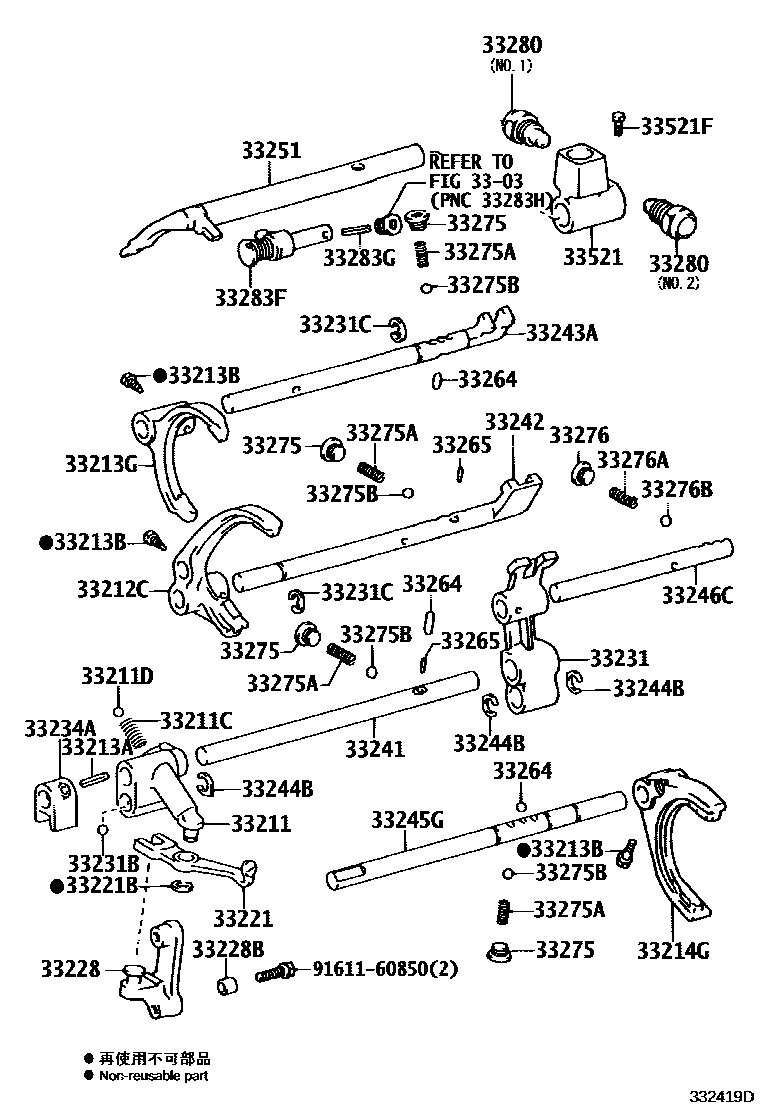

GEAR SHIFT FORK & LEVER SHAFT (MTM)
3303
33211FORK, REVERSE SHIFT
TYPE C:REFER 33-01
TYPE D:REFER 33-01
33211CSPRING, COMPRESSION(FOR REVERSE SHIFT FORK RETURN)
TYPE D:REFER 33-01,TYPE C:REFER 33-01
33211DBALL(FOR REVERSE SHIFT FORK)
OD=9.52,STEEL
33212CFORK, GEAR SHIFT, NO.1
33213APIN, SLOTTED SPRING(FOR SHIFT FORK SET)
TYPE D:REFER 33-01,TYPE C:REFER 33-01
33213BBOLT(FOR SHIFT FORK SET)
33213GFORK, GEAR SHIFT, NO.2
TYPE D:REFER 33-01,TYPE C:REFER 33-01
33214GFORK, GEAR SHIFT, NO.3
33221ARM, REVERSE SHIFT
33221BRING, E(FOR REVERSE SHIFT ARM)
33228BRACKET, REVERSE SHIFT ARM
TYPE C:REFER 33-01
TYPE D:REFER 33-01
33228BPIN, RING(FOR REVERSE SHIFT ARM BRACKET)
33231HEAD, REVERSE SHIFT
33231BBALL, REVERSE SHIFT RESTRICT
33231CRING(FOR REVERSE SHIFT HEAD)
33234AHEAD, GEAR SHIFT, NO.3
33241SHAFT, REVERSE SHIFT FORK
TYPE C:REFER 33-01
TYPE D:REFER 33-01
33242SHAFT, GEAR SHIFT FORK, NO.1
TYPE C:REFER 33-01
TYPE D:REFER 33-01
33243ASHAFT, GEAR SHIFT FORK, NO.2
33244BRING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
33245GSHAFT, GEAR SHIFT FORK, NO.4
TYPE C:REFER 33-01
TYPE D:REFER 33-01
33246CSHAFT, GEAR SHIFT FORK, NO.5
33251LEVER, SHIFT & SELECT
TYPE D:REFER 33-01
33264PIN, OR BALL, SHIFT INTERLOCK, NO.1
L=11.5,OD=4.8
OD=9.52,STEEL
L=21.6,PIN
L=13.6,OD=9.5
33265PIN, SHIFT INTERLOCK, NO.2
L=11.1,OD=4.8
33275SEAT, SHIFT DETENT BALL SPRING, NO.1
OD=18
33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
L=20.2
L=33.5
L=33.8
L=19.1
33275BBALL, SHAFT DETENT
33276SEAT, SHIFT DETENT BALL SPRING, NO.2
33276ASPRING, COMPRESSION, NO.2 (FOR SHIFT DETENT BALL)
33276BBALL, SHIFT DETENT, NO.2
33280PIN ASSY, REVERSE RESTRICT
T/P D:SEE 33-01,NO.1,T/P C:SEE 33-01,NO.1
NO.2
NO.1
NO.2
33283FPIN, REVERSE RESTRICT
33283GPIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN)
TYPE D:REFER 33-01,TYPE C:REFER 33-01
33521FPIN OR BOLT (FOR SHIFT LEVER HOUSING)
(J)
(L)
9161160850
main91611-60850
38 parts on this diagram · 2 diagrams in section
