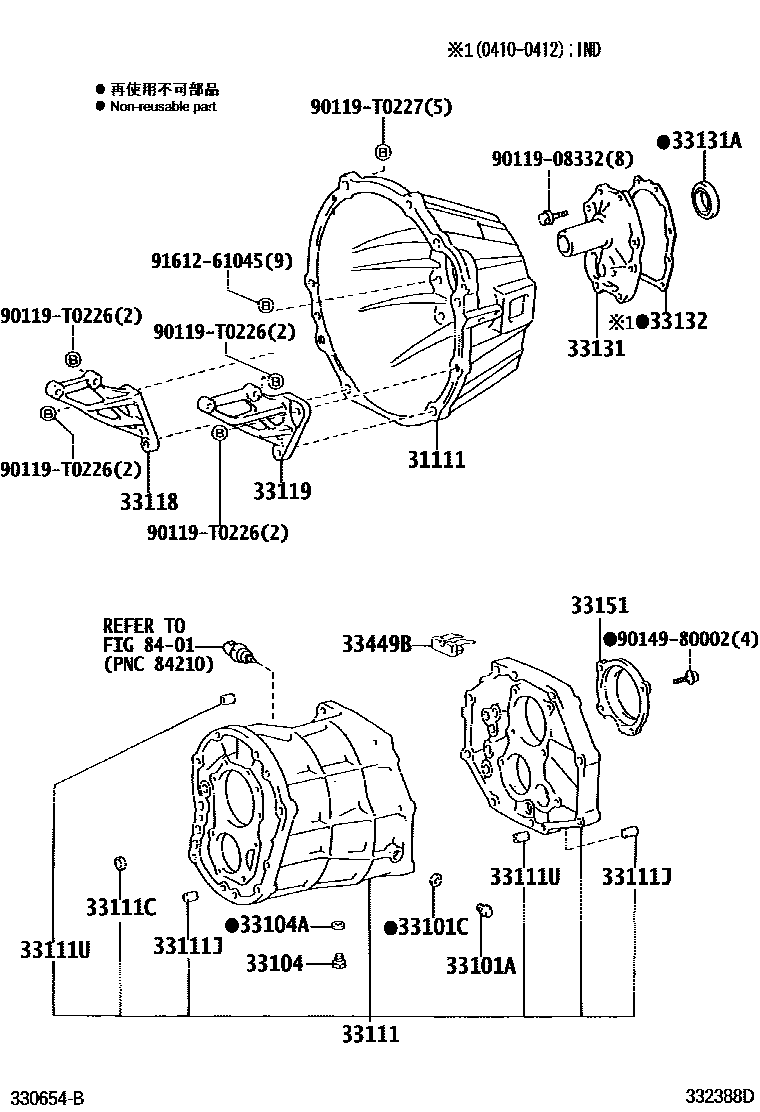

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1G58 0002 1G58 0003 1G58 0004 1G58 0005 1R150 0006 1R150

31111HOUSING, CLUTCH

main31111-0K020iTGN41..5F200507-200901

main31111-0K030iTGN40..5F..(DLX,GL,STD)..(IDN,MA,PHL,TAIW,TH,VN)200408-201508

main31111-0K100iTGN41..5F..GCC200808-201107

TYPE D:REFER 33-01

main31111-0W070iKUN40..DCR200808-201202

main31111-25050iKUN40..IND200502-200607

main31111-26032iTGN40..IND200502-200607

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18006iKUN40,TGN4#..WG..5F..(DLX,GL,STD)200408

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008iKUN40,TGN4#..WG..5F..(DLX,GL,STD)200408

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iTGN41..5F..GCC200808-201107

TYPE D:REFER 33-01,TYPE C:REFER 33-01

main90341-18057iTGN40..5F..DLX..MA;KUN40,TGN40..5F..(IDN,IND,PHL,TH,VN)200808-201202

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iKUN40,TGN4#..WG..5F..(DLX,GL,STD)200408

33111CASE, MANUAL TRANSMISSION

main33101-0K010iTGN41..STD200507-200709

main33101-0K020iTGN40..5F..DLX..MA;KUN40,TGN40..5F..(IDN,IND,PHL,TH,VN)200808-201202

main33101-0K030iTGN41..5F..GCC200808-201107

TYPE D:REFER 33-01

main33101-0K050iTGN41..STD200709-200901

main33101-0K060iTGN40..STD..TAIW201111-201508

main33101-35051iKUN40,TGN40..IND200502-200607

main33101-71020iTGN40..STD201508

33111CPLUG(FOR TRANSMISSION CASE)

main90331-14004iTGN41..5F200507-200606

OD=14

main96411-41800×3iTGN41..5F200507-201111

OD=18

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-12002×2iTGN41..5F200507-201111

L=16,OD=12

33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)

main90253-15001×2iKUN40,TGN40..WG..5F..(DLX,GL,STD)200408

L=14,OD=15

33118PLATE, STIFFENER, RH(MTM)

main33118-04020iKUN40..DCR..(IND,PHL)200501-200812

main33118-0K020iKUN40..DCR..IDN200408-200808

33119PLATE, STIFFENER, LH(MTM)

main33119-0K020iKUN40..DCR..(IND,PHL)200809

main33119-0K030iKUN40..DCR..IDN200808-201107

33131RETAINER, BEARING, FRONT(MTM)

main33018-0K010iTGN41..5F200507-200901

NO.1

sub33018-0K011

main33018-0K070iTGN41..STD200901-201111

sub33018-0K071

main33131-0K010iTGN41..5F200507-200901

NO.2

sub33131-0K011

main33131-0K030iTGN40..5F..DLX..MA;KUN40,TGN40..5F..(IDN,IND,PHL,TH,VN)200808-201202

main33131-0W020iKUN40,TGN40..5F200410-200412

main33131-26020iTGN40..STD..IND200502

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90311-30014iTGN40..STD..IND200502

main90311-T0017iTGN41..5F..GCC200808-201107

TYPE D:REFER 33-01,TYPE C:REFER 33-01

main90311-T0021iKUN40,TGN40..5F..(DLX,GL,STD)..(IDN,MA,PHL,TAIW,TH,VN)200408-201508

33132GASKET, FRONT BEARING RETAINER(MTM)

main33132-28010iKUN40,TGN40..5F200410-200412

33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)

main33151-0K010iTGN41..5F200507-200901

main33151-0K020iKUN40,TGN40..5F..(DLX,GL,STD)..(IDN,MA,PHL,TAIW,TH,VN)200408-201508

main33151-0K040iTGN41..STD200901-201111

main33151-35030iKUN40..IND;TGN40..(DLX,GL)..IND200502-200607

33449BMAGNET, TRANSMISSION

main33449-26010iKUN40,TGN40..WG..5F..(DLX,GL,STD)200408

main33449-35030iTGN41..5F200507-201111

8401

9011908332

main90119-08332

90119T0226

main90119-T0226

90119T0227

main90119-T0227

9014980002

main90149-80002

9161261045

main91612-61045

22 parts on this diagram · 6 diagrams in section
