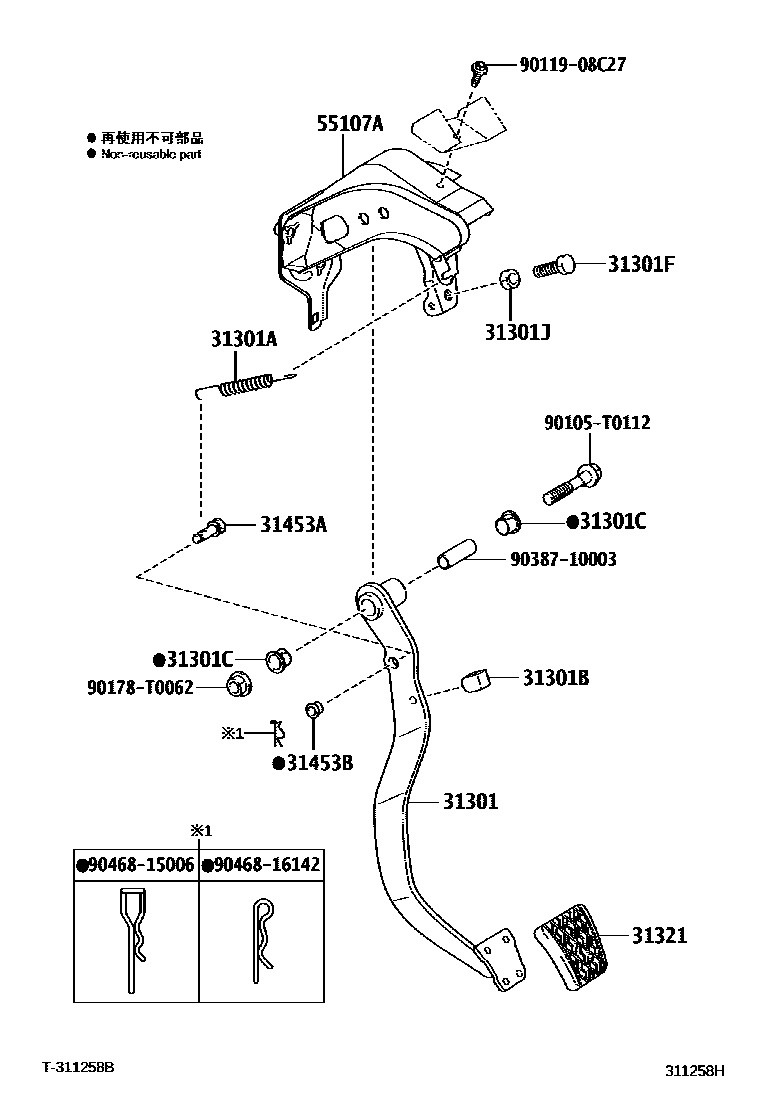

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0004 1 0006 1 0007 1 0008 1 0009 1 0010 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-0K010iKUN40..DCR..IDN200808-201008

main31301-0K030iKUN40..DCR..PHL200808-201009

main31301-0K150iKUN40..DCR..IDN201008

main31301-0K170iKUN40..DCR..PHL201009

31301ASPRING(FOR CLUTCH PEDAL)

main90507-T0001iKUN40,TGN4#..WG..5F..(DLX,GL,STD)200408

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036iKUN40..DCR..(IND,PHL)201009

NO.1

main90541-T0004iTGN40..5F..DLX..MA;TGN40..5F..(IDN,IND,TH)200808

main90541-T0005iKUN40..DCR..PHL200808-201009

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015×2iKUN40,TGN4#..WG..5F..(DLX,GL,STD)200408

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iKUN40,TGN4#..WG..5F..(DLX,GL,STD)200408

31301JNUT(FOR CLUTCH PEDAL STOPPER)

main90170-T0011iTGN40..5F..DLX..MA;KUN40,TGN4#..5F..(GCC,IDN,IND,PHL,TH,VN)200808

31321PAD, CLUTCH PEDAL

main31321-02010iKUN40,TGN40..5F..PHL200504-200809

main31321-52010iTGN40..5F..DLX..MA;KUN40,TGN4#..5F..(GCC,IDN,IND,TH,VN)200808

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main47148-0K011iKUN40,TGN4#..WG..5F..(DLX,GL,STD)200408

L=29.4

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08002iKUN40,TGN4#..WG..5F..(DLX,GL,STD)200408

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-0K020iTGN40..5F..DLX..MA;KUN40,TGN4#..5F..(GCC,IDN,TH,VN)200808-201008

main55107-0K021iTGN4#..5F..(GCC,IDN,MA,TH,VN)201008

main55107-0K050iKUN40..DCR..(IND,PHL)201009

90105T0112

main90105-T0112

9011908C27

main90119-08C27

90178T0062

main90178-T0062

9038710003

main90387-10003

9046815006

main90468-15006

9046816142

main90468-16142

16 parts on this diagram · 7 diagrams in section
