FUEL FILTER

2202

23300FILTER ASSY, FUEL

main23300-0L020i2KDFTV..KUN40200408-200910

sub23300-0L041

main23300-0L041i2KDFTV..KUN40200911-201202

sub23300-0L042

23328GASKET(FOR FUEL FILTER)

main23344-0L010i2KDFTV..KUN40200408-201202

23344GASKET, CLAMPING NUT(FOR FUEL FILTER)

main23344-0L041i2KDFTV..KUN40200408-201204

23388APLUG, FUEL FILTER DRAIN

main23388-0L041i2KDFTV..KUN40200408-201204

23390ELEMENT ASSY, FUEL FILTER

main23390-0L010i2KDFTV..KUN40200408-200911

sub23390-0L041

main23390-0L041i2KDFTV..KUN40200911-201204

23921SUPPORT, FUEL FILTER

main23921-0L020i2KDFTV..KUN40..IDN,TH200408-201107

main23921-0L030i2KDFTV..KUN40..IND200502-200812

main23921-0L060i2KDFTV..KUN40..PHL200501-200809

7751

90105T0059

main90105-T0059

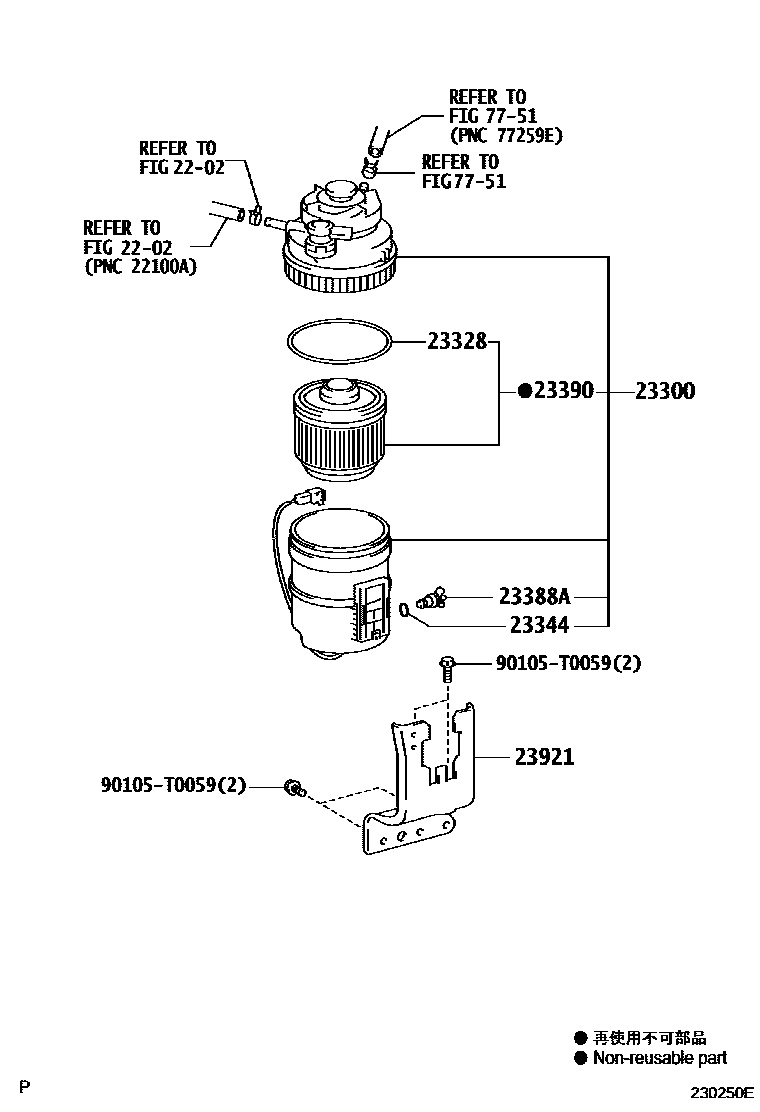

9 parts on this diagram · 1 diagram in section
