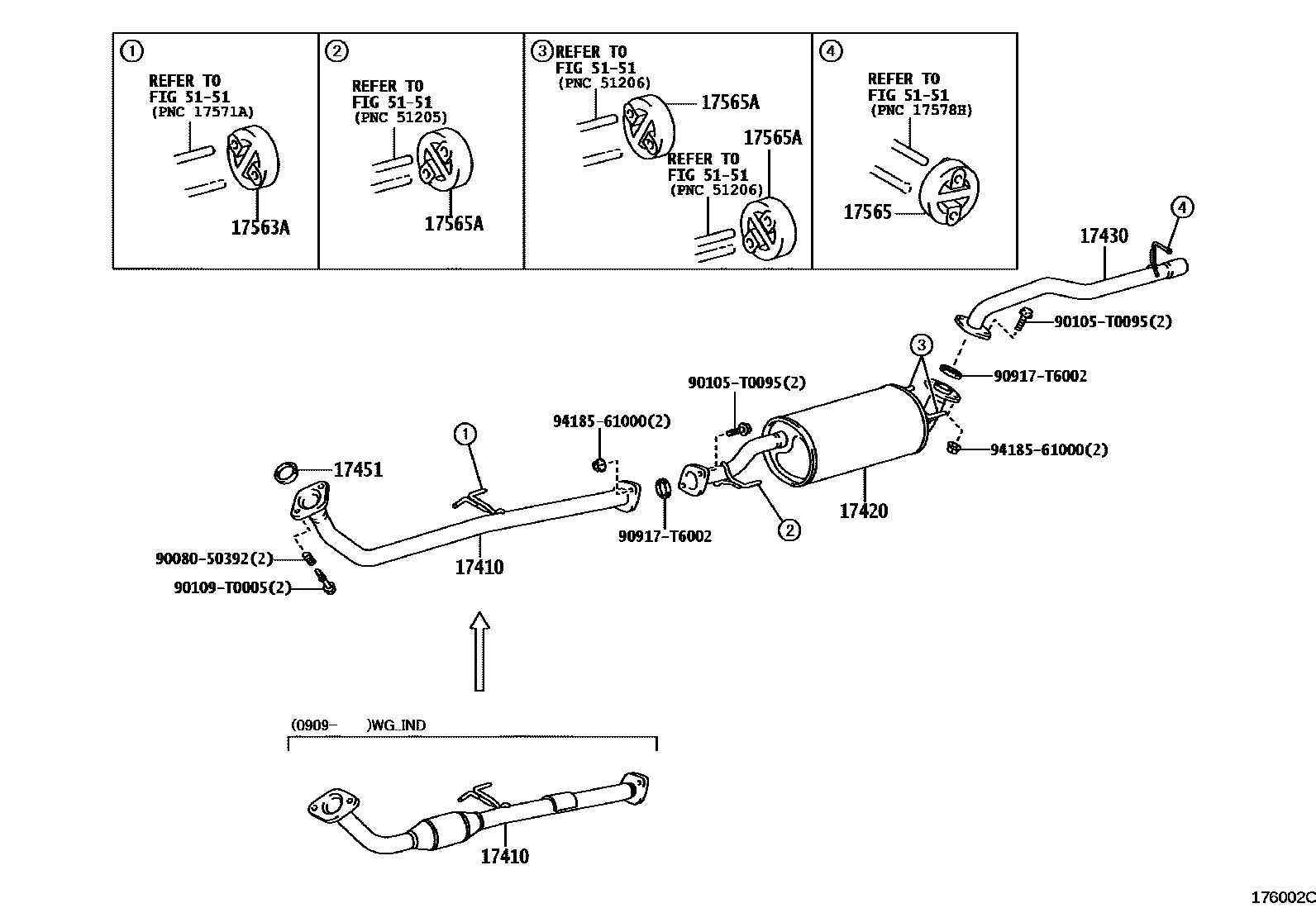

EXHAUST PIPE

0001 1 0002 1 0003 1

17410PIPE ASSY, EXHAUST, FRONT

main17401-0C160i1TRFE..TGN40..IDN,PHL200808-201202

main17401-0C190i1TRFE..TGN40..MA,VN200809-201202

main17401-0C240i1TRFE..TGN40..IDN200408-200612

main17401-0C260i1TRFE..TGN40..STD..TH200808-201107

main17401-0C270i2TRFE..TGN41..GCC,IDN200412-200808

main17401-0C280i2TRFE..TGN41..TAIW200707-201111

main17401-0C300i1TRFE..TGN40..IND200812-201201

main17401-0C330i1TRFE..TGN40..4FC..TH200808-201107

main17401-0C500i1TRFE..TGN40..TAIW201111

main17401-0L060i2KDFTV..KUN40..IND200808-201004

main17401-0L100i2KDFTV..KUN40..WG..IND200909-201201

*114=TOYOTA/AF3/Y

17420PIPE ASSY, EXHAUST, CENTER

main17403-0C030i1TRFE..TGN40..MA,VN200505-200809

sub17403-0C110

main17403-0C031i1TRFE..TGN40..MA,VN201008-201105

main17403-0C040i1TRFE..TGN40..IND,PHL200809-201003

main17403-0C041i1TRFE..TGN40..IND,PHL201004-201010

main17403-0C050i2TRFE..TGN41..IDN200512-200612

main17403-0C060i2TRFE..TGN41..IDN200612-201111

main17403-0C120i1TRFE..TGN40..MA,VN201106-201202

main17403-0L070i2KDFTV..KUN40..WG..IND201004-201105

main17403-0L071i2KDFTV..KUN40..WG..IND201106-201201

main17403-0L090i2KDFTV..KUN40200408-200812

main17403-0L091i2KDFTV..KUN40..INDWG;2KDFTV..KUN40..IDN,PHL201106-201202

17430PIPE ASSY, EXHAUST, TAIL

main17405-0L100i2TRFE..TGN41200412-200501

main17405-0L130i2TRFE..TGN41200501-200506

main17405-0L131i2TRFE..TGN41200507-200610

main17405-0L150i2TRFE..TGN41..GCC200808-201005

main17405-0L151i2TRFE..TGN41..TAIW201007-201111

main17405-0L170i1TRFE..TGN40..4FC..MA;1TRFE..TGN40..5F..DLX..MA;2KDFTV,1TRFE..KUN40,TGN40..IDN,IND,PHL,TH,VN200808-201005

main17405-0L171i1TRFE..TGN40..TAIW201111

17451GASKET, EXHAUST PIPE

main17451-0C010i2TRFE..TGN41;1TRFE..TGN40..5F..(DLX,GL,STD);1TRFE..TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408

main17451-0L010i2KDFTV..KUN40200808-201202

17563ASUPPORT, EXHAUST PIPE, NO.3

main17565-0L020i2TRFE..TGN41200408-200504

main17565-0L030i2KDFTV,1TRFE..KUN40,TGN40..IND200812-201201

sub17565-0L060

main17565-0M010i2KDFTV,1TRFE..KUN40,TGN40..MA,PHL,VN200809-201202

main17565-22040i2TRFE..TGN41200504-201111

17565SUPPORT, EXHAUST PIPE, NO.5

main17565-0L020i2KDFTV,1TRFE,2TRFE..KUN40,TGN4#..GCC,IDN,TH200808-201107

main17565-0L030i2KDFTV,1TRFE..KUN40,TGN40..IND200812-201201

sub17565-0L060

main17565-0M010i2KDFTV,1TRFE..KUN40,TGN40..MA,PHL,VN200501-200809

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-0L020×3i2TRFE..TGN41200408-200504

NO.1 & NO.2

main17565-0L030×3i2KDFTV,1TRFE..KUN40,TGN40..IND200502-200812

sub17565-0L060

main17565-0M010×3i2KDFTV,1TRFE..KUN40,TGN40..MA,PHL,VN200501-200809

main17565-22040i2TRFE..TGN41200504-201007

NO.1

5151

9008050392

main90080-50392

90105T0095

main90105-T0095

90109T0005

main90109-T0005

90917T6002

main90917-T6002

9418561000

main94185-61000

13 parts on this diagram · 3 diagrams in section
