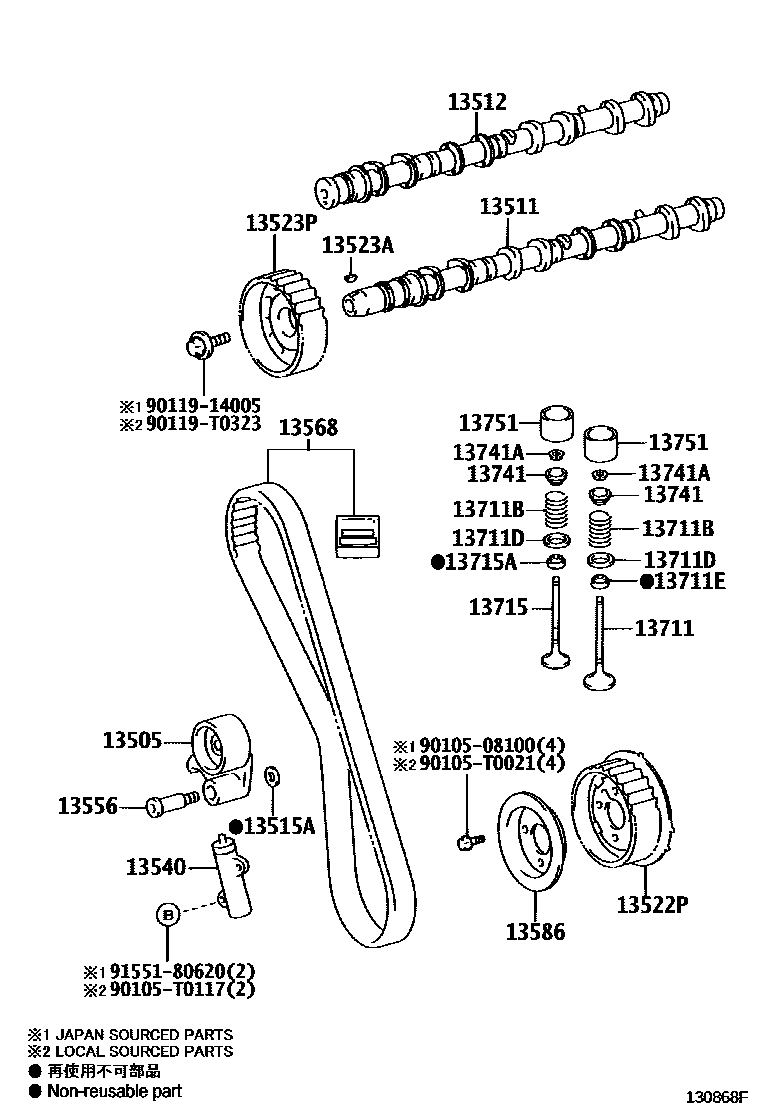

CAMSHAFT & VALVE
13505IDLER SUB-ASSY, TIMING BELT, NO.1
*130
13511CAMSHAFT
main13501-0C010i1TRFE..TGN40..4FC..MA;1TRFE..TGN40..5F..DLX..MA;1TRFE..TGN40..IDN,IND,PHL,TH,VN200506-201404
*187
sub13501-0C011
sub13501-0C011
main13501-75060i1TRFE..TGN40..4FC..MA;1TRFE..TGN40..5F..DLX..MA;1TRFE..TGN40..IDN,IND,PHL,TH,VN200506-201106
*119
sub13501-75061
13512CAMSHAFT, NO.2
(L)
main13502-0C010i1TRFE..TGN40..5F..(DLX,GL,STD);1TRFE..TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200506-201106
*187
(J)
13515AWASHER, PLATE(FOR DISTRIBUTOR DRIVE GEAR)
*163 OR *184
*130
13522PPULLEY, PUMP DRIVE SHAFT
*130
*163 OR *184
13523GEAR OR SPROCKET, CAMSHAFT TIMING
(L)
(J)
13523AKEY, WOODRUFF(FOR TIMING GEAR)
*163 OR *184
*130
13523PPULLEY, CAMSHAFT TIMING
*130,(L)
*130
*130,(J)
*163 OR *184
13540TENSIONER ASSY, CHAIN, NO.1
main13540-0C010i1TRFE..TGN40..4FC..MA;1TRFE..TGN40..5F..DLX..MA;1TRFE,2TRFE..TGN4#..GCC,IDN,IND,PHL,TH,VN200408-201407
(L)
sub13540-0C011
(L)
*130
*163 OR *184
(J)
13556SHAFT, TIMING BELT IDLER
*130
*163 OR *184
13586FLANGE, CAMSHAFT TIMING PULLEY, NO.2
*163 OR *184
13711VALVE, INTAKE
main13711-0C010i1TRFE..TGN40..4FC..MA;1TRFE..TGN40..5F..DLX..MA;1TRFE..TGN40..IDN,IND,PHL,TH,VN200808-201204
(L)
*191
*191,(L)
*191
*130
*163 OR *184
*191,(J)
13711BSPRING, COMPRESSION(FOR INNER)
*130
*191,(J)
main90501-T0016i2TRFE..TGN41;1TRFE..TGN40..5F..(DLX,GL,STD);1TRFE..TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408-201407
*191
*191,(L)
*163 OR *184
13711DWASHER, PLATE(FOR VALVE SPRING SEAT)
*163 OR *184
*130
13711ESEAL, INTAKE VALVE STEM OIL
*130
*163 OR *184
13715VALVE, EXHAUST
*191
main13715-0C010i1TRFE..TGN40..4FC..MA;1TRFE..TGN40..5F..DLX..MA;1TRFE..TGN40..IDN,IND,PHL,TH,VN200808-201204
(L)
*191,(L)
*191
*130
*163 OR *184
*191,(J)
13715ASEAL, EXHAUST VALVE STEM OIL
*130
*163 OR *184
13741RETAINER, VALVE SPRING
main13741-0C020i1TRFE..TGN40..4FC..MA;1TRFE..TGN40..5F..DLX..MA;1TRFE,2TRFE..TGN4#..GCC,IDN,IND,PHL,TH,VN200710-201407
(L)
(L)
*130
*163 OR *184
(L)
(J)
13741ALOCK, VALVE SPRING RETAINER
*130
*163 OR *184
main90913-03028i2TRFE..TGN41;1TRFE..TGN40..5F..(DLX,GL,STD);1TRFE..TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408-201204
13751LIFTER, VALVE
T=5.06,*163 OR *184
T=5.06
T=5.06,*130
T=5.08,*130
T=5.08,*163 OR *184
T=5.08
T=5.10,*130
T=5.10,*163 OR *184
T=5.10
T=5.12,*130
T=5.12
T=5.12,*163 OR *184
T=5.14,*130
T=5.14,*163 OR *184
T=5.14
T=5.16,*130
T=5.16,*163 OR *184
T=5.16
T=5.18,*163 OR *184
T=5.18
T=5.18,*130
T=5.20,*163 OR *184
T=5.20,*130
T=5.20
T=5.22,*130
T=5.22,*163 OR *184
T=5.22
T=5.24,*130
T=5.24,*163 OR *184
T=5.24
T=5.26,*163 OR *184
T=5.26,*130
T=5.26
T=5.28,*163 OR *184
T=5.28
T=5.28,*130
T=5.30,*130
T=5.30,*163 OR *184
T=5.30
T=5.32,*163 OR *184
T=5.32,*130
T=5.32
T=5.34,*130
T=5.34
T=5.34,*163 OR *184
T=5.36,*163 OR *184
T=5.36,*130
T=5.36
T=5.38,*130
T=5.38
T=5.38,*163 OR *184
T=5.40
T=5.40,*130
T=5.40,*163 OR *184
T=5.42,*130
T=5.42
T=5.42,*163 OR *184
T=5.44,*163 OR *184
T=5.44
T=5.44,*130
T=5.46,*163 OR *184
T=5.46,*130
T=5.46
T=5.48,*163 OR *184
T=5.48,*130
T=5.48
T=5.50,*163 OR *184
T=5.50
T=5.50,*130
T=5.52,*130
T=5.52,*163 OR *184
T=5.52
T=5.54,*130
T=5.54,*163 OR *184
T=5.54
T=5.56,*130
T=5.56
T=5.56,*163 OR *184
T=5.58,*163 OR *184
T=5.58,*130
T=5.58
T=5.60,*163 OR *184
T=5.60,*130
T=5.60
T=5.62,*130
T=5.62,*163 OR *184
T=5.62
T=5.64,*163 OR *184
T=5.64
T=5.64,*130
T=5.66,*130
T=5.66,*163 OR *184
T=5.66
T=5.68,*130
T=5.68,*163 OR *184
T=5.68
T=5.70,*130
T=5.70
T=5.70,*163 OR *184
T=5.72,*130
T=5.72,*163 OR *184
T=5.72
T=5.74,*163 OR *184
T=5.74,*130
T=5.74
9010508100
main90105-08100
90105T0021
main90105-T0021
90105T0117
main90105-T0117
9011914005
main90119-14005
90119T0323
main90119-T0323
9155180620
main91551-80620
27 parts on this diagram · 3 diagrams in section
