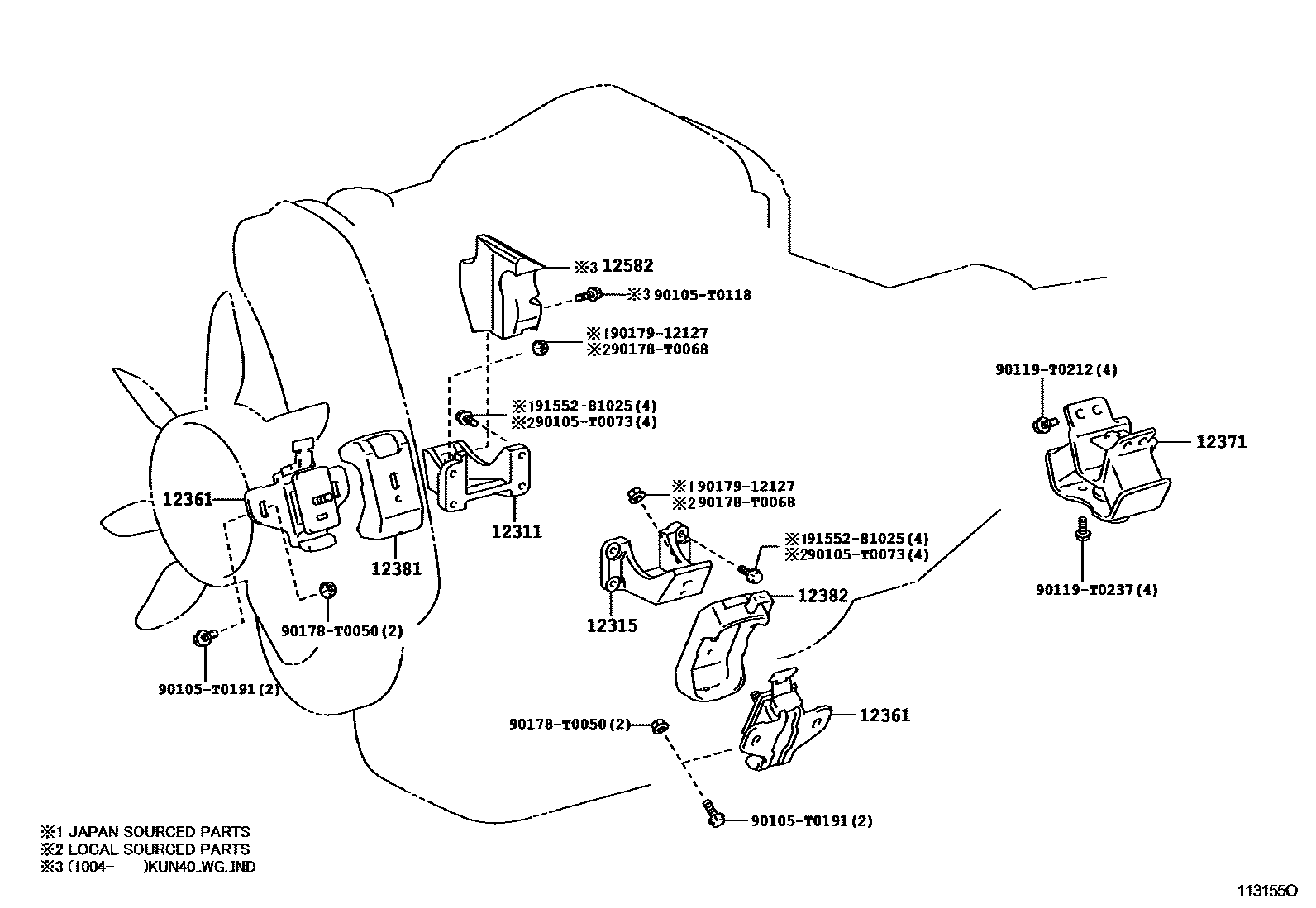

MOUNTING

0001 1 0002 1

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-0C010i1TRFE..TGN40..4FC..MA;1TRFE..TGN40..5F..DLX..MA;1TRFE,2TRFE..TGN4#..GCC,IDN,IND,PHL,TH,VN200808-201204

main12311-0L020i2KDFTV..KUN40..IND200808-201004

*130

main12311-67021i2KDFTV..KUN40..IND200507-200708

*163 OR *184

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-0C010i1TRFE..TGN40..4FC..MA;1TRFE..TGN40..5F..DLX..MA;1TRFE,2TRFE..TGN4#..GCC,IDN,IND,PHL,TH,VN200808-201204

main12315-0L020i2KDFTV..KUN40..INDWG;2KDFTV..KUN40..IDN,PHL200808-201202

*130

main12315-67011i2KDFTV..KUN40..IDN,PHL,TH200507-200809

*163 OR *184

12361INSULATOR, ENGINE MOUNTING, FRONT

main12305-0C011i2TRFE..TGN41;1TRFE..TGN40..5F..(DLX,GL,STD);1TRFE..TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200606

(L)

main12305-75100i2TRFE..TGN41;1TRFE..TGN40..5F..(DLX,GL,STD);1TRFE..TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200606

(J)

main12361-0L030×2i2KDFTV..KUN40200808

(L)

main12361-30080×2i2KDFTV..KUN40200808

(J)

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-0C070i2KDFTV..KUN40..DCR..(IDN,PHL)200808-201102

main12371-0C071i1TRFE,2TRFE..TGN4#..5F..(GCC,IDN,MA,PHL,TH,VN)201103

main12371-0C072i1TRFE..TGN40..STD201411

main12371-0C080i2KDFTV..KUN40..IND200502-200812

main12371-0C090i1TRFE,2TRFE..TGN4#..4FC..(GCC,IDN,MA,PHL,TH,VN)200808-201102

main12371-0C091i1TRFE,2TRFE..TGN4#..4FC..(GCC,IDN,MA,PHL,TH,VN)201103

main12371-0L050i2KDFTV..KUN40..HDCR200808-201102

main12371-0L051i2KDFTV..KUN40..HDCR201103

sub12371-0L052

12381STABILIZER, ENGINE MOUNTING

main12381-0L030i2KDFTV..KUN40200408-200507

(L)

main12381-0L031i2KDFTV..KUN40200808

(L)

main12381-30020i2KDFTV..KUN40200506-200507

(J)

main12381-30021i2KDFTV..KUN40200507-200812

(J)

12382STABILIZER, ENGINE MOUNTING, LH

main12382-0L020i2KDFTV..KUN40200408-200507

(L)

main12382-0L040i2KDFTV..KUN40200507-200812

(L)

main12382-30030i2KDFTV..KUN40200506-200507

(J)

main12382-30031i2KDFTV..KUN40200808

(J)

12582INSULATOR, CYLINDER BLOCK, NO.2

main12582-0L010i2KDFTV..KUN40..WG..IND201004

90105T0073

main90105-T0073

90105T0118

main90105-T0118

90105T0191

main90105-T0191

90119T0212

main90119-T0212

90119T0237

main90119-T0237

90178T0050

main90178-T0050

90178T0068

main90178-T0068

9017912127

main90179-12127

9155281025

main91552-81025

16 parts on this diagram · 2 diagrams in section
