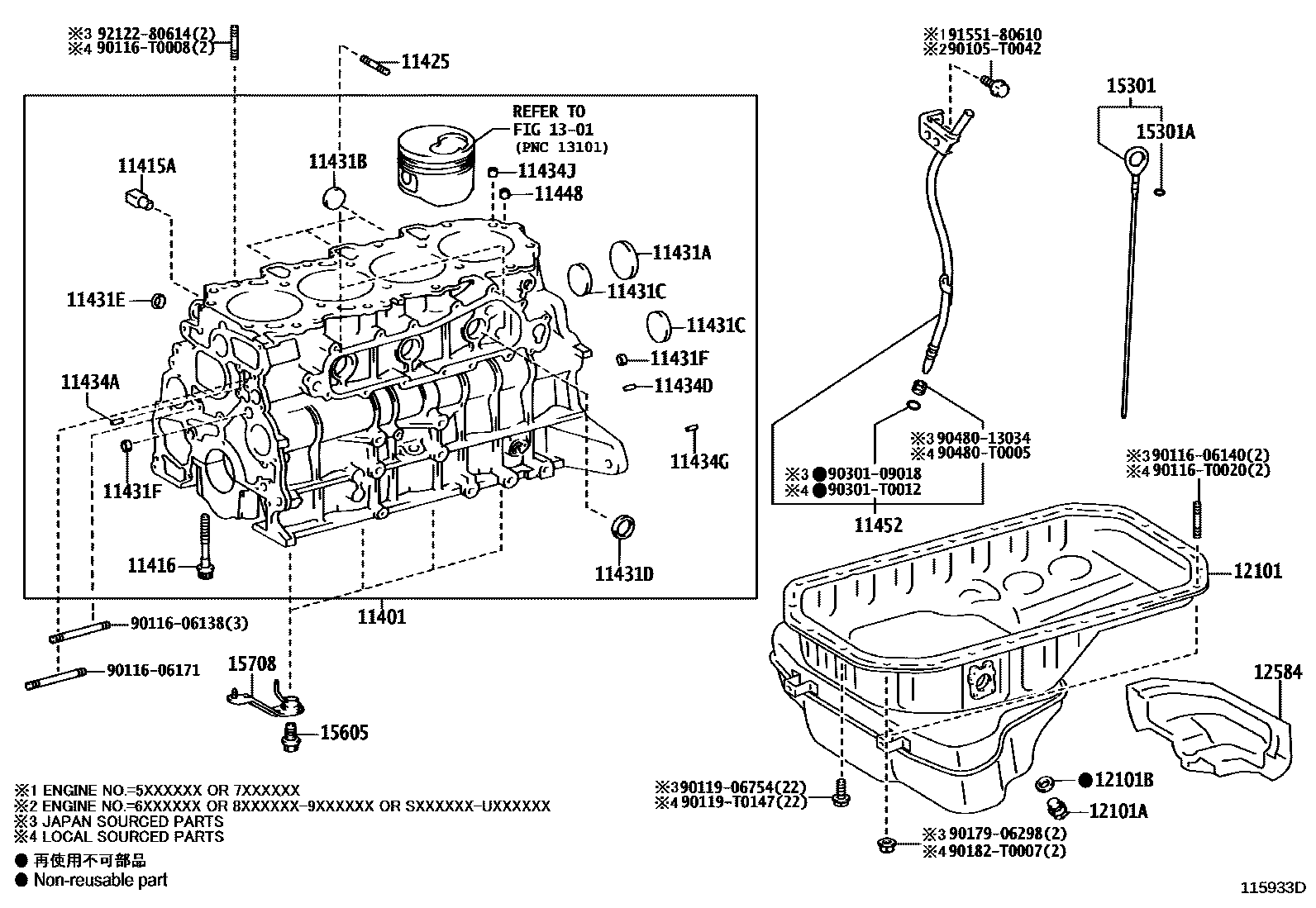

CYLINDER BLOCK

0001 1 0002 1 0003 1

11401BLOCK SUB-ASSY, CYLINDER

main11401-09360i2KDFTV..KUN40200408-200812

main11401-09400i1TRFE..TGN40200408-200801

main11401-09400i1TRFE..TGN40..5F..(DLX,GL,STD);1TRFE..TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200801-201404

*191

main11401-09401i1TRFE..TGN40201404-201408

*191

main11401-09402i1TRFE..TGN40201408

*191

main11401-09410i2TRFE..TGN41..GCC200801-201111

*191

main11401-09410i2TRFE..TGN41200412-200801

main11401-09491i2KDFTV..KUN40200812-200906

main11401-09492i2KDFTV..KUN40..INDWG200906-201202

main11401-09741i2KDFTV..KUN40..WG..IND201004-201201

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main90910-09075i1TRFE..TGN40..5F..VN;1TRFE..TGN40..IDN,IND,MA,PHL,TH200408-200906

main90910-09129i1TRFE..TGN40..TAIW200906-201204

main90910-T9002i2TRFE..TGN41..GCC200412-201111

(L)

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90334-14002i2KDFTV..KUN40200903-201202

*130,(J)

main90334-14002i2KDFTV..KUN40..IDN,PHL200903-201202

*163 OR *184

main90339-T0002i2KDFTV..KUN40200903-201202

*130,(L)

main90910-09087i1TRFE..TGN40..5F..(DLX,GL,STD);1TRFE..TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408-201204

main90910-T9001i2TRFE..TGN41200412-201111

(L)

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90910-02092i1TRFE..TGN40..4FC..MA;1TRFE..TGN40..5F..DLX..MA;1TRFE,2TRFE..TGN4#..GCC,IDN,IND,PHL,TH,VN200506-201005

(J)

main90910-02113i2KDFTV..KUN40..IDN,PHL200507-201202

*163 OR *184

main90910-02179i1TRFE,2TRFE..TGN4#..TAIW201005-201204

(J)

main90910-T2002i1TRFE..TGN40..4FC..MA;1TRFE..TGN40..5F..DLX..MA;1TRFE,2TRFE..TGN4#..GCC,IDN,IND,PHL,TH,VN200408-201204

(L)

main90910-T2003i2KDFTV..KUN40200408-201202

*130

11425BOLT, STUD(FOR OIL FILTER)

main90116-06171i2KDFTV..KUN40..IDN,PHL,TH200507-201202

*163 OR *184

main90116-T0012i2KDFTV..KUN40200408-201202

*130

11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)

main90331-T0004i2TRFE..TGN41;1TRFE..TGN40..5F..(DLX,GL,STD);1TRFE..TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408-201204

(L)

main90331-T0008i2KDFTV..KUN40200408-201202

*130

main96411-63000i1TRFE..TGN40..5F..(DLX,GL,STD);1TRFE..TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200506-201204

(J)

main96411-64500i2KDFTV..KUN40..IND200507-201202

*163 OR *184

11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)

main90331-T0005i2TRFE..TGN41;1TRFE..TGN40..5F..(DLX,GL,STD);1TRFE..TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408-201204

(L)

main90331-T0005i2KDFTV..KUN40200408-201202

*130

main96411-63500i2KDFTV..KUN40..IDN,PHL,TH200507-201202

*163 OR *184

main96411-63500i2TRFE..TGN41200506-201204

(J)

11431CPLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)

main90331-T0007i1TRFE..TGN40..4FC..MA;1TRFE..TGN40..5F..DLX..MA;1TRFE..TGN40..IDN,IND,PHL,TH,VN200408-201204

(L)

main90331-T0007i2KDFTV..KUN40200408-201202

*130

main96411-64000i2KDFTV..KUN40..IDN,PHL,TH200507-201202

*163 OR *184

main96411-64000i2TRFE..TGN41200506-201204

(J)

11431DPLUG, TIGHT, NO.4(FOR CYLINDER BLOCK)

main90331-35004i2KDFTV..KUN40..IDN,PHL200507-201202

*163 OR *184

main90331-T0002i2KDFTV..KUN40200408-201202

*130

11431EPLUG, TIGHT, NO.5(FOR CYLINDER BLOCK)

main90331-T0003i2KDFTV..KUN40200408-201202

*130

main96411-62000i2KDFTV..KUN40..IDN,PHL200507-201202

*163 OR *184

11431FPLUG, TIGHT, NO.6(FOR CYLINDER BLOCK)

main90331-T0006i2KDFTV..KUN40200408-201202

*130

main96411-61800i2KDFTV..KUN40..IND200507-201202

*163 OR *184

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main90250-08120i2KDFTV..KUN40..IND200507-201202

L=18,OD=8,*163 OR *184

main90250-T0007i2KDFTV..KUN40200408-201202

L=18,OD=8,*130

11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)

main90250-06003i2TRFE..TGN41200608-201111

L=14,OD=6,(J)

main90250-06068i2KDFTV..KUN40..IDN,PHL,TH200507-201202

L=11,OD=6,*163 OR *184

main90250-T0012i2KDFTV..KUN40200408-201202

L=11,OD=6,*130

main90250-T0017i1TRFE..TGN40..4FC..MA;1TRFE..TGN40..5F..DLX..MA;1TRFE,2TRFE..TGN4#..GCC,IDN,IND,PHL,TH,VN200408-201204

L=14,OD=6,(L)

11434GPIN, STRAIGHT(FOR END PLATE)

main90250-10192i2KDFTV..KUN40..IND200507-201202

*163 OR *184

main90250-T0008i2KDFTV..KUN40200408-201202

*130

11434JPIN, RING (FOR CYLINDER HEAD SET)

main90253-15001i2TRFE..TGN41..GCC200608-201111

(J)

main90253-15016i2KDFTV..KUN40..IDN,PHL200507-201202

*163 OR *184

main90253-T0002i2KDFTV..KUN40200408-201202

*130

main90253-T0007i1TRFE..TGN40..4FC..MA;1TRFE..TGN40..5F..DLX..MA;1TRFE,2TRFE..TGN4#..GCC,IDN,IND,PHL,TH,VN200408-201204

(L)

11448ORIFICE, CYLINDER BLOCK OIL

main11448-0L010i2KDFTV..KUN40200408-201202

*130

main11448-67010i2KDFTV..KUN40..IND200507-201202

*163 OR *184

11452GUIDE, OIL LEVEL GAGE

main11409-0C010i1TRFE,2TRFE..TGN4#200408-200505

*191

main11409-0C011i1TRFE..TGN40..4FC..MA;1TRFE..TGN40..5F..DLX..MA;1TRFE,2TRFE..TGN4#..GCC,IDN,IND,PHL,TH,VN200808-201204

*191

main11409-0C011i2TRFE..TGN41;1TRFE..TGN40..5F..(DLX,GL,STD);1TRFE..TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200505-201503

*191,*479

main11409-0C070i1TRFE..TGN40201503-201606

*191,*479

main11452-0L010i2KDFTV..KUN40200408-201202

*130

main11452-30070i2KDFTV..KUN40..IDN,PHL,TH200507-201202

*163 OR *184

12101PAN SUB-ASSY, OIL

main12101-0C010i1TRFE..TGN40..IND,PHL,VN201112-201503

*191,(L)

main12101-0C010i2TRFE..TGN41;1TRFE..TGN40..5F..(DLX,GL,STD);1TRFE..TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408-201112

*191

main12101-0C030i1TRFE..TGN40201503-201606

*191,(L)

main12101-0L030i2KDFTV..KUN40200808-201202

ENGINE NO.=9XXXXXX

main12101-0L030i2KDFTV..KUN40..IND200608-200809

*163 OR *184,(L)

main12101-0L030i2KDFTV..KUN40200408-201202

*130

main12101-30100i2KDFTV..KUN40..IDN,PHL200507-201202

*163 OR *184

main12101-30100i2KDFTV..KUN40..IND200608-200809

*163 OR *184,(J)

main12101-75150i1TRFE..TGN40..TAIW201112-201206

*191,(J)

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i1TRFE..TGN40201503-201604

(L)

main90341-12012i2KDFTV..KUN40..IDN,PHL200507-201202

*163 OR *184

main90341-12032i1TRFE..TGN40201605

(L)

main90341-T0004i2TRFE..TGN41;1TRFE..TGN40..5F..(DLX,GL,STD);1TRFE..TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408-201503

(L)

main90341-T0004i2KDFTV..KUN40200408-201202

*130

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90080-43030i2KDFTV..KUN40201112-201202

*130,(L)

main90080-43030i2KDFTV..KUN40200408-201112

*130

main90430-12031i2KDFTV..KUN40..IND200507-201202

*163 OR *184

main90430-12031i2TRFE..TGN41;1TRFE..TGN40..5F..(DLX,GL,STD);1TRFE..TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408-201204

main90430-12031i2KDFTV..KUN40201112-201202

*130,(J)

12584INSULATOR, CYLINDER BROCK, NO.4

main12584-0L010i2KDFTV..KUN40200408-200812

1301CRANKSHAFT & PISTON

→ Go to FIG 13-01

15301GAGE SUB-ASSY, OIL LEVEL

main15301-0C010i2TRFE..TGN41;1TRFE..TGN40..5F..(DLX,GL,STD);1TRFE..TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408-201503

*191

main15301-0C010i1TRFE..TGN40..4FC..MA;1TRFE..TGN40..5F..DLX..MA;1TRFE,2TRFE..TGN4#..GCC,IDN,IND,PHL,TH,VN200808-201204

*191,TYPE A

main15301-0C020i1TRFE..TGN40201503-201606

*481

main15301-0C030i1TRFE..TGN40201503-201606

*480

main15301-0L030i2KDFTV..KUN40200408-201202

*130

main15301-30070i2KDFTV..KUN40..IDN,PHL200507-201202

*163 OR *184

15301ARING, O(FOR OIL LEVEL GAGE)

main90301-T0018i2KDFTV..KUN40200408-201202

*130

main90301-T0018i2TRFE..TGN41;1TRFE..TGN40..5F..(DLX,GL,STD);1TRFE..TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408-201204

(L)

main96741-19005i2KDFTV..KUN40..IDN,PHL,TH200507-201202

*163 OR *184

15605VALVE SUB-ASSY, OIL CHECK

main15605-0L010i2KDFTV..KUN40200408-201202

*130

main15605-17030i2KDFTV..KUN40..IDN,PHL200507-201202

*163 OR *184

15708NOZZLE SUB-ASSY, OIL, NO.1

main15708-0C010i1TRFE..TGN40201406

MADE IN INDONESIA

main15708-0L010i2KDFTV..KUN40200408-200411

*130

main15708-0L011i2KDFTV..KUN40200411-201202

*130

main15708-30011i2KDFTV..KUN40..IDN,PHL,TH200507-201202

*163 OR *184

main15708-75010i1TRFE..TGN40..4FC..MA;1TRFE..TGN40..5F..DLX..MA;1TRFE,2TRFE..TGN4#..GCC,IDN,IND,PHL,TH,VN200408-201301

main15708-75020i1TRFE..TGN40201301

MADE IN JAPAN

90105T0042

main90105-T0042

9011606138

main90116-06138

9011606140

main90116-06140

9011606171

main90116-06171

90116T0008

main90116-T0008

90116T0020

main90116-T0020

9011906754

main90119-06754

90119T0147

main90119-T0147

9017906298

main90179-06298

90182T0007

main90182-T0007

9030109018

main90301-09018

90301T0012

main90301-T0012

9048013034

main90480-13034

90480T0005

main90480-T0005

9155180610

main91551-80610

9212280614

main92122-80614

42 parts on this diagram · 3 diagrams in section
