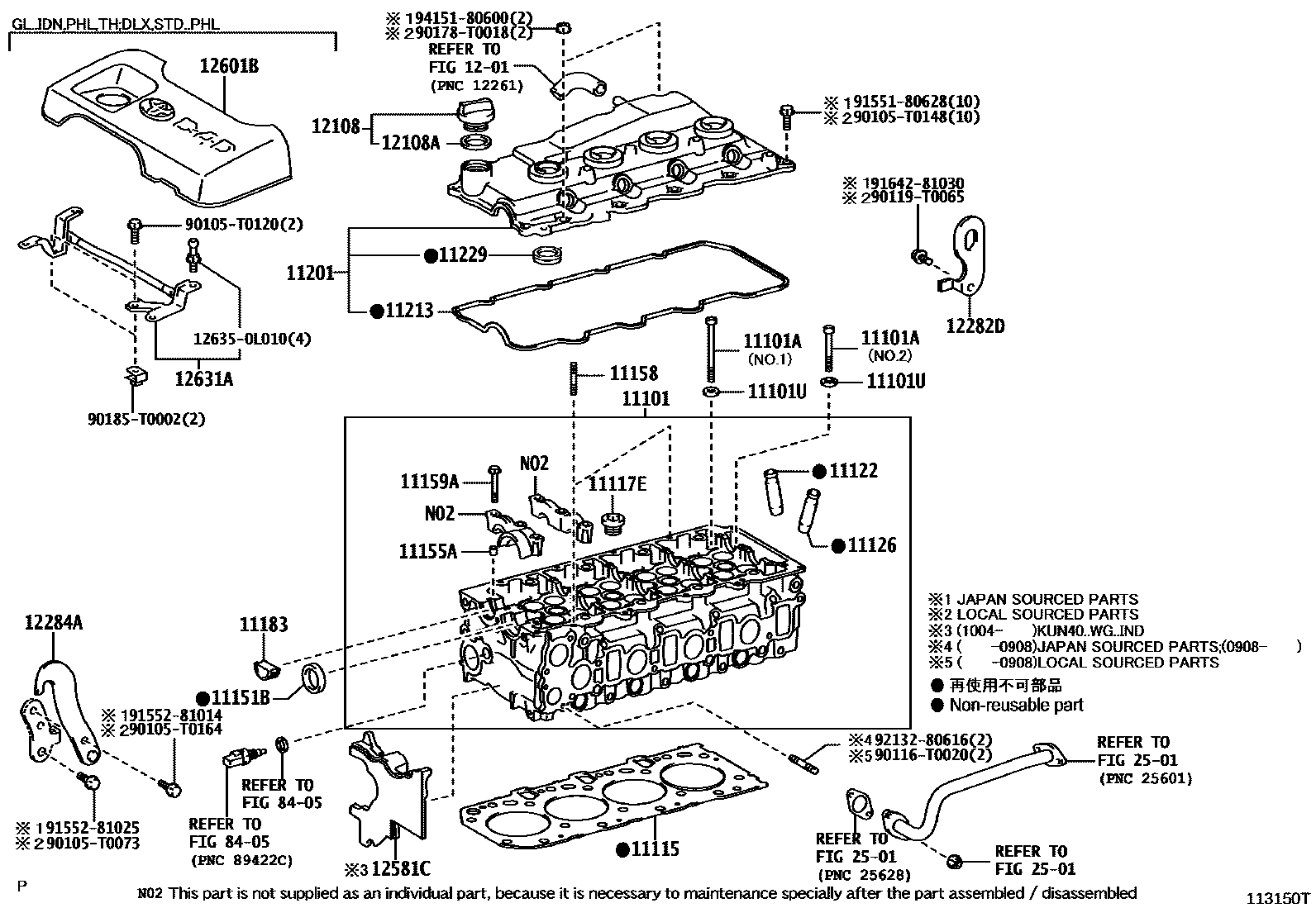

CYLINDER HEAD

0001 1 0002 1

11101HEAD SUB-ASSY, CYLINDER

main11101-0C010i1TRFE..TGN40..4FC..MA;1TRFE..TGN40..IDN,PHL,VN;1TRFE..TGN40..5F..DLX..MA200808-201202

*191

sub11101-0C011

main11101-0C020i1TRFE..TGN40..IND,TH200411-200506

main11101-0C021i1TRFE..TGN40201405-201606

sub11101-0C022

main11101-0C030i2TRFE..TGN41200412-200506

sub11101-0C031

main11101-0C040i2TRFE..TGN41..TAIW200707-201111

*191

sub11101-0C041

main11101-0L050i2KDFTV..KUN40200408-200812

*130

main11101-0L051i2KDFTV..KUN40200906-201202

*130

main11101-30070i2KDFTV..KUN40..IND200507-200708

*163 OR *184

main11101-30071i2KDFTV..KUN40..IDN,PHL200812-201008

*163 OR *184

main11101-75141i1TRFE..TGN40..IDN,MA,PHL,VN200506-200809

*125

sub11101-75142

main11101-75160i1TRFE..TGN40..IND,TH200808-201201

(J)

sub11101-75161

main11101-75200i2TRFE..TGN41..GCC200808-201107

(J)

sub11101-75201

11101ABOLT(FOR CYLINDER HEAD SET)

main90910-02091×10i1TRFE..TGN40..4FC..MA;1TRFE..TGN40..5F..DLX..MA;1TRFE,2TRFE..TGN4#..GCC,IDN,IND,PHL,TH,VN200808-201202

main90910-02145×10i2KDFTV..KUN40..IND200507-200708

*163 OR *184,NO.2

main90910-02146×8i2KDFTV..KUN40..IND200507-200708

*163 OR *184,NO.1

main90910-02187×10i1TRFE..TGN40201303

main90910-T2005×10i2KDFTV..KUN40..IND200808-201004

*130,NO.2

main90910-T2006×8i2KDFTV..KUN40..IND200808-201004

*130,NO.1

11101USPACER(FOR CYLINDER HEAD SET BOLT)

main90560-13023×18i2KDFTV..KUN40..IND200507-200708

*163 OR *184

main90560-T0005×18i2KDFTV..KUN40..IND200808-201004

*130

11115GASKET, CYLINDER HEAD

main11115-0C010i1TRFE..TGN40200408-200712

(L)

main11115-0C011i1TRFE..TGN40..4FC..MA;1TRFE..TGN40..5F..DLX..MA;1TRFE..TGN40..IDN,IND,PHL,TH,VN200808-201109

(L)

main11115-0C020i2TRFE..TGN41200412-200712

main11115-0C021i2TRFE..TGN41200712-201111

(L)

main11115-0C030i1TRFE..TGN40..IND,MA,PHL,VN201109-201204

(L)

main11115-0L010-A0i2KDFTV..KUN40..INDWG;2KDFTV..KUN40..IDN,PHL200808-201201

MARK A,*130:REFER R/M

main11115-0L010-B0i2KDFTV..KUN40..INDWG;2KDFTV..KUN40..IDN,PHL200808-201201

MARK B,*163 OR *184,RRM,(L)

main11115-0L010-C0i2KDFTV..KUN40..INDWG;2KDFTV..KUN40..IDN,PHL200808-201201

MARK C,*130:REFER R/M

main11115-0L010-D0i2KDFTV..KUN40200408-200812

MARK D,*130:REFER R/M

main11115-0L010-E0i2KDFTV..KUN40..INDWG;2KDFTV..KUN40..IDN,PHL200808-201201

MARK E,*163 OR *184,RRM,(L)

main11115-0L011-A0i2KDFTV..KUN40201201-201202

MARK A,*130:REFER R/M,*163 OR *184,RRM,(L)

main11115-0L011-B0i2KDFTV..KUN40201201-201202

MARK B,*130:REFER R/M,*163 OR *184,RRM,(L)

main11115-0L011-C0i2KDFTV..KUN40201201-201202

MARK C,*163 OR *184,RRM,(L),*130:REFER R/M

main11115-0L011-D0i2KDFTV..KUN40201201-201202

MARK D,*163 OR *184,RRM,(L),*130:REFER R/M

main11115-0L011-E0i2KDFTV..KUN40201201-201202

MARK E,*130:REFER R/M,*163 OR *184,RRM,(L)

main11115-30040-A0i2KDFTV..KUN40200507-200702

MARK A,*163 OR *184,RRM

main11115-30040-B0i2KDFTV..KUN40200507-200702

MARK B,*163 OR *184,RRM

main11115-30040-C0i2KDFTV..KUN40200507-200702

MARK C,*163 OR *184,RRM

main11115-30040-D0i2KDFTV..KUN40200507-200702

MARK D,*163 OR *184,RRM

main11115-30040-E0i2KDFTV..KUN40200507-200702

MARK E,*163 OR *184,RRM

main11115-30041-A0i2KDFTV..KUN40200702-200707

MARKA,*163 OR *184,RRM

main11115-30041-B0i2KDFTV..KUN40..IDN,PHL,TH200707-200809

MARKB,*163 OR *184,RRM,(J)

main11115-30041-C0i2KDFTV..KUN40..IDN,PHL,TH200707-200809

MARKC,*163 OR *184,RRM,(J)

main11115-30041-D0i2KDFTV..KUN40..IDN,PHL200808-201202

MARKD,*163 OR *184,RRM,(J)

main11115-30041-E0i2KDFTV..KUN40200702-200707

MARKE,*163 OR *184,RRM

main11115-75070i1TRFE..TGN40..TAIW201111

(J)

11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1

main90341-14015×4i2KDFTV..KUN40..IDN,PHL200808-200812

*163 OR *184

main90341-20002×3i1TRFE..TGN40..4FC..MA;1TRFE..TGN40..5F..DLX..MA;1TRFE,2TRFE..TGN4#..GCC,IDN,IND,PHL,TH,VN200808-201204

main90341-T0005×4i2KDFTV..KUN40200808-201202

*130

11122BUSH, INTAKE VALVE GUIDE

main11122-30020×8i2KDFTV..KUN40200808-201202

O/S 0.05,*163 OR *184

main11122-75020×8i2TRFE..TGN41;1TRFE..TGN40..4FC..DLX..IDN;1TRFE..TGN40..5F..(DLX,GL,STD);1TRFE..TGN40..4FC..(MA,PHL,TAIW,TH)200408

STD

main11123-30020×8i2KDFTV..KUN40200808-201202

STD,*163 OR *184

main11123-75020×8i1TRFE..TGN40..4FC..MA;1TRFE..TGN40..5F..DLX..MA;1TRFE,2TRFE..TGN4#..GCC,IDN,IND,PHL,TH,VN200808-201204

O/S 0.05

11126BUSH, EXHAUST VALVE GUIDE

main11122-30020×8i2KDFTV..KUN40200808-201202

O/S 0.05,*163 OR *184

main11122-75020×8i1TRFE..TGN40..4FC..MA;1TRFE..TGN40..5F..DLX..MA;1TRFE,2TRFE..TGN4#..GCC,IDN,IND,PHL,TH,VN200808-201204

STD

main11123-30020×8i2KDFTV..KUN40200808-201202

STD,*163 OR *184

main11123-75020×8i1TRFE..TGN40..4FC..MA;1TRFE..TGN40..5F..DLX..MA;1TRFE,2TRFE..TGN4#..GCC,IDN,IND,PHL,TH,VN200808-201204

O/S 0.05

11151BSEAL, OIL(FOR CAMSHAFT SETTING)

main90080-31097i2KDFTV..KUN40200808-201202

*130

main90311-32019i2KDFTV..KUN40..IND200507-200708

*163 OR *184

11155APIN, RING W/HEAD

main90253-10004×4i2KDFTV..KUN40..IDN,PHL200808-200812

*163 OR *184

main90253-T0001×4i2KDFTV..KUN40200808-201202

*130

11158BOLT, STUD(FOR HEAD TO CYLINDER HEAD COVER)

main90116-06149×2i2KDFTV..KUN40200808-201202

S=9 & 16,L=37

11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)

main90119-07011×15i2KDFTV..KUN40200408-200812

main90119-07013×20i2TRFE..TGN41;1TRFE..TGN40..5F..(DLX,GL,STD);1TRFE..TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408-201602

main90119-T0268×20i1TRFE..TGN40201602

(L)

11183PLUG, SEMICIRCULAR

main11183-0L010i2KDFTV..KUN40200408-200812

*130

main11183-67020i2KDFTV..KUN40..IND200507-200708

*163 OR *184

11201COVER SUB-ASSY, CYLINDER HEAD

main11201-0C010i1TRFE..TGN40..4FC..MA;1TRFE..TGN40..5F..DLX..MA;1TRFE,2TRFE..TGN4#..GCC,IDN,IND,PHL,TH,VN200808-201009

(L)

main11201-0C011i1TRFE..TGN40..IND201009-201201

(L)

sub11201-0C012

main11201-0C040i1TRFE..TGN40201205-201408

main11201-0C041i1TRFE..TGN40201408

main11210-0L020i2KDFTV..KUN40200408-200812

*130

main11210-30110i2KDFTV..KUN40..IND200507-200708

*163 OR *184

11213GASKET, CYLINDER HEAD COVER

main11213-0C010i1TRFE..TGN40..IND200808-201201

(L)

main11213-0C011i1TRFE..TGN40201407

main11213-0L010i2KDFTV..KUN40200808-201202

*130,(L)

main11213-30040i2KDFTV..KUN40..IDN,PHL200808-201202

*163 OR *184,(J)

11229GASKET, CYLINDER HEAD COVER, NO.3

main23682-0L010×4i2KDFTV..KUN40200408-200812

*130

main23682-30020×4i2KDFTV..KUN40..IDN,PHL,TH200507-200809

*163 OR *184

1201

12108CAP SUB-ASSY, OIL FILLER

main12180-0H020i1TRFE..TGN40..4FC..MA;1TRFE..TGN40..5F..DLX..MA;1TRFE,2TRFE..TGN4#..GCC,IDN,IND,PHL,TH,VN200808-201204

(L)

main12180-21010i2KDFTV..KUN40..IDN,PHL,TH200507-200809

*163 OR *184

main12180-38010i1TRFE..TGN40201402

(J)

12108AGASKET(FOR OIL FILLER CAP)

main90080-43027i2TRFE..TGN41;1TRFE..TGN40..5F..(DLX,GL,STD);1TRFE..TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408

(L)

main90430-35001i1TRFE..TGN40201402

(J)

main90430-37140i2KDFTV..KUN40..IDN,PHL,TH200507-200809

*163 OR *184

12282DHANGER, ENGINE, NO.2

main12281-0C010i1TRFE..TGN40..4FC..MA;1TRFE..TGN40..5F..DLX..MA;1TRFE,2TRFE..TGN4#..GCC,IDN,IND,PHL,TH,VN200808-201204

(L)

main12282-67030i2KDFTV..KUN40..IND200808-201004

*130

12284AHANGER, ENGINE, NO.1 UPPER

main12284-30020i2KDFTV..KUN40..INDWG;2KDFTV..KUN40..IDN,PHL200808-201202

*130

main12284-30060i2KDFTV..KUN40..WG..IND201004-201201

12581CINSULATOR, CYLINDER BLOCK

main12581-0L010i2KDFTV..KUN40..WG..IND201004

12601BCOVER SUB-ASSY, ENGINE, NO.1

main12601-0L030i2KDFTV..KUN40..GL..(IDN,PHL);2KDFTV..KUN40..(DLX,STD)..PHL200808

12631ABRACKET, ENGINE COVER

main12631-0L010i2KDFTV..KUN40..GL..(IDN,TH)200408-200808

2501

8405

126350L010JOINT, ENGINE COVER

main12635-0L010

90105T0073

main90105-T0073

90105T0120

main90105-T0120

90105T0148

main90105-T0148

90105T0164

main90105-T0164

90116T0020

main90116-T0020

90119T0065

main90119-T0065

90178T0018

main90178-T0018

90185T0002

main90185-T0002

9155180628

main91551-80628

9155281014

main91552-81014

9155281025

main91552-81025

9164281030

main91642-81030

9213280616

main92132-80616

9415180600

main94151-80600

40 parts on this diagram · 2 diagrams in section
