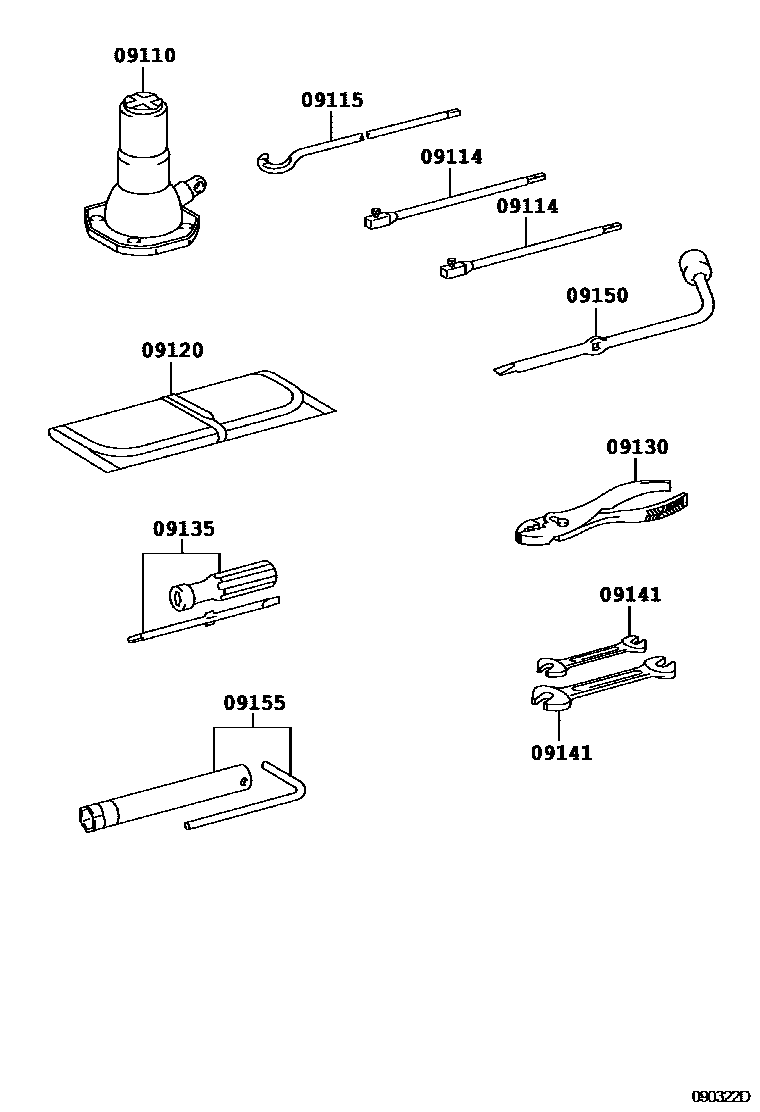

STANDARD TOOL

09110JACK ASSY

main09111-0K010iTGN40..5F..VN;KUN40,TGN40..IND,MA,PHL200501-200907

sub09111-0K011

main09111-0K011iKUN40,TGN40..IND,MA,PHL,VN200908-201105

sub09111-0K071

main09111-0K030iKUN40,TGN4#..GCC,IDN,TH200408-201107

main09111-0K070iKUN40,TGN40..IND,MA,PHL,VN201106-201108

sub09111-0K071

main09111-0K071iKUN40,TGN40..IND,MA,PHL,VN201109-201204

main09111-0K110iTGN41..TAIW200707-201008

sub09111-0K111

main09111-0K111iTGN4#..TAIW201009-201205

sub09111-0K112

main09111-0K112iTGN40201206

09114EXTENSION SUB-ASSY, JACK HANDLE

main09114-0K010iTGN40..MA200505-201110

main09114-0K020iKUN40,TGN4#..GCC,IDN,TH200408-201107

main09114-0K040iTGN40..STD..IND200502-200601

sub09114-0K080

main09114-0K050iKUN40,TGN40..PHL200501-201204

main09114-0K080iTGN40..STD..IND200512-201112

sub09114-0K081

main09114-0K110iTGN40..VN201001-201204

09115ROD SUB-ASSY, JACK HANDLE

main09115-0K010iTGN40..MA200505-201110

main09115-0K020iKUN40,TGN4#..GCC,IDN,TH200408-201107

main09115-0K040iTGN40..(DLX,GL)..IND200502-200601

sub09115-0K110

main09115-0K050iKUN40,TGN40..PHL200501-200809

main09115-0K110iTGN40..STD..IND200512-200812

sub09115-0K160

main09115-0K130iTGN40..VN201001

09120BAG, TOOL

main09120-0K010iTGN40..MA200505-201302

sub09120-0K160

main09120-0K020iKUN40,TGN4#..GCC,IDN,TH200408-201107

main09120-0K050iTGN40..(DLX,GL)..IND200502-200601

sub09120-0K090

main09120-0K060iKUN40,TGN40..PHL200501-200809

main09120-0K090iKUN40..IND;TGN40..(DLX,GL)..IND200512-200812

main09120-0K100iTGN40..VN201001

main09120-0K160iTGN40201303

sub09120-0K240

09130PLIERS

main09130-0B040iTGN40..(DLX,GL)..IND200502-200601

main09130-0K010iKUN40..IND;TGN40..(DLX,GL)..IND200512-200812

main09130-0K020iTGN40..VN201001

main90089-99010iKUN40,TGN40..(DLX,GL,STD)..IDN201008-201107

BRUNEI SPEC

main90089-99010iTGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TH);TGN40..5F..(DLX,GL,STD)..(IDN,MA,PHL,TH,VN);KUN40,TGN41..(DLX,GL,STD)..(GCC,IDN,PHL,TAIW,TH)200408-201111

main90089-99010iKUN40..DLX..HDCR..IDN201008-201107

PAPUA NEW GUINEA SPEC

09135DRIVER, SCREW

main09135-0B040iKUN40..IND200502-200601

sub09135-0K060

main09135-0K010iKUN40..IND;TGN40..(DLX,GL)..IND200512-200812

sub09135-0K060

main09135-0K020iTGN40..VN201001

main90089-99009iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN4#..GCC,IDN,PHL,TH200408-201001

09141SPANNER

main09141-0B070iTGN40..(DLX,GL)..IND200502-200601

8 X 10

sub09141-0K130

main09141-0B080iTGN40..(DLX,GL)..IND200502-200601

12 X 14

main09141-0K010iTGN40..STD..IND200512-200812

8 X 10

sub09141-0K130

main09141-0K020iKUN40,TGN40..IND200512-200812

12 X 14

main09141-0K030iTGN40..MA201001-201110

8 X 10

main09141-0K040iTGN40..MA201001-201110

12 X 14

main09141-0K060iTGN40..VN201001

8 X 10

main09141-0K070iTGN40..VN201001

12 X 14

main90089-99006iKUN40,TGN4#..GCC,IDN,PHL,TH200408-201111

8 X 10

main90089-99007iKUN40,TGN40..(DLX,GL,STD)..IDN201008-201107

12 X 14,BRUNEI SPEC

main90089-99007iTGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TH);TGN40..5F..(DLX,GL,STD)..(IDN,MA,PHL,TH,VN);KUN40,TGN41..(DLX,GL,STD)..(GCC,IDN,PHL,TAIW,TH)200408-201111

12 X 14

main90089-99007iKUN40..DLX..HDCR..IDN201008-201107

12 X 14,PAPUA NEW GUINEA SPEC

09150WRENCH, HUB NUT BOX

main09150-0K010iTGN40..VN200505-201606

main09150-0K020iKUN40,TGN4#..GCC,IDN,TH200408-201107

main09150-0K040iKUN40,TGN40..IND200502-200604

sub09150-0K080

main09150-0K050iKUN40,TGN40..PHL200501-201202

main09150-0K080iKUN40,TGN40..IND200605-201201

sub09150-0K100

main09150-0K090iTGN40..VN201009-201202

09155WRENCH, SPARK PLUG

main09155-74010iTGN41;TGN40..5F..STD;TGN40..5F..GL..VN;TGN40..(DLX,GL)..(IDN,MA,PHL,TH)200408-201111

9 parts on this diagram · 1 diagram in section
