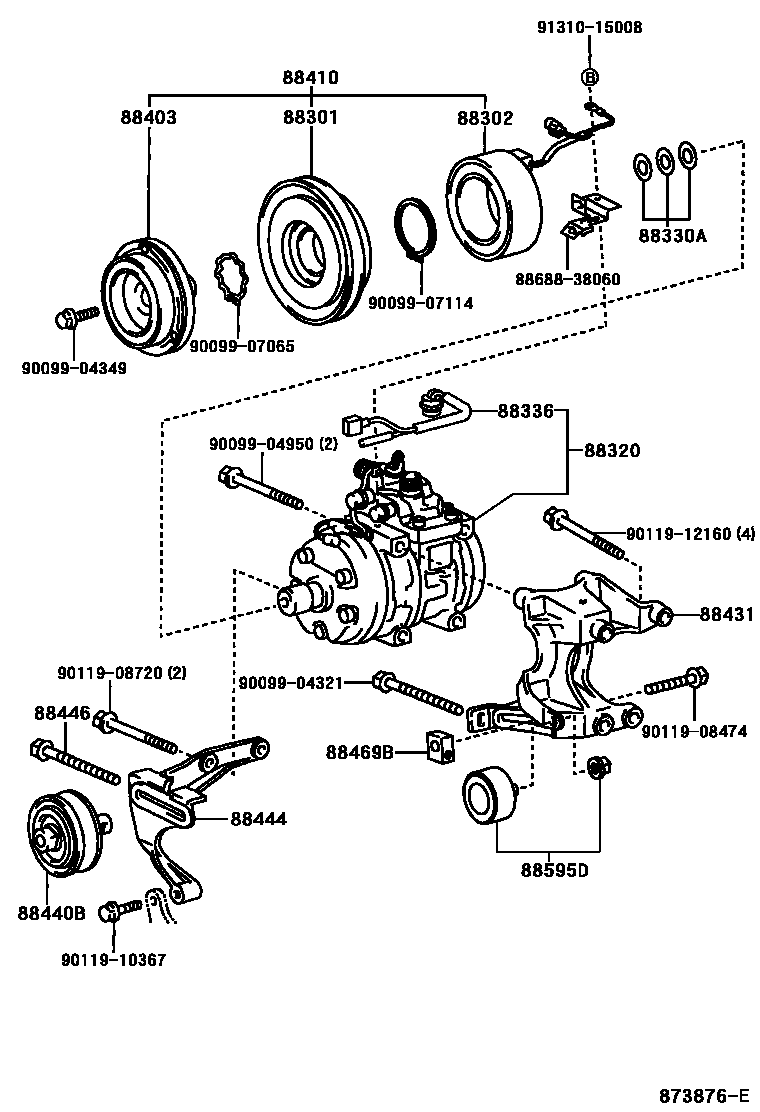

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-12150iRZF50200201

main88412-22070iLF50199912

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-2A030iLF50,RZF50199912

88320COMPRESSOR ASSY, COOLER

main88320-38050iLF50199912

sub88320-26H91

main88320-38060iRZF50200201

sub88320-26H91

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iLF50,RZF50199912

88336SENSOR, COMPRESSOR

main88336-60140iLF50199912

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-30290iLF50,RZF50199912

88410CLUTCH ASSY, MAGNET

main88410-34040iRZF50200201

main88410-60330iLF50199912

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-26320iRZF50200201

main88431-60180iLF50199912

88440BPULLEY ASSY, IDLE

main88440-35030iLF50199912

88444BRACKET, IDLE PULLEY

main88444-35030iLF50199912

88446BOLT, IDLE PULLEY

main88446-35040iLF50199912

main90099-04306iRZF50200201

88469BCOLLAR

main88469-30280iLF50199912

88595DPULLEY ASSY, IDLE

main88440-26070iLF50199912

main88440-26100iRZF50200201

8868838060BRACKET, COOLER DIAPHRAGM

main88688-38060

9009904321

main90099-04321

9009904349

main90099-04349

9009904950

main90099-04950

9009907065

main90099-07065

9009907114

main90099-07114

9011908474

main90119-08474

9011908720

main90119-08720

9011910367

main90119-10367

9011912160

main90119-12160

9131015008

main91310-15008

24 parts on this diagram · 2 diagrams in section
