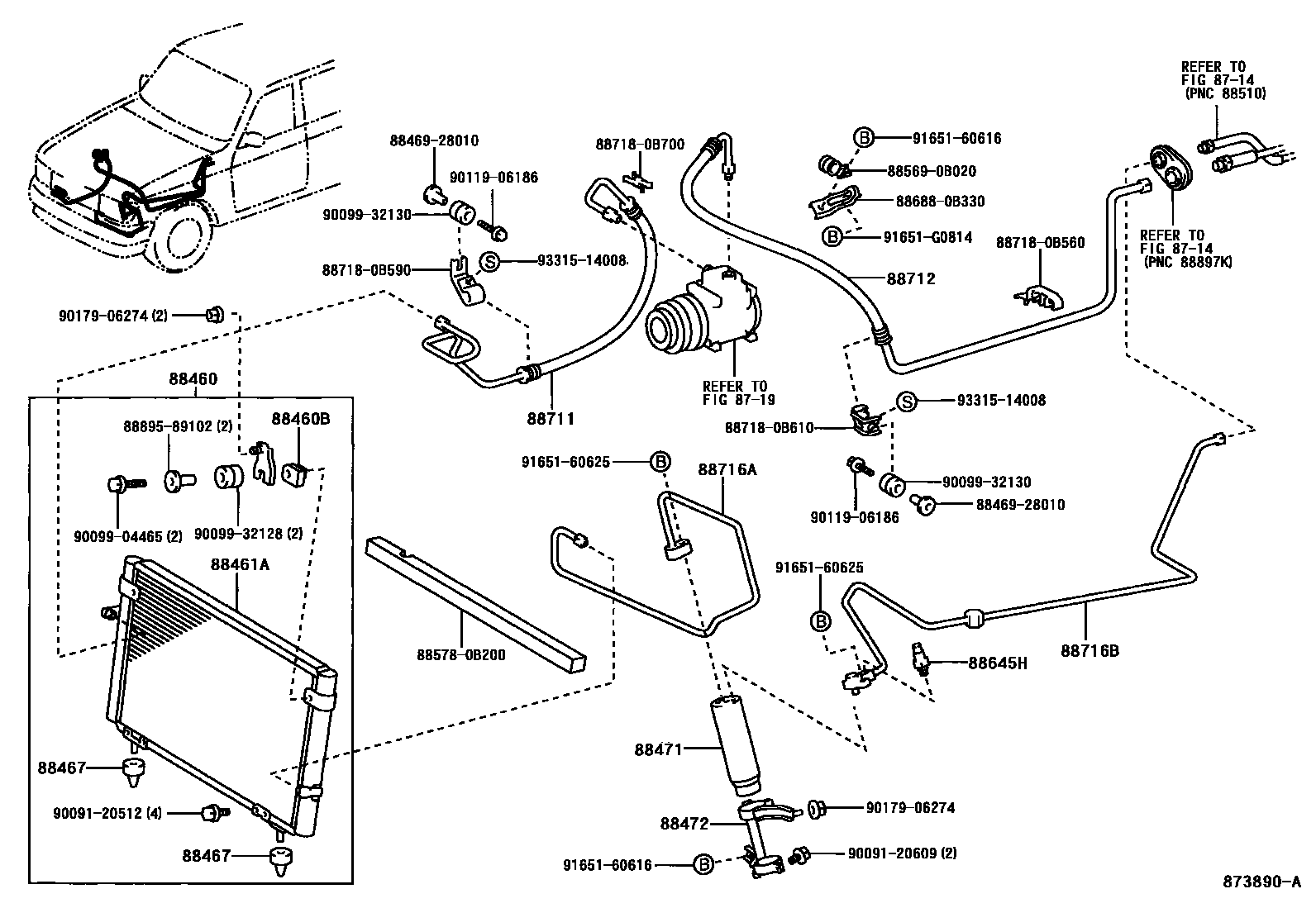

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1FRONT--SINGLE AIR CONDITIONER0002 1FRONT--DUAL AIR CONDITIONER 0003 1FRONT--DUAL AIR CONDITIONER 0004 1FRONT--SINGLE AIR CONDITIONER0005 1FRONT--DUAL AIR CONDITIONER 0006 1FRONT--SINGLE AIR CONDITIONER0007 1FRONT--DUAL AIR CONDITIONER 0008 1REAR--DUAL AIR CONDITIONER 0009 1O-RING

8714

8719

88460CONDENSER ASSY, COOLER

main88460-0B110iLF50,RZF50199912-200209

main88460-0B150iLF50,RZF50..DLX,STD200209

W(SINGLE AIR CONDITIONER)

main88460-0B160iLF50,RZF50..DLX,GL200209

W(DUAL AIR CONDITIONER)

88460BBRACKET, COOLER CONDENSER, NO.1

main88463-35120×2iLF50,RZF50199912-200209

88461ACORE, COOLER CONDENSER

main88461-0B050iLF50,RZF50199912-200209

main88461-0B060iLF50,RZF50200209

88467CUSHION, COOLER CONDENSER, NO.1

main88467-32060×2iLF50,RZF50199912-200209

88471TANK, RECEIVER AIR CONDITIONER

main88471-0B010iLF50..DLX,STD199912-200209

main88471-0B060iLF50..DLX,STD199912-200209

W(DUAL AIR CONDITIONER)

88472BRACKET, RECEIVER TANK, NO.1

main88472-0B050iLF50,RZF50199912-200209

88645HSWITCH, PRESSURE NO.1

main88645-0B010iLF50..STD199912-200209

W(DUAL AIR CONDITIONER)

main88645-0B020iLF50,RZF50..DLX,STD199912

W(SINGLE AIR CONDITIONER)

main88645-60030iRZF50200201-200209

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-0B090iLF50199912

main88711-0B110iRZF50200201

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-0B120iLF50..DLX,STD199912

main88712-0B130iLF50..STD199912-200209

W(DUAL AIR CONDITIONER)

main88712-0B150iRZF50..DLX,GL200201

W(DUAL AIR CONDITIONER)

main88712-0B190iRZF50..DLX,STD200304

W(SINGLE AIR CONDITIONER)

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-0B580iLF50,RZF50199912-200209

main88726-0B380iLF50,RZF50200209

88716BPIPE, COOLER REFRIGERANT LIQUID, B

main88716-0B620iLF50..DLX,STD199912-200209

main88716-0B630iLF50..DLX,STD199912-200209

W(DUAL AIR CONDITIONER)

8846928010SWITCH, PRESSURE CONTROL

main88469-28010

885690B020CLAMP (FOR COOLER RELAY)

main88569-0B020

885780B200PAKING, COOLER AIR DUCT

main88578-0B200

886880B330BRACKET, COOLER DIAPHRAGM

main88688-0B330

887180B560PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-0B560

887180B590PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-0B590

887180B610PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-0B610

887180B700PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-0B700

8889589102HOLDER, FUSE

main88895-89102

9009120512

main90091-20512

9009120609

main90091-20609

9009904465

main90099-04465

9009932128

main90099-32128

9009932130

main90099-32130

9011906186

main90119-06186

9017906274

main90179-06274

9165160616

main91651-60616

9165160625

main91651-60625

91651G0814

main91651-G0814

9331514008

main93315-14008

33 parts on this diagram · 9 diagrams in section
