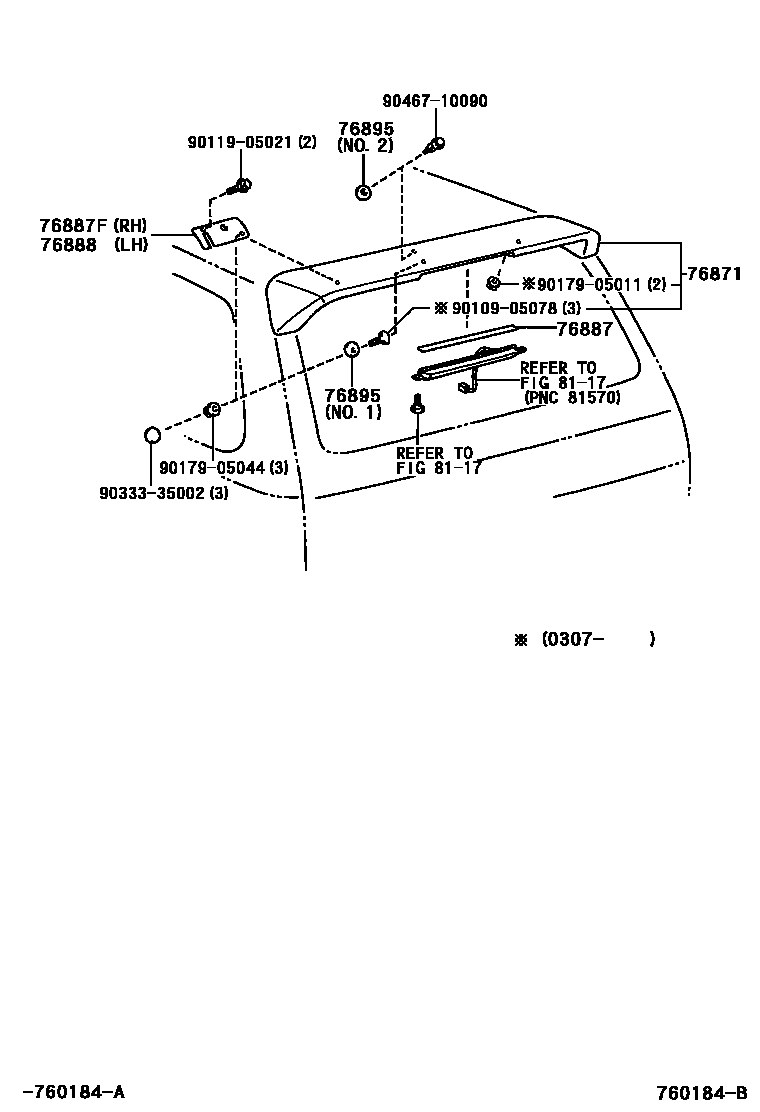

SPOILER & SIDE MUDGUARD

76871SPOILER, REAR

main76085-0B020iLF50..DLX199912-200209

sub76085-0B900

main76085-0B900iLF50,RZF50..GL200209-200307

main76085-0B901iLF50,RZF50..GL200307-200412

76887SEAL, REAR SPOILER

main76887-0B010iLF50,RZF50..DLX,GL199912-200209

76887FSEAL, REAR SPOILER, NO.2

main76887-38020iLF50,RZF50..GL199912-200209

76888PROTECTOR, REAR SPOILER SIDE, NO.3

main76888-38010iLF50,RZF50..DLX,GL199912-200209

76895PROTECTOR, REAR SPOILER, NO.5

main76895-38010iLF50,RZF50..DLX,GL199912-200209

NO.1

main76895-38020iLF50,RZF50..DLX,GL199912-200209

NO.2

8117

9010905078

main90109-05078

9011905021

main90119-05021

9017905011

main90179-05011

9017905044

main90179-05044

9033335002

main90333-35002

9046710090

main90467-10090

12 parts on this diagram · 1 diagram in section
