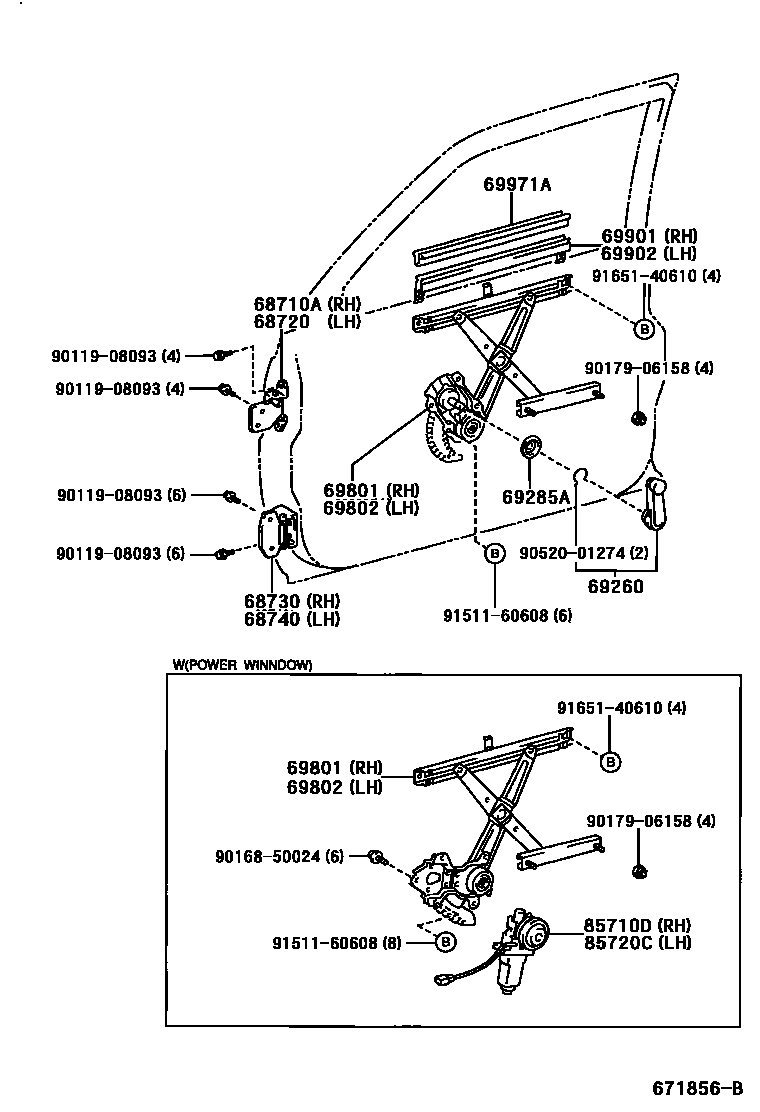

FRONT DOOR WINDOW REGULATOR & HINGE

68710AHINGE ASSY, FRONT DOOR, RH

main68710-0B040iLF50,RZF50199912

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-0B040iLF50,RZF50199912

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-0B020iLF50,RZF50199912

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-0B020iLF50,RZF50199912

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-0B040-B0iLF50..DLX199912-200412

BLUISH GRAY,TRIM1#

69285APLATE, DOOR VENT WINDOW CONTROL HANDLE

main69285-22010-08iLF50..DLX,STD199912-200209

NATURAL WHITE,TRIM1#

sub69285-22010

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-0B030iLF50,RZF50..DLX,GL199912

W(POWER WINDOW)

main69810-0B060iLF50..DLX,STD199912-200209

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-0B030iLF50,RZF50..DLX,GL199912

W(POWER WINDOW)

main69820-0B060iLF50..DLX,STD199912-200209

69901CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH

main69901-0B030iLF50,RZF50200106-200412

(J)

main69901-90P50iLF50199912-200106

main69901-90P50iLF50,RZF50200106-200412

(L)

69902CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH

main69901-0B030iLF50,RZF50200106-200412

(J)

main69901-90P50iLF50199912-200106

main69901-90P50iLF50,RZF50200106-200412

(L)

69971AFILLER, FRONT DOOR GLASS CHANNEL

main69971-22010iLF50,RZF50199912-200412

sub69971-95110

85710DMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85720-38030iLF50,RZF50..DLX,GL199912

sub85720-38040

85720CMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85710-38030iLF50,RZF50..DLX,GL199912

sub85710-38040

9011908093

main90119-08093

9016850024

main90168-50024

9017906158

main90179-06158

9052001274

main90520-01274

9151160608

main91511-60608

9165140610

main91651-40610

19 parts on this diagram · 1 diagram in section
