INSIDE TRIM BOARD

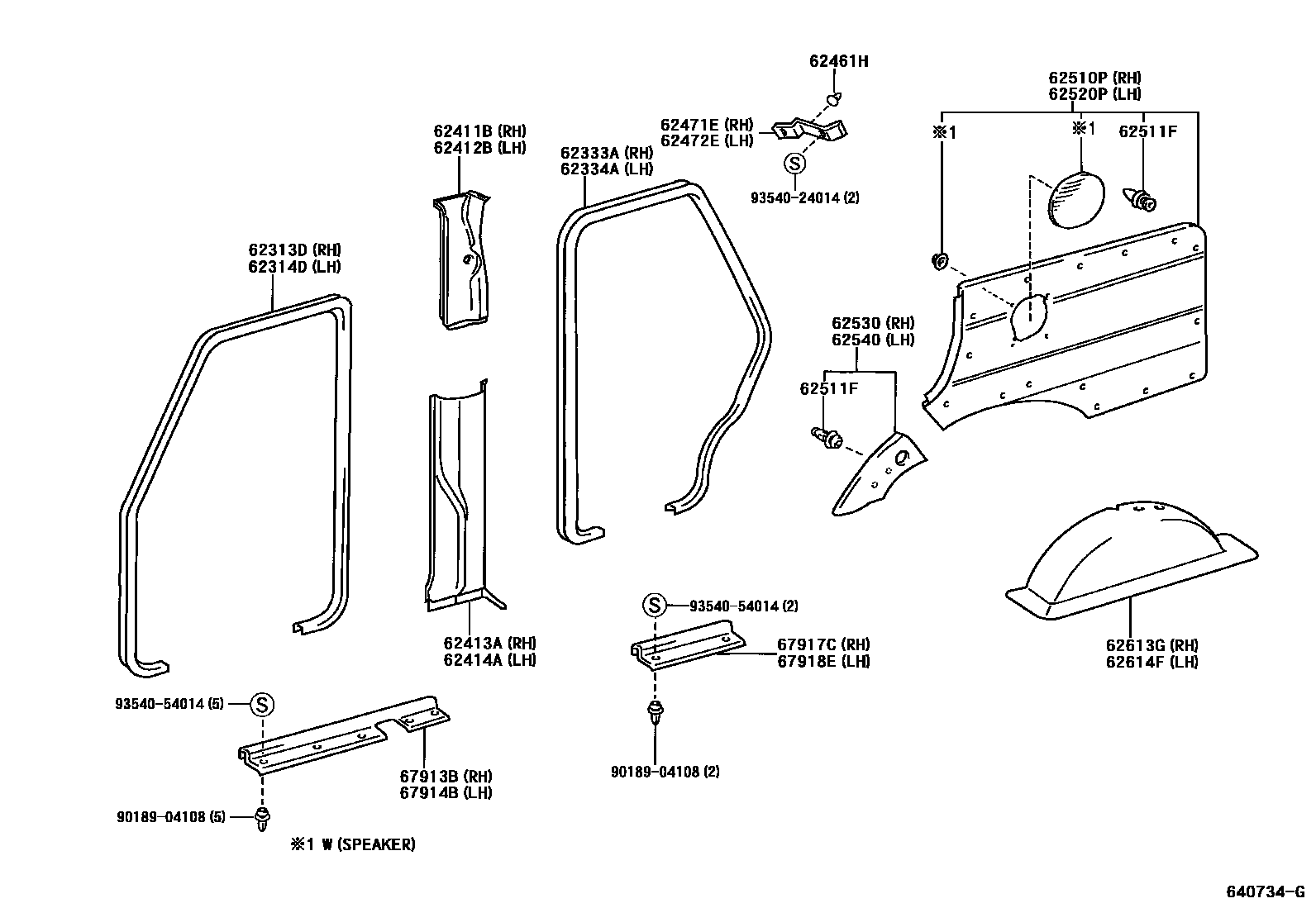

Parts diagram
62313DTRIM, FRONT DOOR OPENING, RH
main62313-0B060-B0i199912-200412
BLUISH GRAY,TRIM1#
62314DTRIM, FRONT DOOR OPENING, LH
main62313-0B060-B0i199912-200412
BLUISH GRAY,TRIM1#
62333ATRIM, REAR DOOR OPENING, RH
main62333-0B070-B0i199912-200412
BLUISH GRAY,TRIM1#
62334ATRIM, REAR DOOR OPENING, LH
main62333-0B070-B0i199912-200412
BLUISH GRAY,TRIM1#
62411BGARNISH, CENTER PILLAR, UPPER RH
main62411-0B050-B0i199912-200412
LT.BLUISH GRAY,TRIM1#
62412BGARNISH, CENTER PILLAR, UPPER LH
main62412-0B050-B0i199912-200412
LT.BLUISH GRAY,TRIM1#
62413AGARNISH, CENTER PILLAR, LOWER RH
main62413-0B090-B0i199912-200412
BLUISH GRAY,TRIM1#
main62413-0B100-B0i199912-200412
W(DUAL AIR CONDITIONER),BLUISH GRAY,TRIM1#
62414AGARNISH, CENTER PILLAR, LOWER LH
main62414-0B090-B0i199912-200412
BLUISH GRAY,TRIM1#
main62414-0B100-B0i199912-200412
W(DUAL AIR CONDITIONER),BLUISH GRAY,TRIM1#
62461HCLIP (FOR ROOF SIDE INNER GARNISH)
main90467-06161-C0i199912
BLACK,TRIM1#
sub90467-06161
62471EGARNISH, ROOF SIDE, INNER UPPER RH
main62471-0B070-B0i199912-200412
LT.BLUISH GRAY,TRIM1#
main62471-0B100-B0i200201-200209
LT. BLUISH GRAY,TRIM1#
sub62471-0B100
main62471-0B150-B0i200201-200209
W(REAR SEAT BELT),LT. BLUISH GRAY,TRIM1#
main62471-0B160-B0i200209-200412
BLUISH GRAY,TRIM1#
62472EGARNISH, ROOF SIDE, INNER UPPER LH
main62472-0B070-B0i199912-200412
LT.BLUISH GRAY,TRIM1#
main62472-0B120-B0i200209-200412
BLUISH GRAY,TRIM1#
main62472-0B140-B0i200201-200209
LT. BLUISH GRAY,TRIM1#
sub62471-0B100
main62472-0B150-B0i200201-200209
W(REAR SEAT BELT),LT. BLUISH GRAY,TRIM1#
62510PPANEL ASSY, QUARTER TRIM, FRONT RH
main62510-0B080-B0i199912-200209
BLUISH GRAY,TRIM1#
main62510-0B150-B1i199912-200209
GST PACKAGE & W(FRONT SEPARATE SEAT),BLUISH GRAY,TRIM1#
main62510-0B160-B1i199912-200209
GST PACKAGE & W(FRONT SEPARATE SEAT & REAR SEAT BELT),BLUISH GRAY,TRIM1#
main62510-0B170-B0i200209-200412
W(REAR SEAT BELT),BLUISH GRAY,TRIM1#
main62510-0B170-B0i200304-200412
BLUISH GRAY,TRIM1#
main62510-0B180-B1i200201-200209
BLUISH GRAY,TRIM1#
main62510-0B230-B0i199912-200209
W(REAR SEAT BELT),BLUISH GRAY,TRIM1#
main62510-0B260-B0i199912-200209
BLUISH GRAY,TRIM1#
main62510-0B270-B1i200201-200412
W(REAR SEAT BELT),BLUISH GRAY,TRIM1#
main62510-0B320-B0i199912-200209
W(FRONT SEPARATE SEAT),BLUISH GRAY,TRIM1#
main62510-0B330-B0i199912-200412
W(FRONT SEPARATE SEAT & REAR SEAT BELT),BLUISH GRAY,TRIM1#
main62510-0B330-B0i200304-200412
BLUISH GRAY,TRIM1#
main62510-0B810-B0i200209-200211
W(PARALLEL THIRD SEAT),BLUISH GRAY,TRIM1#
main62510-0B820-B0i200209-200412
W(SPEAKER),BLUISH GRAY,TRIM1#
62511FRETAINER (FOR QUARTER INSIDE TRIM BOARD)
main67771-12050i200202-200209
RED
main67771-12050i199912-200202
main90467-10161i200209-200310
main90467-10161i200202-200209
NATURAL
62520PPANEL ASSY, QUARTER TRIM, FRONT LH
main62520-0B080-B0i199912-200209
BLUISH GRAY,TRIM1#
main62520-0B150-B1i199912-200209
GST PACKAGE & W(FRONT SEPARATE SEAT),BLUISH GRAY,TRIM1#
main62520-0B160-B1i199912-200209
GST PACKAGE & W(FRONT SEPARATE SEAT & REAR SEAT BELT),BLUISH GRAY,TRIM1#
main62520-0B170-B0i200304-200412
BLUISH GRAY,TRIM1#
main62520-0B170-B0i200209-200412
W(REAR SEAT BELT),BLUISH GRAY,TRIM1#
main62520-0B180-B1i200201-200209
BLUISH GRAY,TRIM1#
main62520-0B230-B0i199912-200209
W(REAR SEAT BELT),BLUISH GRAY,TRIM1#
main62520-0B260-B0i199912-200209
BLUISH GRAY,TRIM1#
main62520-0B270-B1i200201-200209
W(REAR SEAT BELT),BLUISH GRAY,TRIM1#
main62520-0B320-B0i199912-200209
W(FRONT SEPARATE SEAT),BLUISH GRAY,TRIM1#
main62520-0B330-B0i199912-200209
W(FRONT SEPARATE SEAT & REAR SEAT BELT),BLUISH GRAY,TRIM1#
main62520-0B820-B0i200209-200211
W(PARALLEL THIRD SEAT),BLUISH GRAY,TRIM1#
main62520-0B830-B0i200209-200412
BLUISH GRAY,TRIM1#
main62520-0B840-B0i200209-200412
BLUISH GRAY,TRIM1#
main62520-0B850-B0i200209-200412
W(SPEAKER),BLUISH GRAY,TRIM1#
62530PANEL ASSY, QUARTER TRIM, LOWER RH
main62530-0B030-B0i200202-200412
W(REAR SEAT BELT),BLUISH GRAY,TRIM1#
main62530-0B030-B0i200304-200412
BLUISH GRAY,TRIM1#
main62530-0B060-B0i199912-200202
W(REAR SEAT BELT),BLUISH GRAY,TRIM1#
main62530-0B070-B0i199912-200209
BLUISH GRAY,TRIM1#
main62530-0B080-B0i199912-200202
BLUISH GRAY,TRIM1#
62540PANEL ASSY, QUARTER TRIM, LOWER LH
main62540-0B030-B0i200202-200412
W(REAR SEAT BELT),BLUISH GRAY,TRIM1#
main62540-0B030-B0i200304-200412
BLUISH GRAY,TRIM1#
main62540-0B060-B0i199912-200202
W(REAR SEAT BELT),BLUISH GRAY,TRIM1#
main62540-0B070-B0i199912-200209
BLUISH GRAY,TRIM1#
main62540-0B080-B0i199912-200202
BLUISH GRAY,TRIM1#
62613GCOVER ASSY, QUARTER WHEEL HOUSE, RH
main62610-0B050-B0i199912-200209
BLUISH GRAY,TRIM1#
main62610-0B061-B0i200201-200412
BLUISH GRAY,TRIM1#
sub62610-0B081
main62610-0B080-B0i199912-200101
W(FRONT SEPARATE SEAT),BLUISH GRAY,TRIM1#
main62610-0B081-B0i200101-200412
W(FRONT SEPARATE SEAT),BLUISH GRAY,TRIM1#
main62610-0B081-B0i200304-200412
BLUISH GRAY,TRIM1#
62614FCOVER ASSY, QUARTER WHEEL HOUSE, LH
main62620-0B050-B0i199912-200209
BLUISH GRAY,TRIM1#
main62620-0B061-B0i200201-200412
BLUISH GRAY,TRIM1#
sub62620-0B081
main62620-0B080-B0i199912-200101
W(FRONT SEPARATE SEAT),BLUISH GRAY,TRIM1#
main62620-0B081-B0i200304-200412
BLUISH GRAY,TRIM1#
main62620-0B081-B0i200101-200412
W(FRONT SEPARATE SEAT),BLUISH GRAY,TRIM1#
67913BPLATE, FRONT DOOR SCUFF, RH
main67913-0B020-B1i199912-200412
BLUISH GRAY,TRIM1#
67914BPLATE, FRONT DOOR SCUFF, LH
main67914-0B010-B1i199912-200412
BLUISH GRAY,TRIM1#
67917CPLATE, REAR DOOR SCUFF, RH
main67917-0B020-B1i199912-200412
BLUISH GRAY,TRIM1#
67918EPLATE, REAR DOOR SCUFF, LH
main67917-0B020-B1i199912-200412
BLUISH GRAY,TRIM1#
9018904108
main90189-04108
9354024014
main93540-24014
9354054014
main93540-54014

25 parts on this diagram · 3 diagrams in section
