SIDE WINDOW
62158WEATHERSTRIP, REAR SIDE WINDOW, OUTER UPPER RH
62158AWEATHERSTRIP, REAR SIDE WINDOW, OUTER UPPER LH
62195FRAME, REAR SIDE WINDOW, CENTER RH
62196AFRAME, REAR SIDE WINDOW, LH
62229PACKING, SIDE WINDOW
62229APACKING, SIDE WINDOW, NO.2
62249PLATE, SIDE WINDOW, RH
62249APLATE, SIDE WINDOW, LH
62253AWEATHERSTRIP, SIDE WINDOW, CENTER RH
62253BWEATHERSTRIP, SIDE WINDOW, CENTER LH
62254FWEATHERSTRIP, SIDE WINDOW, RH
62254GWEATHERSTRIP, SIDE WINDOW, LH
62269FILM, SIDE WINDOW FRAME, RH
62269AFILM, SIDE WINDOW FRAME, LH
62289SPACER, SIDE WINDOW FRAME, NO.2 RH
62289ASPACER, SIDE WINDOW FRAME, NO.2 LH
62375BCLIP, SIDE WINDOW, NO.1
BLUISH GRAY,TRIM1#
62376ACLIP, SIDE WINDOW, NO.2
BLUISH GRAY,TRIM1#
62391CSTOPPER, SIDE WINDOW, NO.1 RH
62391DSTOPPER, SIDE WINDOW, NO.1 LH
62711GLASS, QUARTER WINDOW, RH
*TEM,T=3.5,GREEN
*TEM,T=3.5,GREEN
62712GLASS, QUARTER WINDOW, LH
*TEM,T=3.5,GREEN
*TEM,T=3.5,GREEN
62729CPAD, REAR WINDOW CENTER SASH, RH
62729DPAD, REAR WINDOW CENTER SASH, LH
62731CHINGE, QUARTER WINDOW, RH
(L)
(J)
62731EHINGE, QUARTER WINDOW, LH
(L)
(J)
62735JRETAINER, QUARTER WINDOW HINGE, LH
62735LRETAINER, QUARTER WINDOW HINGE, RH
62741WEATHERSTRIP, QUARTER WINDOW, RH
62742WEATHERSTRIP, QUARTER WINDOW, LH
62746BPACKING, QUARTER WINDOW, RH
62746DPACKING, QUARTER WINDOW, LH
62792APACKING, SIDE WINDOW LOCK, RH
62792CPACKING, SIDE WINDOW LOCK, LH
62793BRETAINER, SIDE WINDOW LOCK, RH
62793CRETAINER, SIDE WINDOW LOCK, LH
62910ELOCK ASSY, SIDE WINDOW
62910JLOCK ASSY, SIDE WINDOW, LH
62910KLOCK ASSY, QUARTER WINDOW, RH
BLUISH GRAY,TRIM1#
62920LOCK ASSY, QUARTER WINDOW, LH
BLUISH GRAY,TRIM1#
68010WINDOW ASSY, REAR DOOR, RH
68020WINDOW ASSY, REAR DOOR, LH
68142FRUN, REAR DOOR WINDOW, RH
68152FRUN, REAR DOOR WINDOW, LH
9014960004
main90149-60004
9015960010
main90159-60010
9015960120
main90159-60120
9016440050
main90164-40050
9020211001
main90202-11001
9038511005
main90385-11005
9351064008
main93510-64008
9352013010
main93520-13010

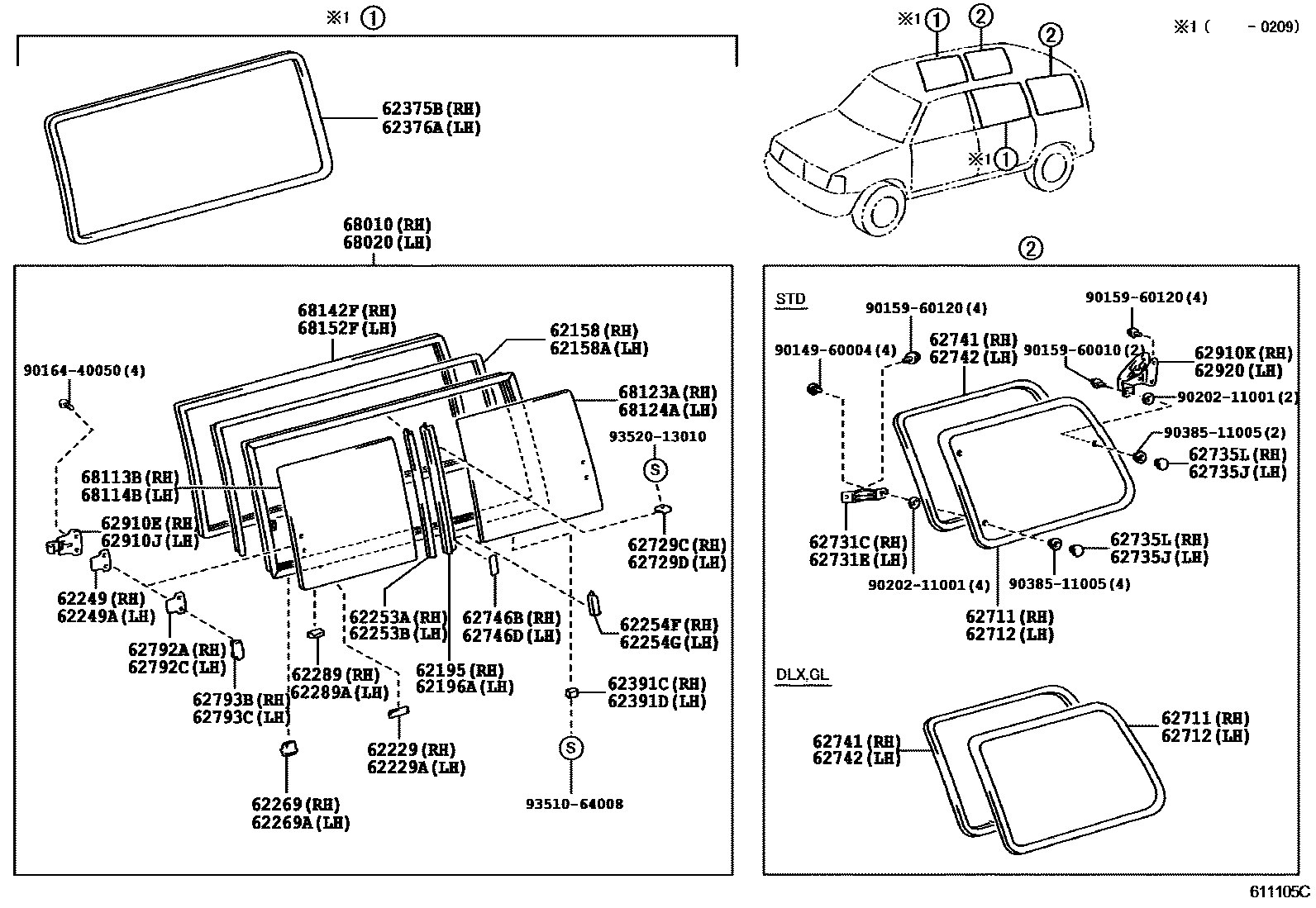

56 parts on this diagram · 1 diagram in section
