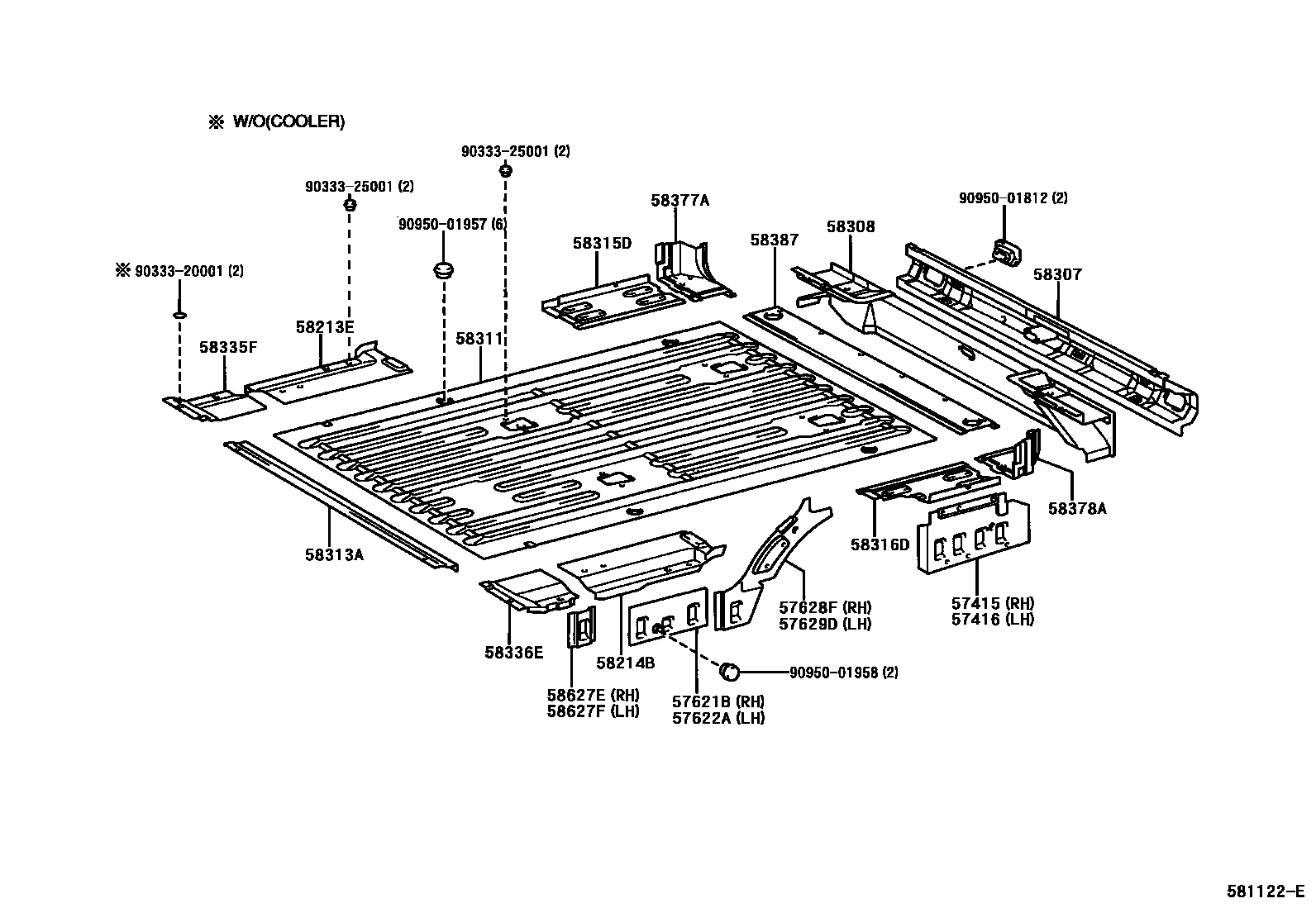

REAR FLOOR PANEL & REAR FLOOR MEMBER

57415RAIL, FLOOR SIDE, REAR RH

main57047-0B020iLF50,RZF50..DLX,GL199912-200209

W(TRANSVERSE THIRD SEAT)

main57047-0B040iLF50,RZF50..DLX,GL200209

main57047-0B050iLF50..STD200209-200301

main57623-0B020iLF50..DLX,STD199912-200209

57416RAIL, FLOOR SIDE, REAR LH

main57048-0B020iLF50,RZF50..DLX,GL199912-200209

W(TRANSVERSE THIRD SEAT)

main57048-0B040iLF50,RZF50..DLX,GL200209

main57048-0B050iLF50..STD200209-200301

main57624-0B020iLF50..DLX,STD199912-200209

main57624-0B030iLF50,RZF50..STD200301

57621BPLATE, REAR FLOOR SIDE MEMBER, FRONT RH

main57621-0B010iLF50,RZF50199912

57622APLATE, REAR FLOOR SIDE MEMBER, FRONT LH

main57621-0B010iLF50,RZF50199912

57628FPLATE, REAR FLOOR SIDE MEMBER, RH

main57628-0B020iLF50,RZF50199912

57629DPLATE, REAR FLOOR SIDE MEMBER, LH

main57629-0B020iLF50,RZF50199912

58213EPANEL, SEAT FLOOR SIDE, RH

main58213-0B040iLF50,RZF50..DLX,STD199912-200209

main58213-0B050iLF50,RZF50..GL200209

58214BPANEL, SEAT FLOOR SIDE, LH

main58214-0B040iLF50,RZF50199912-200209

main58214-0B080iLF50,RZF50..GL200209

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-0B040iLF50,RZF50199912

58308PANEL SUB-ASSY, BODY LOWER BACK, INNER

main58308-0B040iLF50..DLX,STD199912-200209

main58308-0B050iLF50,RZF50..DLX,GL200102

W(TRANSVERSE THIRD SEAT)

58311PAN, REAR FLOOR

main58311-0B070iLF50,RZF50..DLX200209

main58311-0B070iLF50,RZF50..DLX,GL199912-200209

W(TRANSVERSE THIRD SEAT)

main58311-0B080iLF50,RZF50..STD199912-200209

main58311-0B140iLF50,RZF50..GL200209

58313AEXTENSION, REAR FLOOR FRONT PANEL

main58302-0B080iRZF50200201

main58313-0B050iLF50199912

58315DEXTENSION, REAR FLOOR PAN, RH

main58315-0B030iLF50,RZF50199912

58316DEXTENSION, REAR FLOOR PAN, LH

main58316-0B030iLF50,RZF50199912-200209

main58316-0B050iLF50,RZF50200209

58335FPLATE, FLOOR SIDE, FRONT RH

main58335-0B010iLF50,RZF50199912

58336EPLATE, FLOOR SIDE, FRONT LH

main58336-0B010iLF50,RZF50199912

58377APANEL, BODY LOWER BACK, RH

main58377-0B020iLF50,RZF50199912

58378APANEL, BODY LOWER BACK, LH

main58378-0B020iLF50,RZF50199912

58387PLATE, REAR FLOOR FINISH

main58387-0B020iLF50199912-200109

main58387-0B021iLF50,RZF50200109

58627ECOVER, REAR FLOOR SIDE MEMBER, RH

main57627-0B010iLF50,RZF50199912

58627FCOVER, REAR FLOOR SIDE MEMBER, LH

main57627-0B010iLF50,RZF50199912

9033320001

main90333-20001

9033325001

main90333-25001

9095001812

main90950-01812

9095001957

main90950-01957

9095001958

main90950-01958

26 parts on this diagram · 1 diagram in section
