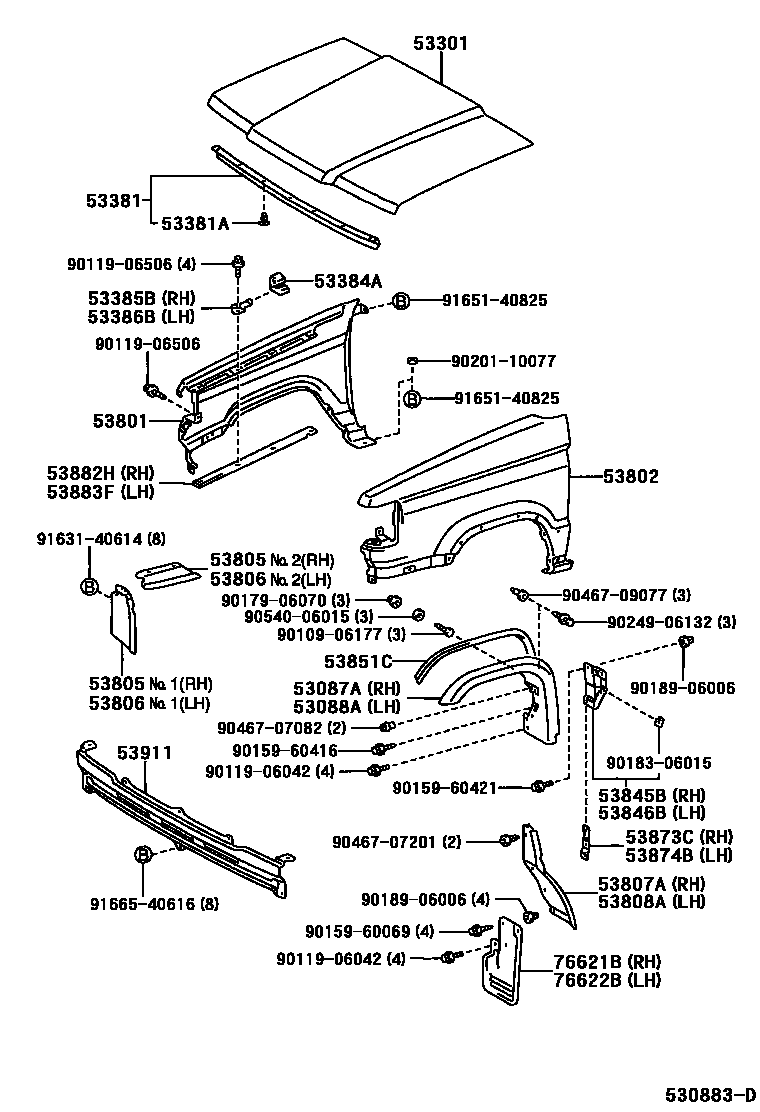

HOOD & FRONT FENDER

0001 1 0002 1 0003 1

53087AEXTENSION SUB-ASSY, FRONT WHEEL OPENING, RH

main53847-0B020iLF50,RZF50..DLX,GL199912-200209

main53847-0B040iLF50,RZF50..DLX,GL200209

53088AEXTENSION SUB-ASSY, FRONT WHEEL OPENING, LH

main53848-0B020iLF50,RZF50..DLX,GL199912-200209

main53848-0B040iLF50,RZF50..DLX,GL200209

53301HOOD SUB-ASSY

main53301-0B030iLF50,RZF50199912-200209

main53301-0B060iLF50,RZF50200209

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-0B040iLF50,RZF50199912

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90080-46298×7iLF50,RZF50199912

53384ABUMPER, FENDER TO HOOD

main53384-90P00×2iLF50,RZF50199912

53385BBRACKET, FENDER TO HOOD BUMPER, RH

main53385-20020iLF50,RZF50199912

53386BBRACKET, FENDER TO HOOD BUMPER, LH

main53386-20020iLF50,RZF50199912

53801FENDER SUB-ASSY, FRONT RH

main53801-0B050iLF50..STD199912-200209

main53801-0B060iLF50,RZF50..DLX,GL199912-200209

main53801-0B140iLF50,RZF50..STD200209

main53801-0B150iLF50,RZF50..DLX,GL200209

53802FENDER SUB-ASSY, FRONT LH

main53802-0B050iLF50..STD199912-200209

main53802-0B060iLF50,RZF50..DLX,GL199912-200209

main53802-0B110iLF50,RZF50..STD200209

main53802-0B140iLF50,RZF50..DLX,GL200209

53805SHIELD SUB-ASSY, FRONT FENDER SPLASH, RH

main53805-0B010iLF50199912

NO.1

main53805-0B020iLF50,RZF50199912

NO.2

main53805-0B030iRZF50200201

NO.1

53806SHIELD SUB-ASSY, FRONT FENDER SPLASH, LH

main53806-0B010iLF50199912-200007

NO.1

main53806-0B020iRZF50200209

NO.2

main53806-0B030iLF50,RZF50200007-200209

NO.1

53807ASHIELD SUB-ASSY, FENDER SPLASH, REAR RH

main53807-0B020iLF50,RZF50199912

53808ASHIELD SUB-ASSY, FENDER SPLASH, REAR LH

main53808-0B020iLF50,RZF50199912-200209

53845BEXTENSION, FRONT WHEEL OPENING, NO.1 RH

main53845-0B010iLF50,RZF50..DLX,GL199912-200209

main53845-0B040iLF50,RZF50..DLX,GL200209

53846BEXTENSION, FRONT WHEEL OPENING, NO.1 LH

main53846-0B010iLF50,RZF50..DLX,GL199912-200209

main53846-0B040iLF50,RZF50..DLX,GL200209

53851CPAD, FRONT WHEEL OPENING EXTENSION, NO.1

main53851-38020iLF50..DLX199912-200209

RH

main53851-38050iLF50,RZF50..DLX200209

RH

main53851-38080iLF50,RZF50..GL200201-200209

RH

main53851-38090iLF50,RZF50..GL200209

RH

main53852-38020iLF50..DLX199912-200209

LH

main53852-38050iLF50,RZF50..DLX200209

LH

main53852-38070iLF50,RZF50..GL200201-200209

LH

main53852-38080iLF50,RZF50..GL200209

LH

53873CSTAY, FRONT WHEEL OPENING, FRONT RH

main53873-0B010iLF50,RZF50..DLX,GL199912-200209

53874BSTAY, FRONT WHEEL OPENING, FRONT LH

main53874-0B010iLF50,RZF50..DLX,GL199912-200209

53882HSEAL, FRONT FENDER MAIN, RH

main53882-90P00iLF50,RZF50199912

53883FSEAL, FRONT FENDER MAIN, LH

main53882-90P00iLF50,RZF50199912

53911PANEL, FRONT VALANCE

main53901-0B010iLF50,RZF50200209

main53911-0B010iLF50,RZF50199912-200209

76621BMUDGUARD, FRONT BODY, RH

main76621-0B070iLF50,RZF50..STD199912

76622BMUDGUARD, FRONT BODY, LH

main76621-0B070iLF50,RZF50..STD199912

9010906177

main90109-06177

9011906042

main90119-06042

9011906506

main90119-06506

9015960069

main90159-60069

9015960416

main90159-60416

9015960421

main90159-60421

9017906070

main90179-06070

9018306015

main90183-06015

9018906006

main90189-06006

9020110077

main90201-10077

9024906132

main90249-06132

9046707082

main90467-07082

9046707201

main90467-07201

9046709077

main90467-09077

9054006015

main90540-06015

9163140614

main91631-40614

9165140825

main91651-40825

9166540616

main91665-40616

42 parts on this diagram · 3 diagrams in section
