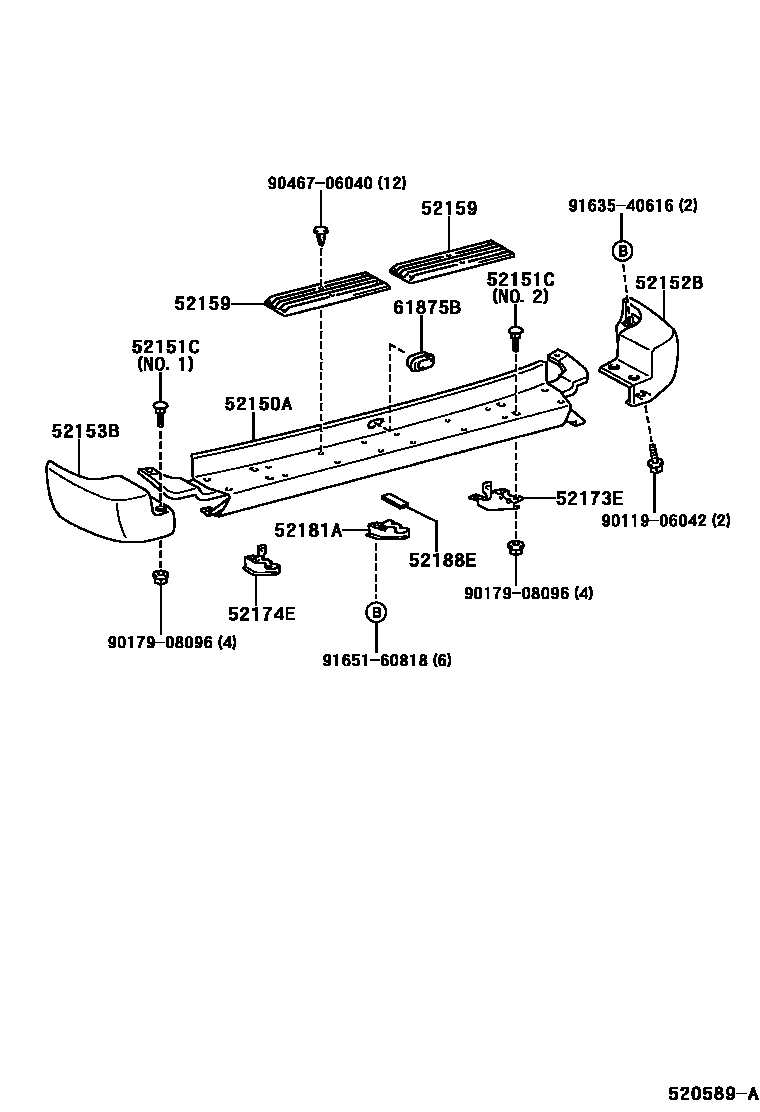

REAR BUMPER & BUMPER STAY
52150ABUMPER ASSY, REAR
TYPE B:REFER TO ILLUSTRATION
52151CBOLT, ROUND HEAD SQUARE NECK(FOR REAR BUMPER)
NO.1
NO.2
BLUISH SILVER ME.,2DZ ,2FM,NO.2
BLUISH SILVER ME.,2DZ ,2FM,NO.1
52152BEXTENSION, REAR BUMPER, RH
GRAY,1C0 ,202 ,4D3 ,6R8 ,765
GRAY,058 ,3K4 ,4D3
TYPE B:REFER TO ILLUSTRATION,GRAY,058 ,3K4 ,4D3
GRAY,1C0 ,202 ,209 ,4D3 ,6R8 ,765
52153BEXTENSION, REAR BUMPER, LH
GRAY,1C0 ,202 ,4D3 ,6R8 ,765
GRAY,1C0 ,202 ,209 ,4D3 ,6R8 ,765
TYPE B:REFER TO ILLUSTRATION,GRAY,058 ,3K4 ,4D3
52159COVER, REAR BUMPER
52173EBRACKET, REAR BUMPER BAR, RH
TYPE B:REFER TO ILLUSTRATION
52174EBRACKET, REAR BUMPER BAR, LH
TYPE B:REFER TO ILLUSTRATION
52181AARM, REAR BUMPER
TYPE B:REFER TO ILLUSTRATION
52188ESPACER, REAR BUMPER MOUNTING
61875BLID, SPARE WHEEL CARRIER, NO.1
9011906042
main90119-06042
9017908096
main90179-08096
9046706040
main90467-06040
9163540616
main91635-40616
9165160818
main91651-60818
15 parts on this diagram · 2 diagrams in section
