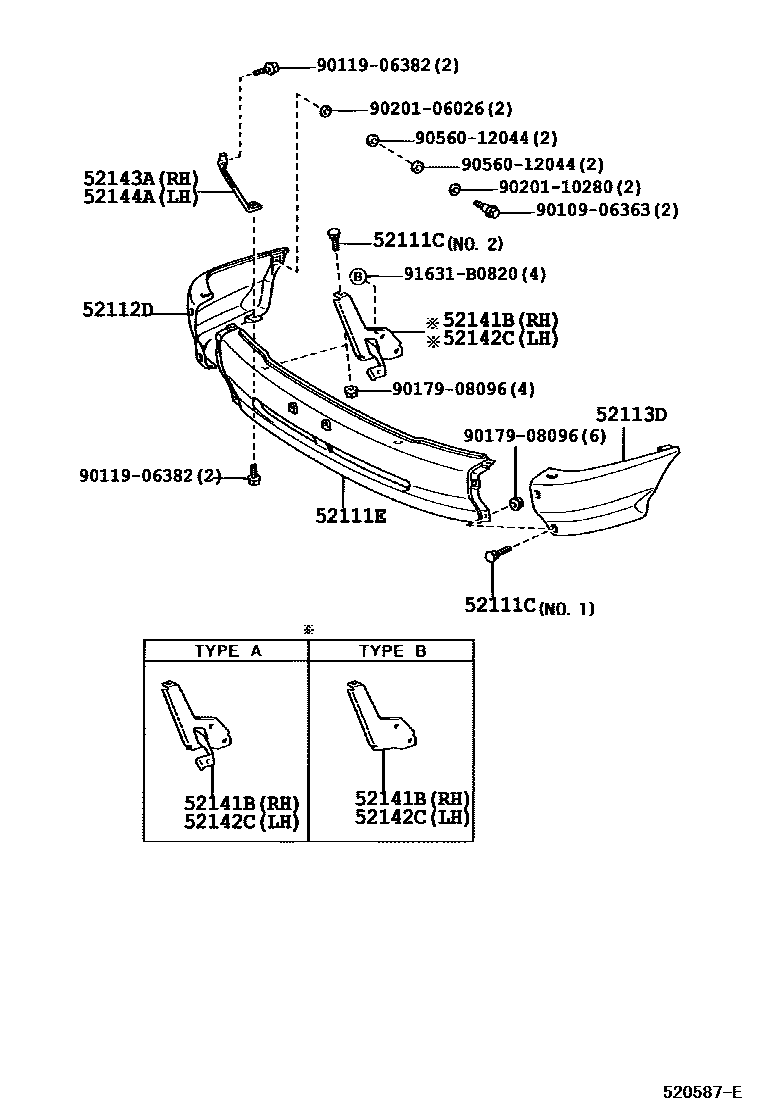

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1

52111CBOLT, ROUND HEAD SQUARE NECK(FOR FRONT BUMPER)

main90112-08032-01×6iLF50199912-200010

BLACK,TRIM1#

sub90112-08058

main90112-08032-C0×6iLF50..STD199912-200010

BLACK,058 ,3F1 ,8A1

sub90112-08058

main90112-08057-B1×6iLF50,RZF50..GL200201-200209

BLUISH SILVER ME.,2DZ ,2FM,NO.1

main90112-08067×6iLF50..DLX,STD200010-200209

NO.1

main90112-08068×4iLF50..DLX,STD199912-200209

NO.2

main90112-08078-B0×4iLF50,RZF50..GL200201-200209

BLUISH SILVER ME.,2DZ ,2FM,NO.2

52111EBAR, FRONT BUMPER

main52111-0B900iLF50199912-200209

main52111-0B901iLF50,RZF50..DLX,GL200108-200209

W(BUMPER GUARD)

52112DEXTENSION, FRONT BUMPER, RH

main52102-0B900iLF50..DLX,STD199912-200209

main52102-0B901iLF50,RZF50..GL200201-200209

52113DEXTENSION, FRONT BUMPER, LH

main52103-0B900iLF50..DLX,STD199912-200209

main52103-0B901iLF50,RZF50..GL200201-200209

52141BSTAY, FRONT BUMPER

main52081-0B020iLF50,RZF50..DLX,GL199912-200209

TYPE A:REFER TO ILLUSTRATION

main52141-0B030iLF50199912-200209

TYPE B:REFER TO ILLUSTRATION

52142CSTAY, FRONT BUMPER, LH

main52082-0B010iLF50,RZF50..DLX,GL199912-200209

TYPE A:REFER TO ILLUSTRATION

main52141-0B030iLF50199912-200209

TYPE B:REFER TO ILLUSTRATION

52143AARM, FRONT BUMPER, INNER RH

main52143-0B020iLF50,RZF50199912-200209

52144AARM, FRONT BUMPER, INNER LH

main52144-0B010iLF50,RZF50199912-200209

9010906363

main90109-06363

9011906382

main90119-06382

9017908096

main90179-08096

9020106026

main90201-06026

9020110280

main90201-10280

9056012044

main90560-12044

91631B0820

main91631-B0820

15 parts on this diagram · 3 diagrams in section
