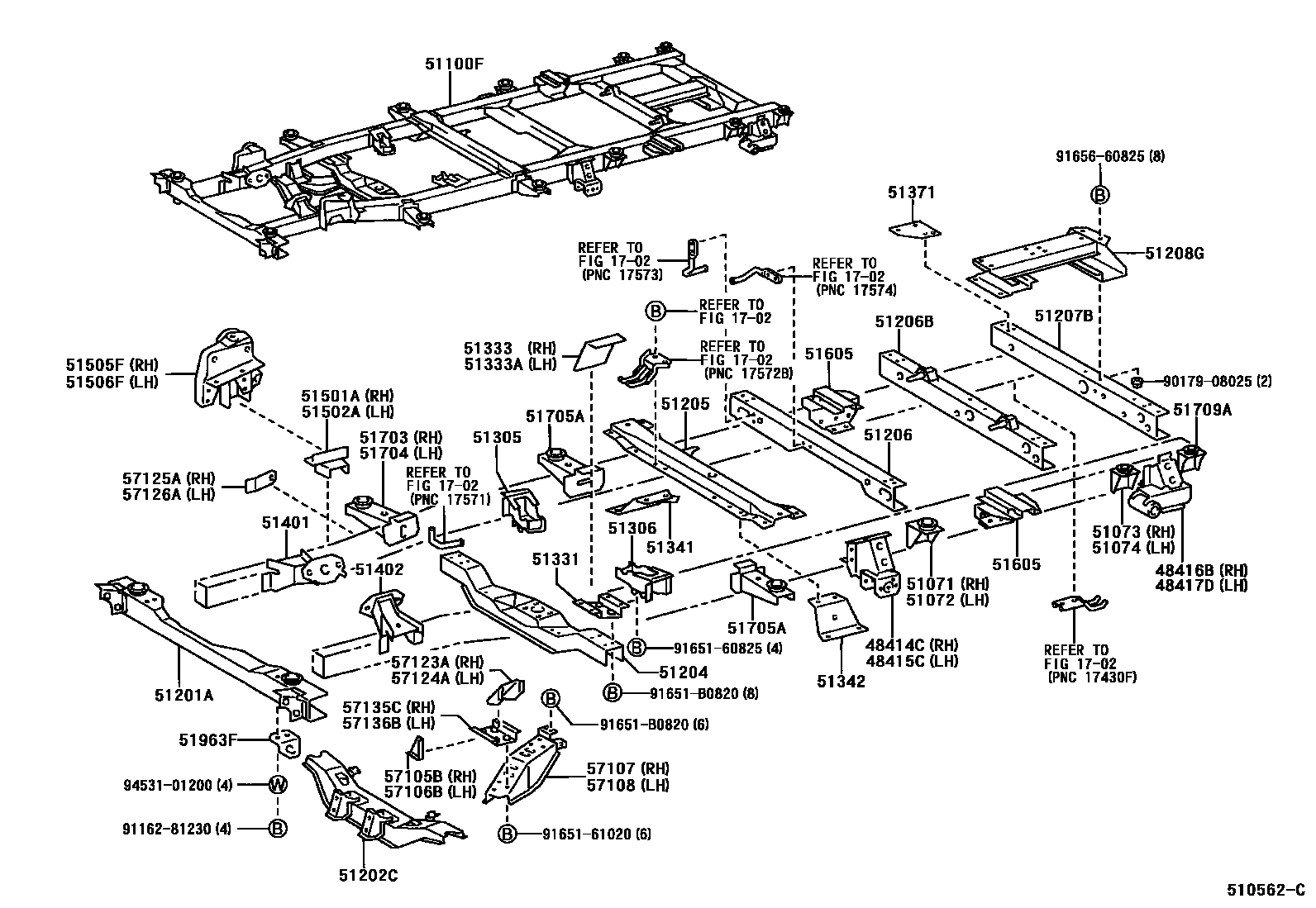

FRAME
1702
48414CBRACKET, SPRING, NO.3 RH
48416BBRACKET, SPRING, NO.4 RH
48417DBRACKET, SPRING, NO.4 LH
51071BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.1 RH
51072BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.1 LH
51073BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.2 RH
51074BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.2 LH
51100FFRAME SUB-ASSY
51201ACROSSMEMBER SUB-ASSY, FRAME, FRONT
51202CCROSSMEMBER SUB-ASSY, FRONT SUSPENSION, LOWER
51204CROSSMEMBER SUB-ASSY, FRAME, NO.3
51205CROSSMEMBER SUB-ASSY, FRAME, NO.4
51206BCROSSMEMBER SUB-ASSY, FRAME, NO.6
51207BCROSSMEMBER SUB-ASSY, FRAME, NO.7
51305BRACKET SUB-ASSY, REAR SPRING, FRONT RH
51306BRACKET SUB-ASSY, REAR SPRING, FRONT LH
51331GUSSET, FRAME NO.3 CROSSMEMBER, RH
51333RETAINER, FRAME NO.3 CROSSMEMBER, RH
51333ARETAINER, FRAME NO.3 CROSSMEMBER, RH
51341GUSSET, FRAME NO.4 CROSSMEMBER, RH
51342GUSSET, FRAME NO.4 CROSSMEMBER, LH
51371GUSSET, FRAME NO.7 CROSSMEMBER, NO.1
51401BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH
51402BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH
51501AREINFORCEMENT SUB-ASSY, FRONT SUSPENSION MEMBER, RH
51502AREINFORCEMENT SUB-ASSY, FRONT SUSPENSION MEMBER, LH
51505FSUPPORT SUB-ASSY, UPPER CONTROL ARM, RH
51506FSUPPORT SUB-ASSY, UPPER CONTROL ARM, LH
51605BRACKET SUB-ASSY, REAR BOUND STOPPER
51703BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH
51704BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH
51705ABRACKET SUB-ASSY, CAB MOUNTING, NO.3
51709ABRACKET SUB-ASSY, BODY REAR END MOUNTING
51963FHOOK, TRANSPORT
57105BREINFORCE SUB-ASSY, STRUT BAR BRACKET, RH
57106BREINFORCE SUB-ASSY, STRUT BAR BRACKET, LH
57107BRACKET SUB-ASSY, STRUT BAR, RH
57108BRACKET SUB-ASSY, STRUT BAR, LH
57123AREINFORCEMENT, STRUT BAR BRACKET, RH
57124AREINFORCEMENT, STRUT BAR BRACKET, LH
57125APLATE, STRUT BAR BRACKET, RH
57126APLATE, STRUT BAR BRACKET, LH
57135CBRACKET, STRUT BAR, LOWER RH
57136BBRACKET, STRUT BAR, LOWER LH
9017908025
9116281230
9165160825
9165161020
91651B0820
9165660825
9453101200
55 parts on this diagram · 1 diagram in section
