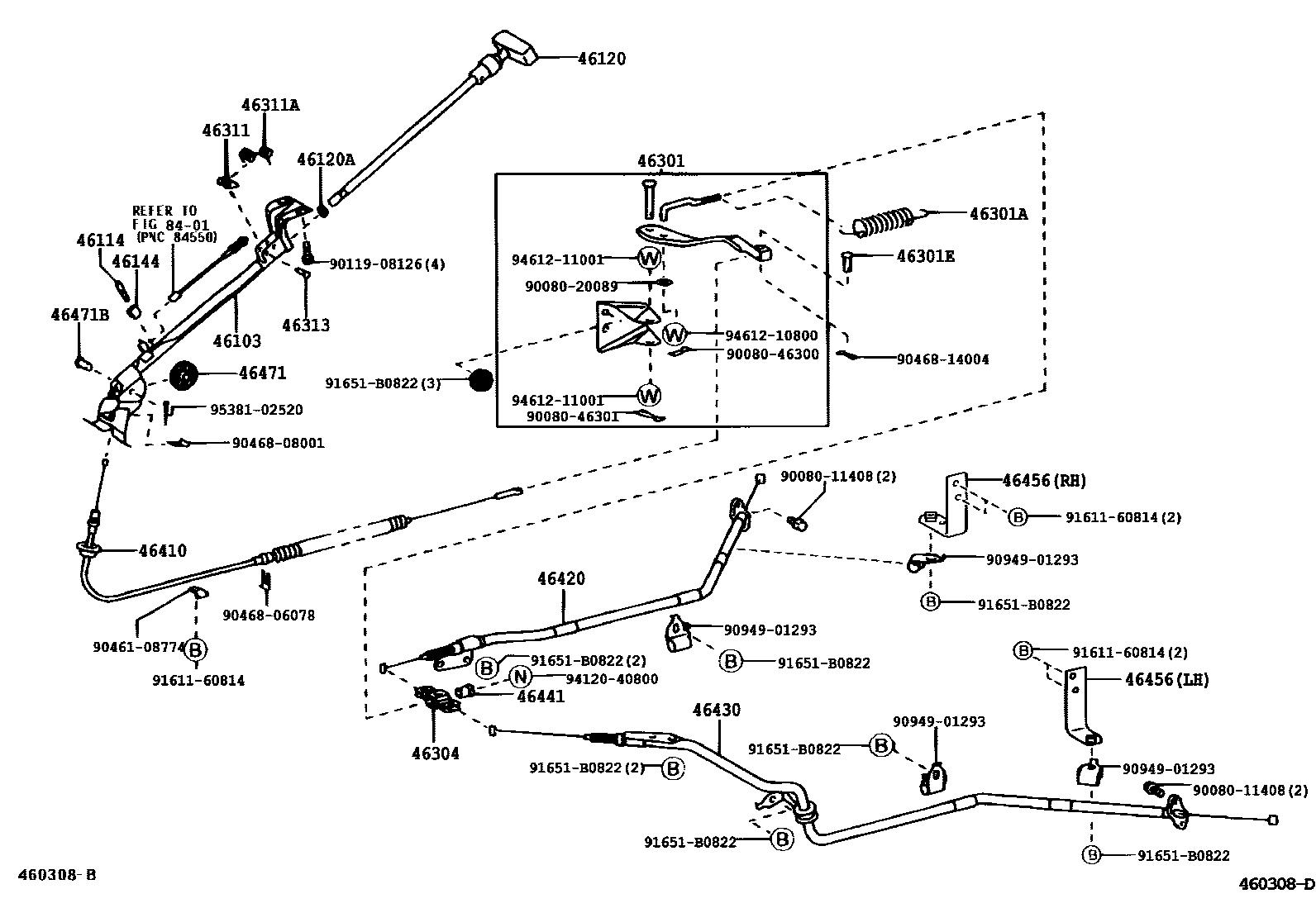

PARKING BRAKE & CABLE

46103GUIDE SUB-ASSY, PARKING BRAKE PLUNGER

main46103-0B011iLF50,RZF50199912

46114PIN, PARKING BRAKE PLUNGER

main46114-20010iLF50,RZF50199912

46120PLUNGER ASSY, PARKING BRAKE

main46120-27040iLF50,RZF50199912

46120ABUSH(FOR PARKING BRAKE PLUNGER)

main90386-12048iLF50,RZF50199912

46144ANTI-RATTLE, PARKING BRAKE PLUNGER

main46144-20010iLF50,RZF50199912

46301LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE

main46320-0B010iLF50,RZF50199912

46301ASPRING, TENSION(FOR INTERMEDIATE LEVER)

main90506-25007iLF50,RZF50199912

46301EPIN, W/HOLE(FOR INTERMEDIATE LEVER)

main90240-08062iLF50,RZF50199912

46304EQUALIZER SUB-ASSY, PARKING BRAKE

main46304-22020iLF50,RZF50199912

46311PAWL, PARKING BRAKE

main46311-0B020iLF50,RZF50199912

46311ASPRING(FOR PARKING BRAKE PAWL)

main90508-08106iLF50,RZF50199912

46313PIN, PARKING BRAKE PAWL

main46313-40010iLF50,RZF50199912

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-0B071iLF50,RZF50199912

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-0B020iLF50,RZF50199912-200412

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-0B020iLF50,RZF50199912-200412

46441NUT, WIRE ADJUSTING, NO.1

main46441-35010iLF50,RZF50199912

46456BRACKET, CABLE RETAINING

main46456-27130iLF50,RZF50199912

RH

main46457-27100iLF50,RZF50199912

LH

46471PULLEY, WIRE

main46471-20010iLF50,RZF50199912

46471BPIN, W/HOLE(FOR WIRE PULLEY SET)

main90240-08017iLF50,RZF50199912

8401

9008011408

main90080-11408

9008020089

main90080-20089

9008046300

main90080-46300

9008046301

main90080-46301

9011908126

main90119-08126

9046108774

main90461-08774

9046806078

main90468-06078

9046808001

main90468-08001

9046814004

main90468-14004

9094901293

main90949-01293

9161160814

main91611-60814

91651B0822

main91651-B0822

9412040800

main94120-40800

9461210800

main94612-10800

9461211001

main94612-11001

9538102520

main95381-02520

36 parts on this diagram · 1 diagram in section
