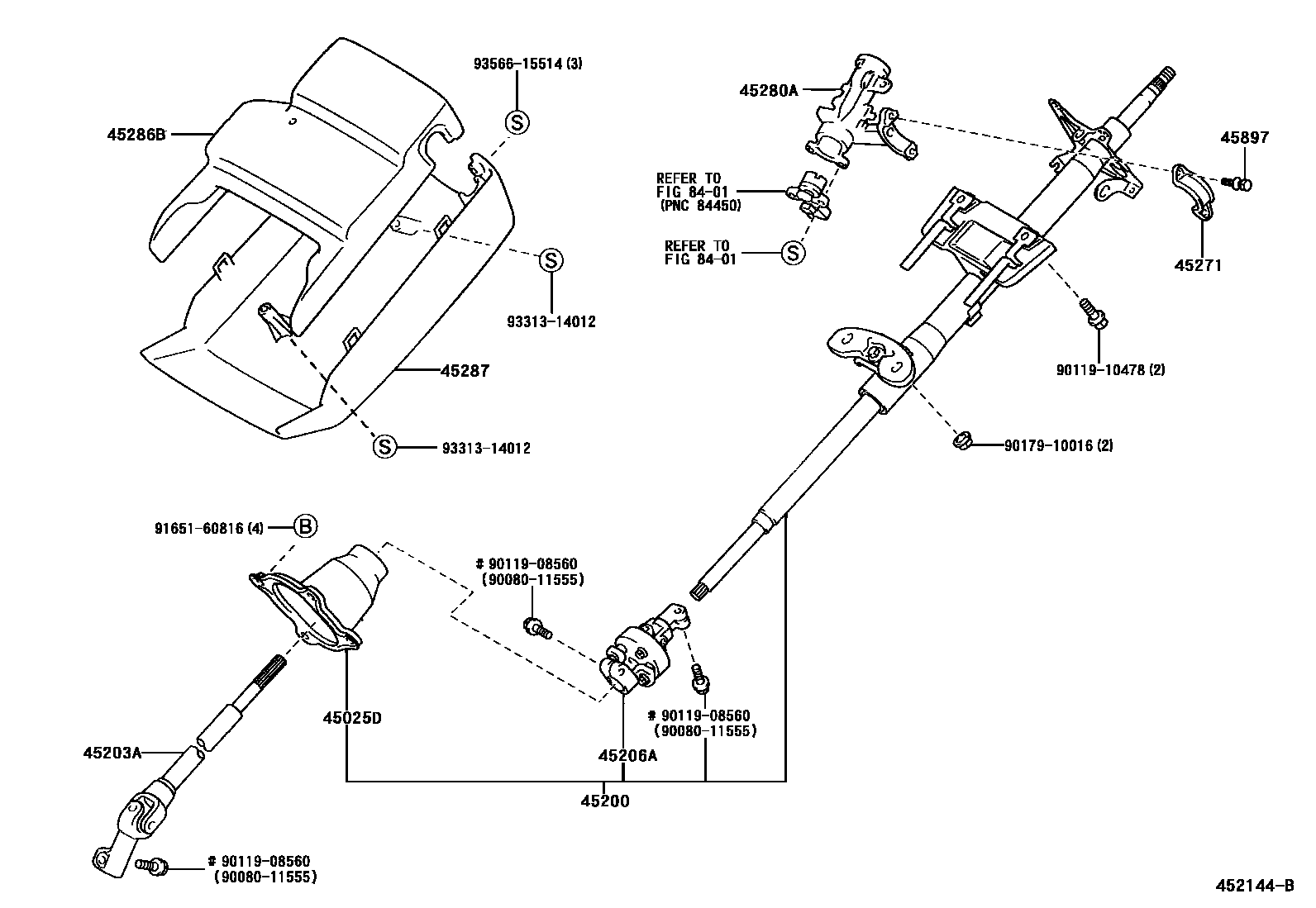

STEERING COLUMN & SHAFT

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-0B020iLF50,RZF50199912-200305

sub45025-0B021

main45025-0B021iLF50,RZF50200305-200412

45200POST ASSY, STEERING

main45200-0B010iLF50;RZF50..STD199912-200412

main45200-0B020iRZF50..DLX,GL200201-200412

main45200-0B020iRZF50..STD200304-200412

W(POWER STEERING)

45203ASHAFT, STEERING INTERMEDIATE, NO.2

main45203-0B010iLF50,RZF50..STD199912-200412

main45203-0B020iLF50,RZF50..STD199912-200412

W(POWER STEERING)

45206AYOKE SUB-ASSY, STEERING SLIDING W/COUPLING

main45206-0B010iLF50;RZF50..STD199912-200412

main45206-0B020iRZF50..DLX,GL200201-200412

main45206-0B020iRZF50..STD200304-200412

W(POWER STEERING)

45271CLAMP, STEERING COLUMN, UPPER

main45271-16020iLF50,RZF50199912-200412

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-0B030iLF50,RZF50200112-200412

(L)

main45280-12321iLF50,RZF50199912-200412

(J)

sub45280-12341

45286BCOVER, STEERING COLUMN, UPR

main45286-0B030-B0iLF50,RZF50199912-200412

BLUISH GRAY,TRIM1#

45287COVER, STEERING COLUMN, LWR

main45287-0B030-B0iLF50,RZF50199912-200412

BLUISH GRAY,TRIM1#

45897BOLT, STEERING LOCK SET

main45897-12020iLF50,RZF50199912-200412

8401

9008011555

main90080-11555

9011908560

main90119-08560

9011910478

main90119-10478

9017910016

main90179-10016

9165160816

main91651-60816

9331314012

main93313-14012

9356615514

main93566-15514

17 parts on this diagram · 1 diagram in section
