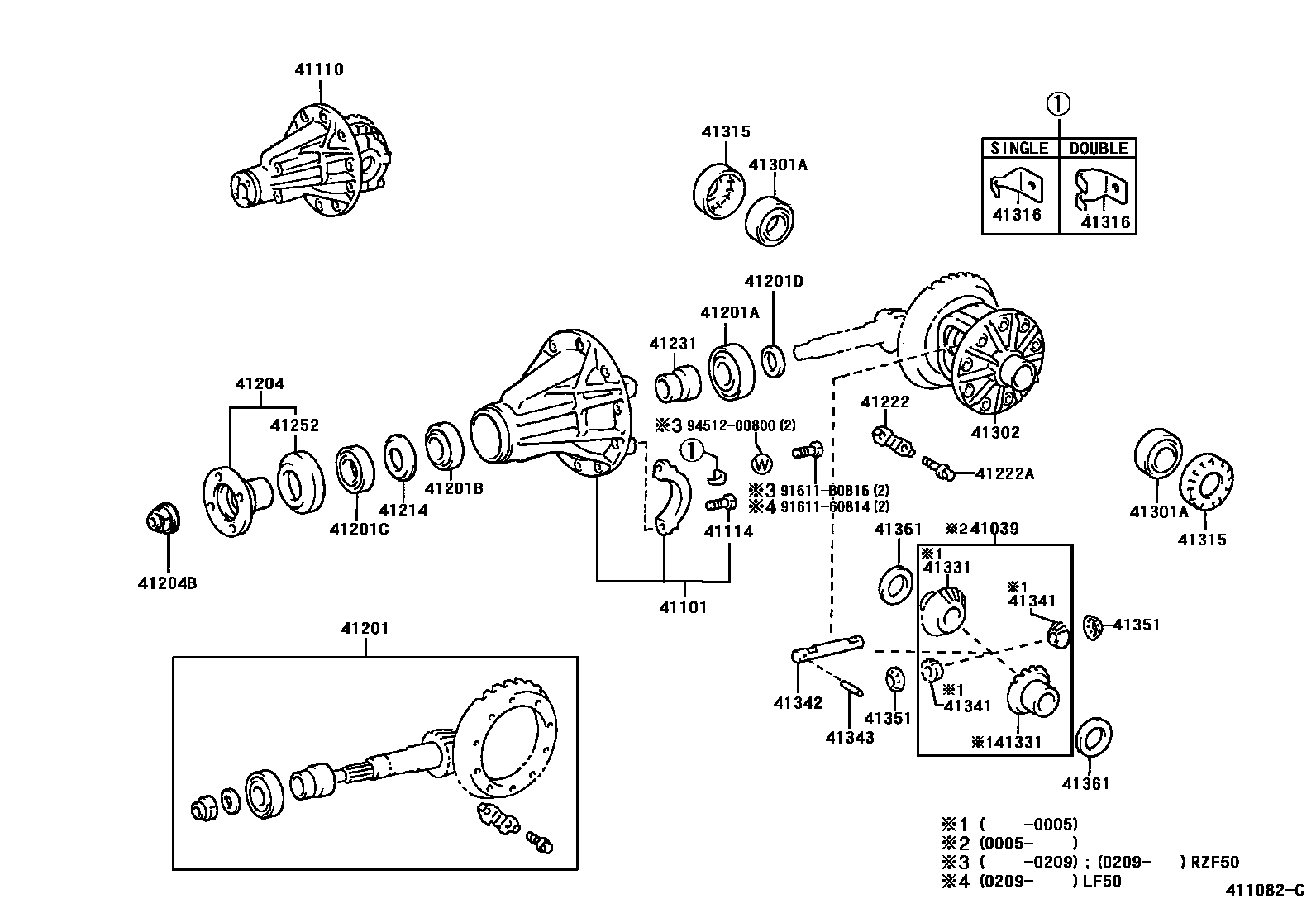

REAR AXLE HOUSING & DIFFERENTIAL
41039GEAR KIT, DIFFERENTIAL, REAR
41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR
(L)
(J)
41110CARRIER ASSY, DIFFERENTIAL, REAR
*FGR=41:10=4.100,(L)
*FGR=41:9=4.555
*FGR=41:10=4.100,(J)
41114BOLT, REAR DIFFERENTIAL BEARING CAP
41201FINAL GEAR KIT, DIFFERENTIAL, REAR
*FGR=41:9=4.556
*FGR=41:10=4.100
41201ABEARING (FOR REAR DRIVE PINION REAR)
MARK HR32307
MARK STF32307
41201BBEARING (FOR REAR DRIVE PINION FRONT)
41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)
41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)
T=2.36,MARK 05
T=2.39,MARK 06
T=2.42,MARK 07
T=2.43,MARK 08
T=2.48,MARK 09
T=2.51,MARK 10
T=2.54,MARK 11
T=2.57,MARK 12
T=2.60,MARK 13
T=2.63,MARK 14
T=2.66,MARK 15
T=2.69,MARK 16
T=2.72,MARK 17
OD=47,T=2.24,MARK 01
OD=47,T=2.27,MARK 02
OD=47,T=2.30,MARK 03
OD=47,T=2.33,MARK 04
41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR
(L)
(J)
41204BNUT (FOR REAR DRIVE PINION)
OD=33.5
41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL
41222PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK
41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)
41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING
41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)
41301ABEARING(FOR REAR DIFFERENTIAL CASE)
41302CASE SUB-ASSY, REAR DIFFERENTIAL
(L)
41315NUT, REAR DIFFERENTIAL BEARING ADJUSTING
41316LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT
SINGLE TYPE
DOUBLE TYPE
41331GEAR, REAR DIFFERENTIAL SIDE
41341PINION, REAR DIFFERENTIAL
sub41341-30050
41343PIN, REAR DIFFERENTIAL PINION SHAFT
41351WASHER, REAR DIFFERENTIAL PINION THRUST
41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=1.0
T=1.1
T=1.2
T=1.3
9161160814
main91611-60814
91611B0816
main91611-B0816
9451200800
main94512-00800
29 parts on this diagram · 2 diagrams in section
