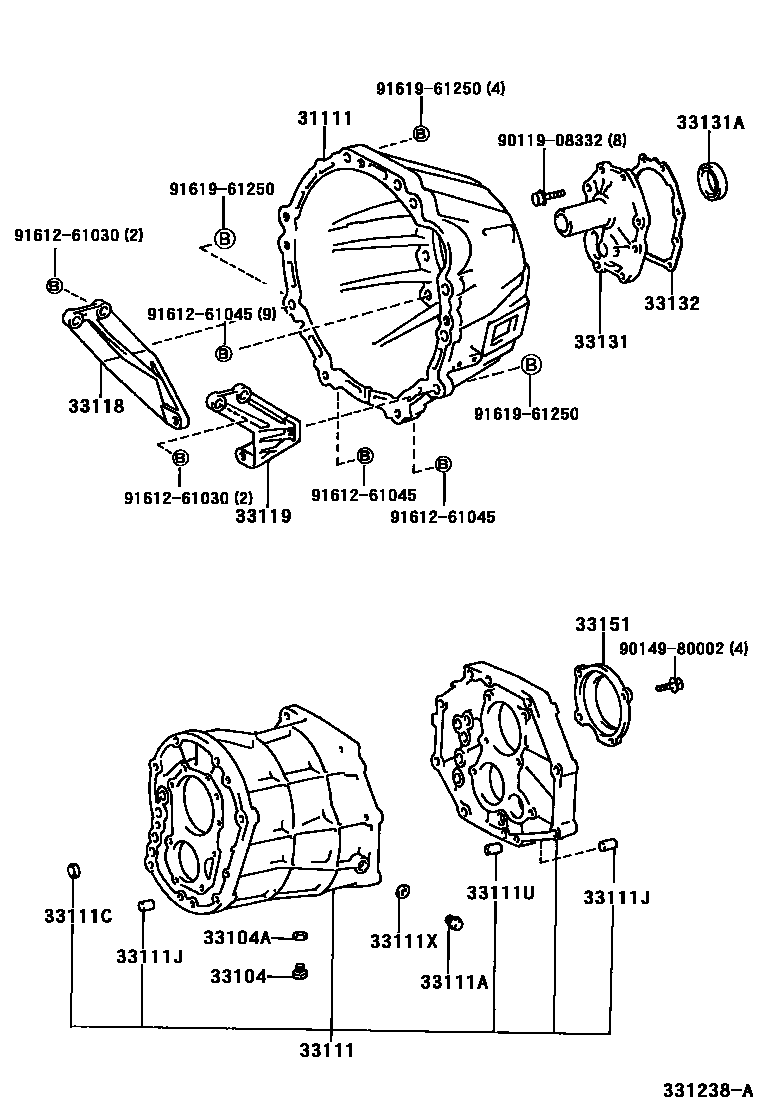

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1G58 0002 1G58 0003 1G58

31111HOUSING, CLUTCH

main31111-0W050iLF50200006-200412

TAP:REFER TO ILLUSTRATION

sub31111-22114

main31111-22114iLF50199912-200006

TOYOTA:REFER TO ILLUSTRATION

main31111-26032iRZF50200201-200412

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18057iLF50,RZF50199912-200412

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iLF50,RZF50199912-200412

33111CASE, MANUAL TRANSMISSION

main33101-0K020iLF50,RZF50200006-200412

TAP:REFER TO ILLUSTRATION

sub33101-71020

main33101-35050iLF50199912-200006

TOYOTA:REFER TO ILLUSTRATION

sub33101-35051

33111APLUG, MANUAL TRANSMISSION CASE

main90341-18006iLF50,RZF50199912-200412

33111CPLUG(FOR TRANSMISSION CASE)

main90331-14004iLF50,RZF50199912-200412

OD=14

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-12002iLF50,RZF50199912-200412

L=16,OD=12

33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)

main90253-15001iLF50,RZF50199912-200412

L=14,OD=15

33111XGASKET, TRANSMISSION CASE PLUG

main90430-18008iLF50,RZF50199912-200412

33118PLATE, STIFFENER, RH(MTM)

main33118-0B010iLF50199912

main33118-26011iRZF50200201

33119PLATE, STIFFENER, LH(MTM)

main33119-0B010iLF50199912

main33119-26021iRZF50200201

33131RETAINER, BEARING, FRONT(MTM)

main33131-0W020iRZF50200201-200412

main33131-0W020iLF50200006-200412

TAP:REFER TO ILLUSTRATION

main33131-26020iLF50199912-200006

TOYOTA:REFER TO ILLUSTRATION

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90311-30014iLF50,RZF50199912-200412

33132GASKET, FRONT BEARING RETAINER(MTM)

main33132-28010iLF50,RZF50199912-200412

33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)

main33151-35030iLF50,RZF50199912-200412

9011908332

main90119-08332

9014980002

main90149-80002

9161261030

main91612-61030

9161261045

main91612-61045

9161961250

main91619-61250

20 parts on this diagram · 3 diagrams in section
