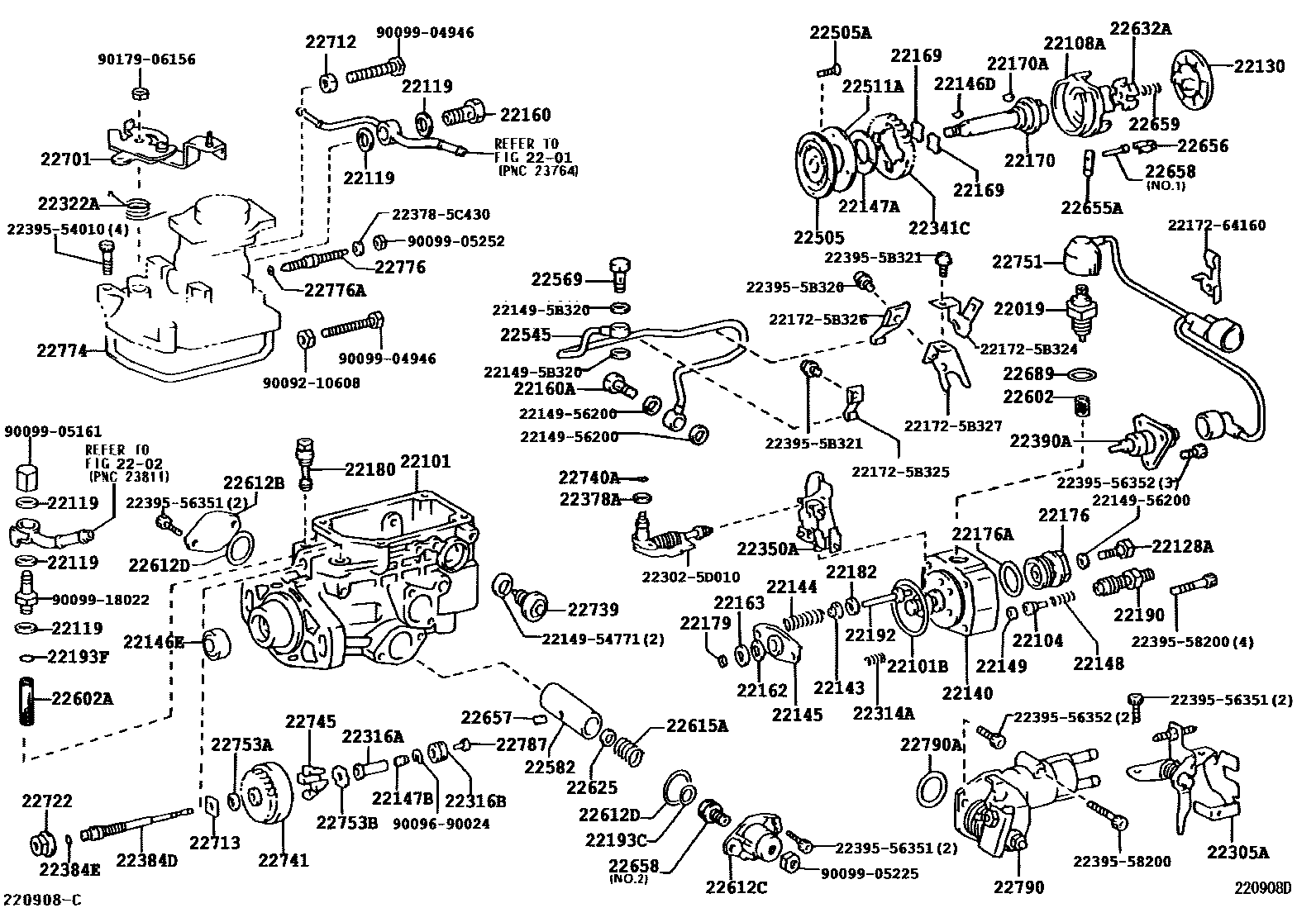

INJECTION PUMP BODY
2201
22019SOLENOID ASSY, FUEL CUT
2202
22101HOUSING SUB-ASSY, INJECTION PUMP
W(EGR)
22101BRING, O(FOR INJECTION PUMP HOUSING)
22104VALVE SUB-ASSY, INJECTION PUMP DELIVERY
22108ARING SUB-ASSY, ROLLER
22119WASHER, AIR BLEEDER NIPPLE
22128ABOLT, DISTRIBUTIVE HEAD
22130CAMPLATE SUB-ASSY, FACE
W(EGR)
22140HEAD SUB-ASSY, DISTRIBUTIVE PUMP
W(EGR)
22143SEAT, SPRING UPPER
22144SPRING, PUMP PLUNGER
22145SEAT, SPRING, LOWER
22146DKEY(FOR DRIVE GEAR)
22146ESEAL(FOR DRIVE SHAFT)
22147AWASHER, DRIVE SHAFT
22147BRING, GOVERNOR SLEEVE
22148SPRING, DELIVERY VALVE
22149GASKET, DELIVERY VALVE
22160SCREW SUB-ASSY, OVERFLOW
22160ASCREW SUB-ASSY, OVER FLOW, NO.2
22162PLATE, PLUNGER UPPER
22163PLATE, PLUNGER LOWER
22169JOINT, RUBBER
22170SHAFT SUB-ASSY, DRIVE
W(EGR)
W(EGR)
22170AKEY(FOR DRIVE SHAFT)
22176PLUG, DISTRIBUTIVE HEAD
22176ARING, O(FOR DISTRIBUTIVE HEAD PLUG)
22179SHIM, PLUNGER ADJUSTING
T=1.9
T=2.0
T=2.1
T=2.2
T=2.3
T=2.4
T=2.5
T=2.6
T=2.7
T=2.8
T=2.9
22180VALVE SUB-ASSY, REGULATOR
22182PLATE, TAPPET ADJUSTING SHIM
T=0.5
T=0.8
T=1.0
T=1.2
T=1.5
T=1.8
T=2.0
22190VALVE SUB-ASSY, SNUBBER
22192GUIDE SUB-ASSY, PLUNGER SPRING
22193RING, O(FOR LEVER CONNECTING PIN)
22193CRING, O(FOR TIMER COVER STOPPER)
22193FRING, O(FOR FUEL INJECTION PUMP FILTER)
22305AIDLE-UP SUB-ASSY
W(EGR)
22314ASPRING, LEVER SUPPORT
22316ASLEEVE, GOVERNOR
ID=0.50
W(EGR)
ID=0.60
22316BBEARING, BALL(FOR GOVERNOR SLEEVE)
22322ASPRING, RETURN
W(EGR)
22341CGEAR, GOVERNOR DRIVE
22350AGOVERNOR ASSY, TORQUE CONTROL
22378AWASHER, GOVERNOR THRUST
22384DSHAFT, GOVERNOR
W(EGR)
22384ERING, O(FOR GOVERNOR MAIN SHAFT)
22390ASOLENOID ASSY, FUEL CUT
W(EGR)
22505PUMP SUB-ASSY, FUEL FEED
22505ASCREW(FOR FUEL FEED PUMP)
22511ACOVER, FEED PUMP
22545NIPPLE, SWIVEL(FOR INJECTION PUMP INLET)
22569SCREW, OVERFLOW
22582PISTON ASSY, TIMER
W(EGR)
22602FILTER SUB-ASSY, FUEL INJECTION PUMP
W(EGR),NO.2
22602AFILTER SUB-ASSY, FUEL INJECTION PUMP, NO.2
22612BCOVER, TIMER
22612CCOVER, TIMER
22612DRING, O(FOR TIMER COVER)
22615ASPRING, TIMER OUTER
K=1.7,L=27.9,NO.2
K=0.13,L=35.1,NO.1
K=0.10,L=38.4,NO.1
K=0.11,L=37.6,NO.1
K=0.12,L=35.9,NO.1
K=0.14,L=35.0,NO.1
22625WASHER, TIMER SENSOR ADJUSTING
22632ACOUPLING, INJECTION PUMP
22655APIN, TIMER SLIDE
22656CLIP, TIMER
22657CLIP, TIMER
22658STOPPER, TIMER
NO.2
NO.1
22659SPRING, COUPLING
22689WASHER(FOR SWIVEL NIPPLE)
W(EGR),NO.2
22701LEVER SUB-ASSY, ADJUSTING
MARK 659
MARK 660
W(EGR),MARK 667
W(EGR),MARK 668
22712NUT, ROCK
22713WASHER, GOVERNOR GEAR ADJUSTING
T=1.05
T=1.25
T=1.45
T=1.65
T=1.85
22722NUT, GOVERNOR SHAFT ROCK
22739BOLT, GOVERNOR LINK SUPPORT
22740ARING, O(FOR GOVERNOR ADJUSTING SHAFT)
22741HOLDER SUB-ASSY, FLYWEIGHT
22745FLYWEIGHT, DISTRIBUTIVE PUMP
W(EGR)
22751WIRE SUB-ASSY, FUEL CUT SOLENOID
22753AWASHER, FLYWEIGHT, NO.1
22753BWASHER, FLYWEIGHT, NO.2
22774GASKET, GOVERNOR COVER
22776SCREW, SMOKE SET ADJUSTING
22776ARING, O(FOR SMOKE SET SCREW)
22787PLUG, GOVERNOR SLEEVE
L=3.3
L=3.4
L=3.5
L=3.6
L=3.7
L=3.8
L=3.9
L=4.0
L=4.1
L=3.0
L=3.1
L=3.2
L=4.2
22790COVER SUB-ASSY, TIMER
W(EGR)
22790ARING, O(FOR TIMER COVER)
2214954771GASKET, DELIVERY VALVE
main22149-54771
2214956200GASKET, DELIVERY VALVE
main22149-56200
221495B320GASKET, DELIVERY VALVE
main22149-5B320
221725B324CLIP, CONNECTOR SUPPORT, SOLENOID
main22172-5B324
221725B325CLIP, CONNECTOR SUPPORT, SOLENOID
main22172-5B325
221725B326CLIP, CONNECTOR SUPPORT, SOLENOID
main22172-5B326
221725B327CLIP, CONNECTOR SUPPORT, SOLENOID
main22172-5B327
2217264160CLIP, CONNECTOR SUPPORT, SOLENOID
main22172-64160
223025D010SHAFT SUB-ASSY, SPEED CONTROL
main22302-5D010
223785C430WASHER, DRAIN SCREW
main22378-5C430
2239554010BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)
main22395-54010
2239556351BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)
main22395-56351
2239556352BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)
main22395-56352
2239558200BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)
main22395-58200
223955B320BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)
main22395-5B320
223955B321BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)
main22395-5B321
9009210608
main90092-10608
9009690024
main90096-90024
9009904946
main90099-04946
9009905161
main90099-05161
9009905225
main90099-05225
9009905252
main90099-05252
9009918022
main90099-18022
9017906156
main90179-06156
109 parts on this diagram · 6 diagrams in section
