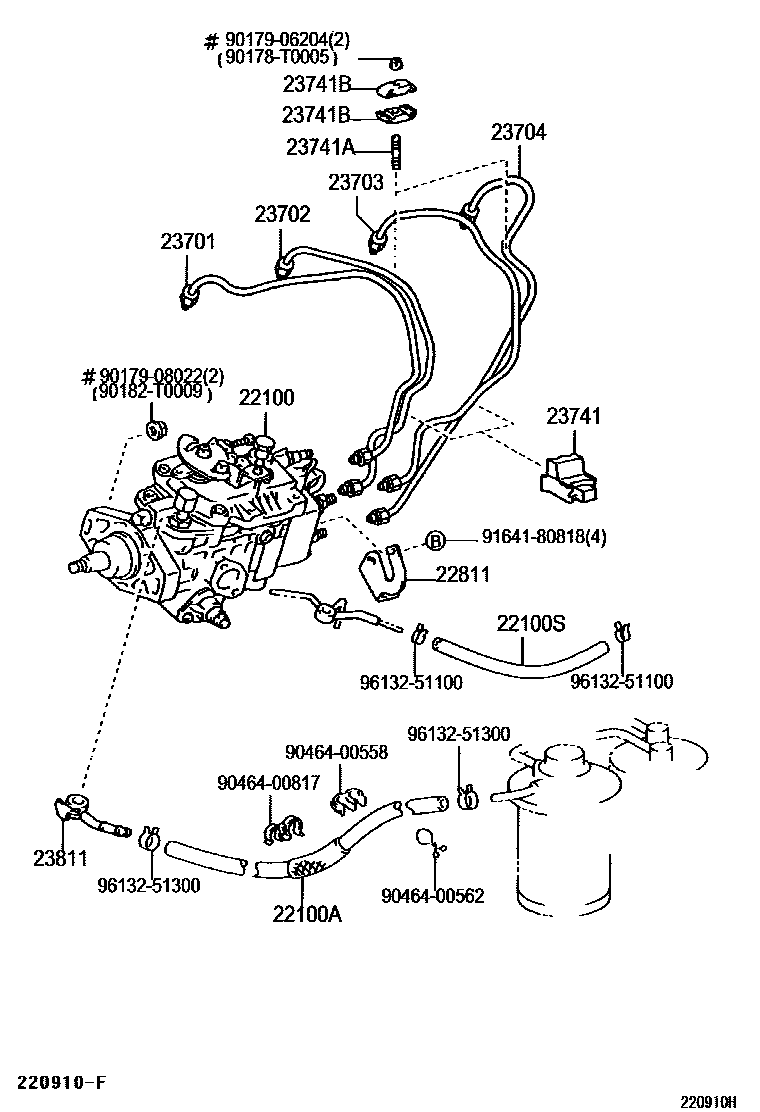

INJECTION PUMP ASSEMBLY

0001 1 0002 1

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-5D010i2L..LF50..GL199912-200412

main22100-5D190i2L..LF50200003-200412

W(EGR)

22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)

main23271-54130i2L..LF50199912-200010

main95333-08060i2L..LF50200010

L=600(*H,L=480)

22100SHOSE, FUEL(FOR INJECTION PUMP TO FUEL PIPE)

main23273-54070i2L..LF50199912

sub95333-06040

22811STAY, INJECTION PUMP, NO.1

main22811-05010i2L..LF50..GL199912-200403

(L)

main22811-54042i2L..LF50199912-200412

(J)

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-54140i2L..LF50199912-200412

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-54140i2L..LF50199912-200412

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-54100i2L..LF50199912-200412

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-54100i2L..LF50199912-200412

23741CLAMP, INJECTION PIPE, NO.1

main23741-54030i2L..LF50199912-200412

23741ABOLT, STUD(FOR INJECTION PIPE CLAMP)

main90080-11036i2L..LF50199912-200403

(L)

main90116-06095i2L..LF50199912-200412

(J)

23741BCLAMP, INJECTION PIPE

main23741-56010i2L..LF50199912-200412

23811PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)

main23811-05030i2L..LF50199912-200403

(L)

main23811-54172i2L..LF50199912-200412

(J)

90178T0005

main90178-T0005

9017906204

main90179-06204

9017908022

main90179-08022

90182T0009

main90182-T0009

9046400558

main90464-00558

9046400562

main90464-00562

9046400817

main90464-00817

9164180818

main91641-80818

9613251100

main96132-51100

9613251300

main96132-51300

22 parts on this diagram · 2 diagrams in section
