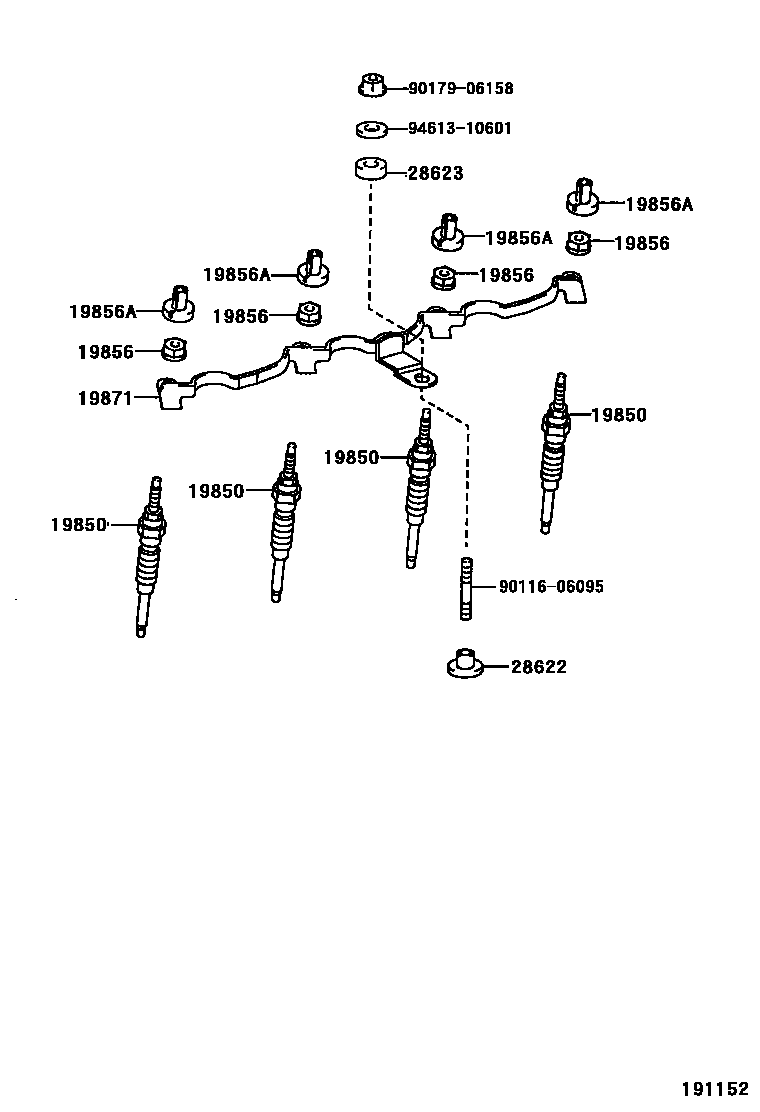

IGNITION COIL & SPARK PLUG / GLOW PLUG

0001 1 0002 1

19850PLUG ASSY, GLOW

main19850-05010×4i2L..LF50199912-200208

*BV-GV=12V-11V,(L)

main19850-05020×4i2L..LF50200208-200403

*BV-GV=12V-11V,(L)

main19850-54120×4i2L..LF50199912-200208

*BV-GV=12V-11V,(J)

main19850-54140×4i2L..LF50200208-200412

*BV-GV=12V-11V,(J)

19856NUT, CONNECTING(FOR GLOW PLUG)

main90179-04030×4i2L..LF50199912-200412

19856AGROMMET, SCREW(FOR, GLOW PLUG CONNECTOR)

main90189-04024×4i2L..LF50199912-200412

19871CONNECTOR, GLOW PLUG NO.1

main19871-05010i2L..LF50200208-200403

(L)

main19871-54020i2L..LF50199912-200208

28622INSULATOR, GLOW PLUG RESISTOR, NO.1

main28622-57010i2L..LF50199912

28623INSULATOR, GLOW PLUG RESISTOR, NO.2

main28623-54010i2L..LF50199912

9011606095

main90116-06095

9017906158

main90179-06158

9461310601

main94613-10601

9 parts on this diagram · 2 diagrams in section
