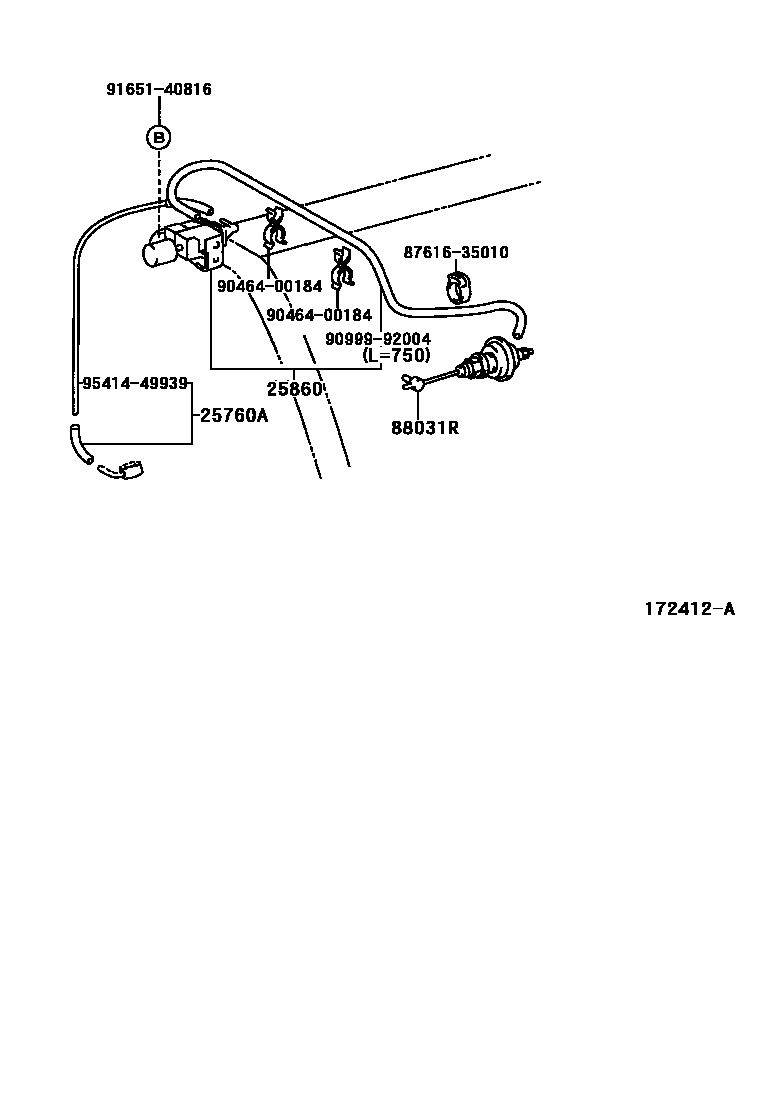

VACUUM PIPING

0001 1 0002 1W(EGR) 0003 1

25760AHOSE ASSY, VACUUM TRANSMITTING

main25760-54190i2L..LF50..GL199912-200209

W/O(EGR)

main25760-54200i2L..LF50..STD199912

W/O(AIR CONDITIONER) & W(EGR)

main25760-54210i2L..LF50199912

W(AIR CONDITIONER & EGR)

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-54240i2L..LF50199912

main25860-75130i1RZE..RZF50200201

88031RACTUATOR SET, IDLE-UP

main88031-26020iLF50199912

8761635010CLAMP, COOLING UNIT CASE

main87616-35010

9046400184

main90464-00184

9099992004

main90999-92004

9165140816

main91651-40816

9541449939

main95414-49939

8 parts on this diagram · 3 diagrams in section
