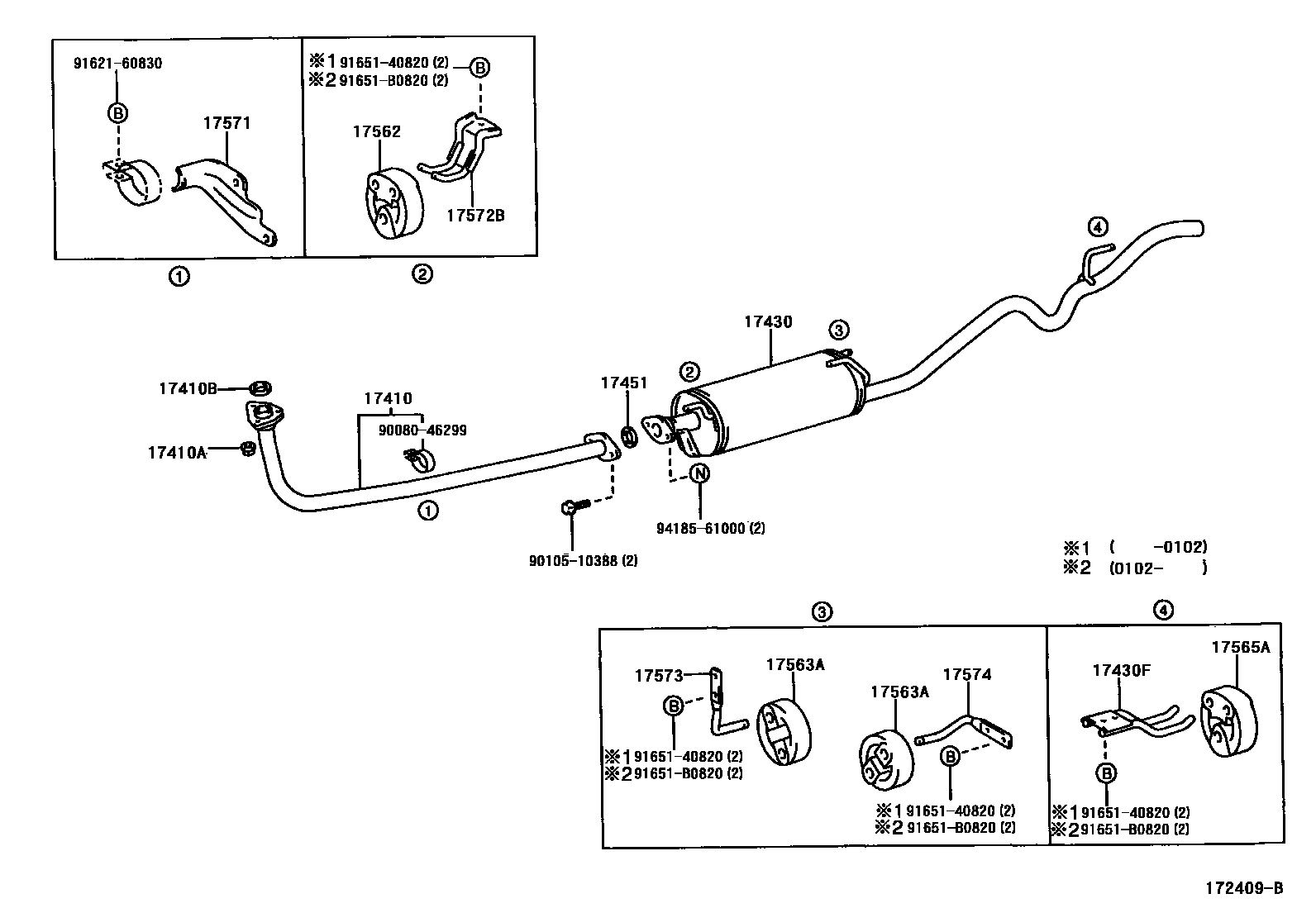

EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
17410ANUT, EXHAUST PIPE SET STUD BOLT
17430PIPE ASSY, EXHAUST, TAIL
17430FBRACKET, EXHAUST TAILPIPE(FOR CENTER)
(L)
(J)
17451GASKET, EXHAUST PIPE
NO.1
NO.2
17562SUPPORT, EXHAUST PIPE, NO.2
17563ASUPPORT, EXHAUST PIPE, NO.3
NO.1
NO.2
17565ASUPPORT, EXHAUST PIPE, NO.4
17571BRACKET, EXHAUST PIPE SUPPORT, NO.1
17572BBRACKET, EXHAUST PIPE SUPPORT, NO.2
(L)
(J)
17573BRACKET, EXHAUST PIPE NO.1 SUPPORT, LOWER
(L)
(J)
17574BRACKET, EXHAUST PIPE SUPPORT, NO.4
(L)
(J)
9008046299
main90080-46299
9010510388
main90105-10388
9162160830
main91621-60830
9165140820
main91651-40820
91651B0820
main91651-B0820
9418561000
main94185-61000
19 parts on this diagram · 3 diagrams in section
