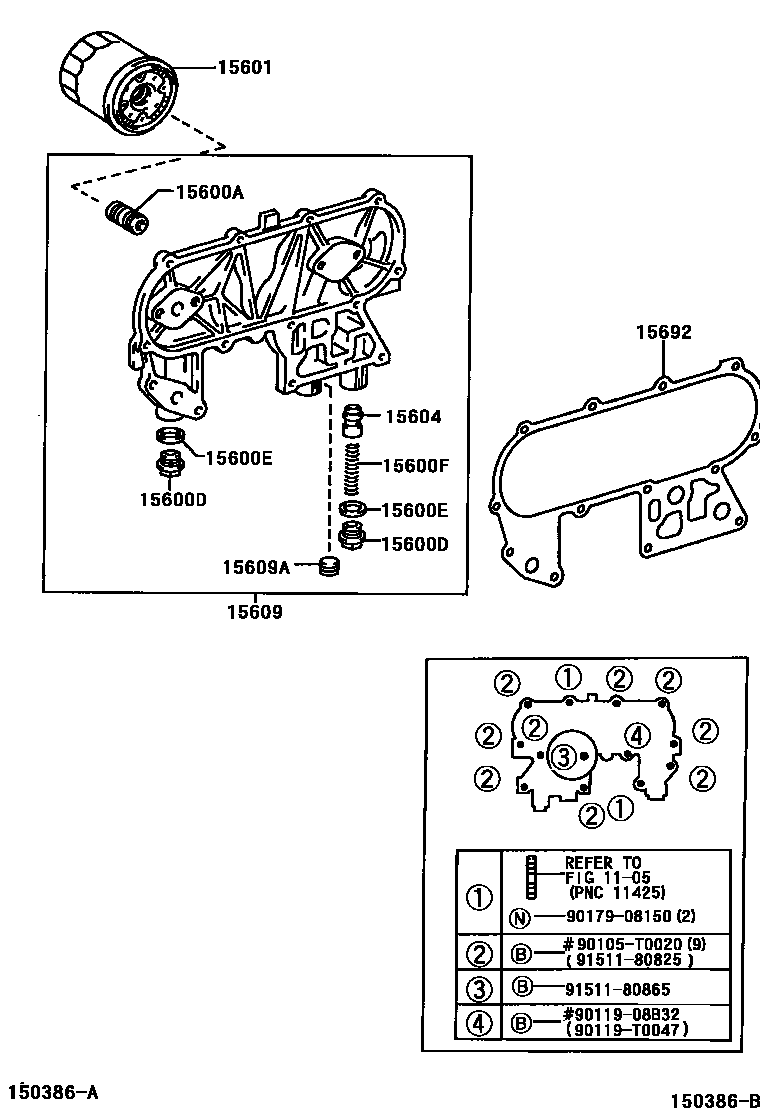

OIL FILTER

0001 1 0002 1W(EGR) 0003 1

1105

15600AUNION(FOR OIL FILTER)

main15116-54021i2L..LF50200003-200412

W(EGR)

main90404-19011i2L..LF50..GL199912-200412

15600DPLUG(FOR OIL FILTER)

main90341-18015i2L..LF50199912-200412

15600EWASHER(FOR OIL FILTER)

main90430-18029i2L..LF50199912-200412

15600FSPRING, COMPRESSION(FOR OIL FILTER)

main90501-16026i2L..LF50199912-200412

15601FILTER SUB-ASSY, OIL

main15600-41010i2L..LF50..GL199912-200412

(J)

sub90915-40002

main90080-91158i2L..LF50..GL199912-200403

(L)

sub90915-TD004

main90915-20003i1RZE..RZF50200201-200412

sub90915-20005

main90915-30002i2L..LF50200003-200412

W(EGR)

15604VALVE SUB-ASSY, OIL SAFETY

main15131-54010i2L..LF50199912-200412

15609BRACKET SUB-ASSY, OIL FILTER

main15609-54043i2L..LF50..GL199912-200412

main15609-54082i2L..LF50200003-200412

W(EGR)

main15609-75040i1RZE..RZF50200201-200412

15609APLUG, TAPER SCREW(FOR OIL FILTER BRACKET)

main90344-54004i2L..LF50199912-200412

15692GASKET, OIL FILTER BRACKET

main15692-05020i2L..LF50200003-200403

(L)

sub15692-54050

main15692-54050i2L..LF50199912-200412

(J)

90105T0020

main90105-T0020

9011908B32

main90119-08B32

90119T0047

main90119-T0047

9017908150

main90179-08150

9151180825

main91511-80825

9151180865

main91511-80865

16 parts on this diagram · 3 diagrams in section
