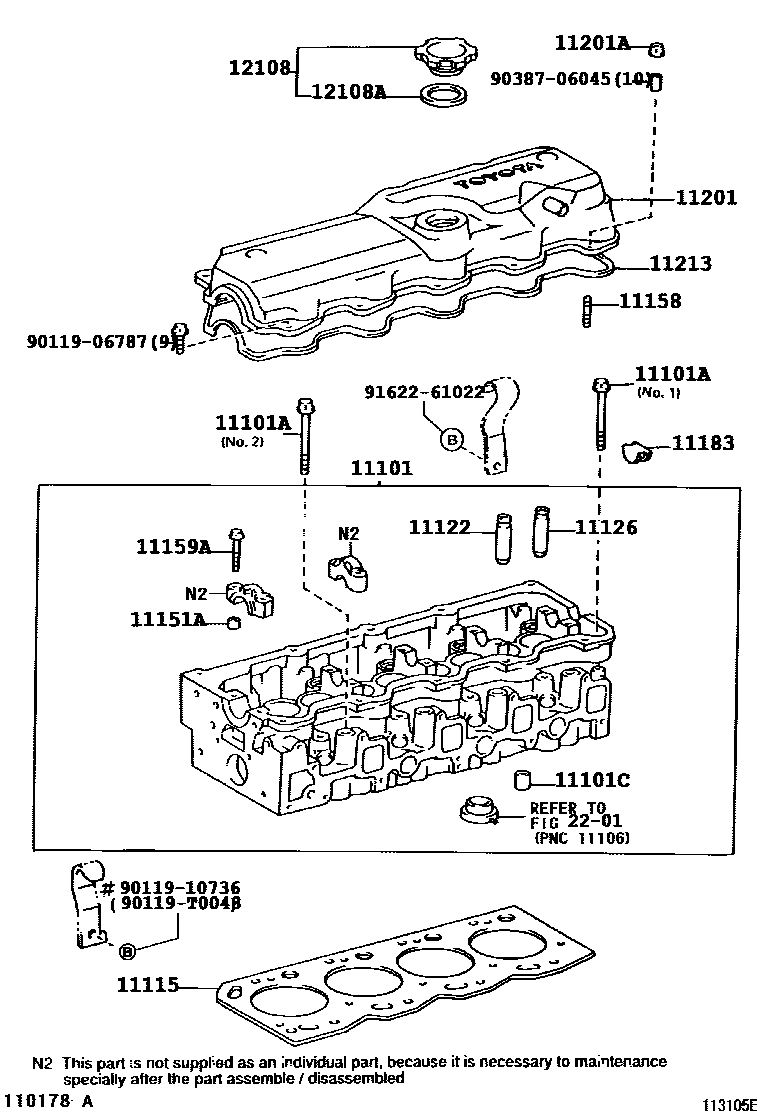

CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
(L)
(J)
W(EGR)
11101CTUBE(FOR CYLINDER HEAD)
11115GASKET, CYLINDER HEAD
MARK B,(L)
MARK D,(L)
MARK F,(L)
MARK B,MARK B,(J)
MARK D,MARK D,(J)
MARK F,MARK F,(J)
T=1.25
11122BUSH, INTAKE VALVE GUIDE
STD
O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
STD
O/S 0.05
11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
L=8,OD=11
11158BOLT, STUD(FOR HEAD TO CYLINDER HEAD COVER)
S=9 & 9,L=25
11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
(J)
11183PLUG, SEMICIRCULAR
11201COVER SUB-ASSY, CYLINDER HEAD
11201ANUT, CAP(FOR CYLINDER HEAD COVER)
11213GASKET, CYLINDER HEAD COVER
(L)
(J)
12108CAP SUB-ASSY, OIL FILLER
(L)
(J)
12108AGASKET(FOR OIL FILLER CAP)
2201
9011906787
main90119-06787
9011910736
main90119-10736
90119T0048
main90119-T0048
9038706045
main90387-06045
9162261022
main91622-61022
21 parts on this diagram · 2 diagrams in section
