EPC Data

SEAT & SEAT TRACK

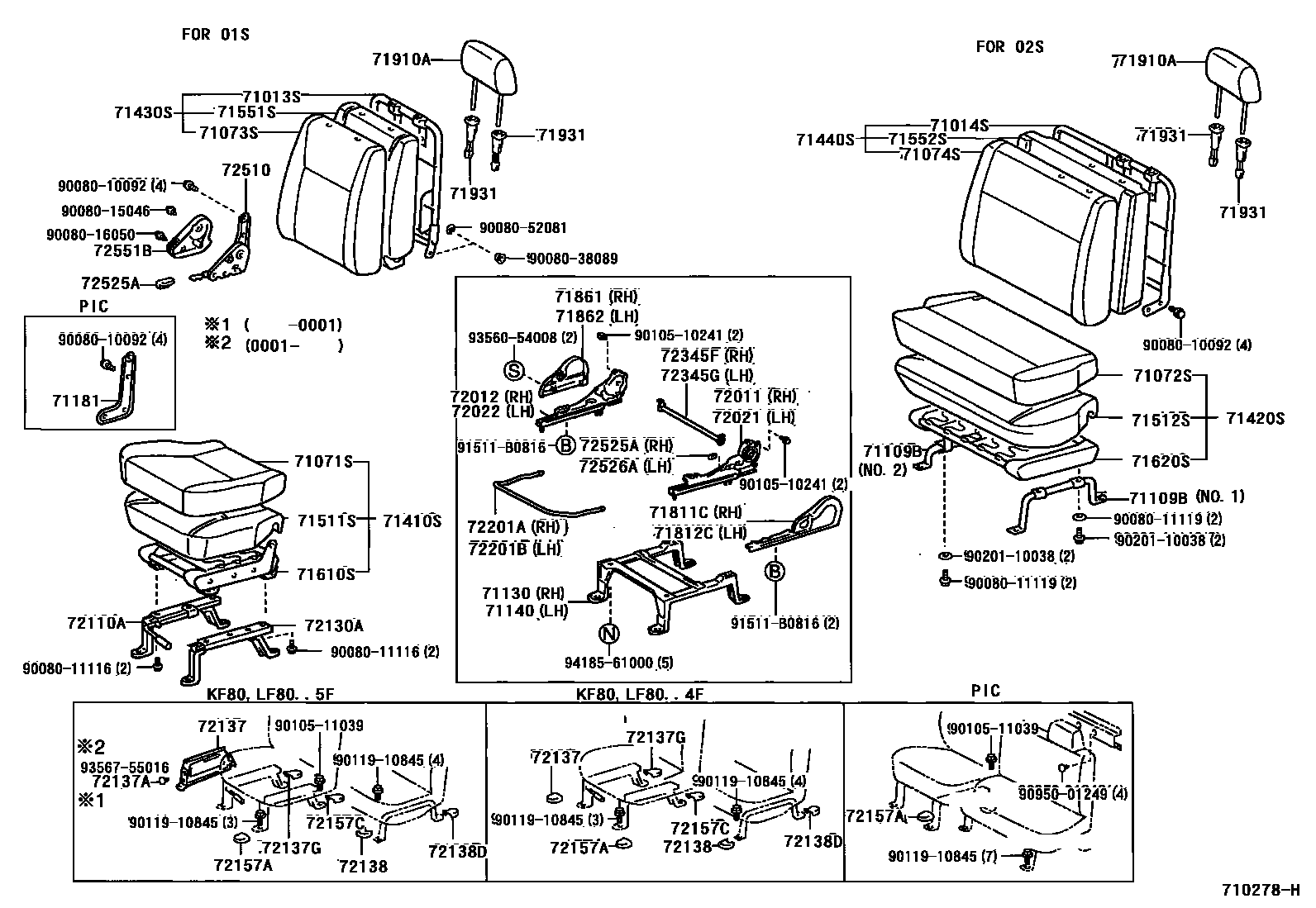

Parts diagram
71013SFRAME SUB-ASSY, FRONT SEATBACK, RH
main71013-0B010i199612-200612
main71013-0B020i199612-200212
main71013-0B030i199810-200411
main71013-0B040i199810-200411
main71013-0B060i200001-200208
main71013-0B080i200306-200503
main71013-0B090i200211-200411
main71014-0B060i199902-200302
main71630-0B020i200208-200406
71014SFRAME SUB-ASSY, FRONT SEATBACK, LH
main71013-0B060i200010-200208
main71013-0B060i200001-200208
W(SEPARATE TYPE HEADREST)
main71014-0B010i199612-200612
W(BENCH SEAT)
main71014-0B020i199612-200103
W(SEPARATE TYPE HEADREST)
main71014-0B030i199810-200211
main71014-0B060i199902-200302
main71014-0B090i200306-200503
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71071-0B010-B0i199612-200001
BLUISH GRAY,TRIM1#
main71071-0B011-B0i200001-200612
BLUISH GRAY,TRIM1#
main71071-0B020-B0i199612-200001
BLUISH GRAY,TRIM1#
main71071-0B021-B0i200001-200406
BLUISH GRAY,TRIM1#
main71071-0B030-B0i199612-199809
BLUISH GRAY,TRIM1#
main71071-0B031-B1i199809-200001
BLUISH GRAY,TRIM1#
main71071-0B032-B3i200001-200208
BLUISH GRAY,TRIM1#
main71071-0B040-B0i199612-200001
BLUISH GRAY,TRIM1#
main71071-0B041-B1i200001-200208
BLUISH GRAY,TRIM1#
main71071-0B050-B1i199804-200103
BLUISH GRAY,TRIM1#
main71071-0B060-B0i199804-200103
BLUISH GRAY,TRIM1#
main71071-0B061-B1i200103-200212
BLUISH GRAY,TRIM1#
main71071-0B140-B0i200306-200503
BLUISH GRAY,TRIM1#
main71071-0B170i200306-200503
main71071-0B200-B0i200003-200210
BLUISH GRAY,TRIM1#
main71071-0B200-B1i199911-200210
BLUISH GRAY,TRIM1#
main71071-0B210-B0i200208-200406
BLUEISH GRAY,TRIM1#
main71071-0B220-B1i200010-200208
BLUISH GRAY,TRIM1#
main71071-0B230-B0i200211-200411
BLUISH GRAY,TRIM1#
main71071-0B270-B0i200210-200612
BLUISH GRAY,TRIM1#
main71071-0B280i200102-200211
main71071-0B290i200102-200211
main71071-0B300-E0i200208-200406
FAWN,TRIM4#
main71071-0B320-E0i200208-200406
FAWN,TRIM4#
main71071-0B360-E0i200208-200406
LUXURY,FAWN,TRIM4#
main71071-0B380-E0i200212-200503
SEAT = TYPE A-*104,FAWN,TRIM4#
main71071-0B390-E1i200212-200503
SEAT = TYPE B-*104,FAWN,TRIM4#
main71071-0B400-B0i200211-200411
BLUEISH GRAY,TRIM1#
main71071-0B410-E0i200211-200411
SEAT = TYPE A-*104,FAWN,TRIM4#
main71071-0B420-E1i200211-200411
SEAT = TYPE A-*104,FAWN,TRIM4#
main71071-0B430-E2i200211-200411
SEAT = TYPE B-*104,FAWN,TRIM4#
main71071-0B430-E3i200211-200411
SEAT = TYPE B-*104,FAWN,TRIM4#
main71071-0B450-B0i200306-200503
SEAT = TYPE A-*104 & W(SEPARATE SEAT(1+1 TYPE)),BLUISH GRAY,TRIM1#
main71071-0B460-E0i200306-200503
SEAT = TYPE A-*104,FAWN,TRIM4#
main71071-0B470-B0i200306-200503
SEAT = TYPE A-*104 & W(SEPARATE SEAT(1+2 TYPE)),BLUISH GRAY,TRIM1#
main71071-0B470-E0i200306-200503
SEAT = TYPE A-*104 & W(SEPARATE SEAT(1+2 TYPE)),FAWN,TRIM4#
main71071-YD010-E0i200210-200707
FAWN,TRIM4#
main71071-YG010i200306-200503
SEAT = TYPE B-*104
main71071-YG020-E0i200306-200503
SEAT = TYPE B-*104,FAWN,TRIM4#
main71072-0B140-B0i199902-200210
BLUISH GRAY,TRIM1#
sub71072-0B141
main71072-0B141-B0i200210-200707
BLUISH GRAY,TRIM1#
main71072-0B150-B0i199902-200210
BLUISH GRAY,TRIM1#
main71072-0B160-B1i199902-200210
BLUISH GRAY,TRIM1#
main71072-0B220i199909-200302
main71072-0B230i199909-200302
main71072-0B380-B0i200210-200707
BLUEISH GRAY,TRIM1#
main71072-0B400-B1i200302-200601
BLUISH GRAY,TRIM1#
main71072-0B410-B1i200302-200601
BLUISH GRAY,TRIM1#
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71071-0B021-B0i200001-200406
BLUISH GRAY,TRIM1#
main71071-0B032-B3i200001-200208
BLUISH GRAY,TRIM1#
main71071-0B041-B1i200001-200208
BLUISH GRAY,TRIM1#
main71071-0B140-B0i200306-200503
BLUISH GRAY,TRIM1#
main71071-0B210-B0i200208-200406
BLUEISH GRAY,TRIM1#
main71071-0B220-B1i200010-200208
BLUISH GRAY,TRIM1#
main71071-0B310-E0i200208-200406
FAWN,TRIM4#
main71071-0B330-E0i200208-200406
FAWN,TRIM4#
main71071-0B370-E0i200208-200406
LUXURY,FAWN,TRIM4#
main71071-0B380-E0i200212-200503
SEAT = TYPE A-*104,FAWN,TRIM4#
main71071-0B390-E1i200212-200503
SEAT = TYPE B-*104,FAWN,TRIM4#
main71071-0B450-B0i200306-200503
SEAT = TYPE A-*104,BLUISH GRAY,TRIM1#
main71071-0B450-E0i200306-200503
SEAT = TYPE A-*104 & W(SEPARATE SEAT(1+1 TYPE)),FAWN,TRIM4#
main71071-0B460-E0i200306-200503
SEAT = TYPE A-*104 & W(SEPARATE SEAT(1+1 TYPE)),FAWN,TRIM4#
main71071-YG010i200306-200503
SEAT = TYPE B-*104
main71072-0B010-B0i199612-200001
W(BENCH SEAT),BLUISH GRAY,TRIM1#
main71072-0B011-B0i200001-200612
W(BENCH SEAT),BLUISH GRAY,TRIM1#
main71072-0B020-B0i199612-200001
BLUISH GRAY,TRIM1#
main71072-0B030-B0i199612-199809
BLUISH GRAY,TRIM1#
main71072-0B031-B1i199809-200001
BLUISH GRAY,TRIM1#
main71072-0B040-B0i199612-200001
BLUISH GRAY,TRIM1#
main71072-0B050-B0i200306-200503
BLUISH GRAY,TRIM1#
main71072-0B060-B0i199612-199809
W(BENCH SEAT),BLUISH GRAY,TRIM1#
main71072-0B061-B1i199809-200001
W(BENCH SEAT),BLUISH GRAY,TRIM1#
main71072-0B062-B3i200001-200208
W(BENCH SEAT),BLUISH GRAY,TRIM1#
main71072-0B070-B0i199612-200001
W(BENCH SEAT),BLUISH GRAY,TRIM1#
main71072-0B071-B1i200001-200208
W(BENCH SEAT),BLUISH GRAY,TRIM1#
main71072-0B090-B2i199804-200103
BLUISH GRAY,TRIM1#
main71072-0B100-B0i199804-200103
BLUISH GRAY,TRIM1#
main71072-0B101-B1i200103-200212
BLUISH GRAY,TRIM1#
main71072-0B110-B0i200211-200411
BLUISH GRAY,TRIM1#
main71072-0B140-B0i199902-200210
BLUISH GRAY,TRIM1#
sub71072-0B141
main71072-0B141-B0i200210-200707
BLUISH GRAY,TRIM1#
main71072-0B150-B0i199902-200210
BLUISH GRAY,TRIM1#
main71072-0B160-B1i199902-200210
BLUISH GRAY,TRIM1#
main71072-0B220i199909-200302
main71072-0B230i199909-200302
main71072-0B280-B0i199911-200210
BLUISH GRAY,TRIM1#
main71072-0B280-B1i200003-200210
BLUISH GRAY,TRIM1#
main71072-0B300i200102-200211
main71072-0B310i200102-200211
main71072-0B320-B0i200208-200406
PAPUA NEW GUINEA SPEC OR FIJI SPEC,BLUEISH GRAY,TRIM1#
main71072-0B330-E0i200208-200406
PAPUA NEW GUINEA SPEC OR FIJI SPEC,FAWN,TRIM4#
main71072-0B340-B0i200211-200411
BLUEISH GRAY,TRIM1#
main71072-0B350-E0i200211-200411
SEAT = TYPE A-*104,FAWN,TRIM4#
main71072-0B360-E1i200211-200411
SEAT = TYPE A-*104,FAWN,TRIM4#
main71072-0B370-E2i200211-200411
SEAT = TYPE B-*104,FAWN,TRIM4#
main71072-0B370-E3i200211-200411
SEAT = TYPE B-*104,FAWN,TRIM4#
main71072-0B380-B0i200210-200707
BLUEISH GRAY,TRIM1#
main71072-0B390-B1i200210-200612
BLUEISH GRAY,TRIM1#
main71072-0B400-B1i200302-200601
BLUISH GRAY,TRIM1#
main71072-0B420-B1i200302-200601
BLUISH GRAY,TRIM1#
main71072-0B450-B0i200306-200503
SEAT = TYPE A-*104 & W(SEPARATE SEAT(1+2 TYPE)),BLUISH GRAY,TRIM1#
main71072-0B460-E0i200306-200503
SEAT = TYPE A-*104 & W(SEPARATE SEAT(1+2 TYPE)),FAWN,TRIM4#
main71072-YD010-E0i200210-200707
FAWN,TRIM4#
main71072-YG010-E0i200306-200503
SEAT = TYPE B-*104,FAWN,TRIM4#
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71073-0B010-B0i199612-200001
BLUISH GRAY,TRIM1#
main71073-0B011-B0i200001-200612
BLUISH GRAY,TRIM1#
main71073-0B020-B0i199612-200001
BLUISH GRAY,TRIM1#
main71073-0B021-B0i200001-200208
BLUISH GRAY,TRIM1#
main71073-0B030-B0i199612-199809
BLUISH GRAY,TRIM1#
main71073-0B031-B1i199809-200001
BLUISH GRAY,TRIM1#
main71073-0B032-B3i200001-200208
BLUISH GRAY,TRIM1#
main71073-0B040-B0i199612-200001
BLUISH GRAY,TRIM1#
main71073-0B041-B1i200001-200208
BLUISH GRAY,TRIM1#
main71073-0B050-B1i199804-200103
BLUISH GRAY,TRIM1#
main71073-0B060-B0i199804-200103
BLUISH GRAY,TRIM1#
main71073-0B061-B1i200103-200212
BLUISH GRAY,TRIM1#
main71073-0B080-B0i200211-200411
BLUISH GRAY,TRIM1#
main71073-0B140-B0i200306-200503
BLUISH GRAY,TRIM1#
main71073-0B170-B0i200306-200503
BLUISH GRAY,TRIM1#
main71073-0B190-B0i199911-200210
BLUISH GRAY,TRIM1#
main71073-0B210-B1i200010-200208
BLUISH GRAY,TRIM1#
main71073-0B240i200102-200211
main71073-0B250i200102-200211
main71073-0B260-B0i200208-200406
BLUISH GRAY,TRIM1#
main71073-0B270-B0i200208-200406
BLUEISH GRAY,TRIM1#
main71073-0B280-E0i200208-200406
FAWN,TRIM4#
main71073-0B290-E0i200208-200406
FAWN,TRIM4#
main71073-0B310-E0i200208-200406
LUXURY,FAWN,TRIM4#
main71073-0B320-E0i200212-200503
SEAT = TYPE A-*104,FAWN,TRIM4#
main71073-0B330-E1i200212-200503
SEAT = TYPE B-*104,FAWN,TRIM4#
main71073-0B340-B0i200211-200411
BLUISH GRAY,TRIM1#
main71073-0B350-E0i200211-200411
SEAT = TYPE A-*104,FAWN,TRIM4#
main71073-0B360-E1i200211-200411
SEAT = TYPE A-*104,FAWN,TRIM4#
main71073-0B370-E2i200211-200411
SEAT = TYPE B-*104,FAWN,TRIM4#
main71073-0B370-E3i200211-200411
SEAT = TYPE B-*104,FAWN,TRIM4#
main71073-0B390-B0i200306-200503
SEAT = TYPE A-*104 & W(SEPARATE SEAT(1+1 TYPE)),BLUISH GRAY,TRIM1#
main71073-0B390-B0i200306-200503
BLUISH GRAY,TRIM1#
main71073-0B400-E0i200306-200503
SEAT = TYPE A-*104,FAWN,TRIM4#
main71073-0B410-B0i200306-200503
SEAT = TYPE A-*104 & W(SEPARATE SEAT(1+2 TYPE)),BLUISH GRAY,TRIM1#
main71073-0B410-E0i200306-200503
SEAT = TYPE A-*104 & W(SEPARATE SEAT(1+2 TYPE)),FAWN,TRIM4#
main71073-YG010-E0i200306-200503
SEAT = TYPE B-*104,FAWN,TRIM4#
main71073-YG020-E0i200306-200503
SEAT = TYPE B-*104,FAWN,TRIM4#
main71074-0B140-B0i199902-200210
BLUISH GRAY,TRIM1#
main71074-0B150-B0i199902-200210
BLUISH GRAY,TRIM1#
main71074-0B160-B0i199902-200210
BLUISH GRAY,TRIM1#
main71074-0B170-B0i199902-200210
BLUISH GRAY,TRIM1#
sub71074-0B171
main71074-0B171-B0i200210-200707
BLUISH GRAY,TRIM1#
main71074-0B230i199909-200302
main71074-0B240i199909-200302
main71074-0B350-B0i200210-200707
BLUISH GRAY,TRIM1#
main71074-0B360-B0i200210-200707
BLUISH GRAY,TRIM1#
main71074-0B370-B0i200210-200612
BLUISH GRAY,TRIM1#
main71074-0B380-B1i200302-200601
BLUISH GRAY,TRIM1#
main71074-0B390-B2i200302-200601
BLUISH GRAY,TRIM10
main71074-YD010-E0i200210-200707
LEATHER SEAT,FAWN,TRIM4#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71073-0B021-B0i200001-200208
BLUISH GRAY,TRIM1#
main71073-0B032-B3i200001-200208
BLUISH GRAY,TRIM1#
main71073-0B041-B1i200001-200208
BLUISH GRAY,TRIM1#
main71073-0B140-B0i200306-200503
BLUISH GRAY,TRIM1#
main71073-0B210-B1i200010-200208
BLUISH GRAY,TRIM1#
main71073-0B260-B0i200208-200406
BLUISH GRAY,TRIM1#
main71073-0B270-B0i200208-200406
BLUEISH GRAY,TRIM1#
main71073-0B280-E0i200208-200406
FAWN,TRIM4#
main71073-0B290-E0i200208-200406
FAWN,TRIM4#
main71073-0B310-E0i200208-200406
LUXURY,FAWN,TRIM4#
main71073-0B320-E0i200212-200503
SEAT = TYPE A-*104,FAWN,TRIM4#
main71073-0B330-E1i200212-200503
SEAT = TYPE B-*104,FAWN,TRIM4#
main71073-0B390-B0i200306-200503
SEAT = TYPE A-*104 & W(SEPARATE SEAT(1+1 TYPE)),BLUISH GRAY,TRIM1#
main71073-0B390-B0i200306-200503
SEAT = TYPE A-*104,BLUISH GRAY,TRIM1#
main71073-0B390-E0i200306-200503
SEAT = TYPE A-*104,FAWN,TRIM4#
main71073-0B400-E0i200306-200503
SEAT = TYPE A-*104 & W(SEPARATE SEAT(1+1 TYPE)),FAWN,TRIM4#
main71073-YG010-E0i200306-200503
SEAT = TYPE B-*104,FAWN,TRIM4#
main71073-YG010-E0i200306-200503
SEAT = TYPE B-*104 & W(SEPARATE SEAT(1+1 TYPE)),FAWN,TRIM4#
main71074-0B010-B0i199612-200001
BLUISH GRAY,TRIM1#
main71074-0B011-B0i200001-200612
BLUISH GRAY,TRIM1#
main71074-0B020-B0i199612-200001
BLUISH GRAY,TRIM1#
main71074-0B030-B0i199612-199809
BLUISH GRAY,TRIM1#
main71074-0B031-B1i199809-200001
BLUISH GRAY,TRIM1#
main71074-0B040-B0i199612-200001
BLUISH GRAY,TRIM1#
main71074-0B050-B0i200306-200503
BLUISH GRAY,TRIM1#
main71074-0B060-B0i199612-199809
W(BENCH SEAT),BLUISH GRAY,TRIM1#
main71074-0B061-B2i199809-200001
W(BENCH SEAT),BLUISH GRAY,TRIM1#
main71074-0B062-B4i200001-200208
W(BENCH SEAT),BLUISH GRAY,TRIM1#
main71074-0B070-B0i199612-200001
W(BENCH SEAT),BLUISH GRAY,TRIM1#
main71074-0B071-B1i200001-200208
W(BENCH SEAT),BLUISH GRAY,TRIM1#
main71074-0B080-B0i199612-200001
W(BENCH SEAT),BLUISH GRAY,TRIM1#
main71074-0B081-B0i200001-200406
W(BENCH SEAT),BLUISH GRAY,TRIM1#
main71074-0B090-B1i199804-200103
BLUISH GRAY,TRIM1#
main71074-0B101i200103-200212
main71074-0B140-B0i199902-200210
BLUISH GRAY,TRIM1#
main71074-0B150-B0i199902-200210
BLUISH GRAY,TRIM1#
main71074-0B160-B0i199902-200210
BLUISH GRAY,TRIM1#
main71074-0B170-B0i199902-200210
BLUISH GRAY,TRIM1#
sub71074-0B171
main71074-0B171-B0i200210-200707
BLUISH GRAY,TRIM1#
main71074-0B230i199909-200302
main71074-0B240i199909-200302
main71074-0B250-B0i199911-200210
BLUISH GRAY,TRIM1#
main71074-0B270i200102-200211
main71074-0B280i200102-200211
main71074-0B290-B0i200208-200406
PAPUA NEW GUINEA SPEC OR FIJI SPEC,BLUEISH GRAY,TRIM1#
main71074-0B300-E0i200208-200406
PAPUA NEW GUINEA SPEC OR FIJI SPEC,FAWN,TRIM4#
main71074-0B310-B0i200211-200411
BLUISH GRAY,TRIM1#
main71074-0B320-E0i200211-200411
SEAT = TYPE A-*104,FAWN,TRIM4#
main71074-0B330-E1i200211-200411
SEAT = TYPE A-*104,FAWN,TRIM4#
main71074-0B340-E2i200211-200411
SEAT = TYPE B-*104,FAWN,TRIM4#
main71074-0B340-E3i200211-200411
SEAT = TYPE B-*104,FAWN,TRIM4#
main71074-0B350-B0i200210-200707
BLUISH GRAY,TRIM1#
main71074-0B360-B0i200210-200707
BLUISH GRAY,TRIM1#
main71074-0B370-B0i200210-200612
BLUISH GRAY,TRIM1#
main71074-0B380-B1i200302-200601
BLUISH GRAY,TRIM1#
main71074-0B390-B2i200302-200601
BLUISH GRAY,TRIM10
main71074-0B400-B0i200211-200411
BLUISH GRAY,TRIM1#
main71074-0B410-B0i200306-200503
SEAT = TYPE A-*104 & W(SEPARATE SEAT(1+2 TYPE)),BLUISH GRAY,TRIM1#
main71074-0B420-E0i200306-200503
SEAT = TYPE A-*104 & W(SEPARATE SEAT(1+2 TYPE)),FAWN,TRIM4#
main71074-YD010-E0i200210-200707
LEATHER SEAT,FAWN,TRIM4#
main71074-YG010-E0i200306-200503
SEAT = TYPE B-*104 & W(SEPARATE SEAT(1+2 TYPE)),FAWN,TRIM4#
71109BLEG SUB-ASSY, FRONT SEAT, LH
main71108-0B010i199612-200612
NO.1
main71108-0B020i199810-200411
NO.1
main71108-38040i200004-200503
NO.1
main71109-0B010i199612-200001
main71109-0B010i199612-200612
NO.2
main71109-0B020i199810-200411
NO.2
main71109-38050i200004-200503
NO.2
71130LEG ASSY, FRONT SEAT, RH
main71130-0B011i200210-200612
main71130-0B020i200001-200208
main71130-0B021i200208-200406
main71130-0B050i200306-200503
main71130-0B070i200212-200503
71140LEG ASSY, FRONT SEAT, LH
main71140-0B010i199810-200211
main71140-0B011i200211-200411
main71140-0B021i200210
main71140-0B031i200210
main71140-0B040i200001-200208
main71140-0B041i200208-200406
main71140-0B070i200306-200503
main71140-0B080i200306-200503
main71140-0B100i200212-200503
71181SUPPORT, FRONT SEATBACK, RH
main71183-0B010i199612-200612
71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71410-0B010-B0i199612-200001
BLUISH GRAY,TRIM1#
main71410-0B011-B0i200001-200208
BLUISH GRAY,TRIM1#
main71410-0B011-B1i200208-200612
BLUISH GRAY,TRIM1#
main71410-0B020-B0i199612-200001
BLUISH GRAY,TRIM1#
main71410-0B021-B0i200001-200208
BLUISH GRAY,TRIM1#
main71410-0B021-B1i200208-200406
BLUISH GRAY,TRIM1#
main71410-0B030-B0i199612-199809
BLUISH GRAY,TRIM1#
main71410-0B031-B1i199809-200001
BLUISH GRAY,TRIM1#
main71410-0B032-B0i200001-200208
BLUISH GRAY,TRIM1#
main71410-0B040-B0i199612-200001
BLUISH GRAY,TRIM1#
main71410-0B041-B0i200001-200208
BLUISH GRAY,TRIM1#
main71410-0B050-B0i199612-199809
BLUISH GRAY,TRIM1#
main71410-0B050-B1i199809-200001
BLUISH GRAY,TRIM1#
main71410-0B051i200102-200208
main71410-0B051-B1i200001-200102
BLUISH GRAY,TRIM1#
main71410-0B060-B1i199804-200103
BLUISH GRAY,TRIM1#
main71410-0B070-B0i199804-200103
BLUISH GRAY,TRIM1#
main71410-0B071-B1i200103-200212
BLUISH GRAY,TRIM1#
main71410-0B080-B0i199810-200004
BLUISH GRAY,TRIM1#
main71410-0B090-B0i199810-200004
BLUISH GRAY,TRIM1#
main71410-0B100-B0i199810-200004
BLUISH GRAY,TRIM1#
main71410-0B140-B1i200306-200503
BLUISH GRAY,TRIM1#
main71410-0B170-B1i200306-200503
BLUISH GRAY,TRIM1#
main71410-0B210-B0i200003-200210
BLUISH GRAY,TRIM1#
main71410-0B210-B1i199911-200210
BLUISH GRAY,TRIM1#
main71410-0B220-B1i200010-200208
BLUISH GRAY,TRIM1#
main71410-0B230-B0i200004-200411
BLUISH GRAY,TRIM1#
main71410-0B240-B0i200004-200102
BLUISH GRAY,TRIM1#
main71410-0B241-B0i200102-200211
BLUISH GRAY,TRIM1#
main71410-0B250-B0i200004-200102
BLUISH GRAY,TRIM1#
main71410-0B251-B0i200102-200211
BLUISH GRAY,TRIM1#
main71410-0B260-B0i200102-200211
BLUISH GRAY,TRIM1#
main71410-0B280i200202-200211
main71410-0B280i200102-200211
W(SPORTS SEAT)
main71410-0B290i200102-200211
W(SPORTS SEAT)
main71410-0B300-B0i200208-200406
BLUISH GRAY,TRIM1#
main71410-0B310-E0i200208-200406
FAWN,TRIM4#
main71410-0B340-E0i200208-200406
FAWN,TRIM4#
main71410-0B380-E0i200208-200406
LUXURY,FAWN,TRIM4#
main71410-0B400-E0i200212-200503
FAWN,TRIM4#
main71410-0B410-E1i200212-200503
LUXURY,FAWN,TRIM4#
main71410-0B430-B0i200211-200411
BLUISH GRAY,TRIM1#
main71410-0B440-E0i200211-200411
SEAT = TYPE A-*104,FAWN,TRIM4#
main71410-0B450-E1i200211-200411
SEAT = TYPE A-*104,FAWN,TRIM4#
main71410-0B460-E2i200211-200411
SEAT = TYPE B-*104,FAWN,TRIM4#
main71410-0B460-E3i200211-200411
SEAT = TYPE B-*104,FAWN,TRIM4#
main71410-0B480-B0i200306-200503
BLUISH GRAY,TRIM1#
main71410-0B490-E0i200306-200503
FAWN,TRIM4#
main71410-0B500-B0i200306-200503
SEAT = TYPE A-*104 & W(SEPARATE SEAT(1+2 TYPE)),BLUISH GRAY,TRIM1#
main71410-0B500-E0i200306-200503
SEAT = TYPE A-*104,FAWN,TRIM4#
main71410-0B510-B0i200210-200612
BLUISH GRAY,TRIM1#
main71410-YD010-E0i200210-200707
FAWN,TRIM4#
main71410-YG010i200306-200503
SEAT = TYPE B-*104
main71410-YG020-E0i200306-200503
SEAT = TYPE B-*104,FAWN,TRIM4#
main71420-0B140-B0i199902-200210
BLUISH GRAY,TRIM1#
sub71420-0B141
main71420-0B141-B2i199902-200707
BLUISH GRAY,TRIM1#
main71420-0B150-B0i199902-200210
BLUISH GRAY,TRIM1#
main71420-0B160-B0i199902-200210
BLUISH GRAY,TRIM1#
main71420-0B220i199909-200302
main71420-0B230i199909-200302
main71420-0B390-B0i200210-200707
BLUISH GRAY,TRIM1#
main71420-0B410-B1i200302-200601
BLUISH GRAY,TRIM1#
main71420-0B420-B1i200302-200601
BLUISH GRAY,TRIM1#
71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
main71410-0B021-B0i200001-200208
BLUISH GRAY,TRIM1#
main71410-0B021-B1i200208-200406
BLUISH GRAY,TRIM1#
main71410-0B032-B0i200001-200208
BLUISH GRAY,TRIM1#
main71410-0B041-B0i200001-200208
BLUISH GRAY,TRIM1#
main71410-0B051i200102-200208
main71410-0B051-B1i200001-200102
BLUISH GRAY,TRIM1#
main71410-0B140i200306-200308
main71410-0B140-B1i200308-200503
BLUISH GRAY,TRIM1#
main71410-0B220-B1i200010-200208
BLUISH GRAY,TRIM1#
main71410-0B300-B0i200208-200406
BLUISH GRAY,TRIM1#
main71410-0B320-E0i200208-200406
FAWN,TRIM4#
main71410-0B350-E0i200208-200406
FAWN,TRIM4#
main71410-0B390-E0i200208-200406
LUXURY,FAWN,TRIM4#
main71410-0B400-E0i200212-200503
FAWN,TRIM4#
main71410-0B410-E1i200212-200503
LUXURY,FAWN,TRIM4#
main71410-0B480-B0i200306-200503
SEAT = TYPE A-*104,BLUISH GRAY,TRIM1#
main71410-0B480-B0i200306-200503
BLUISH GRAY,TRIM1#
main71410-0B480-E0i200306-200503
SEAT = TYPE A-*104,FAWN,TRIM4#
main71410-0B490-E0i200306-200503
FAWN,TRIM4#
main71410-YG010i200306-200503
SEAT = TYPE B-*104
main71420-0B010-B0i199612-200001
W(BENCH SEAT),BLUISH GRAY,TRIM1#
main71420-0B011-B0i200001-200208
W(BENCH SEAT),BLUISH GRAY,TRIM1#
main71420-0B011-B2i200208-200612
W(BENCH SEAT),BLUISH GRAY,TRIM1#
main71420-0B020-B0i199612-200001
BLUISH GRAY,TRIM1#
main71420-0B030-B0i199612-199809
BLUISH GRAY,TRIM1#
main71420-0B031-B1i199809-200001
BLUISH GRAY,TRIM1#
main71420-0B040-B0i199612-200001
BLUISH GRAY,TRIM1#
main71420-0B050-B0i199612-199809
BLUISH GRAY,TRIM1#
main71420-0B050-B1i199809-200001
BLUISH GRAY,TRIM1#
main71420-0B060-B0i199612-199809
W(BENCH SEAT),BLUISH GRAY,TRIM1#
main71420-0B061-B1i199809-200001
W(BENCH SEAT),BLUISH GRAY,TRIM1#
main71420-0B062-B0i200001-200208
W(BENCH SEAT),BLUISH GRAY,TRIM1#
main71420-0B070-B0i199612-200001
W(BENCH SEAT),BLUISH GRAY,TRIM1#
main71420-0B071-B0i200001-200208
W(BENCH SEAT),BLUISH GRAY,TRIM1#
main71420-0B080-B1i200306-200503
BLUISH GRAY,TRIM1#
main71420-0B090-B1i199804-200103
BLUISH GRAY,TRIM1#
main71420-0B100-B0i199804-200103
BLUISH GRAY,TRIM1#
main71420-0B101-B1i200103-200212
BLUISH GRAY,TRIM1#
main71420-0B110-B0i199810-200411
BLUISH GRAY,TRIM1#
main71420-0B120-B0i199810-200102
BLUISH GRAY,TRIM1#
main71420-0B121-B1i200102-200211
BLUISH GRAY,TRIM1#
main71420-0B130-B0i199810-200102
BLUISH GRAY,TRIM1#
main71420-0B131-B1i200102-200211
BLUISH GRAY,TRIM1#
main71420-0B140-B0i199902-200210
BLUISH GRAY,TRIM1#
sub71420-0B141
main71420-0B141-B2i199902-200707
BLUISH GRAY,TRIM1#
main71420-0B150-B0i199902-200210
BLUISH GRAY,TRIM1#
main71420-0B160-B0i199902-200210
BLUISH GRAY,TRIM1#
main71420-0B220i199909-200302
main71420-0B230i199909-200302
main71420-0B280-B0i199911-200210
BLUISH GRAY,TRIM1#
main71420-0B280-B1i200003-200210
BLUISH GRAY,TRIM1#
main71420-0B290-B0i200102-200211
BLUISH GRAY,TRIM1#
main71420-0B310i200102-200211
W(SPORTS SEAT)
main71420-0B310i200202-200211
main71420-0B320i200102-200211
W(SPORTS SEAT)
main71420-0B330-B0i200208-200406
PAPUA NEW GUINEA SPEC OR FIJI SPEC,BLUISH GRAY,TRIM1#
main71420-0B340-E0i200208-200406
PAPUA NEW GUINEA SPEC OR FIJI SPEC,FAWN,TRIM4#
main71420-0B350-B0i200211-200411
BLUISH GRAY,TRIM1#
main71420-0B360-E0i200211-200411
SEAT = TYPE A-*104,FAWN,TRIM4#
main71420-0B370-E1i200211-200411
SEAT = TYPE A-*104,FAWN,TRIM4#
main71420-0B380-E2i200211-200411
SEAT = TYPE B-*104,FAWN,TRIM4#
main71420-0B380-E3i200211-200411
SEAT = TYPE B-*104,FAWN,TRIM4#
main71420-0B390-B0i200210-200707
BLUISH GRAY,TRIM1#
main71420-0B400-B1i200210-200612
BLUISH GRAY,TRIM1#
main71420-0B410-B1i200302-200601
BLUISH GRAY,TRIM1#
main71420-0B430-B1i200302-200601
BLUISH GRAY,TRIM1#
main71420-0B450-B0i200306-200503
SEAT = TYPE A-*104 & W(SEPARATE SEAT(1+2 TYPE)),BLUISH GRAY,TRIM1#
main71420-0B460-E0i200306-200503
SEAT = TYPE A-*104 & W(SEPARATE SEAT(1+2 TYPE)),FAWN,TRIM4#
main71420-YD010-E0i200210-200707
FAWN,TRIM4#
main71420-YG010-E0i200306-200503
SEAT = TYPE B-*104,FAWN,TRIM4#
71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71430-0B010-B0i199612-200001
BLUISH GRAY,TRIM1#
main71430-0B011-B0i200001-200208
BLUISH GRAY,TRIM1#
main71430-0B011-B1i200208-200612
BLUISH GRAY,TRIM1#
main71430-0B020-B0i199612-200001
BLUISH GRAY,TRIM1#
main71430-0B021-B0i200001-200208
BLUISH GRAY,TRIM1#
main71430-0B030-B0i199612-199809
BLUISH GRAY,TRIM1#
main71430-0B031-B1i199809-200001
BLUISH GRAY,TRIM1#
main71430-0B032-B0i200001-200208
BLUISH GRAY,TRIM1#
main71430-0B040-B0i199612-200001
BLUISH GRAY,TRIM1#
main71430-0B041-B0i200001-200208
BLUISH GRAY,TRIM1#
main71430-0B050-B0i199612-199809
BLUISH GRAY,TRIM1#
main71430-0B050-B1i199809-200001
BLUISH GRAY,TRIM1#
main71430-0B051i200102-200208
main71430-0B051-B1i200001-200102
BLUISH GRAY,TRIM1#
main71430-0B060-B1i199804-200103
BLUISH GRAY,TRIM1#
main71430-0B070-B0i199804-200103
BLUISH GRAY,TRIM1#
main71430-0B071-B1i200103-200212
BLUISH GRAY,TRIM1#
main71430-0B080-B0i199810-200411
BLUISH GRAY,TRIM1#
main71430-0B090-B0i199810-200102
BLUISH GRAY,TRIM1#
main71430-0B091-B1i200102-200211
BLUISH GRAY,TRIM1#
main71430-0B100-B0i199810-200102
BLUISH GRAY,TRIM1#
main71430-0B101-B1i200102-200211
BLUISH GRAY,TRIM1#
main71430-0B140-B1i200306-200503
BLUISH GRAY,TRIM1#
main71430-0B170-B1i200306-200503
BLUISH GRAY,TRIM1#
main71430-0B200i199911-200003
main71430-0B200-B0i200003-200210
BLUISH GRAY,TRIM1#
main71430-0B220-B1i200010-200208
BLUISH GRAY,TRIM1#
main71430-0B230-B0i200102-200211
BLUISH GRAY,TRIM1#
main71430-0B240-B0i200306-200503
BLUISH GRAY,TRIM1#
main71430-0B250i200102-200211
W(SPORTS SEAT)
main71430-0B250i200202-200211
main71430-0B260i200102-200211
W(SPORTS SEAT)
main71430-0B270-B0i200211-200411
BLUISH GRAY,TRIM1#
main71430-0B280-E0i200211-200411
SEAT = TYPE A-*104,FAWN,TRIM4#
main71430-0B290-E1i200211-200411
SEAT = TYPE A-*104,FAWN,TRIM4#
main71430-0B300-E2i200211-200411
SEAT = TYPE B-*104,FAWN,TRIM4#
main71430-0B300-E3i200211-200411
SEAT = TYPE B-*104,FAWN,TRIM4#
main71430-0B310-B0i200306-200503
SEAT = TYPE A-*104 & W(SEPARATE SEAT(1+2 TYPE)),BLUISH GRAY,TRIM1#
main71430-0B310-E0i200306-200503
SEAT = TYPE A-*104,FAWN,TRIM4#
main71430-0B330-E0i200306-200503
SEAT = TYPE A-*104,FAWN,TRIM4#
main71430-YG010-E0i200306-200503
SEAT = TYPE B-*104,FAWN,TRIM4#
main71430-YG020-E0i200306-200503
SEAT = TYPE B-*104,FAWN,TRIM4#
main71440-0B140-B0i199902-200210
BLUISH GRAY,TRIM1#
main71440-0B150-B0i199902-200210
BLUISH GRAY,TRIM1#
main71440-0B160-B0i199902-200210
BLUISH GRAY,TRIM1#
main71440-0B170-B0i199902-200210
BLUISH GRAY,TRIM1#
sub71440-0B171
main71440-0B171-B1i200210-200707
BLUISH GRAY,TRIM1#
main71440-0B240i199909-200302
main71440-0B250i199909-200302
71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
main71430-0B021-B0i200001-200208
BLUISH GRAY,TRIM1#
main71430-0B032-B0i200001-200208
BLUISH GRAY,TRIM1#
main71430-0B041-B0i200001-200208
BLUISH GRAY,TRIM1#
main71430-0B051i200102-200208
main71430-0B051-B1i200001-200102
BLUISH GRAY,TRIM1#
main71430-0B140i200306-200308
main71430-0B140-B1i200308-200503
BLUISH GRAY,TRIM1#
main71430-0B220-B1i200010-200208
BLUISH GRAY,TRIM1#
main71430-0B240-B0i200306-200503
SEAT = TYPE A-*104,BLUISH GRAY,TRIM1#
main71430-0B240-B0i200306-200503
BLUISH GRAY,TRIM1#
main71430-0B240-E0i200306-200503
SEAT = TYPE A-*104,FAWN,TRIM4#
main71430-0B330-E0i200306-200503
SEAT = TYPE A-*104 & W(SEPARATE SEAT(1+1 TYPE)),FAWN,TRIM4#
main71430-YG020-E0i200306-200503
SEAT = TYPE B-*104 & W(SEPARATE SEAT(1+1 TYPE)),FAWN,TRIM4#
main71440-0B010-B0i199612-200001
BLUISH GRAY,TRIM1#
main71440-0B011-B0i200001-200208
BLUISH GRAY,TRIM1#
main71440-0B011-B2i200208-200612
BLUISH GRAY,TRIM1#
main71440-0B020-B0i199612-200001
BLUISH GRAY,TRIM1#
main71440-0B030-B0i199612-199809
BLUISH GRAY,TRIM1#
main71440-0B031-B1i199809-200001
BLUISH GRAY,TRIM1#
main71440-0B040-B0i199612-200001
BLUISH GRAY,TRIM1#
main71440-0B050-B0i199612-199809
BLUISH GRAY,TRIM1#
main71440-0B050-B1i199809-200001
BLUISH GRAY,TRIM1#
main71440-0B060-B0i199612-199809
W(BENCH SEAT),BLUISH GRAY,TRIM1#
main71440-0B061-B1i199809-200001
W(BENCH SEAT),BLUISH GRAY,TRIM1#
main71440-0B062-B0i200001-200208
W(BENCH SEAT),BLUISH GRAY,TRIM1#
main71440-0B070-B0i199612-200001
W(BENCH SEAT),BLUISH GRAY,TRIM1#
main71440-0B071-B0i200001-200208
W(BENCH SEAT),BLUISH GRAY,TRIM1#
main71440-0B080-B0i199612-200001
W(BENCH SEAT),BLUISH GRAY,TRIM1#
main71440-0B081-B0i200001-200208
W(BENCH SEAT),BLUISH GRAY,TRIM1#
main71440-0B081-B1i200208-200406
W(BENCH SEAT),BLUISH GRAY,TRIM1#
main71440-0B090-B1i199804-200103
BLUISH GRAY,TRIM1#
main71440-0B100-B0i199804-200103
BLUISH GRAY,TRIM1#
main71440-0B101-B1i200103-200212
BLUISH GRAY,TRIM1#
main71440-0B110-B0i199810-200211
BLUISH GRAY,TRIM1#
main71440-0B120-B0i199810-200102
BLUISH GRAY,TRIM1#
main71440-0B121-B1i200102-200211
BLUISH GRAY,TRIM1#
main71440-0B130-B0i199810-200102
BLUISH GRAY,TRIM1#
main71440-0B131-B1i200102-200211
BLUISH GRAY,TRIM1#
main71440-0B140-B0i199902-200210
BLUISH GRAY,TRIM1#
main71440-0B150-B0i199902-200210
BLUISH GRAY,TRIM1#
main71440-0B160-B0i199902-200210
BLUISH GRAY,TRIM1#
main71440-0B170-B0i199902-200210
BLUISH GRAY,TRIM1#
sub71440-0B171
main71440-0B171-B1i200210-200707
BLUISH GRAY,TRIM1#
main71440-0B210-B1i200306-200503
BLUISH GRAY,TRIM1#
main71440-0B240i199909-200302
main71440-0B250i199909-200302
main71440-0B260-B0i199911-200210
BLUISH GRAY,TRIM1#
main71440-0B260-B1i200003-200210
BLUISH GRAY,TRIM1#
main71440-0B270-B0i200102-200211
BLUISH GRAY,TRIM1#
main71440-0B280i200102-200211
W(SPORTS SEAT)
main71440-0B280i200202-200211
main71440-0B290i200102-200211
W(SPORTS SEAT)
main71440-0B300-B0i200208-200406
BLUISH GRAY,TRIM1#
main71440-0B310-E0i200208-200406
FAWN,TRIM4#
main71440-0B320-B0i200306-200503
SEAT = TYPE A-*104 & W(SEPARATE SEAT(1+2 TYPE)),BLUISH GRAY,TRIM1#
main71440-0B330-E0i200306-200503
SEAT = TYPE A-*104 & W(SEPARATE SEAT(1+2 TYPE)),FAWN,TRIM4#
main71440-YG010-E0i200306-200503
SEAT = TYPE B-*104 & W(SEPARATE SEAT(1+2 TYPE)),FAWN,TRIM4#
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71501-0B010i199804-200212
main71501-0B050i¥7,300200001-200406
main71501-0B060i200306-200503
W(SEPARATE SEAT(1+2 TYPE))
main71501-0B070i200306-200503
main71501-0B080i200211-200411
main71501-0B100i200208-200406
main71501-0B120i200212-200503
main71501-38040i199612-200612
main71501-YD010i200210
LEATHER SEAT
main71502-0B040i199902-200612
main71502-0B070i199909-200601
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71501-0B050i¥7,300200001-200406
main71501-0B070i200306-200503
main71501-0B120i200212-200503
main71502-0B010i199612-200612
W(BENCH SEAT)
main71502-0B020i199804-200212
main71502-0B030i200211-200411
SEAT = TYPE A-*104
main71502-0B040i199902-200210
main71502-0B060i200306-200503
W(SEPARATE SEAT(1+2 TYPE))
main71502-0B070i199909-200601
main71502-0B080i200211-200411
SEAT = TYPE B-*104
main71502-0B090i200302-200601
main71502-0B100i200210-200612
main71502-38040i199612-200001
main71502-YD010i200210
LEATHER SEAT
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71505-0B010i199804-200212
main71505-0B020i200211-200411
main71505-0B030i200211-200411
main71505-0B050i200001-200208
main71505-0B060i200306-200503
main71505-0B090i200212-200503
main71505-0B130i200208-200406
main71505-0B150i200211-200411
main71505-38020i199612-200612
main71506-0B050i199902-200210
main71506-0B060i199909-200302
main71506-0B080i200302-200601
main71506-0B100i200210-200612
main71506-YD010i200210
LEATHER SEAT
main71551-0B030i200306-200503
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71505-0B050i200001-200208
main71505-0B060i200306-200503
main71505-0B090i200212-200503
main71505-0B130i200208-200406
main71506-0B020i199612-200612
W(BENCH SEAT)
main71506-0B030i199804-200212
main71506-0B050i199902-200210
main71506-0B060i199909-200302
main71506-0B080i200302-200601
main71506-0B090i200211-200411
main71506-0B100i200210-200612
main71506-38030i199612-200001
main71506-YD010i200210
LEATHER SEAT
main71552-0B030i200306-200503
W(SEPARATE SEAT(1+2 TYPE))
71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71011-0A010i200001-200503
main71011-0B040i200208-200406
main71610-0B010i199612-200612
main71610-0B020i199810-200411
main71610-0B030i199810-200411
main71610-0B050i200306-200503
71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71011-0A010i200102-200406
SEAT = TYPE A-*104
main71011-0A010i199810-200503
main71620-0B010i199612-200612
W(BENCH SEAT)
main71620-0B020i199612-200103
main71620-0B030i199612-200001
main71620-0B050i200306-200503
71811CCOVER, RECLINING ADJUSTER, RH
main71811-0B010i200102-200208
main71811-0B010-B0i200001-200406
BLUISH GRAY,TRIM1#
main71811-0B010-E0i200208-200503
FAWN,TRIM4#
main71811-38010-B0i199810-200503
BLUISH GRAY,TRIM1#
sub71811-38010¥2,560
main71811-38010-E0i200211-200503
FAWN,TRIM4#
sub71811-38010¥2,560
main71811-38020-B0i200306-200503
BLUISH GRAY,TRIM1#
sub71811-38020¥2,120
main71811-38020-B0i200004-200503
2:1 SEAT,BLUISH GRAY,TRIM1#
sub71811-38020¥2,120
main71811-38020-E0i200306-200503
2:1 SEAT,FAWN,TRIM4#
sub71811-38020¥2,120
71812CCOVER, RECLINING ADJUSTER, LH
main71812-0B010i200102-200208
main71812-0B010-B0i200001-200406
BLUISH GRAY,TRIM1#
main71812-0B010-E0i200208-200406
FAWN,TRIM4#
main71812-0B030-B0i199810-200411
BLUISH GRAY,TRIM1#,NO.1
sub71812-0A010
main71812-0B030-B0i199810-200411
BLUISH GRAY,TRIM1#
sub71812-0A010
main71812-0B030-E0i200211-200411
FAWN,TRIM4#,NO.1
sub71812-0A010
main71812-38010-B0i199810-200411
BLUISH GRAY,TRIM1#,NO.2
sub71812-38010¥2,560
main71812-38010-E0i200211-200411
FAWN,TRIM4#,NO.2
sub71812-38010¥2,560
71861SHIELD, FRONT SEAT CUSHION, INNER RH
main71861-0B020i200102-200208
main71861-0B020-B0i200001-200406
BLUISH GRAY,TRIM1#
main71861-0B020-E0i200208-200503
FAWN,TRIM4#
main71861-16220-B1i199902-200707
BLUISH GRAY,TRIM1#
sub71861-16220¥1,820
main71861-16220-E1i200210-200707
FAWN,TRIM4#
sub71861-16220¥1,820
71862SHIELD, FRONT SEAT CUSHION, INNER LH
main71862-0B010-B0i199810-200411
BLUISH GRAY,TRIM1#
sub71862-0A010
main71862-0B010-E0i200211-200411
FAWN,TRIM4#
sub71862-0A010
main71862-0B030i200102-200208
main71862-0B030-B0i200001-200406
BLUISH GRAY,TRIM1#
main71862-0B030-E0i200208-200503
FAWN,TRIM4#
main71862-16190-B1i199902-200707
BLUISH GRAY,TRIM1#
sub71862-16190¥1,820
main71862-16190-E1i200210-200707
FAWN,TRIM4#
sub71862-16190¥1,820
71910AHEADREST ASSY, FRONT SEAT
main71910-0B010-B0i199612-200208
BLUISH GRAY,TRIM1#
sub71910-0B010
main71910-0B010-B2i200208-200612
BLUISH GRAY,TRIM1#
sub71910-0B010
main71910-0B040-B0i199612-199809
BLUISH GRAY,TRIM1#
main71910-0B040-B1i199809-200001
BLUISH GRAY,TRIM1#
main71910-0B050-B0i199612-199809
BLUISH GRAY,TRIM1#
main71910-0B051-B1i199809-200001
BLUISH GRAY,TRIM1#
main71910-0B052-B0i200001-200208
BLUISH GRAY,TRIM1#
main71910-0B060-B0i199612-200001
BLUISH GRAY,TRIM1#
main71910-0B061-B0i200001-200208
BLUISH GRAY,TRIM1#
main71910-0B070-B1i199804-200103
BLUISH GRAY,TRIM1#
main71910-0B081-B1i200103-200212
BLUISH GRAY,TRIM1#
main71910-0B090-B0i199810-200411
BLUISH GRAY,TRIM1#
main71910-0B100-B0i199810-200102
BLUISH GRAY,TRIM1#
main71910-0B101-B1i200102-200211
BLUISH GRAY,TRIM1#
main71910-0B110-B0i199810-200102
BLUISH GRAY,TRIM1#
main71910-0B111-B2i200102-200211
BLUISH GRAY,TRIM1#
main71910-0B120-B0i199902-200210
BLUISH GRAY,TRIM1#
sub71910-0B121
main71910-0B121-B2i199902-200707
BLUISH GRAY,TRIM1#
main71910-0B130-B0i199902-200210
BLUISH GRAY,TRIM1#
main71910-0B140-B0i199902-200210
BLUISH GRAY,TRIM1#
main71910-0B180-B1i200306-200308
BLUISH GRAY,TRIM1#
main71910-0B230-B0i199909-200302
BLUISH GRAY,TRIM1#
main71910-0B240-B0i199909-200302
BLUISH GRAY,TRIM1#
main71910-0B250-B0i199911-200210
BLUISH GRAY,TRIM1#,LH
main71910-0B250-B1i200003-200210
BLUISH GRAY,TRIM1#
main71910-0B260-B1i199911-200210
BLUISH GRAY,TRIM1#,RH
main71910-0B270-B0i200010-200208
BLUISH GRAY,TRIM1#
main71910-0B280-B0i200102-200211
BLUISH GRAY,TRIM1#
main71910-0B290i200202-200211
main71910-0B290i200102-200211
W(SPORTS SEAT)
main71910-0B300i200102-200211
W(SPORTS SEAT)
main71910-0B310-B0i200208-200406
BLUISH GRAY,TRIM1#
main71910-0B320-E0i200208-200406
FAWN,TRIM4#
main71910-0B330-E1i200208-200406
FAWN,TRIM4#
main71910-0B350-E0i200208-200406
LUXURY,FAWN,TRIM4#
main71910-0B360-E0i200212-200503
SEAT = TYPE A-*104,FAWN,TRIM4#
main71910-0B370-E1i200212-200503
SEAT = TYPE B-*104,FAWN,TRIM4#
main71910-0B380-B0i200211-200411
BLUISH GRAY,TRIM1#
main71910-0B390-E0i200211-200411
FAWN,TRIM4#
main71910-0B400-E0i200211-200411
FAWN,TRIM4#
main71910-0B410-E0i200211-200411
SPORTS PACKAGE,FAWN,TRIM4#
main71910-0B410-E1i200211-200411
LUXURY PACKAGE,FAWN,TRIM4#
main71910-0B420-B0i200210-200707
BLUISH GRAY,TRIM1#
main71910-0B430-B1i200210-200612
BLUISH GRAY,TRIM1#
main71910-0B440-B0i200308-200503
BLUISH GRAY,TRIM1#
main71910-0B450-B1i200302-200601
BLUISH GRAY,TRIM1#
main71910-0B460-B1i200302-200601
BLUISH GRAY,TRIM1#
main71910-0B470-B0i200306-200308
BLUISH GRAY,TRIM1#
main71910-0B470-E0i200306-200308
FAWN,TRIM4#
main71910-0B480-E0i200306-200308
FAWN,TRIM4#
main71910-0B490-B0i200308-200503
BLUISH GRAY,TRIM1#
main71910-0B490-E0i200308-200503
FAWN,TRIM4#
main71910-0B500-E0i200308-200503
FAWN,TRIM4#
main71910-YD010-E0i200210-200707
FAWN,TRIM4#
main71910-YG010-E0i200306-200308
W(LEATHER SEAT),FAWN,TRIM4#
main71910-YG020-E0i200308-200503
W(LEATHER SEAT),FAWN,TRIM4#
71931SUPPORT, FRONT SEAT HEADREST
main71930-02050-B2i200208-200406
W(LOCK),W(SEPARATE SEAT),BLUISH GRAY,TRIM1#
sub71930-02050
main71930-02050-B2i200208-200406
W(LOCK),BLUISH GRAY,TRIM1#
sub71930-02050
main71930-02050-E0i200212-200503
W(LOCK),FAWN,TRIM4#
sub71930-02050
main71930-02050-E0i200208-200406
W(LOCK),W(SEPARATE SEAT),FAWN,TRIM4#
sub71930-02050
main71930-12050i¥910200102-200208
W(LOCK)
main71930-12050-B0i199612-200612
W(LOCK),BLUISH GRAY,TRIM1#
sub71930-12050¥910
main71930-12050-B0i200208-200406
W(LOCK),W(BENCH SEAT),BLUISH GRAY,TRIM1#
sub71930-12050¥910
main71930-12050-E3i200208-200406
W(LOCK),W(BENCH SEAT),FAWN,TRIM4#
sub71930-12050¥910
main71930-12050-E3i200208-200406
W(LOCK),FAWN,TRIM4#
sub71930-12050¥910
main71930-20130-B1i199902-200707
W(LOCK),BLUISH GRAY,TRIM1#
main71930-20130-E0i200210-200707
W(LOCK),FAWN,TRIM4#
main71930-44010-E6i200306-200503
W(LOCK),BENCH SEAT TYPE,FAWN,TRIM4#
sub71930-44010¥1,240
main71930-44010-E6i200211-200503
W(LOCK),FAWN,TRIM4#
sub71930-44010¥1,240
main71930-44010-P1i200004-200503
W(LOCK),BLUISH GRAY,TRIM1#
sub71930-44010¥1,240
main71930-44010-P1i199810-200503
W(LOCK),BENCH SEAT TYPE,BLUISH GRAY,TRIM1#
sub71930-44010¥1,240
main71931-02030-B2i200208-200406
W/O(LOCK),W(SEPARATE SEAT),BLUISH GRAY,TRIM1#
sub71931-02030
main71931-02030-B2i200208-200406
W/O(LOCK),PAPUA NEW GUINEA SPEC OR FIJI SPEC,BLUISH GRAY,TRIM1#
sub71931-02030
main71931-02030-E0i200212-200503
W/O(LOCK),FAWN,TRIM4#
sub71931-02030
main71931-02030-E0i200208-200406
W/O(LOCK),W(SEPARATE SEAT),FAWN,TRIM4#
sub71931-02030
main71931-0B010i200102-200208
W/O(LOCK)
main71931-0B010-B0i200208-200406
W/O(LOCK),W(BENCH SEAT),BLUISH GRAY,TRIM1#
main71931-0B010-B0i199612-200612
W/O(LOCK),BLUISH GRAY,TRIM1#
main71931-0B010-E0i200208-200406
W/O(LOCK),FAWN,TRIM4#
main71931-12010-B0i199804-200212
W/O(LOCK),GRAY,TRIM1#
sub71931-12010¥920
main71931-12040-L4i200210-200707
W/O(LOCK),FAWN,TRIM4#
sub71931-12040¥920
sub71931-10020¥1,010
main71931-12040-P4i199902-200707
W/O(LOCK),BLUISH GRAY,TRIM1#
sub71931-12040¥920
sub71931-10020¥1,010
main71931-32020-B1i199810-200503
W/O(LOCK),BLUISH GRAY,TRIM1#
sub71931-32020¥920
main71931-32020-L2i200211-200503
W/O(LOCK),FAWN,TRIM4#
sub71931-32020¥920
72011ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH
main72011-0B020i199902-200302
main72011-0B040i200001-200208
72012ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH
main72012-0B010i199810-200211
main72012-0B020i199902-200302
main72012-0B040i200001-200208
main72012-0B060i200306-200503
72021ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH
main72021-0B020i199902-200302
main72021-0B040i200001-200208
72022ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH
main72022-0B010i199810-200211
main72022-0B020i199902-200302
main72022-0B040i200001-200208
main72022-0B060i200306-200503
72110ATRACK ASSY, FRONT SEAT, OUTER RH
main72110-0B010i199612-200612
main72110-0B020i199902-200210
main72110-0B030i200103-200212
72130ATRACK ASSY, FRONT SEAT, INNER RH
main72130-0B010i199612-200612
main72130-0B020i199902-200210
72137COVER, SEAT TRACK, OUTER RH
main72137-0B010-B0i199612-200001
BLUISH GRAY,TRIM1#
main72137-0B020-B0i200208-200406
BLUISH GRAY,TRIM1#
main72137-0B020-E0i200208-200503
FAWN,TRIM4#
main72137-0B030-B0i200001-200208
BLUISH GRAY,TRIM1#
sub72137-0B020
main72137-38010-B0i199804-200212
BLUISH GRAY,TRIM1#
main72157-0B010-B0i199612-200001
BLUISH GRAY,TRIM1#
72137ACLIP (FOR SEAT TRACK COVER)
main90467-05121-B1i199612-200001
W(BENCH SEAT),BLUISH GRAY,TRIM1#
main90467-05121-B1i199612-200212
BLUISH GRAY,TRIM1#
72137GCOVER, SEAT TRACK, OUTER RH
main72158-0B020-B0i199612-200001
BLUISH GRAY,TRIM1#
72138COVER, SEAT TRACK, OUTER LH
main72138-0B010-B0i199612-200001
BLUISH GRAY,TRIM1#
main72138-0B030-B0i200001-200406
BLUISH GRAY,TRIM1#
main72138-0B030-E0i200208-200503
FAWN,TRIM4#
main72138-38010-B0i199804-200212
BLUISH GRAY,TRIM1#
main72138-38060-B0i200211-200411
BLUISH GRAY,TRIM1#
sub72138-38060¥4,630
main72157-0B030-B0i199612-200211
W(BENCH SEAT),BLUISH GRAY,TRIM1#
main72157-0B030-B0i199612-200211
BLUISH GRAY,TRIM1#
main72157-0B070-B0i200001-200208
BLUISH GRAY,TRIM1#
72138DCOVER, SEAT TRACK, OUTER, LH
main72158-0B020-B0i199612-200001
BLUISH GRAY,TRIM1#
main72158-0B030-B0i199612-200211
W(BENCH SEAT),BLUISH GRAY,TRIM1#
main72158-0B030-B0i200102-200211
BLUISH GRAY,TRIM1#
main72158-0B100-B0i200001-200406
BLUISH GRAY,TRIM1#
main72158-38040-B0i199804-200212
BLUISH GRAY,TRIM1#
72157ACOVER, SEAT TRACK BRACKET, INNER RH
main72157-0B010-B0i199612-200612
BLUISH GRAY,TRIM1#
main72157-0B030-B0i200211-200411
BLUISH GRAY,TRIM1#
main72157-0B030-E0i200211-200411
FAWN,TRIM4#
main72157-0B070-B0i200001-200406
BLUISH GRAY,TRIM1#
main72157-0B070-E0i200208-200503
FAWN,TRIM4#
main72157-38030-B0i199804-200212
BLUISH GRAY,TRIM1#
main72157-38050-B0i199902-200707
BLUISH GRAY,TRIM1#
sub72157-38050¥370
main72157-38050-E0i200210-200503
FAWN,TRIM4#
sub72157-38050¥370
main72157-38070-B0i200004-200503
2:1 SEAT,BLUISH GRAY,TRIM1#
sub72157-38070¥940
main72157-38070-B0i200306-200503
W(SEPARATE SEAT(1+2 TYPE)),BLUISH GRAY,TRIM1#
sub72157-38070¥940
main72157-38070-B0i200004-200306
BLUISH GRAY,TRIM1#,REAR
sub72157-38070¥940
main72157-38070-B0i200004-200306
2:1 SEAT,BLUISH GRAY,TRIM1#,REAR
sub72157-38070¥940
main72157-38070-E0i200306-200503
W(SEPARATE SEAT(1+2 TYPE)),FAWN,TRIM4#
sub72157-38070¥940
72157CCOVER, SEAT TRACK BRACKET, INNER RH
main72157-38050-B0i199810-200306
BLUISH GRAY,TRIM1#
sub72157-38050¥370
main72157-38050-B0i200004-200306
BLUISH GRAY,TRIM1#,FRONT
sub72157-38050¥370
main72157-38050-B0i200004-200306
2:1 SEAT,BLUISH GRAY,TRIM1#,FRONT
sub72157-38050¥370
main72158-0B010-B0i199612-200001
BLUISH GRAY,TRIM1#
main72158-0B030-B0i200211-200411
BLUISH GRAY,TRIM1#
main72158-0B030-E0i200211-200411
FAWN,TRIM4#
main72158-0B040-B0i200301-200707
BLUISH GRAY,TRIM1#
main72158-0B040-E0i200301-200707
FAWN,TRIM4#
main72158-0B090-B0i200001-200406
W(BENCH SEAT),BLUISH GRAY,TRIM1#
main72158-0B090-E0i200208-200406
W(BENCH SEAT),FAWN,TRIM4#
main72158-0B100-B0i200001-200406
BLUISH GRAY,TRIM1#
main72158-0B100-B0i200001-200406
W(SEPARATE SEAT),BLUISH GRAY,TRIM1#
main72158-0B100-E0i200208-200503
FAWN,TRIM4#
main72158-38020-B0i200306-200503
W(SEPARATE SEAT(1+2 TYPE)),BLUISH GRAY,TRIM1#
sub72158-38020¥740
main72158-38020-B0i200306-200503
2:1 SEAT,BLUISH GRAY,TRIM1#
sub72158-38020¥740
main72158-38020-E0i200306-200503
2:1 SEAT,FAWN,TRIM4#
sub72158-38020¥740
main72158-38030-B0i199804-200212
BLUISH GRAY,TRIM1#
main72158-38080-B0i200210-200707
BLUISH GRAY,TRIM1#
sub72158-38080¥610
main72158-38080-E0i200210-200503
FAWN,TRIM4#
sub72158-38080¥610
main72158-38090-B0i200306-200503
W(SEPARATE SEAT(1+2 TYPE)),BLUISH GRAY,TRIM1#
sub72158-38090¥940
main72158-38090-B0i200004-200306
BLUISH GRAY,TRIM1#
sub72158-38090¥940
main72158-38090-E0i200306-200503
FAWN,TRIM4#
sub72158-38090¥940
72201HANDLE SUB-ASSY, SEAT TRACK
main72201-0B010i199810-200211
main72201-0B020i200306-200503
W(SEPARATE SEAT(1+1 TYPE))
main72201-0B020i199902-200302
main72201-0B020i200306-200503
W(SEPARATE SEAT(1+2 TYPE))
72201AHANDLE SUB-ASSY, SEAT TRACK RH
main72201-0B010i200001-200208
72201BHANDLE SUB-ASSY, SEAT TRACK LH
main72201-0B010i200001-200503
main72201-0B010i200211-200411
W(BENCH SEAT)
main72201-0B020i200210-200612
72345FPIPE, RECLINING CONNECTING, RH
main72345-0A010i200001-200208
main72345-0B040i199902-200302
main72501-0B050i199902-200210
72345GPIPE, RECLINING CONNECTING, LH
main72345-0A010i200001-200211
main72345-0B030i200306-200503
W(SEPARATE SEAT(1+2 TYPE))
main72345-0B050i199902-200302
main72501-0B060i199902-200210
72510ADJUSTER ASSY, RECLINING SEATBACK, RH
main72510-0B010i199612-200001
main72510-0B020i199810-200503
main72510-0B040i200306-200503
main72510-38020i¥13,500199804-200212
72525AHANDLE, RECLINING ADJUSTER RELEASE, RH
main72525-0B010-B0i199612-200212
BLUISH GRAY,TRIM1#
main72525-0B020i200102-200208
main72525-0B020-B0i200001-200406
BLUISH GRAY,TRIM1#
main72525-0B020-E0i200208-200503
FAWN,TRIM4#
main72525-16010-B5i199902-200707
BLUISH GRAY,TRIM1#
sub72525-16010¥1,260
main72525-16010-B5i200306-200503
W(SEPARATE SEAT(1+1 TYPE)),BLUISH GRAY,TRIM1#
sub72525-16010¥1,260
main72525-16010-E3i200210-200707
FAWN,TRIM4#
sub72525-16010¥1,260
main72525-38010-B0i199810-200503
SHADOW GRAY,TRIM1#
sub72525-38010
main72525-38010-B0i200306-200503
W(SEPARATE SEAT(1+2 TYPE)),SHADOW GRAY,TRIM1#
sub72525-38010
main72525-38010-E0i200211-200503
FAWN,TRIM4#
sub72525-38010
72526AHANDLE, RECLINING ADJUSTER RELEASE, LH
main72526-0B010-B0i199612-200212
BLUISH GRAY,TRIM1#
main72526-0B030-B0i199810-200411
BLUISH GRAY,TRIM1#
sub72526-0A010
main72526-0B030-E0i200211-200411
FAWN,TRIM4#
sub72526-0A010
main72526-0B050i200102-200208
main72526-0B050-B0i200001-200406
BLUISH GRAY,TRIM1#
main72526-0B050-E0i200208-200503
FAWN,TRIM4#
main72526-16010-B5i199902-200707
BLUISH GRAY,TRIM1#
sub72526-16010¥1,260
main72526-16010-B5i200306-200503
W(SEPARATE SEAT(1+1 TYPE)),BLUISH GRAY,TRIM1#
sub72526-16010¥1,260
main72526-16010-E3i200210-200707
FAWN,TRIM4#
sub72526-16010¥1,260
main72526-16010-E3i200306-200503
W(SEPARATE SEAT(1+1 TYPE)),FAWN,TRIM4#
sub72526-16010¥1,260
main72526-38010-B0i200306-200503
BLUISH GRAY,TRIM1#
main72526-38010-B0i200004-200503
SOUTH AFRICA SPEC,BLUISH GRAY,TRIM1#
main72526-38010-B0i200306-200503
W(SEPARATE SEAT(1+2 TYPE)),BLUISH GRAY,TRIM1#
main72526-38010-E0i200306-200503
W(SEPARATE SEAT(1+2 TYPE)),FAWN,TRIM4#
72551BCOVER, RECLINING HINGE, RH
main72551-0B010-B0i199612-200212
BLUISH GRAY,TRIM1#
9008010092
main90080-10092¥120
9008011116
main90080-11116
9008011119
main90080-11119
9008015046
main90080-15046
9008016050
main90080-16050
9008038089
main90080-38089
9008052081
main90080-52081
9010510241
main90105-10241¥240
9010511039
main90105-11039¥100
9011910845
main90119-10845
9020110038
main90201-10038¥170
9095001249
main90950-01249¥540
91511B0816
main91511-B0816¥90
9356054008
main93560-54008¥60
9356755016
main93567-55016¥110
9418561000
main94185-61000¥110

64 parts on this diagram · 49 diagrams in section

SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
