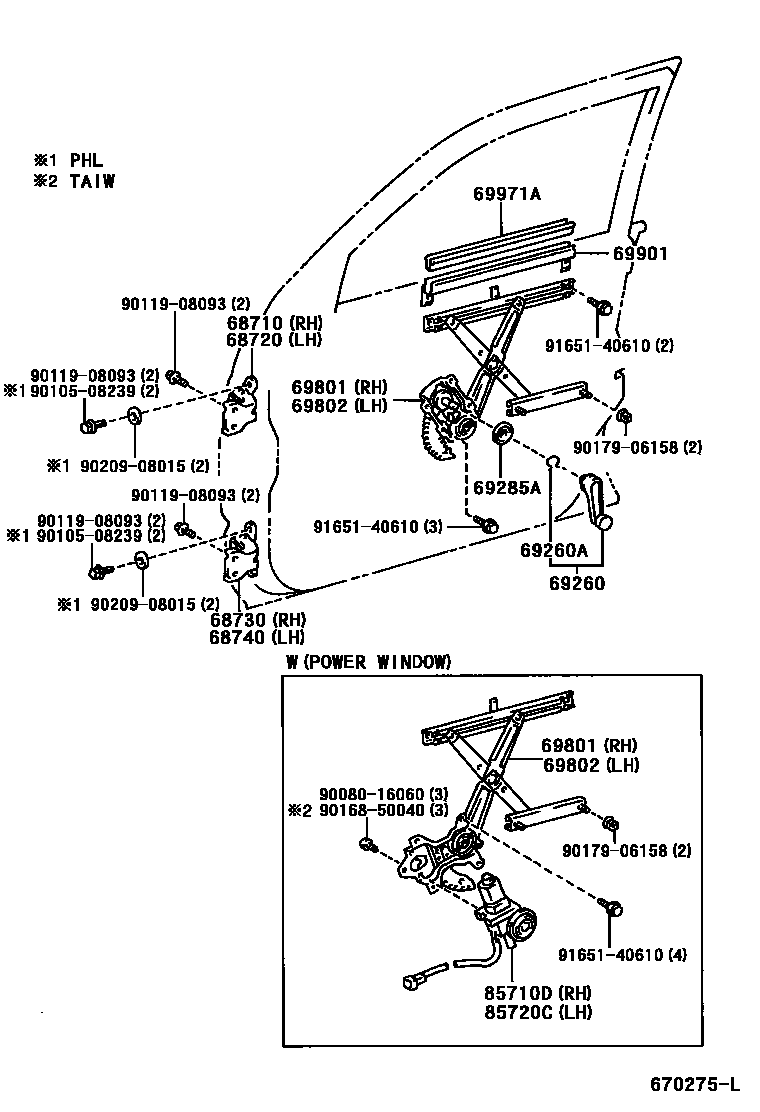

FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-0B010iKF60..SD;KF80..MA200208-200612

main68710-0B020iKF82,LF82,RZF82..PHL200210-200411

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-0B010iKF60..FD200409-200612

main68720-0B020iKF82,LF82,RZF82..PHL200210-200411

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68720-0B010iKF60..SD;KF80..MA200208-200612

main68720-0B020iKF60,80,LF61,80,81,85,RZF80,81,84,85,YF60,80..PHL,SA,TAIW,VN199810-200306

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68710-0B010iLF60;KF60,7#,8#,LF80,82,RZF81..(FD,LUB)..GEN200208-200405

main68710-0B020iKF82..VN;KF60,80,LF61,81,85,RZF61,80,81,84,85..SA,TAIW200210-200707

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-0B010×2iKF72,LF82..IV7200102-200208

main69260-0B010-B0×2iLF60;KF60,7#,8#,LF80,82..(FD,LUB)..(DLX,STD)..RHD200208-200405

BLUISH GRAY,TRIM1#

main69260-0B060-B0×2iLF61,81,RZF61,80,81..DLX,STD200306-200503

BLUISH GRAY,TRIM1#

main69260-10040-B1×2iKF80..DLX..MA199804-200103

BLUISH GRAY,TRIM1#

sub69260-16010

main69260-22030-B4×2iKF82,LF82..(DLX,STD)..PHL200211-200411

BLUISH GRAY,TRIM1#

main69260-38010-B0×2iKF60,80..STD..LHD200210-200707

BLUISH GRAY,TRIM1#

69260ASPRING(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90080-52096×2iKF60..FD200409-200612

main90520-01274×2iKF80..GL..PHL;KF80..DLX..(MA,PHL);LF80..(DLX,GL)..LHD199804-200211

69285APLATE, DOOR VENT WINDOW CONTROL HANDLE

main69285-0B070×2iLF61,81,RZF61,80,81..DLX,STD200306-200503

main69285-22010×2iKF60,80..STD..LHD200210-200211

main69285-22010-08×2iKF60,70,80,LF60,70,80..DLX,STD199612-199703

NATURAL WHITE,TRIM1#

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-0B010iKF82,LF82,RZF82..GL..PHL200208-200411

main69801-0B020iKF80,RZF84,85..(DLX,GL)..TAIW199902-200210

main69810-0B010iKF60..FD200409-200612

main69810-0B030iKF60,80..STD..LHD200210

main69810-0B070iLF61,81,RZF61,80,81..DLX,STD200306-200503

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-0B010iLF85,RZF71,80,81,85..(GL,GLX)..(GEN,PHL,SA)200004-200306

main69802-0B020iRZF84,85..LHD;KF80..SHRW..TAIW200210-200612

main69820-0B010iKF80,LF80..GL..PHL;KF82,LF82..DLX..RHD;KF60,7#,80,LF60,7#,80..(SCB,SHRW,SRF)..(FD,LUB,SD)..(DLX,STD)199612-200302

main69820-0B030iKF60,80..STD..LHD199902-200210

main69820-0B070iLF61,81,RZF61,80,81..DLX,STD200306-200503

69901CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH

main69901-0B010×2iKF82,LF82,RZF82..PHL200208-200411

69971AFILLER, FRONT DOOR GLASS CHANNEL

main69971-0B010×2iKF60,7#,8#,LF6#,7#,8#,RZF71,80,81,85,YF60,80..GEN,MA,SA199612-200103

main69971-0B020×2iKF82,LF82,RZF82..PHL200211-200411

main69971-0B030×2iKF82..VN;KF60,80,RZF84,85..TAIW200210-200707

main69971-0B040×2iKF80,LF80..MA200103-200212

85710DMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-0B020iKF82..GL..RHD;KF80,LF80..GLX;KF80,LF80,82..GL..(GEN,MA,VN);KF72,LF85,RZF71,80,81,85..(GL,GLX)..(GEN,PHL,SA)200010-200306

main85710-0B040iKF80,RZF84,85..(DLX,GL)..TAIW199904-200210

main85710-38010iKF80..GLX;KF70,80,LF80..GL..RHD199612-199901

85720CMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-0B020iKF72,82,LF82,RZF81..GL..RHD200208-200405

main85720-0B040iKF80,RZF84,85..(DLX,GL)..TAIW199904-200210

main85720-38010iKF80..GLX;KF70,80,LF80..GL..RHD199612-199901

9008016060

main90080-16060

9010508239

main90105-08239

9011908093

main90119-08093

9016850040

main90168-50040

9017906158

main90179-06158

9020908015

main90209-08015

9165140610

main91651-40610

20 parts on this diagram · 1 diagram in section
