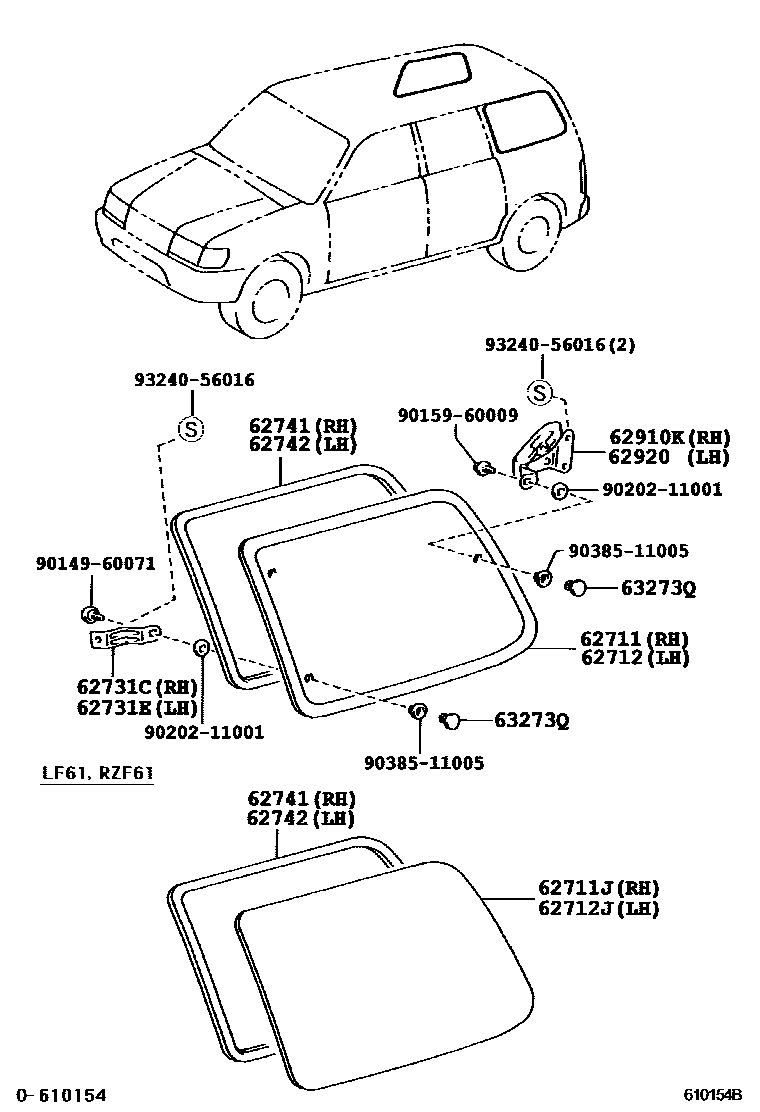

SIDE WINDOW

0001 1 0002 1 0003 1

62711GLASS, QUARTER WINDOW, RH

main62711-0B010iKF7#,LF7#..(DLX,STD)..CBU199612-200208

*TEM,T=4.0

main62711-0B020iKF7#,RZF71..GL199612-200208

*TEM,T=4.0

main62711-0B030iKF8#,LF80,82..(DLX,STD)..RHD200208-200406

*TEM,T=4.0

main62711-0B040iKF82,LF82,RZF81..GL..RHD200208-200406

*TEM,T=4.0

main62711-0B060iKF80,LF80..MA199804-200212

*TEM,T=4.0

main62711-0B070iKF82,LF82..STD200211-200501

*TEM,T=4.0,GREEN

main62711-0B080iKF80..(DLX,STD)..TAIW199902-200210

*TEM,T=4.0,GREEN

main62711-0B100iKF82..VN200210-200601

*TEM,T=4.0,DARKGRAY

main62711-0B130iLF81,85,RZF80,81,85..SA200306-200503

*TEM,T=4.0,GREEN

main62711-0B140iKF82,LF82,RZF82..(DLX,GL)..PHL200211-200501

*TEM,T=4.0,GREEN

main62711-0B180iKF80,RZF84,85..GL..TAIW200210

*TEM,T=4.0,DARKGRAY,W(ANTENNA)

62711JPANEL, QUARTER WINDOW, RH

main62711-0B150iLF61,RZF61200306-200503

62712GLASS, QUARTER WINDOW, LH

main62712-0B010iKF7#..DLX,STD200208-200406

*TEM,T=4.0

main62712-0B020iKF72..GL200208-200406

*TEM,T=4.0

main62712-0B030iKF8#,LF80,82..(DLX,STD)..CBU..GEN199612-200208

*TEM,T=4.0

main62712-0B040iKF8#,LF80,82,RZF81..GL..GEN199612-200208

*TEM,T=4.0

main62712-0B060iKF80..MA200212-200503

*TEM,T=4.0

main62712-0B070iKF82,LF82..STD200211-200501

*TEM,T=4.0,GREEN

main62712-0B080iKF80..(DLX,STD)..TAIW200210

*TEM,T=4.0,GREEN

main62712-0B100iKF80,RZF84,85..(DLX,GL)..TAIW200210

*TEM,T=4.0,DARKGRAY

main62712-0B130iLF81,85,RZF80,81,85..SA200306-200503

*TEM,T=4.0,GREEN

main62712-0B140iKF80,LF80,RZF81..(GL,GLX)..PHL199810-200211

*TEM,T=4.0,GREEN

62712JPANEL, QUARTER WINDOW, LH

main62712-0B150iLF61,RZF61200306-200503

62731CHINGE, QUARTER WINDOW, RH

main62731-38010×2iKF82,LF82..RHD;KF7#,80,LF7#,80,81,85,RZF71,80,81,85,YF80..GEN,MA,PHL,SA199612-200306

main62731-90P50×2iKF80,RZF84,85..TAIW200210

62731EHINGE, QUARTER WINDOW, LH

main62731-38010×2iLF80..GEN;KF82,LF82,RZF82..SRF;KF7#,80,LF81,85,RZF80,81,85..GEN,MA,SA200208-200503

main62731-90P50×2iKF82..VN200210-200601

62741WEATHERSTRIP, QUARTER WINDOW, RH

main62741-0B010iKF7#200208-200406

main62741-0B020iKF8#,LF80,82,RZF81..GEN200208-200406

main62741-0B030iKF80,LF80..MA199804-200212

main62741-0B040iKF82,LF82,RZF82..PHL200211-200501

main62741-0B050iKF80,RZF85..TAIW,VN199902-200001

main62741-0B070iKF80,LF81,85,RZF80,84,85,YF80..SHRV,SHRW200001-200306

main62741-38050iLF61,RZF61200306-200503

62742WEATHERSTRIP, QUARTER WINDOW, LH

main62742-0B010iKF7#,LF7#,RZF71..CBU199612-200208

main62742-0B020iKF8#,LF80,82,RZF81..CBU..GEN199612-200208

main62742-0B030iKF80..MA200212-200503

main62742-0B040iKF82,LF82,RZF82..PHL200211-200501

main62742-0B050iKF80,RZF85..TAIW,VN199902-200001

main62742-0B070iKF80,LF81,85,RZF80,84,85,YF80..SHRV,SHRW200001-200306

main62742-38030iLF61,YF60200004-200306

62910KLOCK ASSY, QUARTER WINDOW, RH

main62910-38020-B0iKF82,LF82..SRF..(DLX,STD);KF7#,80,LF80,81,RZF80,81..(DLX,STD)..(GEN,SA)200208-200503

BLUISH GRAY,TRIM1#

main62910-38020-E0iKF82,LF82,RZF82..SRF..GL;KF72,80,LF85,RZF80,81,85..GL..(GEN,MA,SA)200208-200503

FAWN,TRIM4#

62920LOCK ASSY, QUARTER WINDOW, LH

main62920-38020-B0iKF7#,8#,LF7#,8#,RZF71,80,81,85,YF80..GEN,MA,PHL,SA199612-200102

BLUISH GRAY,TRIM1#

main62920-38020-E0iKF82,LF82,RZF82..SRF..GL;KF72,80,LF85,RZF80,81,85..GL..(GEN,MA,SA)200208-200503

FAWN,TRIM4#

63273QRETAINER, QUARTER WINDOW HINGE

main63273-95701×6iKF82,LF82..RHD;KF7#,80,LF7#,80,81,85,RZF71,80,81,84,85,YF80199612-200306

9014960071

main90149-60071

9015960009

main90159-60009

9020211001

main90202-11001

9038511005

main90385-11005

9324056016

main93240-56016

16 parts on this diagram · 3 diagrams in section
