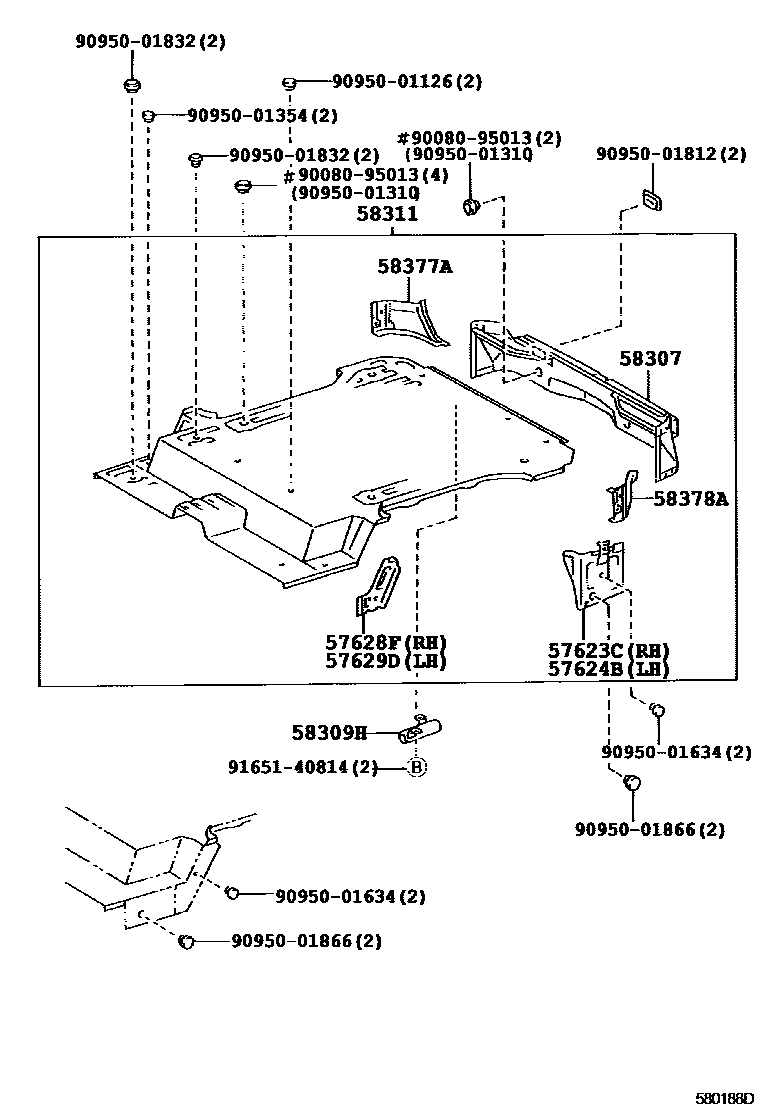

REAR FLOOR PANEL & REAR FLOOR MEMBER

0001 1 0002 1 0008 1 0009 1

57623CRAIL SUB-ASSY, FLOOR SIDE, REAR RH

main57047-0B010iKF80..(SHRW,SRF)..(GEN,MA,TAIW,VN);KF82,LF8#,RZF80,81,85,YF80..(SHRW,SRF)..(GEN,MA,SA,TAIW)199612-200306

main57623-0B010iKF80,LF80,RZF81..(SHRV,SRF)..LHD;KF7#,LF61,7#,RZF71,84,85,YF60..SHRV,SRF199612-200306

57624BRAIL SUB-ASSY, FLOOR SIDE, REAR LH

main57048-0B010iRZF81..SA..LHD200208-200406

main57624-0B010iKF80..SHRV;KF82,LF82,85..(PHL,SA)..LHD;KF7#,LF61,RZF61,82,84,85..SHRV,SRF200208-200707

57628FPLATE, REAR FLOOR SIDE MEMBER, RH

main57628-0B010iKF82,LF82..RHD;KF7#,80,LF61,7#,80,81,85,RZF71,80,81,84,85,YF60,80199804-200306

57629DPLATE, REAR FLOOR SIDE MEMBER, LH

main57629-0B010iKF82,LF82..RHD;KF7#,80,LF61,7#,80,81,85,RZF71,80,81,84,85,YF60,80199804-200306

58307PANEL SUB-ASSY, BODY LOWER BACK

main58302-0B010iKF70,80,LF80..4F;KF70,80,LF70,80..(DLX,GL)..RHD199612-200103

main58302-0B020iKF80,LF80..PHL199810-200102

main58302-0B030iKF80..(DLX,STD)..TAIW;KF82,LF61,81,85,RZF61,80,81,85..SA,VN200210

main58302-0B050iKF80,LF80..MA200208-200212

main58302-0B060iKF72..DLX..CBU;KF82,LF82,RZF71,81..5F..GL200001-200208

W(SIDE MUDGUARD) OR W(REAR SPOILER)

main58302-0B070iKF80,LF80,RZF81..PHL200102-200211

main58302-0B100iKF80,RZF81..GL..RHD200301-200503

W(REAR BUMPER = LUXURY TYPE)

main58302-0B110iKF82,LF82,RZF82..GL..PHL200301-200501

W(REAR BUMPER = LUXURY TYPE)

main58302-YD010iRZF84,85..LHD;KF80..SHRW..TAIW200210-200612

W(SPARE TIRE CARRIER = BACK DOOR)

58309HLOCK SUB-ASSY, SPARE WHEEL CARRIER HANDLE GUIDE

main58309-0B010iKF7#,8#,LF7#,80,82,RZF71,81..CBU..GEN199612-200208

main58309-0B020iKF80,LF61,RZF61..SHRV;KF82,LF81,85,RZF80,81,85..SHRW..5F200210

main58309-0B030iKF80,LF80,RZF81..PHL199810-200211

main58309-38010iKF80..MA200212-200503

58311PAN, REAR FLOOR

main58300-0B020iKF82..DLX..VN200302-200601

main58300-0B030iKF82..GL..VN200302-200601

main58301-0B100iKF80..SHRW..TAIW199902-200210

main58301-0B110iKF80..(DLX,STD)..TAIW199902-200210

main58301-0B120iKF80..SHRV..(DLX,GL)199902-200210

W(ABS)

main58301-0B190iRZF85..SHRW..LHD199911-200208

main58301-0B250iRZF85..SHRV200208-200210

W(ABS)

main58301-0B300iKF80..VN199909-200302

main58301-0B380iRZF84200003-200210

main58301-0B450iKF70200208-200406

main58301-0B460iKF72200208-200406

main58301-0B470iKF80,LF80,82..(DLX,STD)..RHD200208-200406

main58301-0B480iLF82..GL..RHD200208-200406

W(REAR BUMPER = LUXURY TYPE)

main58301-0B490iKF82..DLX..RHD200208-200406

main58301-0B500iRZF81..GEN200208-200406

main58301-0B510iKF80..MA200212-200503

main58301-0B520iKF82..(DLX,STD)..PHL200211-200501

main58301-0B530iLF82..(DLX,STD)..LHD200211-200501

main58301-0B540iKF80..(DLX,STD)..TAIW200210-200707

main58301-0B550iKF80..DLX..TAIW200210-200707

W(ABS)

main58301-0B560iKF80..SHRW..TAIW200210-200505

main58301-0B570iKF80..SHRW..TAIW200210-200505

W(ABS)

main58301-0B580iRZF84200210-200612

main58301-0B600iRZF85..SHRV200210-200612

main58301-0B620iRZF85..SHRW..LHD200210-200612

main58301-0B650iLF81,RZF61,80,81..SA..RHD200306-200503

W(FIXED TYPE THIRD SEAT )

main58301-0B670iLF81,RZF80,81..SA..RHD200306-200503

main58301-0B680iLF85,RZF85..RHD200306-200503

W(OPPOSING TYPE THIRD SEAT)

main58301-0B690iLF85,RZF85..RHD200306-200503

main58301-0B700iLF61,81,RZF61,81..LHD200306-200503

main58301-0B720iLF85..LHD200306-200503

main58301-0B770iLF82..GL..RHD200208-200406

main58301-0B780iKF82..GL..RHD200208-200406

main58301-0B790iKF82,RZF82..GL..PHL200211-200501

main58301-0B800iLF82..GL..LHD200211-200501

main58301-0B810iKF80..SHRV..GL200210-200505

main58301-0B820iKF80..SHRV..GL200210-200505

W(ABS)

main58301-0B850iRZF81..GEN200301-200406

W(REAR BUMPER = LUXURY TYPE)

main58301-0B860iKF80..MA200301-200503

W(REAR BUMPER = LUXURY TYPE)

main58301-0B870iKF82,RZF82..GL..PHL200301-200501

W(REAR BUMPER = LUXURY TYPE)

main58301-0B880iLF82..GL..LHD200301-200501

W(REAR BUMPER = LUXURY TYPE)

main58301-0B900iKF70,LF70199712-200001

main58301-0B901iKF80,LF80..CBU199612-199712

main58301-0B902iKF70,LF70..IV7199612-199712

main58301-0B903iKF80,LF80..IV7199612-199712

main58301-0B904iKF80..MA199804-200103

main58301-0B905iLF80..MA199804-200103

main58301-0B906iLF80..LHD199810-200102

main58301-0B908iKF80..PHL199810-200102

main58301-0B910iKF7#,LF72200001-200008

main58301-0B911iKF8#,LF80,82..GEN200001-200008

main58301-0B912iRZF71..5F;KF72..DLX..CBU200001-200208

W(SIDE MUDGUARD) OR W(REAR SPOILER)

main58301-0B913iKF82,LF82..5F..GL200001-200008

W(SIDE MUDGUARD) OR W(REAR SPOILER)

main58301-0B914iLF80..MA200103-200212

main58301-0B915iKF80,RZF81..PHL200102-200211

main58301-0B916iLF80..LHD200102-200211

main58301-0B917iLF82..GL200008-200208

main58301-YD010iKF80..SHRV..GL200210-200707

W(SPARE TIRE CARRIER = BACK DOOR)

main58301-YD020iKF80..SHRV..GL200210-200707

W(ABS & SPARE TIRE CARRIER = BACK DOOR)

main58301-YD030iKF80..SHRW..TAIW200210-200612

W(SPARE TIRE CARRIER = BACK DOOR)

main58301-YD040iKF80..SHRW..TAIW200210-200612

W(ABS & SPARE TIRE CARRIER = BACK DOOR)

main58301-YD050iRZF84200210-200612

W(SPARE TIRE CARRIER = BACK DOOR)

main58301-YD070iRZF85..SHRV200210-200612

W(SPARE TIRE CARRIER = BACK DOOR)

main58301-YD090iRZF85..SHRW..LHD200210-200612

W(SPARE TIRE CARRIER = BACK DOOR)

main58311-0B050iLF61,81,YF60,80..LHD200210-200306

58377APANEL, BODY LOWER BACK, RH

main58377-0B010iRZF84,85..LHD;KF80..SHRW..TAIW200208-200612

58378APANEL, BODY LOWER BACK, LH

main58378-0B010iRZF84,85..LHD200208-200612

main58378-YD010iKF80..SHRV..GL200210

W(SPARE TIRE CARRIER = BACK DOOR)

9008095013

main90080-95013

9095001126

main90950-01126

9095001310

main90950-01310

9095001354

main90950-01354

9095001634

main90950-01634

9095001812

main90950-01812

9095001832

main90950-01832

9095001866

main90950-01866

9165140814

main91651-40814

18 parts on this diagram · 4 diagrams in section
