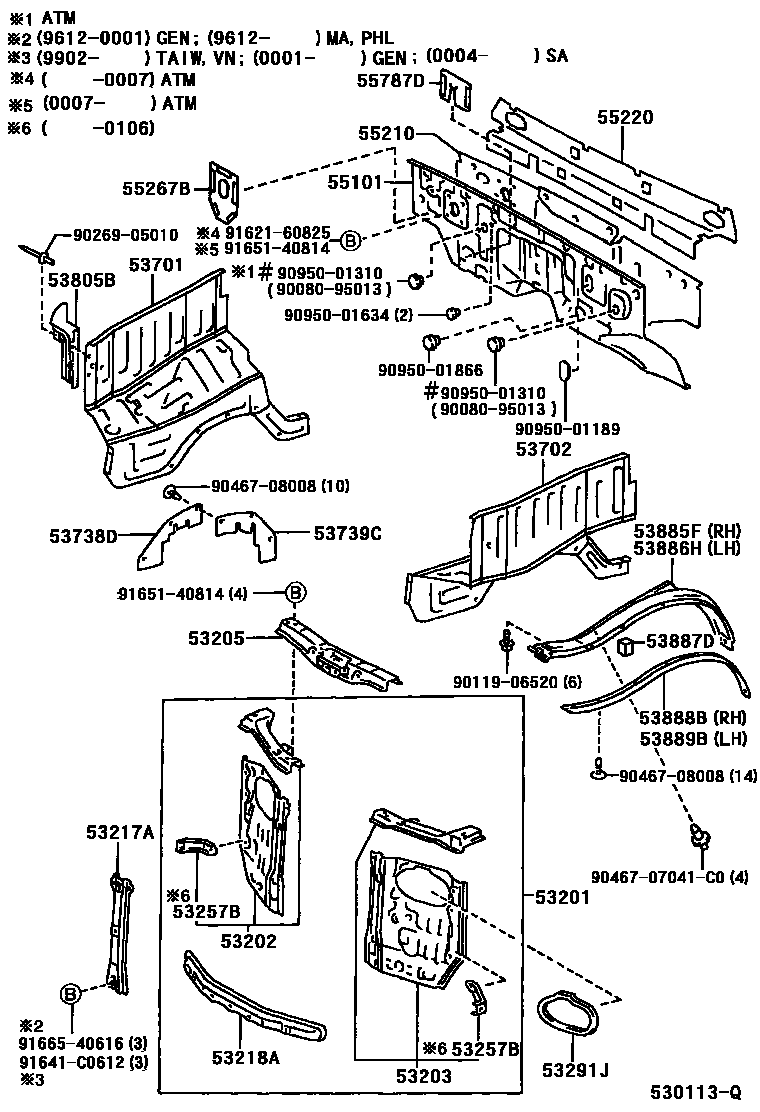

FRONT FENDER APRON & DASH PANEL

0001 1 0004 1 0007 1 0009 1 0010 1 0011 1

53201SUPPORT SUB-ASSY, RADIATOR

main53201-0B012iKF70,80,LF70,80..(DLX,GL)..RHD199904-200103

main53201-0B020iKF60,70,80,LF60,70,80..RHD199612-199904

main53201-0B021iKF60,70,80,LF60,80..GEN200001-200208

main53201-0B022iKF60,70,80,LF60,80..STD..RHD199904-200001

main53201-0B030iKF80,LF80..(GL,GLX)..PHL199810-199904

main53201-0B031iKF80,LF80..(GL,GLX)..PHL199904-200102

main53201-0B040iKF80,LF80..DLX..PHL199810-199904

main53201-0B041iKF80,LF80..DLX..PHL199904-200102

main53201-0B050iKF60,80..TAIW199902-199904

main53201-0B051iRZF85..LHD;LF81,YF80..RHD;KF60,80,RZF80,84..SA,TAIW,VN199904-200210

main53201-0B080iKF72,82,LF72,82200001-200103

main53201-0B090iKF80,LF80..DLX..PHL200102-200211

main53201-0B100iKF80,LF80..(GL,GLX)..PHL200102-200211

main53201-0B110iRZF71,81..RHD200010-200208

main53201-0B120iRZF81..LHD200102-200211

main53201-0B150iLF80..GEN;KF7#,8#,LF82..RHD200208-200503

main53201-0B160iRZF81..GEN200208-200406

main53201-0B170iKF82,LF82..PHL200211-200501

main53201-0B180iRZF82200211-200501

main53201-0B190iRZF84,85..LHD;KF80..SHRW..TAIW200210-200612

main53201-0B200iLF81,85,RZF81..LHD200306-200503

main53201-0B220iKF82..VN200302-200601

main53201-0B260iKF60,LF60..RHD200208-200612

main53201-0B320iLF61,RZF61200306-200503

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-0B080iKF80,LF80..MA200208-200212

main53202-0B100iLF80..GEN;KF7#,8#,LF82,RZF81..SRF..RHD200208-200503

main53202-0B110iKF82,LF82,RZF82..PHL200211-200501

main53202-0B120iLF81,85,RZF81..SA..RHD;KF82,RZF80,85..SHRW..5F200210

main53202-0B130iLF81,85,RZF81..LHD200306-200503

main53202-0B250iKF60,LF60..RHD200208-200612

main53202-0B260iLF61,RZF61200306-200503

main53202-0B901iKF60,70,80,LF60,80..4F;KF70,80,LF70,80..(DLX,GL)..RHD199612-200103

main53202-0B902iKF80,LF80,RZF81..(GL,GLX)..PHL199810-200211

main53202-0B903iKF80,LF80..DLX..PHL199810-200211

main53202-0B904iKF60,80..TAIW199902-199904

main53202-0B906iKF60,70,80,LF60,80..GEN200001-200208

main53202-0B907iKF60,80..TAIW199904-200006

main53202-0B908iKF72,82,LF72,82,RZF71,81..RHD200001-200103

main53202-0B909iKF60,80,RZF84,85..TAIW200210

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-0B090iLF80..GEN;KF7#,8#,LF82,RZF81..SRF..RHD200208-200503

main53203-0B100iKF82,LF82,RZF82..PHL200211-200501

main53203-0B110iLF81,85,RZF81..SA..RHD;KF82,RZF80,85..SHRW..5F200210

main53203-0B120iLF81,85,RZF81..LHD200306-200503

main53203-0B130iKF60,LF60..RHD200208-200612

main53203-0B160iLF61,RZF61200306-200503

main53203-0B901iKF60,70,80,LF60,80..4F;KF70,80,LF70,80..(DLX,GL)..RHD199612-200103

main53203-0B902iKF80,LF80,RZF81..(GL,GLX)..PHL199810-200211

main53203-0B903iKF80,LF80..DLX..PHL199810-200208

main53203-0B904iKF60,80..TAIW199902-200006

main53203-0B906iKF60,70,80,LF60,80..GEN200001-200208

main53203-0B907iKF72,82,LF72,82,RZF71,81..RHD200001-200103

main53203-0B908iKF60,80,RZF84,85..TAIW200210

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-0B010iKF80..DLX..MA;KF70,80,LF80..GL..RHD199905-200103

main53205-0B020iKF60,80,LF61,RZF61..(SCB,SHRV)..LHD;KF82,LF81,82,85,RZF81,82..(DLX,GL,STD)..LHD200210

main53205-0B040iLF80..GEN;KF60,7#,8#,LF60,81,82,85,RZF61,80,81,85..RHD200208-200612

main53205-0B050iKF60,70,80,LF60,70,80..(DLX,STD)..GEN199905-200001

main53205-0B060iKF60,70,80,LF60,80..GEN200001-200208

53217ABRACE, HOOD LOCK SUPPORT

main53209-0B010iKF80..GL..VN;KF60,80..(DLX,STD)..(TAIW,VN)200006-200210

main53209-0B030iRZF84,85..LHD199911-200006

main53209-0B040iKF80,LF80..MA200208-200212

main53209-0B050iKF80,LF80,RZF81..PHL200102-200211

main53209-0B060iLF80..GEN;KF7#,8#,LF82,RZF81..SRF..RHD200208-200503

main53209-0B070iKF82,LF82,RZF82..PHL200211-200501

main53209-0B080iKF60,80..(SCB,SHRV)..LHD;KF82,LF81,RZF80,81..SHRW200210

main53209-0B090iKF80..SHRV..GL200210

W(FRONT BUMPER GUARD)

main53217-0B010iKF60,70,80,LF60,80..4F;KF70,80,LF70,80..(DLX,GL)..RHD199612-200103

main53217-0B020iKF80,LF80..PHL199810-200102

53218ASUPPORT, RADIATOR, LOWER

main53218-0B010iKF70,80,LF70,80..DLX..GEN199905-200001

main53218-0B020iLF61,RZF61200306-200503

main53218-0B050iKF80,LF80..PHL199908-200102

main53218-0B060iKF82,LF82,RZF82..PHL200211-200501

main53218-0B080iKF82,LF81,85,RZF80,81,85..SHRW..5F200210

main53218-0B900iKF80,LF80..PHL199810-199904

main53218-0B901iKF60,80..(DLX,STD)..TAIW200006-200210

main53218-0B902iKF60,7#,8#,LF60,72,80,82,RZF71,81..GEN200001-200103

main53218-0B904iKF60,80,RZF84,85..TAIW200210

53257BBRACKET, RADIATOR SUPPORT TO FRONT FENDER

main53257-0B010×2iLF70,RZF81..DLX,GLX;KF60,70,80,LF60,80..4F;KF70,80,LF80..SRF..(DLX,GL,GLX)199612-200103

53291JSEAL, RADIATOR SUPPORT

main53291-0B010×2iKF70,80,LF70,80..(DLX,GL)..GEN199612-200001

main53291-0B020×2iKF80,LF80..(GL,GLX)..PHL199810-200102

main53291-0B030×2iKF82..VN;KF60,80..(SCB,SHRV)..LHD200210

main53291-38030×2iKF80,LF80..MA199804-200103

main53291-38040×2iLF81,85,RZF80,85,YF80..RHD200004-200007

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-0B010iKF60,70,80..GEN199612-200001

main53701-0B020iLF60,80..4F;LF70,80..(DLX,GL)..RHD199612-200103

main53701-0B030iKF80..CBU..GEN199704-200001

BRUNEI SPEC

main53701-0B050iLF80..LHD199810-200211

main53701-0B060iKF80..PHL199810-200211

main53701-0B070iKF60,80..TAIW,VN199902-199911

main53701-0B090iRZF85..LHD200210-200612

main53701-0B100iLF61,81,85,RZF61,80,81,85..SA200306-200503

main53701-0B120iKF80..VN200210-200302

main53701-0B140iKF60,7#,8#..RHD200103-200208

main53701-0B150iLF60,72,80,82..RHD200103-200208

main53701-0B160iRZF71,81..RHD200010-200208

main53701-0B170iRZF81..LHD200102-200211

main53701-0B180iRZF84200003-200210

main53701-0B220iKF60,7#,8#..RHD200208-200612

main53701-0B230iLF60,80,82..GEN200208-200406

main53701-0B240iKF82..PHL200211-200501

main53701-0B250iLF82..LHD200211-200501

main53701-0B260iKF82..VN;KF60,80..TAIW200210-200707

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-0B010iKF60,70,80..GEN199612-200001

main53702-0B011iKF60,70,80..GEN200001-200208

main53702-0B020iLF60,70,80..RHD199612-199905

main53702-0B030iKF80..MA199804-200103

main53702-0B050iLF82..LHD200211-200501

main53702-0B060iKF82..PHL200211-200501

main53702-0B070iKF60,80..TAIW,VN199902-199911

main53702-0B090iRZF84,85..LHD199911-200210

main53702-0B100iLF61,81,85,RZF61,80,81,85..SA200306-200503

main53702-0B120iLF80..MA199905-200212

main53702-0B130iRZF81..GEN200208-200406

main53702-0B140iKF82..VN;KF60,80..TAIW200210-200707

main53702-0B150iLF60,80,82..GEN200208-200406

main53702-0B160iKF72,8#..(DLX,GL)..RHD200103-200212

main53702-0B170iRZF71,81..RHD200010-200208

main53702-0B180iRZF81..LHD200102-200211

main53702-0B210iRZF82200211-200501

main53702-0B220iRZF84,85..LHD200210-200612

53738DSEAL, FRONT FENDER APRON TO FRAME, FRONT

main53738-0B010×2iKF60,80..(SCB,SHRW)..(FD,LUB,SD)..(GEN,TAIW)200208-200612

main53738-0B020×2iKF80,LF80,RZF81..PHL199810-200211

main53738-0B050×2iKF80,LF80..MA200103-200212

main53738-38030×2iLF85,RZF84,85199911-200306

53739CSEAL, FRONT FENDER APRON TO FRAME, REAR

main53739-0B010×2iKF80,LF60..(SCB,SHRV,SRF)..(GEN,TAIW);KF60,7#,82,LF61,80,81,82,RZF61,80,81..(LUB,T2)..(GEN,SA,TAIW,VN)200208

main53739-0B020×2iKF80,LF80,RZF81..PHL199810-200211

main53739-0B050×2iKF80,LF80..MA200103-200212

main53739-38030×2iLF85,RZF84,85200210-200612

53805BSHIELD SUB-ASSY, FENDER SPLASH, FRONT RH

main53805-38040iLF61,81,85200004-200306

53885FSHIELD, FRONT FENDER SPLASH, REAR RH

main53885-0B010iKF60,70,80,LF60,80..4F;KF70,80,LF70,80..SRF..(DLX,GL,GLX)199612-200102

53886HSHIELD, FRONT FENDER SPLASH, REAR LH

main53886-0B010iKF60,70,80,LF60,80..4F;KF70,80,LF70,80..SRF..(DLX,GL,GLX)199612-200102

53887DSEAL, FRONT FENDER SPLASH SHIELD, NO.1

main53887-38020×2iKF60,70,80,LF60,80..4F;KF70,80,LF70,80..SRF..(DLX,GL,GLX)199612-200102

53888BSEAL, FRONT FENDER SPLASH SHIELD, RH NO.2

main53888-0B010iKF60,70,80,LF60,80..4F;KF70,80,LF70,80..SRF..(DLX,GL,GLX)199612-200102

53889BSEAL, FRONT FENDER SPLASH SHIELD, LH NO.2

main53889-0B010iKF60,70,80,LF60,80..4F;KF70,80,LF70,80..SRF..(DLX,GL,GLX)199612-200102

55101PANEL SUB-ASSY, DASH

main55101-0B010iKF60,70,80199612-199711

main55101-0B011iKF82..4FC..RHD200208-200406

main55101-0B020iLF60,70,80..GEN199612-200001

main55101-0B021iLF60,80,82..GEN200208-200406

main55101-0B030iKF80..4FC..MA199804-200212

main55101-0B040iLF80..MA199804-200103

main55101-0B050iLF80..LHD199810-200102

main55101-0B060iKF82..5F..PHL200211-200501

main55101-0B070iKF60,80..TAIW199902-200210

main55101-0B080iKF60,70,80..MTM..GEN199711-200001

main55101-0B081iKF60,70,80..GEN200001-200208

main55101-0B090iKF80..5F..MA199804-200212

main55101-0B100iRZF81..5F..GEN200208-200406

main55101-0B120iRZF84,85..LHD200210-200612

main55101-0B130iKF72,82..5F..RHD200208-200406

main55101-0B140iLF81,85..RHD200306-200503

main55101-0B160iRZF61,80,81,85..SA..RHD200306-200503

main55101-0B170iLF61,81..LHD200306-200503

main55101-0B190iLF85..LHD200306-200503

main55101-0B200iRZF81..4FC..RHD200208-200406

main55101-0B210iLF80..MA200103-200212

main55101-0B220iLF80..LHD200102-200211

main55101-0B230iRZF81..5F..LHD200104-200211

main55101-0B250iRZF82..4FC200211-200501

main55101-0B260iKF82..4FC..LHD200211-200501

main55101-0B270iRZF61,81..LHD200306-200503

main55110-0B010iKF80..VN199909-200302

55210INSULATOR ASSY, DASH PANEL

main55210-0B010iKF60,70,80,LF60,70,80..GEN199612-199809

main55210-0B020iKF80..MA199804-200212

main55210-0B030iKF82,RZF82..(DLX,GL)..PHL200211-200501

main55210-0B040iKF82,RZF81..SHRW..LHD;KF60,80..(SCB,SHRV)..LHD200210

main55210-0B060iKF60,7#,8#,LF60,80..GEN200001-200208

main55210-0B070iLF80,82,RZF81..GEN200208-200406

main55250-0B010iLF80..MA199804-200212

main55250-0B020iLF82..(DLX,GL)..LHD200211-200501

main55250-0B040iLF81,85..RHD200306-200503

main55250-0B050iLF61,81,85..LHD200306-200503

main55250-0B060iRZF80,81,85..SA..RHD200306-200503

55220INSULATOR ASSY, DASH PANEL, NO.2

main55220-0B010iLF80..STD;KF60,70,80,LF60..GEN199809-200001

main55220-0B020iKF80,LF80..MA199804-200212

main55220-0B030iKF82,LF82,RZF82..(DLX,GL)..PHL200211-200501

main55220-0B040iRZF84,85..LHD;KF80..SHRW..TAIW200210-200612

main55220-0B060iKF60,7#,8#,LF60,80,82,RZF81..GEN200208-200612

main55230-0B010iLF81,85,RZF80,81,85..SA..RHD200306-200503

main55230-0B020iLF61,81,85..LHD200306-200503

55267BCOVER, DASH PANEL INSULATOR, NO.3

main55267-0B010iKF80,LF80..MA199804-200212

main55267-0B020iKF80,LF80,RZF81..(GL,GLX)..PHL199810-200211

main55267-0B030iKF60,80,RZF84,85..TAIW,VN199902-200302

main55267-0B040iKF72,82,LF80,82,RZF81..GEN200208-200406

55787DINSULATOR, COWL TOP PANEL, NO.1

main55787-0B010iKF80,LF80..MA199804-200212

main55787-0B020iKF80,LF80,RZF81..(GL,GLX)..PHL199810-200211

main55787-0B030iKF82,RZF81..SHRW..LHD;KF60,80..(SCB,SHRV)..LHD200210

main55787-0B040iKF72,82,LF7#,80,82,RZF71,81..(DLX,GL)..GEN199809-200208

9008095013

main90080-95013

9011906520

main90119-06520

9026905010

main90269-05010

9046707041C0

main90467-07041C0

9046708008

main90467-08008

9095001189

main90950-01189

9095001310

main90950-01310

9095001634

main90950-01634

9095001866

main90950-01866

9162160825

main91621-60825

91641C0612

main91641-C0612

9165140814

main91651-40814

9166540616

main91665-40616

36 parts on this diagram · 6 diagrams in section
