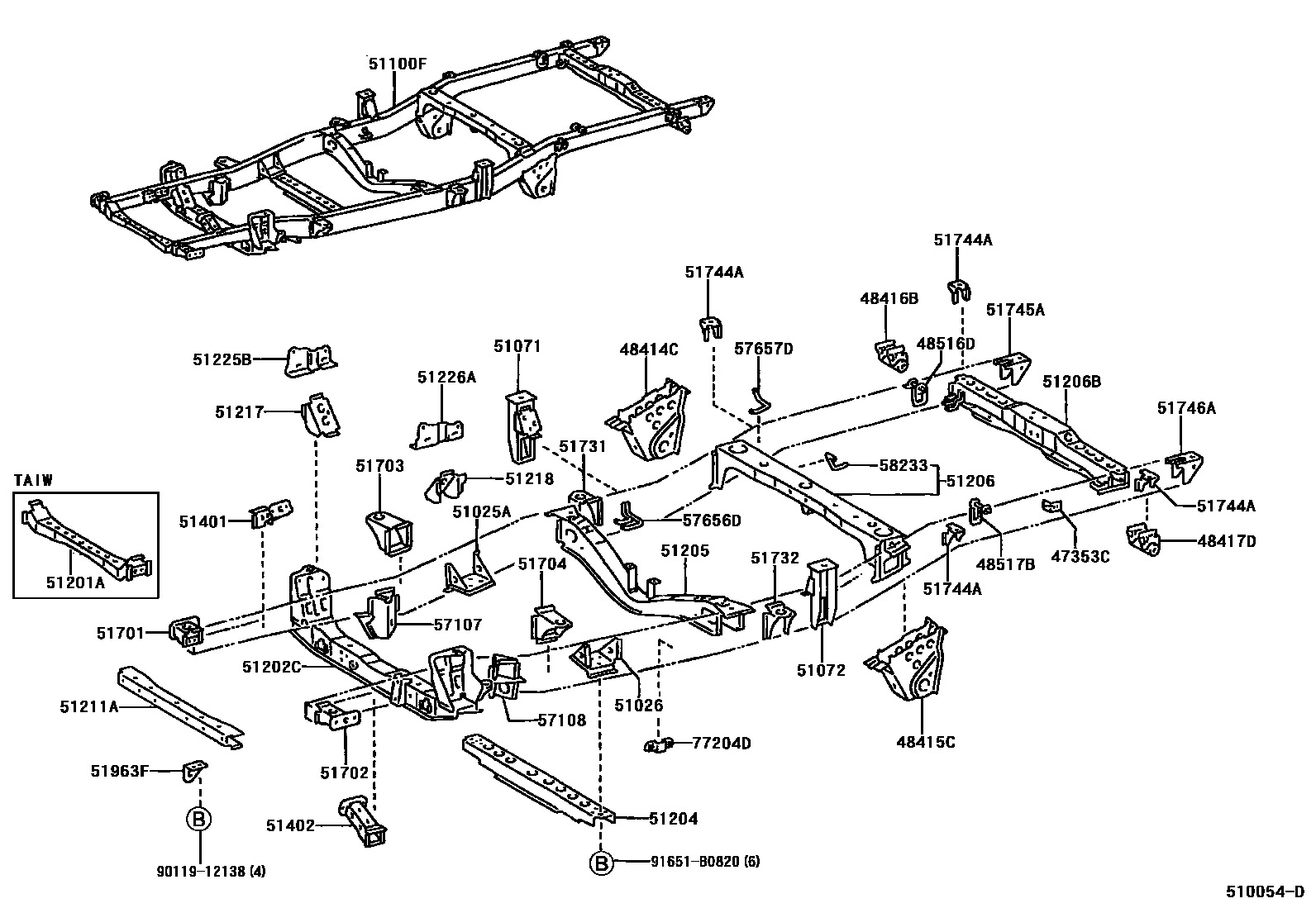

FRAME

0001 1 0002 1 0003 1 0004 1

47353CBRACKET, FLEXIBLE HOSE, NO.3

main47353-0B011iKF80..SHRW..TAIW;KF60,RZF84,85..(LUB,SD)..(GEN,TAIW)¥280199612-200612

48414CBRACKET, SPRING, NO.3 RH

main48404-0B010iKF80..(SHRV,SRF)..(MA,TAIW);KF60,82,LF61,81,82,RZF61,80,81,82..(DLX,GL,STD)..(PHL,SA,TAIW,VN)199612-200612

main48404-0B020iKF7#199612-200405

main48404-0B040iLF85,RZF84,85199911-200612

48415CBRACKET, SPRING, NO.3 LH

main48404-0B020iKF7#199612-200405

main48404-0B040iLF85,RZF85..SA200004-200503

main48407-0B010iLF60;KF60,8#,LF80,82,RZF81..(FD,LUB)..GEN199612-200612

main48407-0B020iRZF84,85..LHD199911-200612

main48407-0B040iLF61,81,RZF61,80,81..SA200306-200503

48416BBRACKET, SPRING, NO.4 RH

main48405-0B010iLF60;KF60,7#,8#,LF80,82,RZF81..(FD,LUB)..GEN199612-200612

main48405-0B030iLF85,RZF84,85199911-200612

48417DBRACKET, SPRING, NO.4 LH

main48405-0B010iKF60,80..(SCB,SHRW)..(LUB,SD)..(GEN,TAIW)199612-200612

main48405-0B030iLF85,RZF84,85199911-200612

48516DBRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPPER RH

main48505-0B010iRZF85..RHD;KF80..(SHRV,SRF)..(MA,TAIW);KF60,82,LF61,81,82,85,RZF61,80,81,82..(DLX,GL,STD)..(PHL,SA,TAIW,VN)199612-200612

48517BBRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPR LH

main48505-0B010iKF60..FD199612-200612

main48506-0B010iKF7#,LF7#,RZF71199612-200405

51025ABRACKET SUB-ASSY, FRAME NO.3 CROSSMEMBER, RH

main51025-0B010iLF60;KF60,7#,8#,LF80,82,RZF81..(FD,LUB)..5F..GEN199612-200612

main51025-0B020iKF82,RZF81..4FC..RHD199612-200612

main51025-0B030iLF85,RZF84,85199911-200612

51026BRACKET SUB-ASSY, FRAME NO.3 CROSSMEMBER, LH

main51026-0B010iKF80..5F..(MA,TAIW);KF60,82,LF61,81,82,RZF61,80,81,82..5F..(DLX,GL,STD)..(PHL,SA,TAIW,VN)199612-200612

main51026-0B020iKF8#,RZF82..(SHRV,SRF)..4FC..(DLX,GL)..(MA,PHL,TAIW)199612-200612

51071BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.1 RH

main51071-0B010iKF60,LF60199612-200612

51072BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.1 LH

main51071-0B010iKF60,LF60199612-200612

51100FFRAME SUB-ASSY

main51001-0B010iKF60..FD199612-200612

main51001-0B020iLF60199612-200405

main51001-0B030iKF70..MTM199612-200405

main51001-0B040iKF70..4FC199612-200001

main51001-0B050iLF7#199612-200208

main51001-0B060iKF80..GEN199612-200405

main51001-0B070iKF80..4FC..GEN199612-200001

main51001-0B080iLF80,82..GEN199612-200405

main51001-0B090iKF80..5F..MA199804-200503

main51001-0B100iKF80..4FC..RHD199804-200503

main51001-0B110iLF80..MA199804-200212

main51001-0B130iKF82..5F..PHL199810-200501

main51001-0B140iKF82..4FC..LHD199810-200501

main51001-0B150iLF82..LHD199810-200501

main51001-0B160iKF60..LHD199902-200210

main51001-0B170iKF60..LHD199902-200210

W(POWER STEERING)

main51001-0B190iKF80..5F..TAIW199902-200210

main51001-0B200iKF80..SHRV..4FC199902-200612

main51001-0B220iRZF71..5F200010-200208

main51001-0B230iRZF71..4FC200010-200208

main51001-0B250iRZF84200003-200210

main51001-0B251iRZF84200210-200612

main51001-0B260iKF72..5F200001-200208

main51001-0B270iKF72..4FC200001-200208

main51001-0B280iKF82..5F..RHD200001-200405

main51001-0B290iKF82..4FC..RHD200001-200405

main51001-0B312iRZF61,80,81..SA..RHD200306-200503

main51001-0B322iLF81..RHD200306-200503

main51001-0B332iRZF61,81..LHD200306-200503

main51001-0B342iLF61,81..LHD200306-200503

main51001-0B353iRZF85..RHD200306-200503

main51001-0B363iLF85..RHD200306-200503

main51001-0B370iKF80..VN199909-200601

main51001-0B380iRZF85..5F..LHD199911-200612

main51001-0B390iRZF85..4FC199911-200612

main51001-0B400iRZF81..5F..GEN200010-200405

main51001-0B410iRZF81..4FC..RHD200010-200405

main51001-0B420iRZF82..5F200102-200501

main51001-0B430iRZF81..4FC..LHD200102-200501

main51001-0B442iLF85..LHD200306-200503

51201ACROSSMEMBER SUB-ASSY, FRAME, FRONT

main51201-0B010iKF82..VN;KF60,80..(SCB,SHRV)..LHD199902-200612

main51201-0B040iRZF84,85..LHD199911-200612

main51201-0B050iLF61,81,RZF61,80,81..SA200306-200503

main51201-0B060iLF85,RZF85..SA200306-200503

51202CCROSSMEMBER SUB-ASSY, FRONT SUSPENSION, LOWER

main51202-0B010iKF60..SD;KF80..MA199612-200612

main51202-0B020iKF60..LHD199902-200210

main51202-0B030iKF60,80..(SCB,SHRV)..LHD199902-200612

W(POWER STEERING)

main51202-0B050iRZF84,85..LHD199911-200612

main51202-0B060iKF82..VN199909-200601

main51202-0B070iLF85..LHD200306-200503

main51202-0B080iLF61,81,RZF61,81..LHD200306-200503

main51202-0B090iKF82,RZF82..PHL199810-200501

main51202-0B100iLF80..LHD199810-200501

main51202-0B110iRZF85..RHD200306-200503

main51202-0B120iLF85..RHD200306-200503

main51202-0B130iLF81,RZF61,80,81..SA..RHD200306-200503

51204CROSSMEMBER SUB-ASSY, FRAME, NO.3

main51203-0B010iKF80..5F..MA;KF82,LF82..LHD;KF60,LF81..(LUB,SD)..RHD199612-200612

main51203-0B020iKF60,80..5F..TAIW;KF80..(SHRV,SRF)..4FC..(MA,TAIW)199804-200612

main51203-0B040iLF85,RZF84,85199911-200612

main51203-0B060iRZF81..GEN200208-200503

51205CROSSMEMBER SUB-ASSY, FRAME, NO.4

main51204-0B010iKF60,80,LF60,80199612-199704

main51204-0B011iLF60;KF60,8#,LF80,82,RZF81..(FD,LUB)..GEN199704-200612

main51204-0B020iKF7#,LF7#,RZF71199612-200405

main51204-0B040iLF85,RZF84,85199911-200306

main51204-0B041iLF85,RZF84,85200210-200612

main51204-0B060iKF80..SHRW..TAIW199902-200612

51206CROSSMEMBER SUB-ASSY, FRAME, NO.5

main51205-0B010iKF60,7#,8#,LF60,7#,80,82,RZF71,81..GEN,MA,VN199612-200612

main51205-0B020iKF80,LF80,RZF81..PHL199810-200501

main51205-0B030iKF60,80,RZF84..TAIW199902-200612

main51205-0B050iLF61,81,RZF61,80,81..SA200306-200503

main51205-0B060iRZF85..LHD199911-200612

main51205-0B070iLF85,RZF85..SA200306-200503

51206BCROSSMEMBER SUB-ASSY, FRAME, NO.6

main51206-0B010iKF80..MA;KF82..VN199612-200601

main51206-0B020iKF60..FD199612-200612

main51206-0B030iKF82,LF82,RZF82..PHL199810-200501

main51206-0B040iKF80,LF61,RZF61..SHRV;LF81,85,RZF80,81,85..SA199902-200612

main51206-0B050iKF60..LHD199902-200210

51211ACROSSMEMBER, FRAME, FRONT

main51211-0B010iKF82,LF82..RHD;KF60,7#,80,LF60,7#,80,RZF71,81..GEN,MA,PHL199612-200612

51217REINFORCEMENT, FRONT CROSSMEMBER, LOWER RH

main51217-0B010iKF60,70,80,LF60,70,80199612-199707

main51403-0B010iKF60,7#,8#,LF6#,7#,80,81,82,RZF80,YF60,80199707-200009

sub51403-0B011

main51403-0B011iKF82,LF82..RHD;KF60,7#,80,LF6#,72,80,81,RZF71,80,81,YF60,80200009-200612

51218REINFORCEMENT, FRONT CROSSMEMBER, LOWER LH

main51218-0B010iLF81,YF60,80..LHD;KF60,7#,8#,LF6#,7#,80,82199612-200009

sub51218-0B011

main51218-0B011iKF82,LF82..RHD;KF60,7#,80,LF6#,72,80,81,RZF71,80,81,YF60,80200009-200612

51225BBRACKET, FRONT SUSPENSION MEMBER, RH

main51225-0B010iKF82,LF82..RHD;LF81,YF60,80..LHD;KF60,7#,80,LF6#,7#,80,RZF71,81¥1,670199612-200612

51226ABRACKET, FRONT SUSPENSION MEMBER, LH

main51226-0B010iKF82,LF82..RHD;LF81,YF60,80..LHD;KF60,7#,80,LF6#,7#,80,RZF71,81¥1,670199612-200612

51401BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH

main51401-0B010iKF60,82..LHD;KF80..(SHRV,SRF)..(MA,TAIW)199612-200612

main51401-0B020iLF61,81,82..PHL,SA199612-200503

main51401-0B080iRZF61,80,81,82..(DLX,GL,STD)..(PHL,SA)200208-200503

51402BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH

main51402-0B010iKF60,80..(SCB,SHRW)..(LUB,SD)..(GEN,TAIW)199612-200612

main51402-0B020iLF61,81,82..PHL,SA199612-200503

main51402-0B080iRZF61,80,81,82..(DLX,GL,STD)..(PHL,SA)200208-200503

51701BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH

main51701-0B010iKF82,LF82..RHD;KF60,7#,80,LF6#,7#,80,81,85,RZF71,80,81,84,85,YF60,80¥2,290199612-200612

51702BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH

main51702-0B010iKF80..SHRW..TAIW;KF60,RZF84,85..(LUB,SD)..(GEN,TAIW)199612-200612

51703BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH

main51703-0B010iKF82,LF82..RHD;KF60,7#,80,LF60,72,80,RZF71,81,84,85..GEN,MA,PHL,TAIW,VN199612-200612

main51703-0B030iLF61,81,85,RZF80,85,YF60,80..SA¥4,580200012-200503

51704BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH

main51703-0B010iKF60,82,LF82,RZF82..LHD;KF80..(SHRV,SRF)..(MA,TAIW)199612-200612

main51703-0B030iLF61,81,85,RZF80,85,YF60,80..SA¥4,580200012-200503

51731BRACKET, CAB REAR MOUNTING, RH

main51705-0B010iKF60..LHD199612-200612

main51731-0B010iKF80..(SHRV,SRF)..(MA,TAIW);KF82,LF61,81,82,85,RZF61,80,81,82,85..(DLX,GL,STD)..(PHL,SA,VN)199612-200612

51732BRACKET, CAB REAR MOUNTING, LH

main51705-0B010iKF60..FD199612-200612

main51731-0B010iKF7#,8#,LF80,82,RZF81..GEN199612-200612

51744ABRACKET, REAR BODY MOUNTING, NO.4

main51744-0B010iKF60,LF60199612-200612

51745ABRACKET, REAR BODY MOUNTING, NO.5 RH

main51745-0B010iKF60,LF60199612-200612

51746ABRACKET, REAR BODY MOUNTING, NO.5 LH

main51745-0B010iKF60,LF60199612-200612

51963FHOOK, TRANSPORT

main51963-0B010iKF60,70,80,LF60,80..4F;KF70,80,LF70,80..(DLX,GL)..(GEN,MA,VN)199612-200612

main51963-0B030iKF80,LF80,RZF81..PHL199810-200501

main51963-0B040iKF60,80,LF61,81,85,RZF80,84,85,YF60,80..SA,TAIW199902-200612

57107BRACKET SUB-ASSY, STRUT BAR, RH

main57107-0B010iKF60,80..(SCB,SHRW)..(LUB,SD)..(GEN,TAIW)199612-200612

57108BRACKET SUB-ASSY, STRUT BAR, LH

main57108-0B010iKF82,LF82..RHD;KF60,7#,80,LF6#,7#,80,81,RZF71,80,81,YF60,80199612-200612

57656DBRACKET, EXHAUST PIPE MOUNTING, NO.1

main57656-0B010iLF60;KF60,7#,8#,LF80,82,RZF81..(FD,LUB)..GEN199612-200612

main57656-0B020iLF81,85,RZF80,81,85..SA;KF60,80,LF61,RZF61..(SCB,SHRV)..(SA,TAIW)199902-200612

main57656-38010iKF8#,LF82,RZF82..MA,PHL¥940199804-200503

57657DBRACKET, EXHAUST PIPE MOUNTING, NO.2

main57657-0B010iKF60,7#,8#,LF60,72,80,82,RZF71,81..GEN199612-200612

main57657-0B020iKF60,80,LF61,81,85,RZF80,84,85,YF60,80..SA,TAIW199902-200612

main57657-38010iKF8#,LF82,RZF82..MA,PHL¥1,150199804-200503

58233BRACKET, EXHAUST PIPE MOUNTING

main58233-0B010iKF60..FD199612-200612

main58233-0B020iKF60,80,RZF84,85..TAIW199902-200612

77204DSTAY SUB-ASSY, FUEL TANK FILLER UPPER PIPE

main77204-0B010iKF82..RHD200208-200612

9011912138

main90119-12138¥210

91651B0820

main91651-B0820¥160

43 parts on this diagram · 4 diagrams in section
